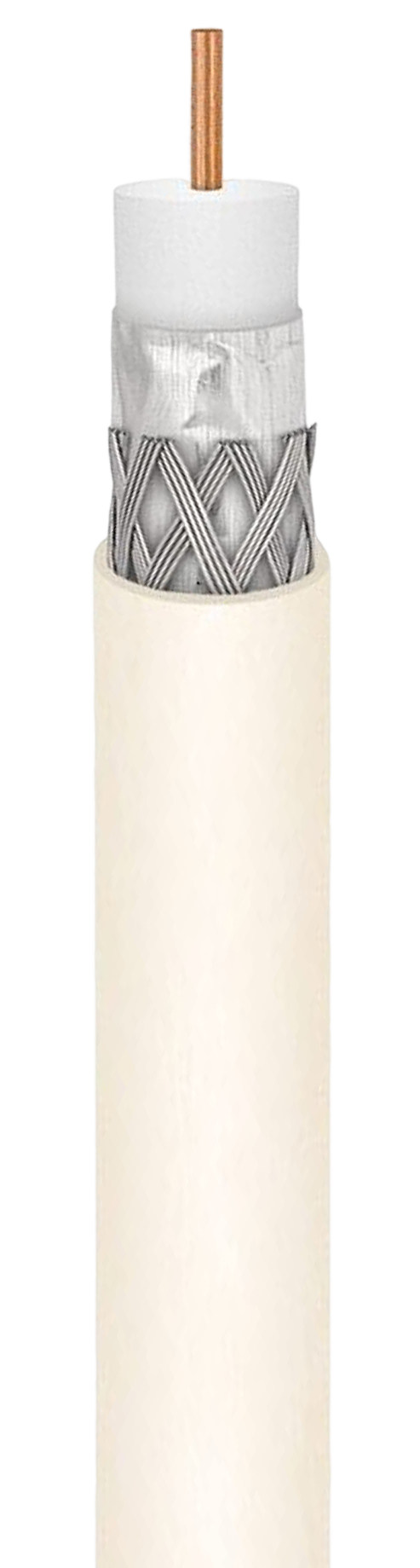

NO.7100010 RG6/U S 90% CMP UL Certificated

Key Information & Construction Parameters:

SKU:

7100010

UL Certificate Number:

E541136

Standards:

UL 444 & CSA C22.2 No.214
Communications Cables

Inner Conductor Material

Copper Covered Steel (CCS)

Inner Conductor Size

0.040"/18AWG/1.024±0.008mm

Insulation Material

Skin Foam FEP

Insulation Size

0.170±0.006"/4.32±0.15mm

Shield 1

Bonded Aluminum/Poly Tape

Shield 2

AL_MG  braiding wire

90% Coverage

Jacket

Material: Plenum PVC

Norminal Thickness: 0.018"(0.46mm)

OD: 0.236±0.012" (6.0±0.3mm)

Application

Audio/Video

CATV/CCTV

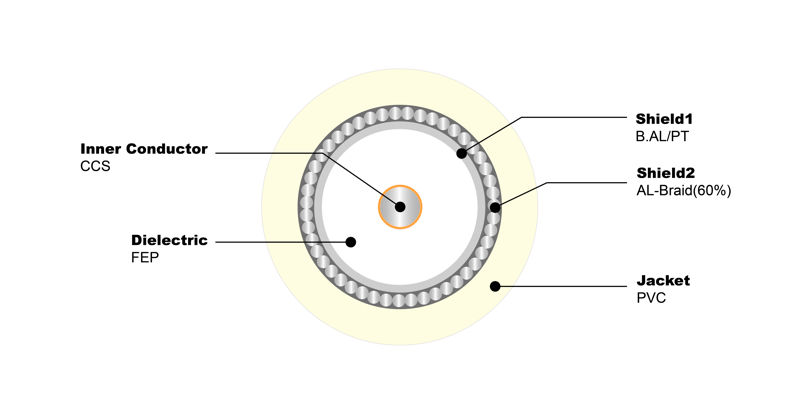

Cross Section:

Electrical Characteristics & Physical Properties:

Inner Conductor Resistance

93.8 Ω/km         | 28.6 Ω/1000 ft.

Capacitance

52.5 pF/m.Nom  | 16 pF/ft.Nom

Impedance

75 ± 3 Ω

Return loss

20dB (1 -300MHz) 100% Swept Tested

Velocity of Propagation

84% Nom.

Sparker Test (VAC)

2500 V

Cable bend radius

10 times the cable diameter

Operating Temp Range

-20 to 75 ℃ （-4 to 167℉）

RoHS

Compliant

Attenuation(20℃):

Frequency (MHZ)

Max Attenuation(dB/100ft)

Max Attenuation (dB/100m)

1

0.42

1.38

10

0.95

3.11

50

1.60

5.25

100

2.20

7.21

200

3.20

10.49

400

4.70

15.41

700

6.60

21.64

900

7.90

25.90

1000

8.20

26.89

1200

8.80

28.85

1450

10.10

33.11

1800

11.80

38.69

2200

13.50

44.26

3000

16.50

54.10

*The above data is for reference only, the actual order test report shall prevail.
