RG6 S
hellosignal
7100016

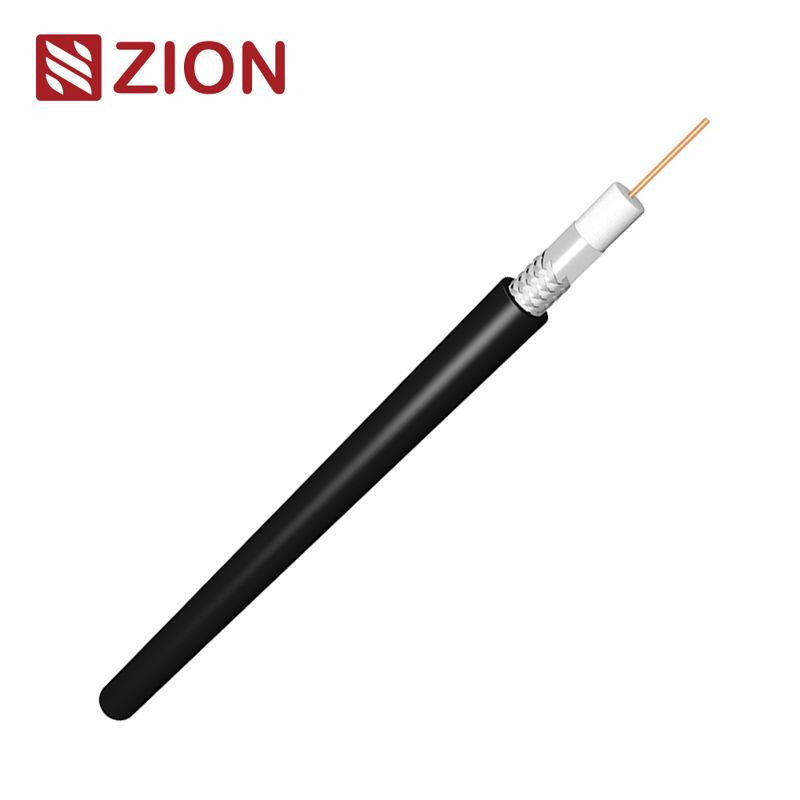

Coaxial Cable
75 ohm
UL, ETL, CE, RoHS
100m, 305m,500m,1000m,500ft,1000ft
roll, wooden spool, carton, pallet
30KM
Normally 15 working days
NINGBO, SHANGHAI
T/T, L/C at sight, D/P at sight
Availability: | |
---|---|
NO.7100016 | |||
Construction Parameters: | |||
Inner Conductor | 0.036"/0.9mm/19AWG CCS(15%) | ||
Dielectric | 0.180"/4.57mm Foamed PE | ||
Shield 1 | 0.187"/4.75mm Bonded Aluminum Polyproylene | ||
Shield 2 | Aluminum braid wire 60% coverage | ||
Jacket | 0.259"±0.006"/6.58±0.15mm PVC-Recyle | ||
Jacket Thickness | |||
Application | For Use in Longer CATV Run Lengths | ||
Electrical Characteristics: | |||
Inner Conductor Resistance | The Max. at 20℃ shall be < 180 Ω/km | ||
Capacitance | 52 ±3 pF/m 17.2 ±1 pF/ft | ||
Impedance | 75 ± 3 Ω | ||
Return loss | between 5 and 1000MHz: > 20dB | ||
Velocity of Propagation | 0.85 | ||
Sparker Test (VAC) | 4 | ||
Mechanical and Envrionmental Properties | |||
Cable bend radius | 10 times the cable diameter | ||
Operating Temp Range | -20 ℃ to 60℃ | ||
Cable diamensions | 0.259"±0.006"/6.58±0.15mm PVC-Recyle | ||

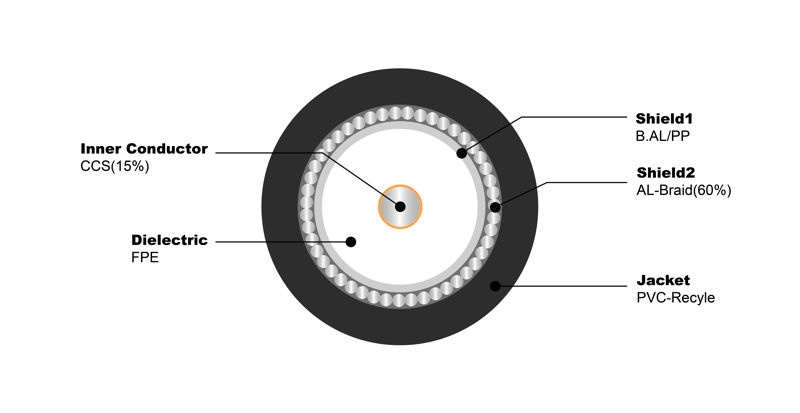

Cross Section | |||
Attenuation(20℃): | |||
Frequency (MHZ) | Max Attenuation(dB/100ft) | Max Attenuation (dB/100m) | |
5 | |||
50 | |||
100 | |||
300 | |||
450 | |||
865 | |||
1000 | |||
Order Informations: | |||
Marking | HELLOSIGNAL RG6 S super economy | ||
Package | Inquired Length on Reel,Pull Box,Plastic Spool,wooden Spool,pallet … | ||
Delivery time | Normally 25 days after received the deposit. | ||
Brand | HELLOSIGNAL® OR OEM | ||
