Shielded Halogen-Free Audio Cable Selection Guide

■What Is Shielded Halogen-Free Audio Cable?

A shielded halogen-free audio cable combines two core functions in one construction. First, it uses shielding such as foil, braid, or a combination of both to reduce signal disturbance from EMI and RFI. Second, it uses halogen-free jacket and insulation compounds intended for low-smoke, lower-corrosivity behavior compared with traditional halogenated materials in fire conditions. This makes it especially relevant for indoor public buildings, conference systems, broadcast rooms, education projects, transportation facilities, and enclosed AV installations where both signal integrity and safety-driven material choice matter.

It should not be confused with a generic microphone cable or a generic shielded control cable. Audio applications still need the right conductor count, conductor stranding, shielding arrangement, capacitance profile, and in some cases controlled impedance. For example, balanced analog audio, unbalanced signal paths, and AES/EBU digital audio do not all use the same cable logic, even if their outer appearance looks similar.

■When Should You Use It?

This cable type makes the most sense when a project must satisfy two conditions at the same time: the installation needs better signal protection against interference, and the building or consultant requires a safer indoor material strategy such as low-smoke, halogen-free, or lower-corrosivity behavior. That combination is common in conference rooms, auditoriums, hospitals, schools, stations, airports, theaters, control rooms, and structured AV deployments where cables pass through enclosed spaces or dense equipment areas.

If the route is short, electrically quiet, and not governed by any halogen-free material preference, a standard shielded audio cable may be sufficient. On the other hand, if the building specification clearly points to low-smoke or halogen-free materials, then shielding type should still be chosen based on the actual EMI level rather than added blindly.

■Common Cable Types

Buyers should separate shielded halogen-free audio cable into application-driven groups rather than buying by jacket description alone.

1. Balanced microphone / analog audio cable

Usually built as a shielded twisted pair with good flexibility and repeated-handling tolerance. Suitable for microphones, balanced analog signal paths, and patch applications where noise rejection and flexibility are both important.

2. Fixed installation audio cable

More suitable for routing in ceilings, conduits, trays, racks, and permanent indoor AV systems. It may prioritize dimensional stability and installation efficiency over extreme flexibility.

3. Multi-pair audio cable

Used when multiple channels need to be routed together between racks, stage boxes, or centralized AV points. Pair identification, crosstalk management, and overall diameter control become more important.

4. AES/EBU digital audio cable

This type must be checked for 110-ohm digital audio suitability. It should not be treated as an ordinary analog microphone cable just because the connector family may look familiar.

■Key Parameters Buyers Should Confirm

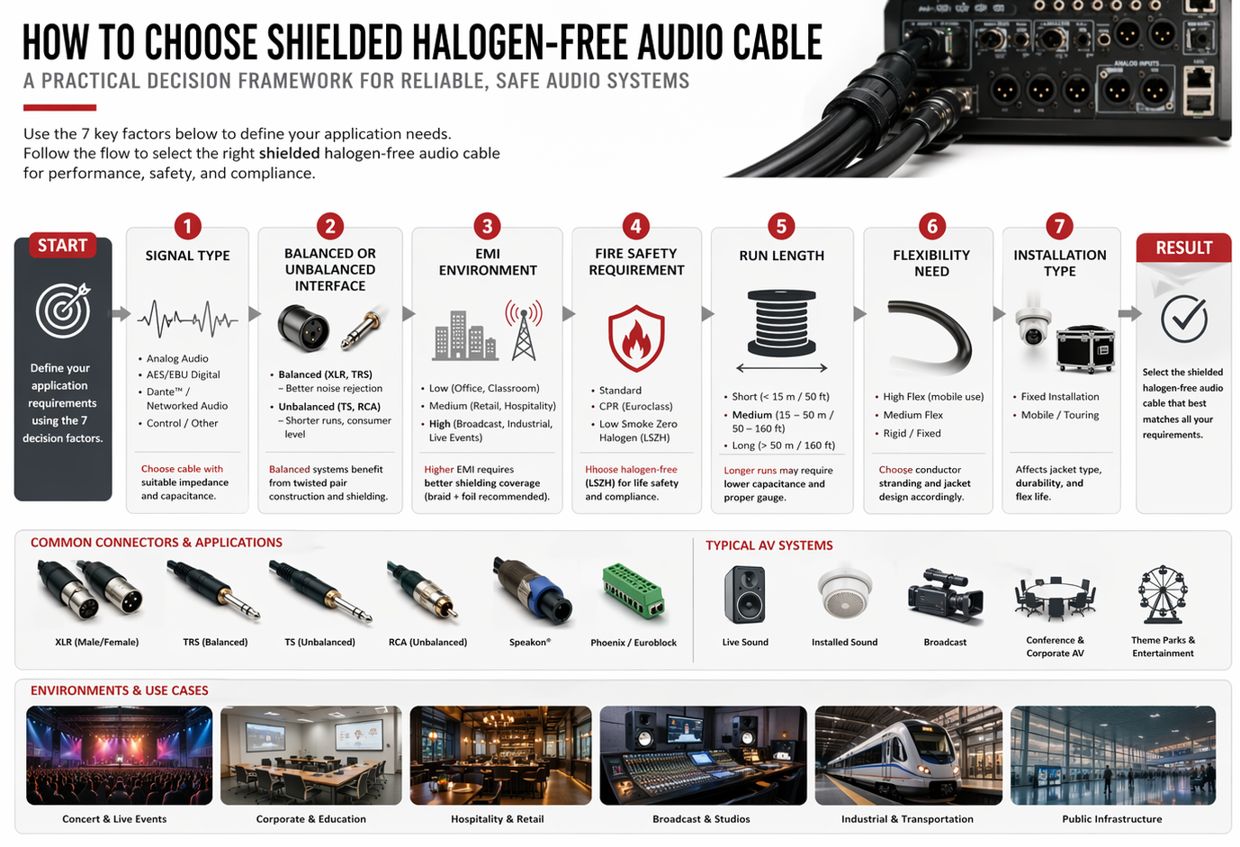

A correct selection should start with the signal path and installation environment, then move into construction details. These are the main items procurement teams and engineers should confirm before ordering.

• Signal type: analog balanced, analog unbalanced, or AES/EBU digital audio.

• Conductor structure: conductor size, stranded vs solid, and flexibility requirements.

• Pair structure: twisted pair, multi-pair, drain wire, pair identification, and overall organization.

• Shield type: foil, braid, or foil plus braid depending on EMI risk and flex demand.

• Electrical behavior: capacitance for analog performance and nominal impedance when digital audio is involved.

• Jacket material: halogen-free compound type, indoor suitability, and project documentation.

• Installation method: fixed route, rack interconnect, conduit, ceiling tray, or portable field use.

• Maintenance impact: diameter, bend behavior, termination difficulty, and long-term serviceability.

■Shielding Options and Trade-Offs

Shielding is important, but it should be selected as part of the system design rather than treated as a universal upgrade. Balanced twisted-pair audio already helps reject common-mode noise. Shielding adds another layer of protection, especially near power cables, lighting systems, control panels, or dense AV equipment zones.

■Halogen-Free and Fire-Behavior Documents

One of the most common purchasing mistakes is accepting “LSZH” or “halogen-free” as a general description without checking how that claim is supported. In real projects, buyers should ask which standard references support the material statement and whether the supplier can provide matching datasheets, test references, or declarations for the actual cable family being quoted.

For procurement logic, the question is not whether the brochure says halogen-free. The question is whether the supplier can align the quotation description, material statement, test basis, and production identification without contradiction.

■Engineer’s Shortcut Selection Rules

For fast project screening, use the table below to decide whether shielded halogen-free audio cable is actually the right fit.

■Common Buying Mistakes

• Buying by jacket wording only: “halogen-free” does not automatically mean the cable is right for the signal path.

• Treating all audio cable as interchangeable: microphone cable, installation cable, and AES/EBU cable are not the same decision.

• Choosing maximum shielding by default: more shield can also mean more stiffness, larger diameter, and harder termination.

• Ignoring balanced vs unbalanced architecture: the cable must match the circuit, not just the connector family.

• Skipping supplier document review: mismatched datasheets, unclear reel labels, and weak traceability cause avoidable project delays.

• Overlooking maintenance: what works in a rack may fail early in a field-use or repeated-flex application.

■FAQ

Is shielded halogen-free audio cable always better than standard shielded audio cable?

No. It is better only when the project needs both signal protection and a halogen-free / low-smoke indoor installation strategy. Otherwise it may increase cost and stiffness without adding useful value.

Can I use microphone cable for AES/EBU digital audio?

Do not assume so. AES/EBU links should be checked as 110-ohm digital audio paths, not as generic analog audio cable runs.

Which shield is better, foil or braid?

Neither is universally better. Foil is often more suitable for fixed installation and high coverage. Braid is often more suitable for handling, flexing, and mechanical durability.

Do balanced audio lines still need shielding?

Often yes. Balanced construction improves noise rejection, but shielding still adds protection in electrically difficult environments.

What should procurement ask the supplier before placing the order?

Ask for the final datasheet, shielding structure, conductor specification, application positioning, and the supplier’s material or compliance statement tied to the actual quoted cable model.

■Conclusion

Shielded halogen-free audio cable should be selected as a system-fit solution, not as a keyword upgrade. The right choice depends on whether the signal path is balanced or unbalanced, whether digital audio impedance must be controlled, how much EMI exposure exists in the route, and whether the project really requires halogen-free or low-smoke material behavior for enclosed indoor spaces.

For engineers and buyers, the safest process is straightforward: identify the signal type first, confirm the installation environment second, and then compare shielding, flexibility, and documentation. That sequence reduces noise problems, substitution risk, approval delay, and unnecessary cost.
