The shift to 10 Gbps Ethernet (10GBASE-T), powering devices via Power over Ethernet (PoE++), and implementing Wi-Fi 6/6E access points contribute to the growing utilization of Cat6a mixed network cabling. Due to its 500 MHz bandwidth capacity and support for 10 Gbps runs within 100 meters, Cat6a has been projected as a viable option for future-proofing high-speed, dense networks across commercial and industrial applications.
One major consideration when performing installations:
Shielded or unshielded Cat6a cables?

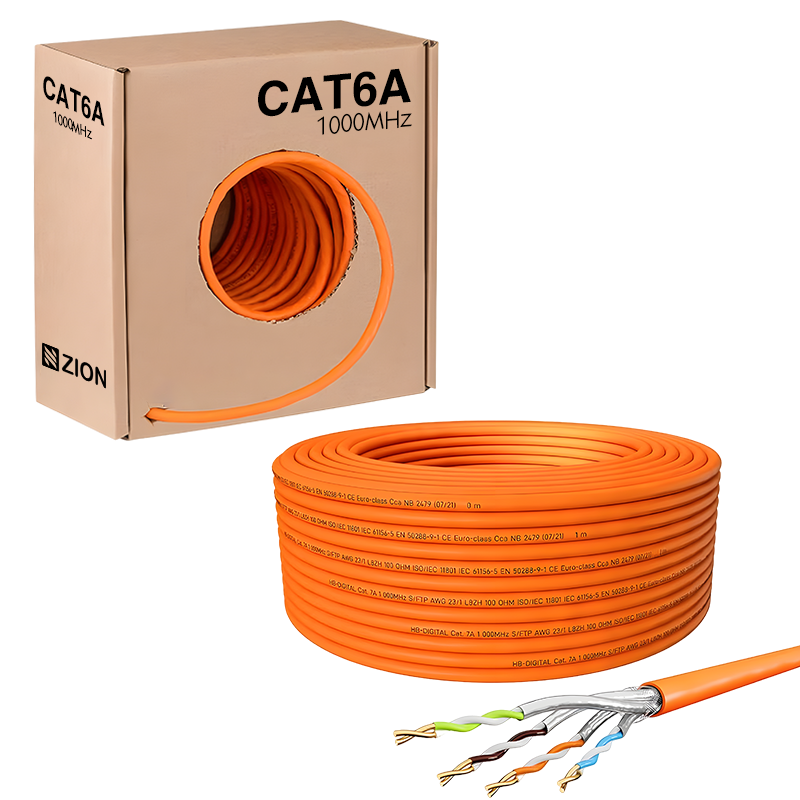

Cat6a (Category 6 augmented) cabling is an enhanced variant of Cat6 that incorporates improved insulation, tighter twisting of wires, and more rigorous crosstalk control.
Specification | Cat6a |
Max Speed | 10Gbps |
Max Distance | 100m |
Frequency | 500 MHz |
Backward Compatibility | Cat6, Cat5e |
PoE Support | Up to PoE++ (100W) |
Cat6a cabling is commonly used in:
Data centers
Schools & campuses
Medical labs & hospitals
Intelligent buildings
Industrial automation facilities
The Cat6a cable is categorized into two main types:
No foil or braided shielding present
Crosstalk is minimized by tight twisting and spacing between wire signals
Easy to install; easy to handle
Low cost and investment
Foil or braided shielding present to minimize electrical noise interference (EMI) and radio-frequency interference (RFI)
Generally used in unusually electrically noisy areas
Can be considered "concrete-poor" without proper grounding of shields, twists, and signal wires
Requires shielded couplers, connectors, and jacks

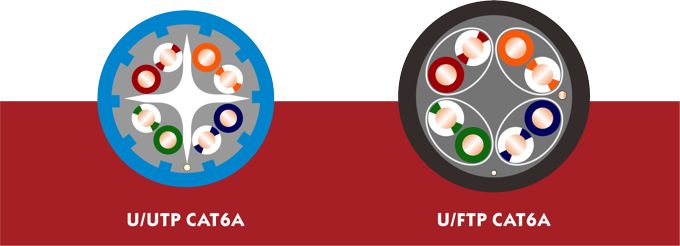

Acronym | Meaning | Overall Shield | Pair Shielding |
U/UTP | Unshielded Twisted Pair | None | None |
F/UTP | Foil overall shield | Foil | None |
U/FTP | Each pair individually shielded | None | Foil |
S/FTP | Braid + Foil pair shielding | Braid | Foil |
SF/UTP | Foil + braid overall shield | Foil + Braid | None |
F/FTP | Foil overall + foil pair shield | Foil | Foil |
Note: For STP cables to function properly, the entire link — including patch panels, connectors, jacks, and even devices — must be shielded and grounded at both ends.
■ Shielded vs Unshielded Cat6a: Pros and Cons
Feature | Unshielded Cat6a (UTP) | Shielded Cat6a (STP/FTP) |
EMI Protection | Low | High |
Cost | Lower | Higher |
Installation | Easier, more flexible | Rigid, more complex |
Grounding | Not required | Mandatory |
PoE Support | Fully supported | Fully supported |
Ideal Use | Offices, homes, clean environments | Factories, hospitals, heavy EMI areas |
■ When to Use Shielded vs Unshielded Cat6a?
Cable runs will be parallel to electric or signal power lines or motors
Wiring near generators, elevators, or HVAC
Wiring industrial facilities, data centers, or healthcare
Maximum intended transmission integrity is critical
Wiring backbone links from network switch to switch or server to server
Wiring in an office or home (or clean office) environment
No significant EMI sources are nearby
Clients request inexpensive fast installations
Flexibility and easy handling are needed
■ What Are the Cost Considerations?
There may be cost considerations regarding multiple Cat6a cable installation options.
Initial cost: Either shielded or unshielded typically costs more than the other
Termination time: Shielded jacks take longer and require more skill for proper termination
Component cost: Continuity shields and grounding sensors require shielded jacks, patch panels, and cords to be used as part of the backbone link
Maintenance: Shielded cabling often requires more regular attention for routing cables or shielding connectors with respect to grounding and performance
To note: It is important to understand that cost can be more than just the price of the cable. The total installation costs, hardware compatibility and prevention, or future costly expectations must also be researched before selecting the preferred Cat6a cable type.
■ FAQs
Q: Can I use shielded Cat6a cable with unshielded Cat6a cable (mix and match)?
A: No; mixing STP and UTP cables creates ground problems eliminating the shielding advantage.
Q: Is Cat6a better than Cat6?
A: Yes; especially over 100 meters at 10 Gbps and minimizing alien crosstalk.
Q: Does Cat6a support PoE?
A: Yes; both STP and UTP Cat6a cabling supports PoE and PoE+ and PoE++.
Q: How do I test a Cat6a patch cable using Fluke Networks tools?
A: To test a Cat6a patch cable, use a Fluke Networks cable certifier like the DSX-8000 or DSX-5000. These testers perform TIA/EIA-568 Cat6a certification, checking parameters such as NEXT, RL, length, wiremap, propagation delay, and insertion loss. For accurate results:
Use Cat6a permanent link adapters or channel adapters depending on your test scope.
Ensure the cable is properly terminated and untwisted pair lengths are minimal.
Run an auto test, and verify the result shows PASS for Cat6a standard.
Regular Fluke certification ensures your Cat6a patch cords meet 10G Ethernet requirements and are compliant with PoE++ performance standards.
■ Conclusion: Which Cat6a Cable Should You Choose?
Environment | Recommended Cable Type |
Home or Small Office | Cat6a UTP |
Manufacturing Floor | Cat6a STP (F/UTP, S/FTP) |
Medical Facilities | Cat6a Shielded |
Data Center Backbone | Cat6a Shielded |
Budget-Conscious Projects | Cat6a UTP |
In short, choose Cat6a STP when EMI is a concern, and go with UTP for simplicity and lower cost where shielding isn't necessary.
