Author: Site Editor Publish Time: 29-04-2026 Origin: Site
CMR cable is a riser-rated communications cable used for vertical building pathways such as riser shafts, floor-to-floor telecom routes and multi-story low-voltage cabling systems. For buyers and engineers, the key decision is not only data performance, but whether the cable rating matches the installation zone.
Use CMR for vertical riser shafts and floor-to-floor communications cable runs.
Use CMP when the route enters plenum or environmental air-handling space.
Do not treat CMR as a universal indoor fire rating; route mapping comes before quotation.
CMR cable, commonly known as communications riser cable, is a cable rating used for vertical building runs such as riser shafts, floor-to-floor pathways and telecom closets connected across multiple levels. Its main purpose is to reduce the risk of flame propagation in vertical cable routes. For procurement teams, CMR should be specified when the cable route is a riser area, while CMP should be checked when the route includes plenum or environmental air-handling spaces.
| Buyer Question | Practical Answer | Risk if Ignored |
|---|---|---|
| Is the cable going floor-to-floor? | Start with CMR as the baseline. | General-purpose cable may fail project inspection. |
| Is the cable in a plenum ceiling? | Use CMP where plenum rating is required. | CMR may be rejected in air-handling spaces. |
| Does CMR define Ethernet speed? | No. Cat5e, Cat6 or Cat6A defines data performance. | Incorrect comparison between fire rating and category rating. |
Riser-rated communications cable for vertical building pathways.
It does not define data speed, bandwidth, shielding type or conductor material.
Cat6 CMR, Cat6A CMR, riser-rated low-voltage cable and vertical communications backbone cable.

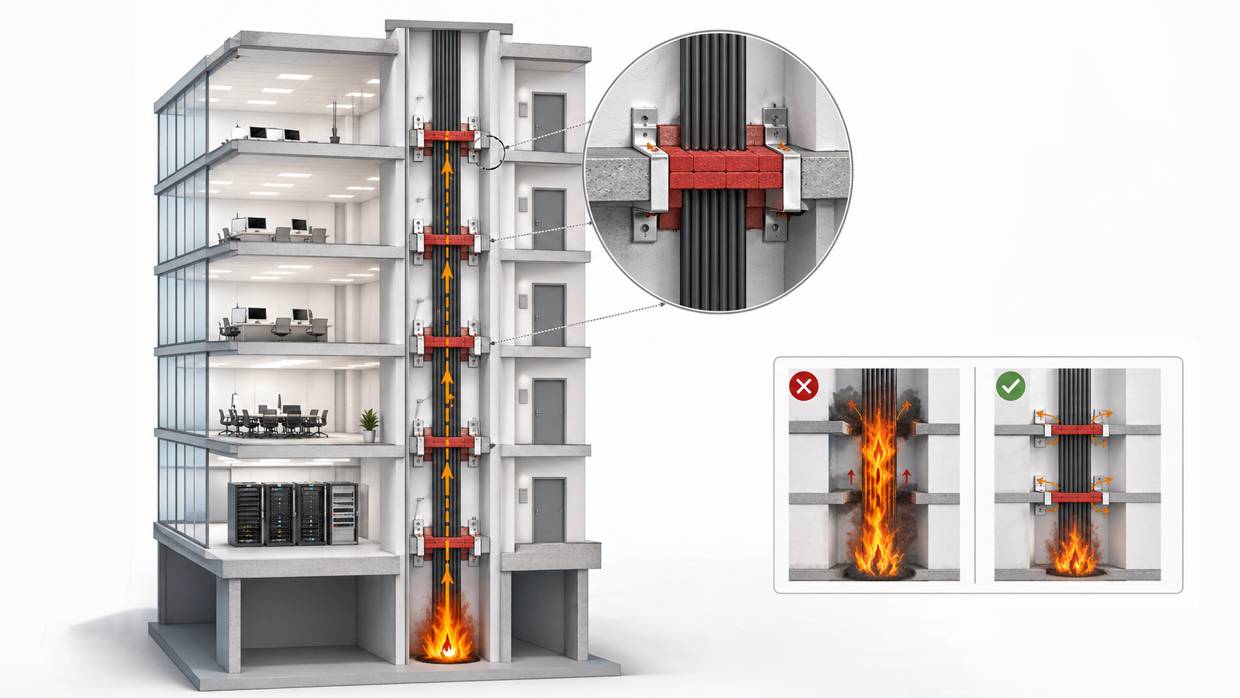

A riser shaft is a vertical pathway through the building. This makes it useful for cable routing, but it can also become a fire-spread path if the wrong cable jacket or fire rating is used. The main concern is vertical flame propagation: once flame travels upward along a cable bundle, the risk can extend beyond a single floor.
For this reason, cable selection in riser shafts should not be treated as a simple cost decision. The selected cable must align with the building route, project specification, inspection requirement and local authority approval.
| Vertical Shaft Factor | Why It Matters | Cable Selection Impact |
|---|---|---|
| Floor-to-floor routing | Cable passes through multiple building levels. | CMR should be specified as the baseline. |
| Cable bundle density | More cable volume can increase fire load and heat concentration. | Check jacket rating, tray fill and installation method. |
| Mixed low-voltage systems | Ethernet, access control, BMS and security cables may share pathways. | Do not assume all low-voltage cables use the same rating. |
| Inspection requirement | The final acceptance may depend on local code and AHJ review. | Confirm rating and documentation before shipment. |
UL 1666 is the key flame propagation test associated with riser-rated cable. In practical buying language, it evaluates how flame propagates on cables installed vertically in shafts or vertical runs that penetrate one or more floors. This is why UL 1666 is frequently connected with CMR cable discussions.
However, UL 1666 should not be misunderstood as a complete product performance standard. It does not replace checks for Ethernet category, conductor quality, shielding, PoE suitability, packaging, batch traceability or local compliance documentation.
| UL 1666 Focus | Buyer Interpretation | What Still Needs Confirmation |
|---|---|---|
| Vertical flame propagation | Relevant to riser shafts and floor-to-floor runs. | Check whether the actual route is riser, plenum or general area. |
| Riser installation condition | Supports CMR-type project selection logic. | Confirm cable marking and listing documentation. |
| Fire safety classification | Helps reduce wrong cable use in vertical shafts. | Does not define bandwidth or PoE performance. |
| Project acceptance | Useful for NEC-style specifications and inspection review. | Local AHJ and project specification remain the final authority. |

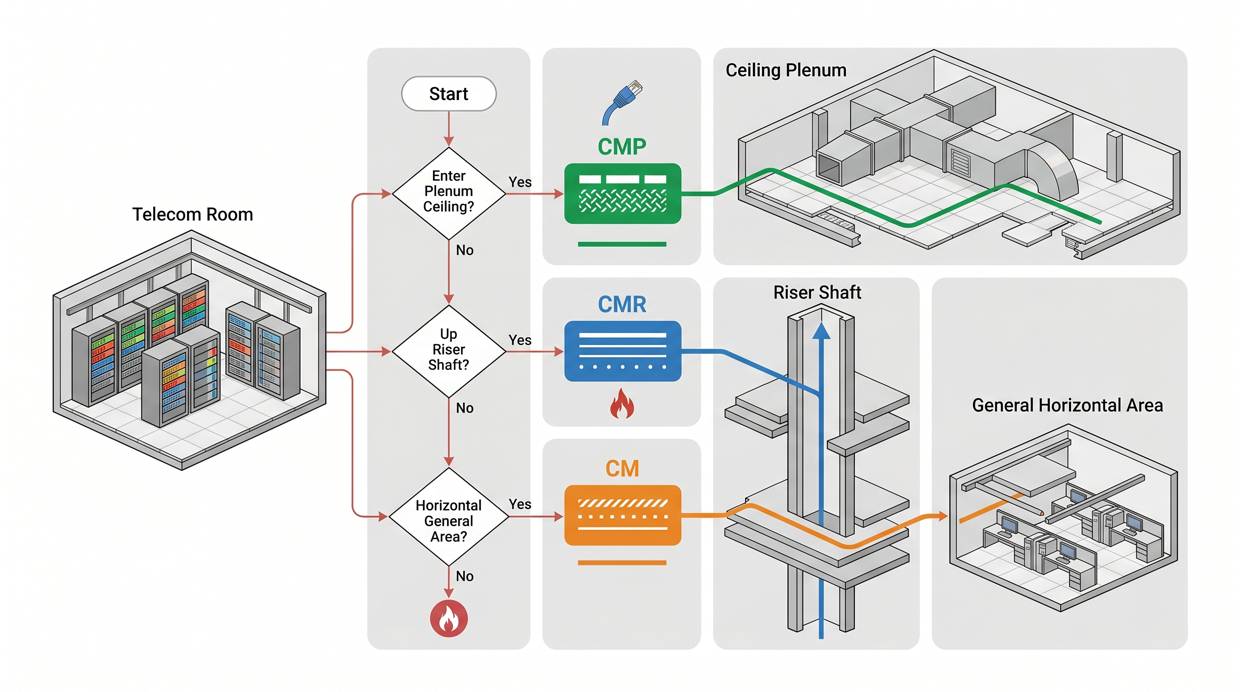

Many quotation errors happen because buyers describe a cable as “fire rated” without specifying the installation area. CMP, CMR and CM are not interchangeable in every building zone. The right choice depends on whether the cable is installed in plenum space, riser space or general-purpose areas.
| Cable Rating | Typical Installation Area | Selection Logic | Main Buyer Risk |
|---|---|---|---|
| CMP | Plenum or environmental air-handling spaces | Use where plenum rating is required by code or project spec. | Higher cost, but lower compliance risk in plenum zones. |
| CMR | Riser shafts and vertical floor-to-floor routes | Use as the standard riser-rated communications cable choice. | Wrong use in plenum space may cause rejection. |
| CM / CMG | General-purpose communications areas | Use only where riser or plenum rating is not required. | Cost-saving downgrade may trigger rework. |
| CMX | Limited-use residential or small low-voltage applications | Not suitable for most commercial riser shafts. | High rejection risk in commercial projects. |
Choose CMR cable when the installation includes vertical communications pathways but does not require plenum-rated cable for the same segment. In many commercial projects, CMR is the practical balance between compliance, cost and availability for riser applications.
| Project Condition | Recommended Choice | Reason |
|---|---|---|
| Cable runs from one floor telecom room to another | CMR | Standard riser-type application. |
| Cable passes through a vertical shaft | CMR or higher | Vertical flame propagation risk must be considered. |
| Cable enters return-air ceiling space | CMP where required | Plenum spaces have stricter requirements. |
| Cable route includes both riser and plenum sections | Split sections or use higher rating | Avoid mixed-route compliance problems. |
| Single-floor general horizontal run outside plenum | CM / CMR / CMP depending on spec | CMR may be acceptable but may cost more than required. |
A good CMR cable RFQ should not only say “riser cable.” It should define the cable category, conductor, shielding, jacket, packing, marking and installation route. This prevents suppliers from quoting a visually similar but technically unsuitable cable.
| RFQ Field | What to Confirm | Why It Matters |
|---|---|---|
| Fire rating | CMR, CMP, CM or CMX | Prevents wrong installation rating. |
| Cable category | Cat5e, Cat6, Cat6A or other product type | Fire rating does not define transmission performance. |
| Conductor | Solid bare copper, stranded copper, AWG size | Affects PoE, resistance, installation and acceptance. |
| Shielding | UTP, FTP, F/UTP, S/FTP | Important for EMI and equipment compatibility. |
| Jacket and marking | Riser-rated jacket, printed rating, batch traceability | Useful for inspection and project documentation. |
| Packing | 305m pull box, 1000ft box, drum or custom length | Affects installation efficiency, waste and freight. |
| Route information | Riser shaft, plenum, tray, conduit, ceiling or cabinet | Determines whether CMR is enough or CMP is required. |
Most CMR cable problems are caused by incomplete route information or unclear RFQ wording. The buyer asks for “network cable,” the supplier quotes by price, and the installer later discovers that the building route requires a different fire rating.
| Mistake | Why It Happens | Project Impact | Better Rule |
|---|---|---|---|
| Using CMR in plenum ceiling space | Buyer assumes all fire-rated cable is the same. | Inspection failure or replacement cost. | Use CMP where plenum rating is required. |
| Buying CM cable for riser shaft | Cost pressure or incomplete project drawing. | Rating mismatch in vertical route. | Specify CMR minimum for riser pathways. |
| Treating CMR as an Ethernet speed | Confusion between fire rating and category rating. | Wrong technical comparison. | Specify both: Cat6 CMR or Cat6A CMR. |
| Ignoring PoE load | Only fire rating is checked. | Heat, voltage drop or performance risk. | Confirm AWG, conductor and PoE application. |
| Accepting unclear compliance claims | Logo or wording is shown without traceable details. | Documentation dispute or inspection risk. | Ask for jacket marking and compliance support. |
CMR cable is widely used in commercial, industrial and building low-voltage projects where vertical pathways connect different floors or equipment rooms. The exact cable construction should still be selected according to bandwidth, PoE load, shielding demand and installation method.
Used for vertical backbone cabling between telecom rooms, equipment rooms and floor distribution points.
Supports vertical cabling for guest-room networks, Wi-Fi, access control, CCTV and low-voltage systems.
May be used in vertical cable pathways, subject to airflow zone, cable density and local fire code review.
Useful for building management, access control, alarm and surveillance cabling passing through riser areas.
CMR cable is a practical and widely used choice for vertical riser cable runs in commercial buildings, hotels, data centers and low-voltage systems. Its value is specific: it helps address riser shaft flame propagation risk. It should not be confused with CMP plenum cable, general-purpose CM cable or Ethernet category performance.
For a reliable quotation, buyers should confirm three things before ordering: where the cable will be installed, what performance category is required, and what compliance documentation must be provided. This reduces rework, inspection failure, substitution disputes and project delay.
Share your building route, cable category, installation area and packing requirement with ZION Communication for a project-based recommendation.
