Author: Michael Publish Time: 29-08-2025 Origin: Site
If you find "UL" on your cable, it means something more than just a simple logo.
It serves as evidence, which the item fulfills rigid safe measures.
Engineers, installers, and building inspectors trust UL because it signifies all failures in these aspects – fire, performance, and compliance – are avoided.
In this case, communication cables, such as fiber optic cables, Ethernet (LAN) cables, and data transmission cables, UL certification is not optional. It’s mandated in the majority of commercial projects all over North America.
If you’re determining, selecting, or spacing cables, having the meaning of UL in mind helps you prevent setbacks, revisiting, and unsafe situations.
UL means Underwriters Laboratories. These days, it has changed its name to UL Solutions, an international safety science corporation, established in 1894.
UL generates standards, examines products, and guarantees that they meet requirements for:
Fire resistance
Electrical safety
Mechanical strength
Environmental impact
For cables, UL certification means:
The materials won’t spread flames easily.
The cable can handle its rated voltage safely.
It performs under real installation conditions.
It follows codes like the National Electrical Code (NEC) in the U.S.
Common UL-rated communication cables include:
CM, CMR, CMP – for general, riser, and plenum spaces
CAT5e, CAT6, CAT6A – with verified UL file numbers
OFNR, OFNP – fiber optic cables for different fire zones
These labels are not suggestions. They are legally enforceable in building and fire codes.
Wiring traverses the walls, ceilings, and air ducts. When a fire is started by insulation of low quality, in time the flames will spread or the highly toxic smoke will be released.

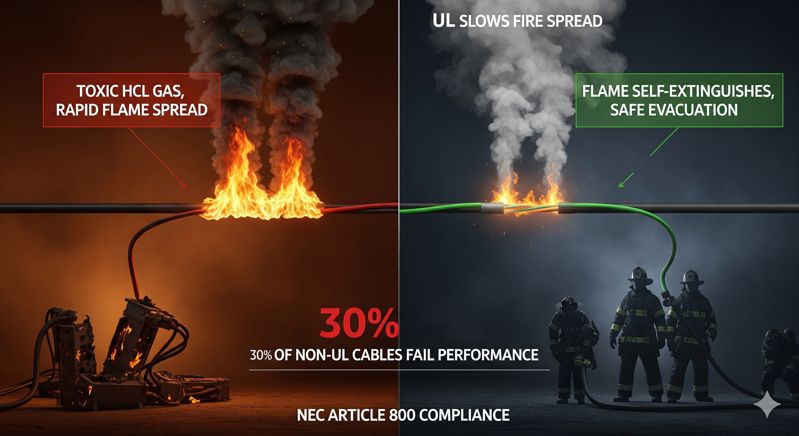

UL tests cables for:
Flame spread (how far fire travels)
Smoke density
Toxic gas emissions
Two key ratings you’ll see:
CMR (Riser-rated): Resists fire moving between floors
CMP (Plenum-rated): For air-handling spaces; must produce low smoke and low toxicity
Without UL testing, you can’t know how a cable will behave in fire.
UL doesn’t just test fire safety. It also checks:
Conductor size (is the copper really 23 AWG?)
Insulation thickness
Shielding quality (for STP/FTP cables)
Signal loss and crosstalk
A cable might say “CAT6” on the box. But if it’s not UL-listed, there’s no proof it delivers 100 MHz bandwidth or supports 1 Gbps over 100 meters.
Slow speeds
Packet loss
Intermittent connections
UL runs a Wire and Cable Material Recognition Program. This ensures every material—insulation, jacket, filler—meets safety benchmarks.
Why does this matter?
Some PVC compounds release corrosive chlorine gas when burned.
Cheap jackets crack in cold weather or degrade under sunlight.
With UL, each component is tested and documented. You can trace back every part of the cable.
This level of control reduces risk—and gives you confidence in long-term reliability.
Building inspectors check for UL marks. If they don’t see them, they reject the installation.
Having UL-listed cables speeds up:
Permit processing
Fire marshal review
Final occupancy sign-off
A non-UL cable might cost $0.10 less per foot. But the price of failure is much higher.
Imagine this:
A contractor installs 5,000 feet of non-UL CM cable in an office building.
During inspection, the AHJ (Authority Having Jurisdiction) flags all cables.
Result: Full replacement + labor = $15,000+ loss.
UL certification prevents these avoidable costs.
UL is accepted in:
The U.S. (UL)
Canada (cUL)
Mexico
Middle East
Parts of Asia
Many government and enterprise tenders require UL listing as a minimum qualification.
For manufacturers, UL certification means access to:
Public infrastructure projects
Data center upgrades
Enterprise IT contracts
It’s not just about safety. It’s about market access.
These queries are what we receive multiple times a day. Here are some points that give you correct information you need.
A: The difference between these three testing laboratories is that UL (Underwriters Laboratories), ETL (Intertek), and CSA (CSA Group) are all NRTLs (Nationally Recognized Testing Laboratories).
While the tests conduct thorough inspections based on the same standards, UL 444 or UL 1581. Their certifications thus stand equally valid in the U.S.A.
However, some clients have a preference for their existence due to the brand trust.
A: Not necessarily. While the listing by UL imparts solely safety, it often remains a question about – environmental durability – the part that they (the cables) are exposed to outdoors.
To utilize it in outdoors, confirm for:
Direct-burial approval rating
UV jack resistant jacket (of PE or PVC plastic)
Waterproofing ability with tape or gel
If the wire have UL listing, when you feel free to make sure it has wet location rating (CMP or CMR types).
A:

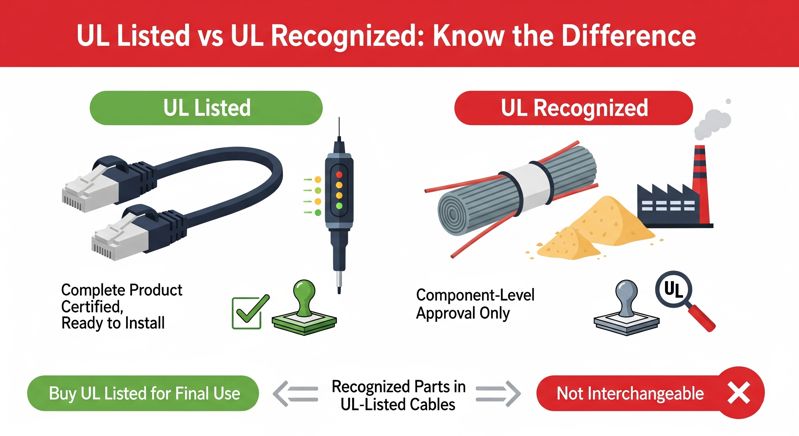

UL Listed: The whole product, e.g., a ready Ethernet cable, approved by Underwriters Laboratories for its intended application.
UL Recognized: The role and function of a single part, for example, filler or insulation, is evaluated.
When you buy wires, always ask for the UL Listed certification of all of the parts, not only the recognized ones.
A: Follow these 4 steps:

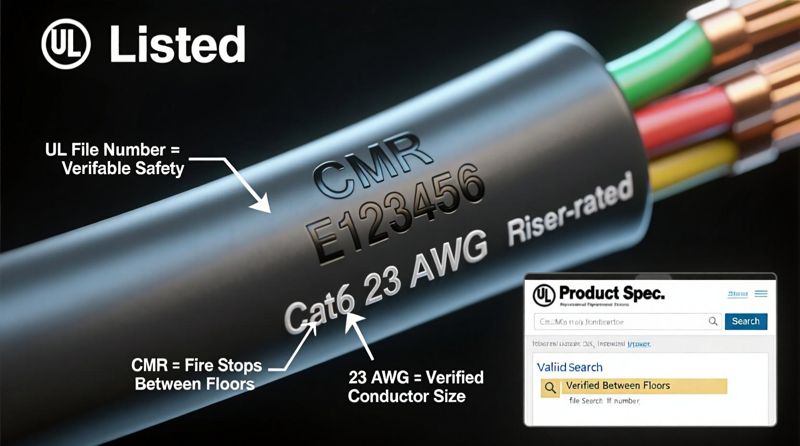

Look for the UL Mark and File Number on the cable jacket.
Go to UL Product Spec.
Enter the File Number (e.g., E123456).
Confirm your exact model is listed.
A: Indirectly, yes.
UL tests parameters like:
Insertion loss
Near-end crosstalk (NEXT)
Return loss
A UL-listed CAT6A cable is more likely to support 10GBASE-T up to 100 meters because it passed these tests under real conditions.
No certification? No guarantee.
Code Compliance | Meets NEC, CEC, and local regulations |
Fire Safety | Reduces flame spread and toxic smoke |
Performance | Verified bandwidth and signal integrity |
Inspection Pass | Avoids rework and project delays |
Risk Control | Protects people, property, and uptime |
Market Access | Required for public, government, and enterprise bids |
As a UL-certified manufacturer of fiber optic cables, Ethernet cables, and structured wiring, we build every product to exceed UL standards.
We don’t just aim to pass tests.
We design cables that perform in real-world conditions.
Whether you're:
Designing a new office network
Upgrading a data center
Bidding on a public infrastructure project
Choosing UL-listed cables is a low-risk, high-reward decision.
Need help selecting the right UL-rated cable for your project?
Contact us today for free technical support, product datasheets, and UL File Number verification.
Because when it comes to safety and performance—certified is better.
