Author: James Publish Time: 25-06-2025 Origin: Site
In such contemporary fiber optic communication systems, low-loss, and connectivities, which have reliability, are crucial for not only maintaining high-speed but also high-quality data transmission. The most urgent stage of the process is, in fact, separating fiber optic pigtail, also known as pigtail fiber or pigtail fiber optic cable. These short, pre-terminated cables play a vital role in terminating and splicing optical fibers, especially in complex fiber infrastructure such as data centers, telecom networks, and FTTH, as well as in industrial automation systems.

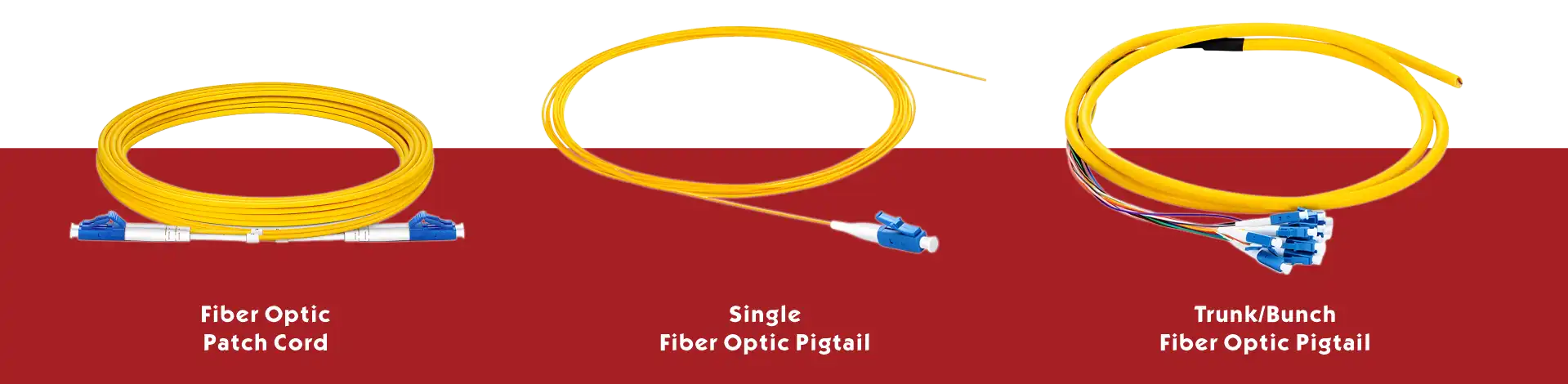

A pigtail fiber indicates a short length of optical fiber cable that has a pigtail connector (for example, SC, FC, ST, LC, etc.) fitted on one end and the other end undressed (for connection through fusion or splicing) to the main fiber optic cable. This essential function of pigtail fiber is drastically reducing field termination complexity and ensuring that the connection is drastically low-loss.
This pigtail connector, which is integral to ODFs, you-mount fiber termination box, and outdoor enclosures, provides efficient and convenient patching and rerouting in these environments. Spliced appropriately, pigtail fiber optic cables are mechanically stable, optically advantageous, and are very easily scalable.
Single-mode pigtail fibers: Work with 9/125 μm cables. Depending on long-distance, high-bandwidth applications. Mostly found in yellow jackets.
Multimode pigtail fibers: 50/125 μm and 62.5/125 μm are both available; orange (OM1/OM2), OM3 (aqua), and OM4 (magenta) colors are used.
SC Connector: Push-pull system widely applied in CATV or LAN.
FC Connector: Threaded coupling, good in vibration areas.
ST Connector: A bayonet-style, which is quite easy to find in transformers of multimode networks.
LC, MU, MT-RJ, E2000, general-type connectors for higher-density placements.
UPC vs. FPC: Low return loss for UPC system (i.e. digital signals); better performance in analog/RF reflective power systems (APC).
Armored Fiber Pigtail: Comes with a protective tube made of stainless steel. Useful for actions in plant settings.
Waterproof pigtail fiber optic: Empirical construction with sealed jackets and outdoor grade PE textile. The best pick for extreme working atmospheres.
Simplex: One single fiber and single connector.
Duplex: Labeled polarity with two connectors.
Multi-fiber: The number of fibers can be in ranges of 4, 6, 8, 12, 24, or more; each fiber showing a color make identification easy.
Insertion Loss: Pigtailed fiber optic connectors are commonly rated for ≤0.3 dB.
Return Loss: APC connectors show reflection below –60 dB.
Durability: Through pig-tail making in factories, identical t, familiar, and stable products are manufactured.
FTTH and FTTB
Data center and Cloud-based services platform
Passive optical networks (PON) are among the technologies being developed.
CATV and broadcasting networks
Industrial automation and factory systems
Testing, instrumentation, and sensing
Fiber optic pigtails, also called pigtail fibers or pigtail fiber optic assemblies, are essential building blocks that figure prominently in modern fiber optic networks. Pigtails allow for a wide variety of fiber types, connectors, and environmental conditions, providing the needed flexibility, reliability, and performance for many applications.
Float, either in telecom, data centers, FTTH rollouts, or rugged outdoor installations, but picking up the right pigtails connection and configuration will be the key to long-lasting pigtails performance and easy maintenance.
James is a technical manager and associate at Zion Communication.
Specializes in Optical Fiber communications, FTTH Solutions,
Fiber optic cables, ADSS cable, and ODN networks.
