Author: James Publish Time: 24-03-2026 Origin: Site
A practical engineering reference for selecting MPO fan-out assemblies in high-density fiber links, with emphasis on structure, compatibility, deployment risk, and procurement decisions.
An MPO fan-out cable converts one MPO interface into multiple individual connectors for equipment-side distribution.
The main engineering checks are branch connector type, polarity, insertion loss budget, and cable construction.
Mistakes usually happen at the mapping stage, not at the connector-count stage.
An MPO fan-out cable is a pre-terminated fiber assembly that takes one multi-fiber MPO connector and separates those fibers into multiple individual connectors such as LC, SC, or ST. In practice, it is used when a high-density backbone must be distributed to equipment ports, patch fields, or test points.
From an engineering perspective, the value of an MPO fan-out cable is not only density reduction. It also standardizes termination quality, shortens deployment time, and reduces field labor compared with on-site splicing or ad hoc breakout methods.

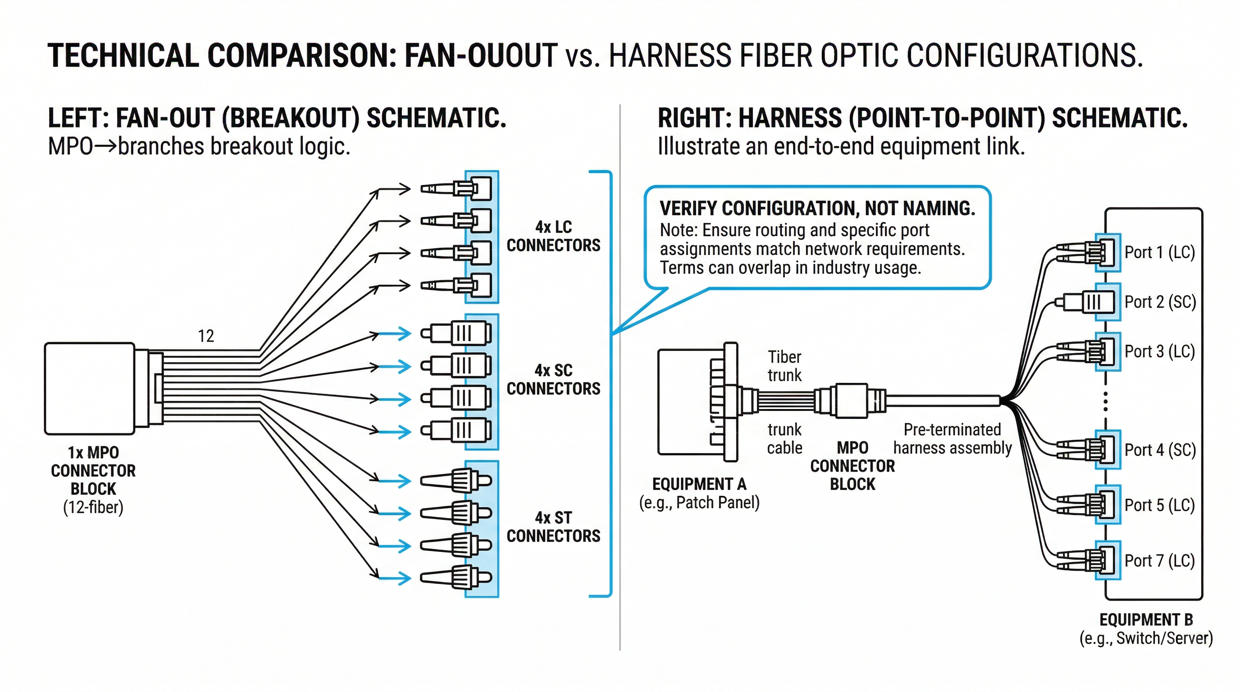

| Item | MPO Fan-Out Cable | MPO Harness Cable | Engineering Note |
|---|---|---|---|
| Main emphasis | Breakout from one MPO into branches | Finished assembly for connecting equipment ports | Terms often overlap in real projects |
| Typical branch side | LC simplex / duplex, SC, ST | Usually LC for data center switching | Confirm actual connector format before ordering |
| Use case | Backbone-to-port distribution | Ready-to-deploy link assembly | Procurement should check mapping details, not naming alone |
MPO fan-out assemblies can be categorized by fiber count, connector combination, fiber mode, and mechanical construction. These categories directly affect compatibility, routing convenience, insertion loss, and upgrade planning.
The most common inputs are MPO-8, MPO-12, and MPO-24. The branch side may use LC duplex, LC simplex, SC simplex, or application-specific connector sets. Cable bodies may be round, mini-breakout, or fan-out kit based, depending on protection and flexibility requirements.
| Category | Typical Options | Why It Matters | Decision Threshold |
|---|---|---|---|
| MPO fiber count | 8 / 12 / 24 fibers | Determines mapping to transceivers and branch count | Match it to active equipment lane structure |
| Branch connector | LC simplex, LC duplex, SC, ST | Affects port compatibility and density | Check actual front-panel port type |
| Fiber mode | OS2 / OM3 / OM4 / OM5 | Impacts distance, optics, and upgrade path | Do not mix channel assumptions across modes |
| Mechanical construction | Round cable / breakout cable / fan-out kit | Impacts bend handling and durability | Choose based on routing stress and service access |
| Polarity method | Type A / Type B / Type C | Critical for Tx/Rx continuity | Confirm end-to-end map before purchase |
The operating logic is straightforward: the MPO connector carries multiple fibers in one ferrule, and the fan-out section separates those fibers into individually terminated branch connectors. What matters is how those fibers are assigned, labeled, and aligned with the active system’s Tx/Rx path.

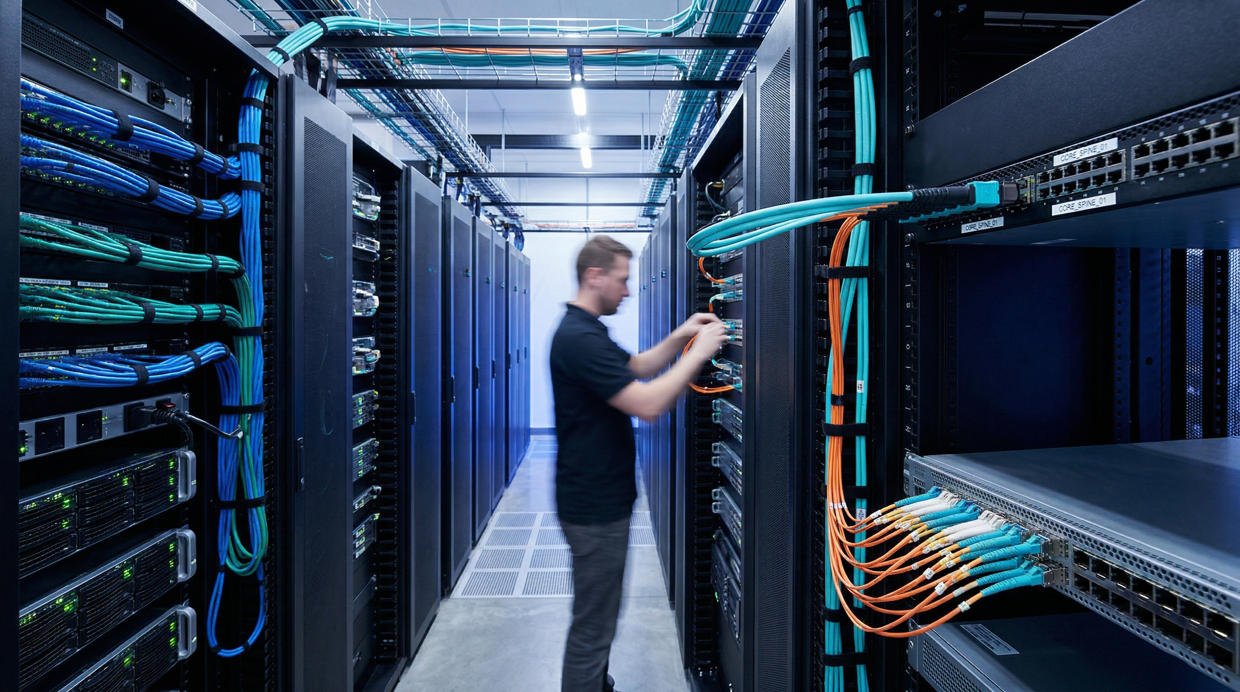

In a typical data center link, one MPO side connects to a cassette, backbone, or parallel optic interface, while the branch side connects to LC-based switch or server ports. The cable itself does not create intelligence; it preserves a defined mapping plan. Errors in polarity or branch sequencing can therefore break a channel even when the physical connectors fit perfectly.
MPO fiber positions versus branch connector numbering
Simplex versus duplex branch interpretation
A/B side orientation across the full channel
Expected insertion loss per connector interface
Labeling sequence for installation teams
Most failures with fan-out assemblies are procurement or design coordination failures rather than manufacturing defects. The cable often arrives exactly as ordered, but the order itself may not reflect the live system architecture.
| Common mistake | Immediate impact | Hidden cost | Preventive action |
|---|---|---|---|
| Assuming “fan-out” and “harness” are always interchangeable | Wrong branch layout delivered | Reorder, delay, unused stock | Approve a written configuration sheet |
| Ignoring polarity method | Tx/Rx mismatch | Troubleshooting labor and downtime | Check end-to-end polarity with the full channel |
| Choosing the wrong branch connector style | Port incompatibility | Adapters or replacement assemblies | Verify equipment faceplate and panel format |
| Overlooking cable construction | Poor routing or branch strain | Maintenance difficulty and handling damage | Choose construction based on real installation path |
| Buying on connector count only | Channel loss or mapping issues remain unseen | Late-stage validation failure | Ask for IL test data and labeling details |
For most projects, selection can be simplified into a small number of decisions. Start from the active port format and lane architecture, then verify polarity, channel loss budget, and cable handling environment.
| If your situation is… | Choose this direction | Why | Main risk to check |
|---|---|---|---|
| Backbone arrives in MPO, equipment ports are LC duplex | MPO to LC duplex fan-out | Most direct transition to common switch interfaces | Branch count and port pairing |
| Parallel optic lanes must stay aligned | Confirm MPO fiber count and polarity first | Lane continuity matters more than connector style | A/B orientation confusion |
| Tight rack routing with repeated maintenance access | Use a durable mini-breakout or protected fan-out design | Improves handling and branch protection | Overly thin branches in high-touch zones |
| Low-loss budget at high speeds | Specify tested insertion loss limits | Channel margin may be tight | Buying without test criteria |
| Procurement needs repeatable project delivery | Standardize labels, drawings, and acceptance tests | Reduces interpretation errors between teams | Different sites ordering the “same” cable differently |
MPO fan-out cables are most useful where one dense fiber interface must be distributed across multiple device ports without field termination. Their value increases when deployment speed, rack cleanliness, and repeatable channel quality are important.
| Scenario | Why fan-out works well | Typical branch format | Engineering priority |
|---|---|---|---|
| Data center rack distribution | Converts dense backbone links into device-ready ports | LC duplex | Polarity and port labeling |
| Telecom room cross-connect | Reduces field termination and supports service organization | LC simplex or SC simplex | Branch sequence and documentation |
| Structured cabling backbone transition | Simplifies handoff between trunk and local patching | LC or SC | Length planning and routing protection |
| Lab or validation environment | Fast reconfiguration and clean test distribution | LC simplex | Traceability and repeatability |
For purchasing teams, the goal is to convert a technical design into an orderable and verifiable item. A useful specification sheet should be detailed enough that another team could re-order the same assembly without interpretation.
MPO fiber count and connector gender
Branch connector type and quantity
Fiber mode: OS2, OM3, OM4, or OM5
Cable length and branch length arrangement
Polarity method and mapping reference
Insertion loss criteria and test report requirement
Labeling format for installation and maintenance
In many projects, the terms overlap. “Fan-out” usually emphasizes the breakout function from MPO to individual branches, while “harness” usually emphasizes the finished assembly used in deployment. Engineering teams should verify configuration details rather than rely on naming alone.
Choose according to the equipment-side interface and labeling method. LC duplex is common when ports are arranged in paired Tx/Rx form. LC simplex can be useful when individual fiber routing, testing, or documentation requires more granular control.
The main risk is not physical connector fit. It is mapping compatibility, especially polarity and branch sequence. A cable can mate mechanically and still fail functionally if the Tx/Rx path is not preserved through the full channel.
For routine deployments, yes. At minimum, request defined insertion loss criteria and a corresponding test record. This is especially important in higher-speed channels, low-margin optical budgets, or custom branch configurations.
Yes. Branch lengths, connector combinations, numbering, labels, and test-document formats are commonly customized. These details should be frozen before production release to avoid mismatches between design intent and delivered assemblies.
Ask for a detailed configuration sheet, polarity and mapping confirmation, insertion loss criteria, test report format, labeling rules, and expected lead time for custom variants. These items are more useful than nominal connector counts when comparing quotations.
An MPO fan-out cable is a practical assembly for distributing one MPO backbone interface into multiple device-ready fiber connections. Its real value is not just space saving. It supports repeatable termination quality, cleaner deployment, and better control over channel architecture.
For most projects, the best approach is to define the equipment-side connector requirement first, then verify MPO fiber count, polarity, branch mapping, construction style, and loss criteria. That sequence reduces rework, simplifies purchasing, and makes the installation easier to validate in the field.
Send your fiber count, connector format, polarity requirement, branch layout, and target application. A complete specification at the quotation stage reduces engineering risk and shortens approval time.
