ZC-SC6125AH 125℃ Irradiation Cross-linked LSZH FR Polyolefin Sheath Compound for Photovoltaic Solar Cable

ZC-SC6125AH

General lnformation

Description

ZC-SC125AH is a irradiation cross-linked low smoke zero halogen flame retardant polyolefin cable compound. This product is mainly used for the sheath of photovoltaic cables. It is a safe and environmentally friendly compound that complies with RoHS and REACH. The physical and mechanical properties of the sheath compound meet EN 50618, and the supporting photovoltaic insulation compound is made into 1´4mm² cable, which can be pass the IEC 60332-1-2 single vertical combustion.

Standard

1) BS EN 50618:2014

2) GB/T 18380.12-2008

Specification Sheet

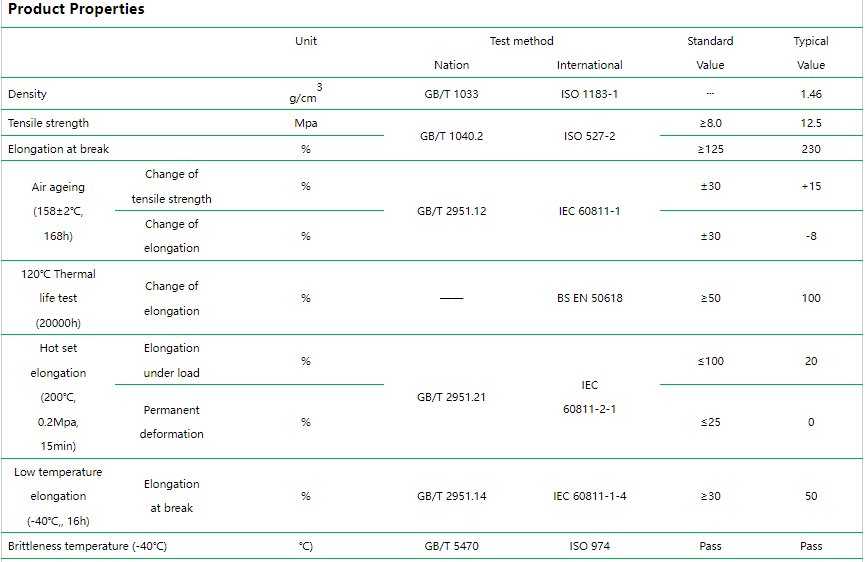

Product Properties

Unit

Test method

Standard
Value

Typical
Value

Nation

International

Density

g/cm³

GB/T 1033

ISO 1183-1

┄

1.46

Tensile strength

Mpa

GB/T 1040.2

ISO 527-2

≥8.0

12.5

Elongation at break

%

≥125

230

Air ageing
(158±2℃,
168h)

Change of
tensile strength

%

GB/T 2951.12

IEC 60811-1

±30

+15

Change of
elongation

%

±30

-8

120℃ Thermal
life test
(20000h)

Change of elongation

%

——

BS EN 50618

≥50

100

Hot set
elongation
(200℃,
0.2Mpa,
15min)

Elongation
under load

%

GB/T 2951.21

IEC
60811-2-1

≤100

20

Permanent
deformation

%

≤25

0

Low temperature
elongation
(-40℃,, 16h)

Elongation
at break

%

GB/T 2951.14

IEC 60811-1-4

≥30

50

Brittleness temperature (-40℃)

℃)

GB/T 5470

ISO 974

Pass

Pass

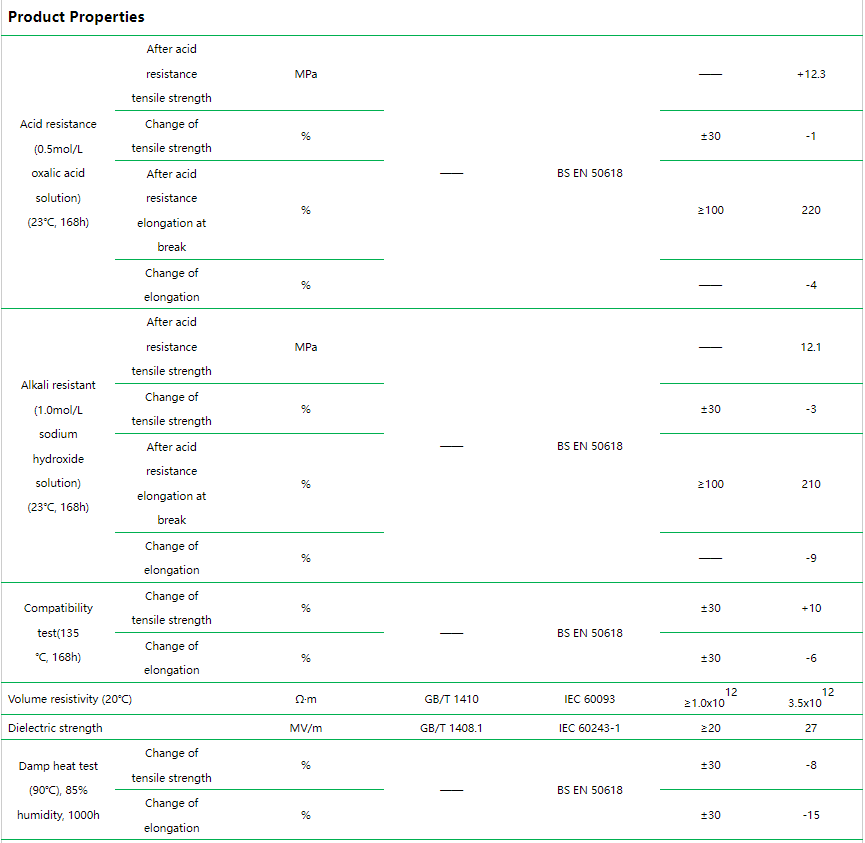

Product Properties

Acid resistance
(0.5mol/L
oxalic acid
solution)
(23℃, 168h)

After acid
resistance
tensile strength

MPa

——

BS EN 50618

——

+12.3

Change of
tensile strength

%

±30

-1

After acid
resistance
elongation at
break

%

≥100

220

Change of elongation

%

——

-4

Alkali resistant
(1.0mol/L
sodium
hydroxide
solution)
(23℃, 168h)

After acid
resistance
tensile strength

MPa

——

BS EN 50618

——

12.1

Change of
tensile strength

%

±30

-3

After acid
resistance
elongation at
break

%

≥100

210

Change of elongation

%

——

-9

Compatibility
test(135
℃, 168h)

Change of
tensile strength

%

——

BS EN 50618

±30

+10

Change of elongation

%

±30

-6

Volume resistivity (20℃)

Ω·m

GB/T 1410

IEC 60093

≥1.0x10¹²

3.5x10¹²

Dielectric strength

MV/m

GB/T 1408.1

IEC 60243-1

≥20

27

Damp heat test
(90℃), 85% humidity, 1000h

Change of
tensile strength

%

——

BS EN 50618

±30

-8

Change of elongation

%

±30

-15

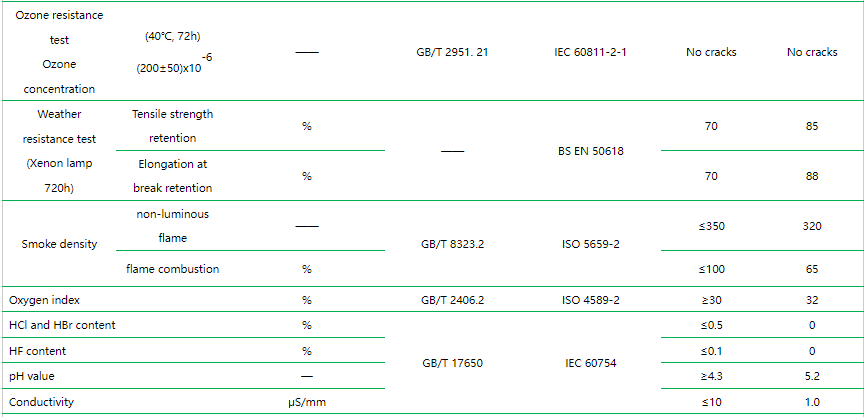

Ozone resistance test
Ozone concentration

(40℃, 72h)  (200±50)x10^-6

——

GB/T 2951. 21

IEC 60811-2-1

No cracks

No cracks

Weather
resistance test
(Xenon lamp
720h)

Tensile strength
retention

%

——

BS EN 50618

70

85

Elongation at
break retention

%

70

88

Smoke density

non-luminous flame

——

GB/T 8323.2

ISO 5659-2

≤350

320

flame combustion

%

≤100

65

Oxygen index

%

GB/T 2406.2

ISO 4589-2

≥30

32

HCl and HBr content

%

GB/T 17650

IEC 60754

≤0.5

0

HF content

%

≤0.1

0

pH value

—

≥4.3

5.2

Conductivity

μS/mm

≤10

1.0

Additional Information

Processing Techniques:

It is recommended to use a low smoke zero halogen special screw, with a length to diameter ratio of L/D=20-25 and a compression ratio of 1.2-1.8. Because the actual temperature of the melt is related to the length diameter ratio, compression ratio and screw structure of the extruder, the appropriate extrusion temperature should be selected according to the specific situation of the extruder.
The recommended setting temperatures for each zone of the 70 extruder are as follows:

Zone

Z1

Z2

Z3

Z4

Head

Die

Temperature(℃)

110

125

135

145

150

150

This process is a suggestion based on our existing cognition, but because the usage of each customer is not within
our control, the above suggestions are only for reference, not for quality control purposes and we not guarantee and responsibility for this. It is recommended that customers select the best processing technology according to the application of our products in their cable structure.

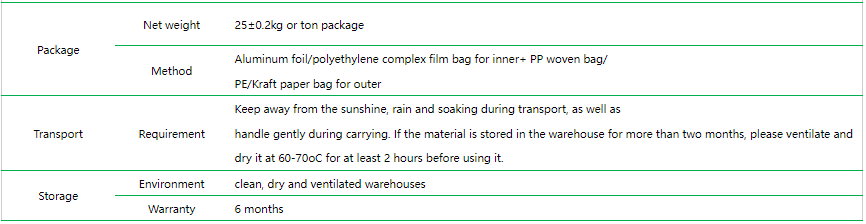

Package.Storage and Transport:

Package

Net weight

25±0.2kg or ton package

Method

Aluminum foil/polyethylene complex film bag for inner+ PP woven bag/
PE/Kraft paper bag for outer

Transport

Requirement

Keep away from the sunshine, rain and soaking during transport, as well as
handle gently during carrying. If the material is stored in the warehouse for more than two months, please ventilate and dry it at 60-70oC for at least 2 hours before using it.

Storage

Environment

clean, dry and ventilated warehouses

Warranty

6 months
