ADSS Cable Cost Savings: Proven Guide for Power & Telecom Utilities

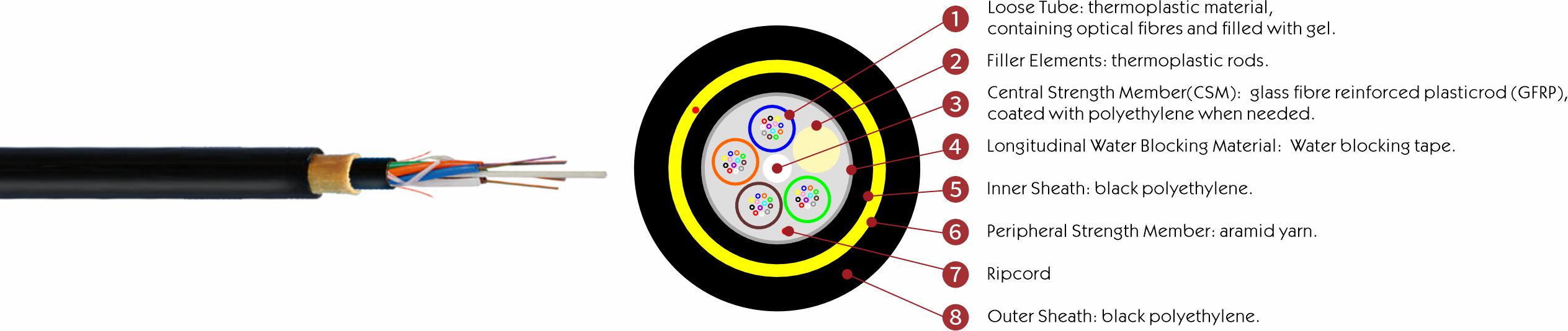

■ Technical Depth: Why ADSS Lowers Total Cost of Ownership

No metallic members → no galvanic corrosion, no need for cathodic protection

• IEEE-1222 tests show that a 24-fiber ADSS with FRP strength members retains >95 % tensile strength after 1,000 h in 5 % NaCl.

• Utilities save USD 0.12–0.18 per line-meter by deleting grounding wire, counterpoise and annual corrosion inspection.

Light weight → lighter hardware, smaller crews, no line shut-down

• 80 m span 48-fiber ADSS weighs 85 kg km⁻¹ vs 310 kg km⁻¹ for 48-fiber OPGW.

• Installation on 110 kV line in Brazil (CEMIG, 2022) used 2 splicers + 4 linemen instead of 6 linemen + crane; labor cost fell 38 %.

Dry-core loose-tube design → mid-span entries without re-jacketing

• Italian distributor RFI cut 15 % accessory cost by using “tension-set” dead-ends only every 1.2 km instead of every 600 m.

UV- and tracking-resistant sheath life ≥ 25 years

• Cigré TB 781 (2021) field study: ADSS failure rate 0.06 per 100 km yr⁻¹ vs 0.24 for lashed figure-8 cable.

• Fewer faults = lower O&M truck rolls—about USD 240 km⁻¹ yr⁻¹ saved according to North-American utility benchmark.

■ Standards & Certifications That Matter

■ Procurement Quick-Scan: How to Buy ADSS Cheaply Without Hidden Risk

Specification short-list

• Fiber count & type (G.652.D or G.655)—24, 48, 96, 144.

• Span capability—choose 15 kN, 25 kN, 45 kN rather than over-specify; every +10 kN adds ≈ 8 % material cost.

• Sheath grade—standard PE for ≤ 12 kV, AT (anti-tracking) PE for 35–138 kV, silicone-grade for coastal fog.

• Cable diameter—below ∅ 15 mm fits standard 15 kN hardware; larger needs custom dead-ends (+18 % cost).

Factory audit checklist (takes 1 day, saves >USD 50 k on late defects)

• Loose-tube stranding pay-off tension ≤ 1.2 N; prevents post-installation excess loss.

• Sheath-line spark test 25 kV, 100 % online; blocks pin-holes that cause tracking.

• Raw-material lot traceability (FRP, PE, PBT tubes) for 25-year warranty claim.

• OTDR & PMD test on 100 % production drums; avoids field surprises.

Delivery & logistics

• One 4 km drum weighs 340 kg; fits 40 ft HQ with 650 km → sea freight only USD 0.02 per m.

• Wooden-drum deposit program cuts packaging 8 %.

• Ask for “cut-length tolerance ±0 % +100 m”; prevents scrap when contractor over-pulls.

■ Real-World Deployment Snapshots

• Case 1 – Alpine valley, Austria (APG)
  60 km 48-fiber ADSS on 220 kV towers, 80 m spans, ice load 15 mm.
  Used 25 kN cable, ∅ 13 mm; dead-end every 1 km; installation during live line with helicopter.
  Cost outcome: EUR 1.04 per m installed vs EUR 4.90 per m for OPGW retrofit (no outage allowed).

• Case 2 – Coastal wetland, Egypt (EETC)
  220 km 96-fiber, salt fog zone, 500 h salt-spray qualified PE.
  Project saved USD 0.9 m by skipping galvanized messenger; no corrosion maintenance budgeted for 15 yrs.

• Case 3 – Metro 5G backhaul, Vietnam (Viettel)
  380 km 24-fiber on 22 kV distribution, mixed spans 30–70 m.
  ADSS installed by 2-man bucket truck crews; average 1.2 km per day vs 0.7 km for lashed cable; 46 % labor saving.

■ Structured Q&A (Buyer & Operator View)

Q1: Does ADSS need a metallic messenger?
A: No. Aramid or FRP yarns give tensile strength; no need for steel lashing wire → eliminates bimetal corrosion and 40 % of hardware cost.

Q2: How do I size the cable for my span table?
A: Ask the vendor for “sag-tension” spreadsheet. Enter: span, wind 35 m s⁻¹, ice 0–15 mm, safety factor ≥ 2.5. Pick the smallest rated tensile that keeps sag < 1 % span under NESC heavy load. Oversizing adds material cost with no reliability gain.

Q3: Can I run ADSS under 500 kV?
A: Yes, but use AT or silicone sheath and keep ≥ 1.5 m phase-to-cable clearance (IEEE 524 & CIGRE 781). Electric-field calculation service is free from major suppliers; provides a “no-track” certificate for utility insurance.

Q4: How is field jointing different from normal loose-tube cable?
A: Same “standard loose-tube” procedure; only difference is adding “tension-set” grip to transfer 100 % load to strain clamp. Fusion splicing time identical → no extra training cost.

Q5: What is the real delivery time in 2024?
A: Top-5 China/EU factories hold 10–12 km semi-finished inventory. For ≤ 200 km 48-fiber with PE sheath, 14–18 days FOB; AT sheath adds 7 days. Book drum cutting plan early to avoid Chinese New Year or EU summer shutdown.

■ Key Take-Away (Golden Rule)

Choose ADSS when you need fast, live-line, corrosion-free fiber on HV or MV corridors; size the strength element to the actual span table; insist on IEC 60794-4-20 & IEEE 1222 test reports. Done right, capital cost drops 20–40 % and 25-year O&M falls by half compared with metallic alternatives—freeing budget for more fiber routes and smarter grids.
