Author: James Publish Time: 27-01-2026 Origin: Site
Connector is not enough: choose by current rating, heat, and deployment density—not shape alone.
C13/C14 remains common, but C19/C20 adoption is rising as racks exceed traditional power per device.
Global projects: standardize the IEC device end, localize the plug end, and align certifications (UL/CE/PSE).
A power cord (mains lead) is a flexible cable assembly that delivers AC power from an outlet, PDU, or UPS to equipment such as servers, switches, storage, and rack accessories. In 2026, power cords directly impact uptime, thermal stability, and maintenance speed in dense racks.
| Term | Meaning | Typical Enterprise Context |
|---|---|---|
| Power cord | Detachable flexible lead with connectors on both ends | Server/Network gear to PDU or UPS |
| Power cable | Broader term including fixed wiring and permanent distribution | Building wiring, feeders, in-wall, industrial distribution |

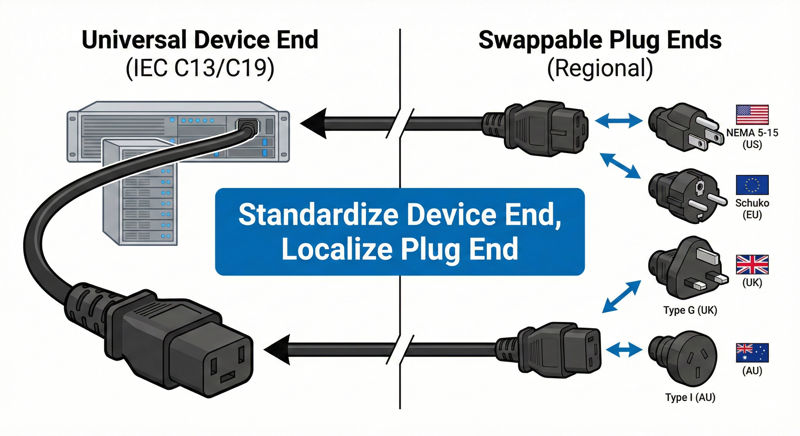

Enterprise deployments often split power-cord decisions into two ends: device end (IEC) and plug end (region-specific). This approach simplifies global inventory and reduces deployment mistakes.
| Standard / Region | What It Defines | Common Examples | Typical Use |
|---|---|---|---|
| IEC 60320 | Device-side appliance couplers | C13/C14, C19/C20, C5/C6, C7/C8 | Servers, switches, PDUs, UPS device inlets |
| NEMA (North America) | Plug/receptacle configurations, voltage & current | 5-15, 5-20, L-series twist-lock | PDUs, UPS inputs, facility power in NA |

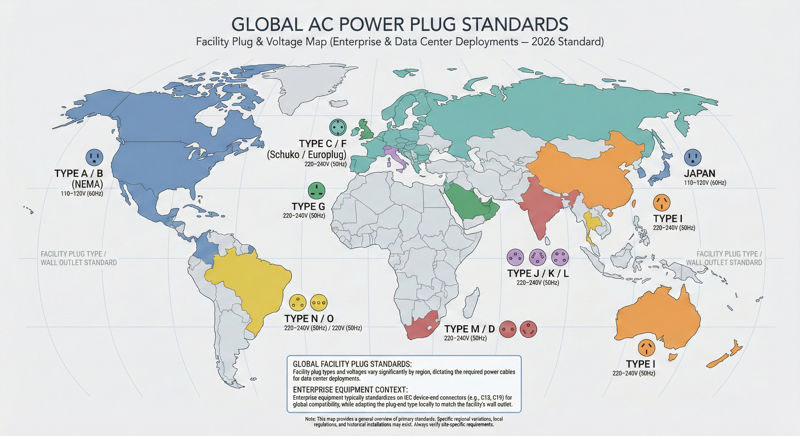

| Regional plugs | Local outlet standards & grounding | Schuko (EU), Type G (UK), Type I (AU/NZ) | International projects, local compliance |
IEC couplers are widely used in enterprise gear because they standardize device inlets. The most common types in server rooms and rack deployments are C13/C14 and C19/C20.
| IEC Type | Ground | Typical Devices | 2026 Selection Notes |
|---|---|---|---|
| C13 / C14 | Yes | Servers, switches, mid-power rack gear | Still common, but validate current draw and heat in dense racks |
| C19 / C20 | Yes | High-power servers, PDUs, UPS outputs | Adoption rising in 2026; preferred for higher-load equipment |
| C5 / C6 | Yes | Compact devices, adapters | Used outside core racks; ensure mechanical retention if mobile/edge |
| C7 / C8 | No | Low-power, consumer-like devices | Avoid in enterprise racks unless explicitly required |

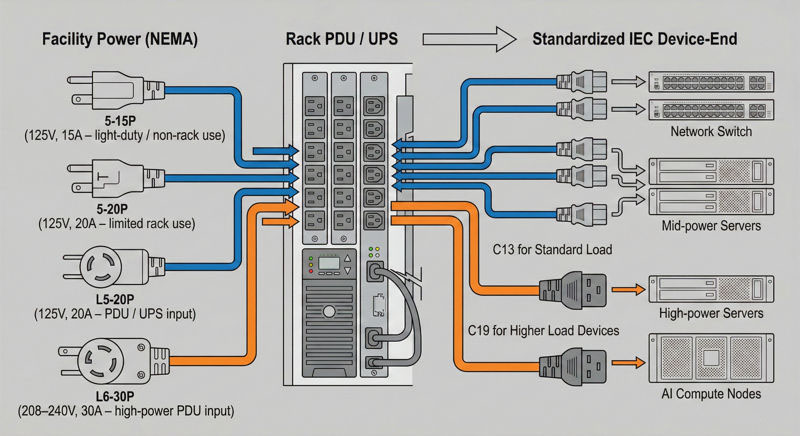

NEMA plugs are most relevant to projects in North America or to PDUs/UPS inputs that require specific plug geometries and current ratings. The plug end determines how you connect to facility power or rack PDUs.
Use the decision rules below to select power cords quickly for enterprise racks. Focus on load, connector inlet, deployment density, and regional compliance.
| If your situation is… | Choose… | Why | Risk if ignored |
|---|---|---|---|
| Device inlet is C14, moderate load | C13 cordset (verify rating & gauge) | Standard enterprise compatibility | Heat buildup if load is near limit in dense bundles |
| Device inlet is C20 / high-power gear | C19 cordset | Higher-power connector family | Overheating, nuisance trips, unstable operation |
| Global deployment across regions | IEC device-end standardization + local plug-end variants | Simplifies inventory and rollout | Wrong plugs on site; delays and compliance issues |

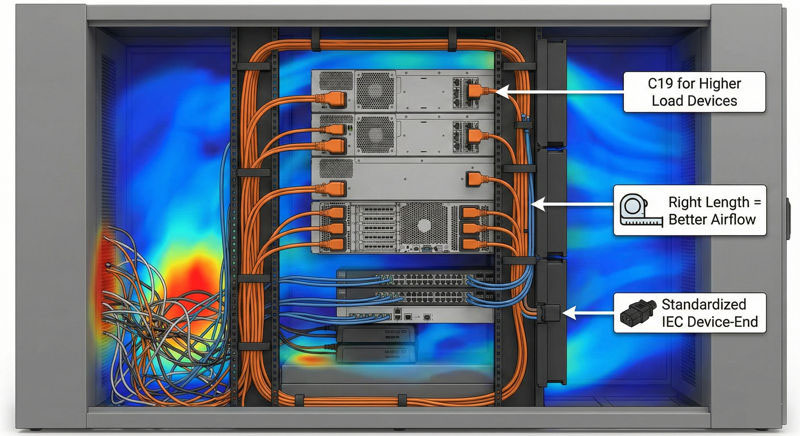

| High-density racks / tight airflow | Right length + flexible jacket (avoid excessive slack) | Improves cooling and serviceability | Cable congestion, hotspots, slow maintenance |
Below is a practical mapping between typical infrastructure equipment and commonly used cord families. Always confirm your equipment inlet and the PDU/UPS outlet type.
| Application | Typical Device Inlet | Common Cord Type | 2026 Notes |
|---|---|---|---|
| Rack servers (standard) | C14 | Plug-end (regional) to C13 | Validate load; watch bundling heat in dense racks |
| High-power servers / AI nodes | C20 | Plug-end (regional) to C19 | C19/C20 becomes more common in 2026 deployments |
| Rack PDU outputs | Depends on outlet type | C13/C19 to match device | Standardize cord lengths to reduce clutter |
| UPS / PDU input feeds | Facility-side plug | NEMA / regional plug to matching inlet | Use certified, correct-rating inputs (avoid adapters) |
As enterprise infrastructure evolves, power-cord selection shifts from “it fits” to “it sustains load safely in real deployments.” These trends are shaping 2026 power cord strategies:
Power cords look simple, but the cost of selection mistakes can be high. In enterprise environments, consider total cost of ownership (TCO), not just unit price.
| Factor | What to verify | Why it matters | Common failure mode |
|---|---|---|---|
| Rating & gauge | Current capacity, conductor size, temperature rating | Thermal safety under continuous load | Overheating, nuisance trips, shortened service life |
| Length planning | Right length for routing path | Improves airflow & serviceability | Cable clutter, airflow restriction, slow MTTR |
| Compliance | UL/CE/PSE as required; labeling consistency | Audit readiness and legal safety requirements | Site rejection, rework, deployment delay |
In 2026, power cords are part of the infrastructure design. The right choice balances electrical rating, connector compatibility, thermal margin, routing practicality, and regional compliance. Standardize what you can (IEC device ends), localize what you must (plug ends), and plan cord lengths with rack airflow and maintenance in mind.
