Author: James Publish Time: 14-01-2026 Origin: Site
A practical guide for network engineers, project owners and procurement managers to choose between Active Ethernet and Passive PON – with 50G-PON, FTTR and ZION COMMUNICATION's end-to-end physical layer in mind.
By 2026, 50G-PON has largely erased the historical bandwidth gap between PON and Active Ethernet for mainstream access.
Active Ethernet still wins ultra-niche, microsecond-level applications; PON wins almost all mass broadband scenarios.
ZION COMMUNICATION provides a one-stop physical layer – from backbone cables to FTTR transparent fiber and PLC splitters.
In 2026, fiber access is no longer a luxury add-on; it is the main artery for national broadband, smart cities, 5G transport and edge AI. The key strategic decision for planners is no longer “fiber or copper”, but which fiber architecture should be deployed where: Active Ethernet (AE) or Passive Optical Network (PON).
With 50G-PON entering large-scale deployment, FTTH and FTTR becoming standard in high-end residential and commercial buildings, and green networking targets tightening worldwide, the architecture choice now directly impacts CAPEX, OPEX, sustainability and upgrade flexibility over 10–15 years.
For most greenfield broadband projects, the wrong choice today will cost at least 2–3x more to fix in 5–8 years than the extra budget it would have taken to design a future-proof AE/PON mix from day one.

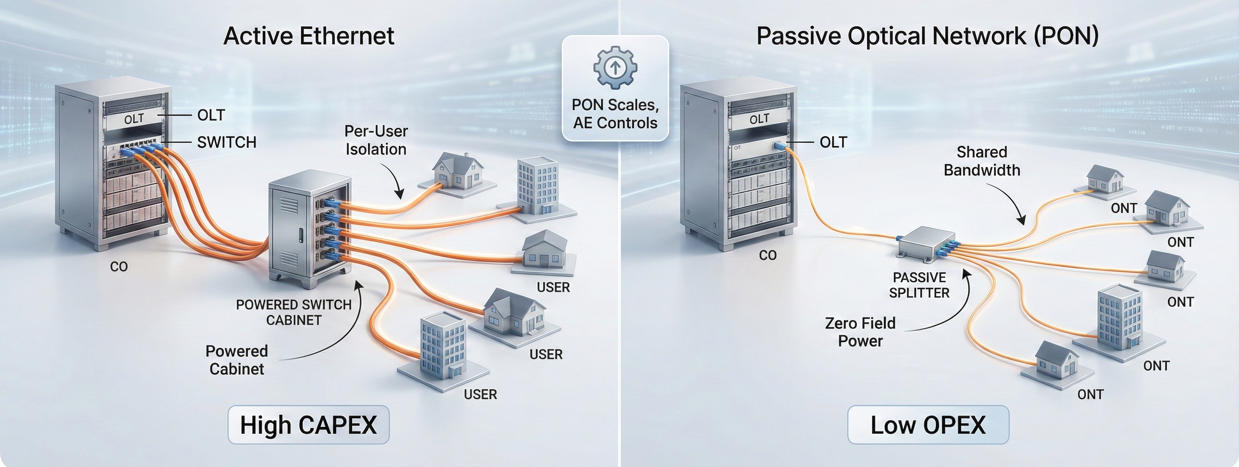

| Aspect | Active Ethernet (AE) | Passive Optical Network (PON) |
|---|---|---|
| Topology | Point-to-point, one fiber per user | Point-to-multipoint via splitters |
| Bandwidth | Dedicated per endpoint | Shared, but 50G-PON eliminates most practical constraints |
| Latency | Microsecond-class, deterministic | Low, deterministic latency suitable for 99% of applications |
| Field Power | Required (switches, UPS) | None (passive splitters only) |
| Best Fit | Mission-critical enterprise / industrial niches | Mass FTTH, FTTR, smart city & residential broadband |
Active Ethernet (AE) is a point-to-point architecture that extends Ethernet principles across MAN/WAN distances. Every subscriber is linked via a dedicated fiber and an active port on an aggregation switch or router, giving clean isolation and simple traffic engineering.
AE is attractive wherever per-user isolation, deterministic microsecond-level latency and deep Layer 2/Layer 3 control matter more than cable count and power consumption. Typical scenarios include:
Enterprise and campus WANs with complex VLAN/QoS requirements
Mission-critical industrial control loops
Government, defense and highly regulated networks
Data center interconnects and edge computing clusters
High-end estates where fiber cost is less important than exclusivity
If your site count is modest, latency requirements are extreme and you need full control over every port, Active Ethernet is still often the right answer – even if it means higher fiber density and powered cabinets.
A Passive Optical Network (PON) uses a single feeder fiber from the OLT and passive optical splitters to serve multiple ONTs/ONUs. This reduces fiber count and field electronics dramatically, and is the natural choice for FTTx architectures at scale.
PON simplifies the access plant: no powered switches in the field, no complex UPS chains, and a much lower probability of hardware-related failures. Splitter ratios (1:8, 1:16, 1:32, 1:64, 1:128) can be chosen based on loss budget, service tiers and subscriber density.
As FTTH becomes standard in dense urban and mixed-use developments, and FTTR pushes fiber into individual rooms, PON provides the economic and operational base needed to serve thousands of endpoints without a linear increase in field hardware.
PON is not just a “cheaper alternative” to Active Ethernet – it is now the reference architecture for mass FTTH and FTTR rollouts, with 50G-PON providing performance that once belonged only to dedicated point-to-point links.
The biggest change between the “old” AE vs PON debate and today's reality is the emergence of 50G-PON. It is not merely a bandwidth upgrade; it brings deterministic latency and industrial-grade performance that directly challenges AE in domains once considered its exclusive territory.
| Metric | Active Ethernet | 50G-PON |
|---|---|---|
| Throughput | 1G–100G per port, dedicated | Up to 50G shared, multi-gig per subscriber |
| Latency | Microseconds, deterministic | Deterministic low-ms latency, suitable for 99% of IIoT and consumer workloads |
| Power in Field | High – cabinets, switches, cooling | Zero – passive splitters only |
| Future Evolution | Incremental optics and switch upgrades | Path to 100G-class PON over the same ODN |
In other words, 50G-PON is now an access technology with both the bandwidth and deterministic latency to satisfy AI-driven applications, cloud gaming and even many industrial IoT scenarios that previously forced designers into Active Ethernet.
Passive PON has another structural advantage: it eliminates power and cooling at field cabinets. Over thousands of nodes, this leads to:
Lower energy consumption and smaller carbon footprint
Fewer components that can fail (and fewer truck rolls)
Less electronic waste at end of life
For operators under ESG obligations and energy-cost pressure, PON is often the only model that aligns with both performance and sustainability targets.
ZION COMMUNICATION provides the complete physical layer for both Active Ethernet and PON architectures – from backbone infrastructure and outdoor distribution to FTTH drops, FTTR room cabling and passive optical components such as PLC splitters.
| Deployment Scenario | Recommended ZION Cable / Component | Key Features | Access Type Supported |
|---|---|---|---|
| Aerial distribution (village, suburb, feeder) | GYXTC8Y / GYXTC8S, ADSS | Integrated messenger, UV and wind resistant, high tensile strength | AE or PON feeder routes |
| Metro duct and manhole routes | GYTA / GYTS | Loose tube, water blocking, steel tape or armor options | Core and distribution for AE and PON ODN |
| Direct-buried trunk and harsh corridors | GYTA53 / GYTY53 | Corrugated steel armor, dual sheath, high crush resistance | Backbone for AE or PON, long-term stability |
| FTTH outdoor-to-indoor last mile | GJXH / GJYXCH / GJXFH FTTH drop | G.657.A2 bend-insensitive fiber, LSZH or PE jacket | PON-based FTTH, AE-based dedicated links |
| FTTR room-by-room fiber backhaul | Ultra-thin and transparent indoor G.657.A2 micro-fiber | Very small OD, ultra-low bend radius, nearly invisible on walls and ceilings | FTTR over PON or AE, Wi-Fi 6/7 AP per room |
Since PON is built around passive splitting, high-quality PLC splitters are critical for low loss and balanced performance. ZION provides:
Steel tube PLC splitters for compact installations
ABS cassette and LGX module PLC splitters for ODF integration
Mini plug-in PLC modules for FTTR and dense in-building ODNs
Matching closures, ODFs, wall boxes, pigtails and patch cords
Whether you design AE (many dedicated fibers) or PON (shared fibers via PLC splitters), ZION COMMUNICATION ensures 100% compatibility and low-loss performance across cables, connectors and passive components – delivering a true one-stop physical-layer solution.
This section condenses the article into simple rules that can be applied directly when deciding between Active Ethernet and PON for a new build or an upgrade project. Use it as a sanity check before finalizing your architecture and BOM.
| If Your Project Looks Like... | Recommended Architecture | Reason / Engineer's Shortcut |
|---|---|---|
| New urban FTTH rollout with thousands of homes | PON (XGS-PON / 50G-PON) + FTTH drops | Scale and economics dominate; fiber and ODN can support 10+ years of upgrades |
| Premium residential with Wi-Fi 6/7, AR/VR and smart-home in scope | PON-based FTTH + FTTR room-by-room fiber | FTTR removes indoor bottlenecks; transparent fiber maintains aesthetics |
| Industrial park with strict real-time control and low-latency loops | Hybrid: AE for control loops, PON for office and non-critical loads | Keep AE where microseconds matter, use PON everywhere else |
| Mixed legacy copper network with budget limits | PON to curb/building; phased migration to full FTTH | Invest first in ODN and fiber plant, reuse copper only as temporary last meters |
| Data center or MEC interconnect between a few critical nodes | Active Ethernet with dedicated fibers | Small node count; latency and control justify point-to-point design |
If <1% of your traffic genuinely requires AE-level microsecond latency, do not design the entire access network as Active Ethernet. Use AE surgically for those loops and let PON carry the other 99% of subscribers and services.
In 2026, Active Ethernet and Passive PON are no longer peers competing for the same dominant role. Instead, they have evolved into complementary tools:
Active Ethernet remains the precision instrument for niche workloads where microseconds, deterministic control and per-user isolation are absolute requirements.
PON – especially 50G-PON – has become the default for mass broadband, FTTH and FTTR, providing performance that rivals AE while dramatically reducing fiber count, field power and lifecycle cost.
ZION COMMUNICATION helps operators, integrators and project owners design for this reality by supplying a fully compatible physical layer: aerial and duct cables, direct-buried trunks, FTTH drops, FTTR transparent fibers and high-quality PLC splitters – all engineered to work together as one system, not just a collection of parts.
The most cost-effective strategy is simple: plan once, build with future-ready fiber and ODN, and upgrade optics over time. With the right AE/PON mix and the right ZION cable families, your access network can scale from today's GPON/XGS-PON era into the 50G-PON and beyond without pulling a single replacement cable.
Design your ODN and fiber plant as if 50G-PON and FTTR will be deployed within the lifecycle – even if you start with GPON or XGS-PON.
Reserve Active Ethernet for truly mission-critical, low-latency segments instead of using it everywhere by default.
Use scenario-specific ZION cable families (ADSS, GYTA/GYTS, GYTA53/GYTY53, FTTH drops, FTTR transparent fiber) plus PLC splitters to minimize long-term failure risk and truck rolls.
Share your route maps, subscriber density, environment conditions (aerial, duct, direct burial, indoor/FTTR) and target PON or AE architecture with ZION COMMUNICATION. Our team will help you map these requirements to the correct cable constructions, PLC splitters and passive components to balance CAPEX, OPEX, sustainability and upgrade flexibility.
