Energy-saving controls are only as accurate as the signals that feed them. This guide explains how BMS cabling affects data integrity, response speed, maintainability, and lifecycle ROI—so engineers and procurement teams can set clear decision thresholds.
Cleaner signals = tighter control loops (HVAC/lighting) and fewer “safety buffers” that waste energy.
Lower resistance & stable transmission reduce device failures, truck rolls, and calibration drift—protecting ROI.
Cabling decisions should be made with lifecycle cost thresholds (not just material price per meter).

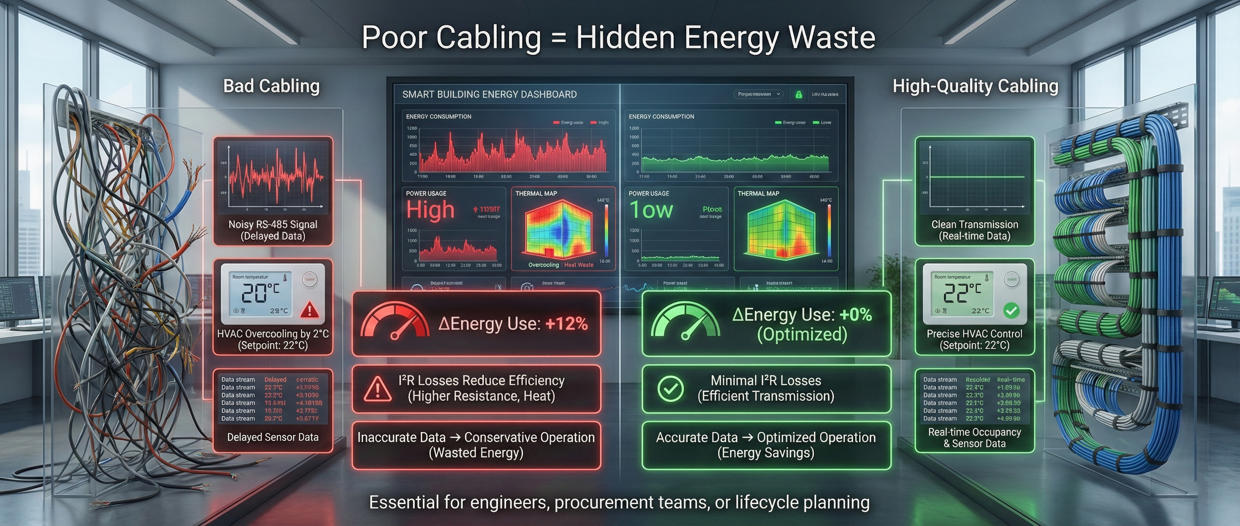

A BMS is a closed-loop control system. Sensors report conditions, controllers decide actions, actuators execute, and meters verify results. If the cabling layer introduces noise, delay, or instability, the system compensates with conservative settings—longer HVAC runtime, wider deadbands, and fewer zones—thereby reducing energy savings.
| Cabling factor | What it affects | Typical building impact | Energy / ROI consequence |
|---|---|---|---|
| Signal-to-noise (balance, shielding, pair twist) | Retries, unstable points, false alarms | Controls run in “safe mode” with wider setpoints | Higher HVAC & lighting runtime; higher FM labor |
| Resistance (conductor size/material) | Voltage drop, device brownouts | Actuators/sensors misbehave under load | Maintenance calls; degraded control performance |
| EMI environment (VFDs, lifts, UPS rooms) | Intermittent errors, drift over time | Commissioning passes, then faults appear months later | Hard-to-diagnose OPEX; tenant comfort complaints |
| Topology & labeling (segmentation, documentation) | Isolation & fault-finding time | One fault takes down a larger zone than necessary | Downtime cost; delayed energy tuning projects |
Energy savings depend on accurate sensing (temperature, occupancy, CO₂, valve position, airflow) and reliable command execution. When cabling quality is inconsistent, controllers receive noisy or delayed readings and compensate by running longer to avoid comfort risks.
Stable electrical characteristics across batches to protect commissioning repeatability.
EMI resilience strategy matched to the route (plant room vs office floors).
Clear traceability (printing, packaging, lot control) to reduce risk during expansion/repairs.
Modern energy strategies rely on rapid feedback: occupancy-based control, daylight harvesting, demand-controlled ventilation, and predictive scheduling. Cabling impacts latency, packet retries, and controller confidence—which determine whether the system reacts immediately or “waits and watches” while wasting power.
| Energy use-case | Why cabling matters | What to specify | Risk if ignored |
|---|---|---|---|
| Occupancy-based lighting | False triggers & delayed updates reduce trust | Stable signal path, neat topology, clear labeling | Lights left on “just in case” |
| Demand-controlled ventilation (CO₂) | Noisy CO₂ readings cause over-ventilation | EMI control in plant routes; consistent batches | Higher fan energy & heating/cooling load |
| Micro-zoned HVAC (VAV/FCU) | Zone stability depends on reliable actuator feedback | Low resistance for actuator power; robust insulation | Bigger zones; comfort complaints; tuning rollback |
| Energy analytics & reporting (metering) | Data gaps break baselines and ROI proof | Reliable comms path + documentation for traceability | Savings unverified; budget cuts to energy program |
Many BMS field devices are powered over low-voltage lines. If conductor resistance is high or terminations are inconsistent, end-of-line devices may see voltage drop, causing intermittent resets, incorrect readings, or actuator stalls. These issues rarely show up in a simple “pass/fail” test—but they generate expensive troubleshooting and lost energy savings.
Works during commissioning, fails after load increases or route temperature rises.
Intermittent faults that vanish when technicians arrive (high diagnostic cost).
Actuator “hunting” because feedback is unstable, increasing wear and energy use.
The best energy outcomes come from fine-grained control (room/area zoning) plus continuous optimization. Cabling design (topology, segmentation, labeling, route discipline) determines whether upgrades are painless—or avoided.
| Design element | What good looks like | What goes wrong | ROI consequence |
|---|---|---|---|
| Segmentation (zones/loops) | Fault isolation without taking down large areas | One failure knocks out multiple floors/areas | Downtime + delayed energy tuning |
| Labeling & documentation | Every run traceable for expansions and repairs | Hours of tracing for a single point issue | FM labor cost; higher contractor spend |
| Route discipline (power separation) | Reduced EMI exposure & stable operation | Random interference from VFD/power trays | Intermittent faults; high troubleshooting cost |
| Material selection (jacket/fire safety) | Right sheath for environment & safety requirements | Premature aging or compliance risk | Replacement CAPEX; project delays |
BMS cabling is usually a small portion of project CAPEX, but it influences years of OPEX through reliability, commissioning time, retrofit difficulty, and how much energy optimization is realistically achievable. The goal is not “premium everywhere” but targeted investment where it protects lifecycle value.
| Cost driver | What you pay once (CAPEX) | What you pay repeatedly (OPEX) | Procurement focus |
|---|---|---|---|
| Cable quality & consistency | Small delta per meter | Fault-finding, point instability, rework | Batch stability, traceability, test reports |
| Commissioning time | Project schedule pressure | Delays block tenant handover and tuning | Stable topology + clear documentation |
| Energy optimization potential | Better cabling spec upfront | Wider setpoints; reduced zoning; less verified savings | Tie cabling spec to energy KPI targets |
Use the matrix below to choose cabling options by environment and risk. The objective is to meet energy and reliability targets with the lowest lifecycle cost—without over-specifying low-risk routes.
| Scenario | Decision threshold | Recommended approach | Why it protects ROI |
|---|---|---|---|
| Plant rooms / VFD zones (high EMI) | If route runs parallel to power trays, UPS, motors, lifts | Prioritize EMI resilience (balanced pairs, shielding strategy) + route separation | Prevents intermittent faults and “ghost points” that destroy tuning |
| Long runs powering field devices | If voltage drop risk exists or actuator load is unstable | Lower resistance conductors + verified termination quality | Avoids brownouts, resets, and repeat service calls |
| Micro-zoning strategy (room-level control) | If energy KPI requires granular control and analytics | Topology segmentation + labeling + documentation as a deliverable | Keeps future upgrades cheap and fast; preserves savings |
| Office floors (low EMI) | If routes are clean and separation is controlled | Cost-optimized, consistent cable + strict QA & labeling | Avoids over-spec while maintaining stability |
| Retrofit buildings | If re-pulling cable later is disruptive/expensive | Invest in maintainability: traceability, documentation, robust jacket selection | Prevents repeat rework cycles and tenant disruption |
Define where EMI risk exists (plant rooms, VFD routes, parallel power trays).
Tie cabling requirements to measurable outcomes: stability, maintainability, and energy KPIs.
Require traceability (printing, lot control) and commissioning-ready documentation.
Maintain separation from high-power routes where possible; avoid long parallel runs near VFD outputs.
Use consistent termination practices; verify continuity and point stability early.
Label everything for future changes (expansion is part of the energy roadmap).
Monitor for retries/intermittent points during peak electrical noise (not only “quiet hours”).
Validate that micro-zones can operate without oscillation (stable feedback loop).
Document baselines so energy savings can be proven and sustained.
Engineering-first focus on stable transmission and low-resistance options where power drop is critical.
Material selections (PVC / LSZH / FRNC options) to match building safety and environment needs.
Documentation-friendly manufacturing approach (marking, packaging, batch control) to simplify maintenance.
BMS cabling impacts energy efficiency by protecting data quality, speeding response, reducing power loss, and enabling micro-zoning. The ROI is realized through fewer faults, faster commissioning, lower maintenance cost, and sustained energy savings you can verify.
Actionable next step: classify your building routes into high-EMI, long-run power, and standard office zones—then apply the decision rules to set targeted specs and QA checks. This approach minimizes CAPEX while maximizing lifecycle performance.
