BT3002×16 75 Ohm CATV coaxial Cable

  • CT

  • hellosignal

  • 7100461

  • Coaxial Cable

  • 75 ohm

  • UL, ETL, CE, RoHS

  • 100m, 305m,500m,1000m,500ft,1000ft

  • roll, wooden spool, carton, pallet

  • 30KM

  • Normally 15 working days

  • NINGBO, SHANGHAI

  • T/T, L/C at sight, D/P at sight

Availability:

Specification

zion LOGOBT3002×16

75 Ohm CATV coaxial Cable

NO.7100461

Construction Parameters:

Inner Conductor

0.31mm Silver Plated Copper

Dielectric

1.95mm Solid PE

Outer Conductor

Nom.2.85mm Double Braid of
 Tinned Annealed Copper Wire

Jacket

3.55mm PVC

* The coaxial jacket shall be marked with indeliby ink with number 1-16

* The sixteen coaxials are assembled together, and wrapped with plastic tape

Filling

Physical Foaming Polyethylene

Outer Jacket

19.6mm PVC

Electrical Characteristics:

Inner Conductor Resistance


The Max. at 20 shall be <  236 Ω/km

26.6Ω/1000ft

Capacitance

67 pF/m


Impedance

75 ± 3 Ω

Return loss

between 5 and 1000MHz: > 22dB

Velocity of Propagation

0.66

Sparker Test (VAC)

4


Mechanical and Envrionmental Properties

Cable bend radius

10 times the cable diameter

Operating Temp Range

-20  to 60

Cable diamensions

13.00±0.20mmPVC


Cross Section


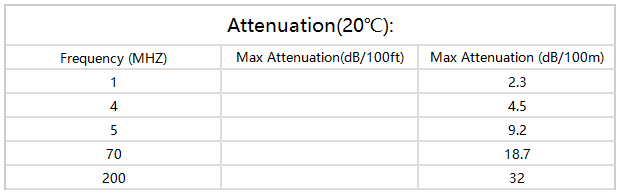

Attenuation(20℃):

Frequency (MHZ)

Max Attenuation(dB/100ft)

Max Attenuation (dB/100m)

1.0


2.30

4.0


4.50

5.0


9.20

70.0


18.70

200.0


32.00


Order Informations:

Marking

HELLOSIGNAL BT3002×16

CATV COAXIAL CABLE 7100462 ×××M/FT

Package

Inquired Length on Reel,wooden Spool,pallet …

Delivery time

Normally 25 days after received the deposit.

Brand

HELLOSIGNAL® OR OEM
