CT
hellosignal
7100448
Coaxial Cable
75 ohm
UL, ETL, CE, RoHS
100m, 305m,500m,1000m,500ft,1000ft
roll, wooden spool, carton, pallet
30KM
Normally 15 working days
NINGBO, SHANGHAI
T/T, L/C at sight, D/P at sight
75 Ohm CATV coaxial Cable NO.7100448 | |||
Construction Parameters: | |||
Inner Conductor | 0.065"/1.67mm/14AWG BC | ||
Dielectric | 7.28mm 5 cell air spaced PE | ||
Shield 1 | overlapped copper foil | ||
Shield 2 | 16*6*0.12mm bare copper braid wire 55% coverage | ||
Jacket | 10.1±0.20mm LSZH | ||
Jacket Thickness | 0.030"/0.76mm | ||
Application | For Use in Longer CATV Run Lengths | ||
Electrical Characteristics: | |||
Inner Conductor Resistance | The Max. at 20℃ shall be < 7.86 Ω/km | ||
Capacitance | 52 ±3 pF/m 15.9 ±0.9 pF/ft | ||
Impedance | 75 ± 3 Ω | ||
Return loss | between 5 and 1000MHz: > 22dB | ||
Velocity of Propagation | 0.85 | ||
Sparker Test (VAC) | 4 | ||
Mechanical and Envrionmental Properties | |||
Cable bend radius | 10 times the cable diameter | ||
Operating Temp Range | -20 ℃ to 60℃ | ||
Cable diamensions | 7.8±0.20mm LSZH | ||

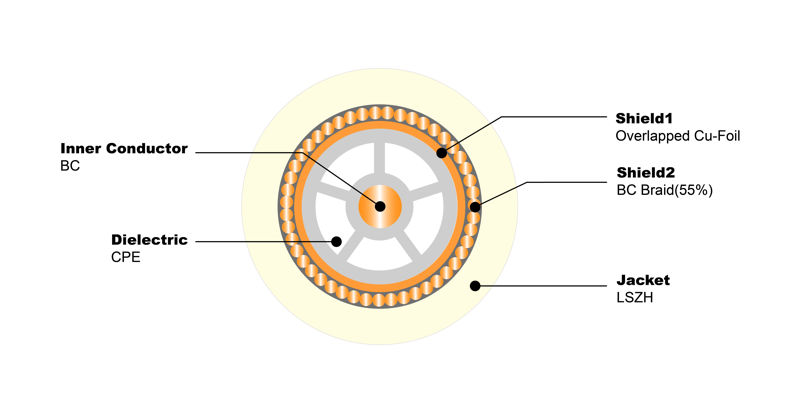

Cross Section | |||
| |||
Attenuation(20℃): | |||
Frequency (MHZ) | Max Attenuation(dB/100ft) | Max Attenuation (dB/100m) | |
5 | 0.80 | ||
10 | 1.20 | ||
50 | 3.20 | ||
100 | 5.40 | ||
200 | 6.50 | ||
300 | 8.50 | ||
470 | 11.00 | ||
600 | 13.50 | ||
1000 | 16.40 | ||
Order Informations: | |||
Marking | HELLOSIGNAL CT167 CPE LSZH CATV COAXIAL CABLE 7100448 ×××M/FT | ||
Package | Inquired Length on Reel,wooden Spool,pallet … | ||
Delivery time | Normally 25 days after received the deposit. | ||
Brand | HELLOSIGNAL® OR OEM | ||
75 Ohm CATV coaxial Cable NO.7100448 | |||
Construction Parameters: | |||
Inner Conductor | 0.065"/1.67mm/14AWG BC | ||
Dielectric | 7.28mm 5 cell air spaced PE | ||
Shield 1 | overlapped copper foil | ||
Shield 2 | 16*6*0.12mm bare copper braid wire 55% coverage | ||
Jacket | 10.1±0.20mm LSZH | ||
Jacket Thickness | 0.030"/0.76mm | ||
Application | For Use in Longer CATV Run Lengths | ||
Electrical Characteristics: | |||
Inner Conductor Resistance | The Max. at 20℃ shall be < 7.86 Ω/km | ||
Capacitance | 52 ±3 pF/m 15.9 ±0.9 pF/ft | ||
Impedance | 75 ± 3 Ω | ||
Return loss | between 5 and 1000MHz: > 22dB | ||
Velocity of Propagation | 0.85 | ||
Sparker Test (VAC) | 4 | ||
Mechanical and Envrionmental Properties | |||
Cable bend radius | 10 times the cable diameter | ||
Operating Temp Range | -20 ℃ to 60℃ | ||
Cable diamensions | 7.8±0.20mm LSZH | ||
Cross Section | |||
| |||
Attenuation(20℃): | |||
Frequency (MHZ) | Max Attenuation(dB/100ft) | Max Attenuation (dB/100m) | |
5 | 0.80 | ||
10 | 1.20 | ||
50 | 3.20 | ||
100 | 5.40 | ||
200 | 6.50 | ||
300 | 8.50 | ||
470 | 11.00 | ||
600 | 13.50 | ||
1000 | 16.40 | ||
Order Informations: | |||
Marking | HELLOSIGNAL CT167 CPE LSZH CATV COAXIAL CABLE 7100448 ×××M/FT | ||
Package | Inquired Length on Reel,wooden Spool,pallet … | ||
Delivery time | Normally 25 days after received the deposit. | ||
Brand | HELLOSIGNAL® OR OEM | ||
CT167 CPE LSZH
