CT100 CPE PVC 75 Ohm CATV coaxial Cable

Construction Parameters:

Inner Conductor

0.04"/1.00mm/18AWG BC

Dielectric

4.6mm 5 cell air spaced PE

Shield 1

4.75mm overlapped copper foil

Shield 2

16*4*0.12mm bare copper braid
wire 55% coverage

Jacket

6.7±0.15mm PVC

Jacket Thickness

0.030"/0.76mm

Application

For Use in Longer CATV Run Lengths

Electrical Characteristics:

Inner Conductor Resistance

The Max. at 20℃ shall be <  21.9 Ω/km

6.68Ω/1000ft

Capacitance

52 ±3 pF/m         15.9 ±0.9 pF/ft

Impedance

75 ± 3 Ω

Return loss

between 5 and 1000MHz: > 22dB

Velocity of Propagation

0.85

Sparker Test (VAC)

4

Mechanical and Envrionmental Properties

Cable bend radius

10 times the cable diameter

Operating Temp Range

-20 ℃ to 60℃

Cable diamensions

6.7±0.15mm PVC

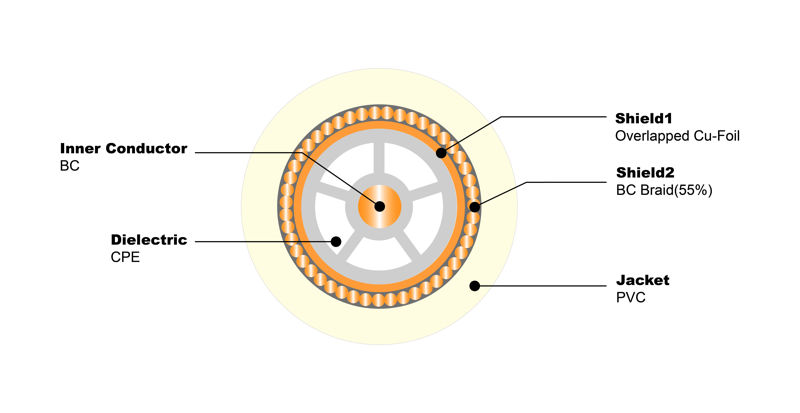

Cross Section

Attenuation(20℃):

Frequency (MHZ)

Max Attenuation(dB/100ft)

Max Attenuation (dB/100m)

5

1.00

10

1.50

50

3.80

100

5.70

200

8.70

300

9.80

470

12.80

600

14.00

1000

19.00

Order Informations:

Marking

HELLOSIGNAL CT100 CPE PVC

CATV COAXIAL CABLE 7100441 ×××M/FT

Package

Inquired Length on Reel,Pull Box,Plastic Spool,wooden Spool,pallet …

Delivery time

Normally 25 days after received the deposit.

Brand

HELLOSIGNAL^® OR OEM
