CT233 CPE PVC 75 Ohm CATV coaxial Cable

Construction Parameters:

Inner Conductor

0.091"/2.33mm/11AWG BC

Dielectric

10.06mm 5 cell air spaced PE

Shield 1

overlapped copper foil

Shield 2

16*6*0.15mm bare copper

braid wire 55% coverage

Jacket

13.00±0.20mmPVC

Jacket Thickness

0.030"/0.76mm

Application

For Use in Longer CATV Run Lengths

Electrical Characteristics:

Inner Conductor Resistance

The Max. at 20℃ shall be <  4.05 Ω/km

Capacitance

52 ±3 pF/m         15.9 ±0.9 pF/ft

Impedance

75 ± 3 Ω

Return loss

between 5 and 1000MHz: > 22dB

Velocity of Propagation

0.85

Sparker Test (VAC)

4

Mechanical and Envrionmental Properties

Cable bend radius

10 times the cable diameter

Operating Temp Range

-20 ℃ to 60℃

Cable diamensions

13.00±0.20mmPVC

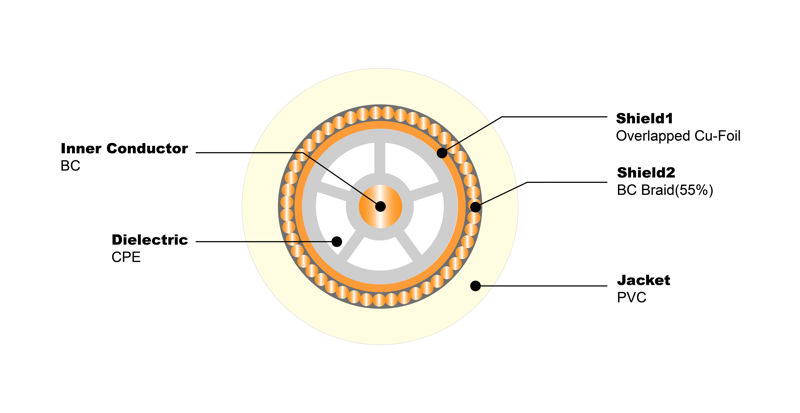

Cross Section

Attenuation(20℃):

Frequency (MHZ)

Max Attenuation(dB/100ft)

Max Attenuation (dB/100m)

5

0.60

50

1.90

100

2.70

200

4.00

450

6.30

600

7.50

860

9.00

1000

10.10

Order Informations:

Marking

HELLOSIGNAL CT233 CPE PVC

CATV COAXIAL CABLE 7100449 ×××M/FT

Package

Inquired Length on Reel,wooden Spool,pallet …

Delivery time

Normally 25 days after received the deposit.

Brand

HELLOSIGNAL^® OR OEM
