Fiber Patch Cord
HELLOSIGNAL
MTC-SC Pushable Fiber Cable
Fiber Optic System
Normally 25 working days
NINGBO, SHANGHAI
T/T, L/C at sight, D/P at sight

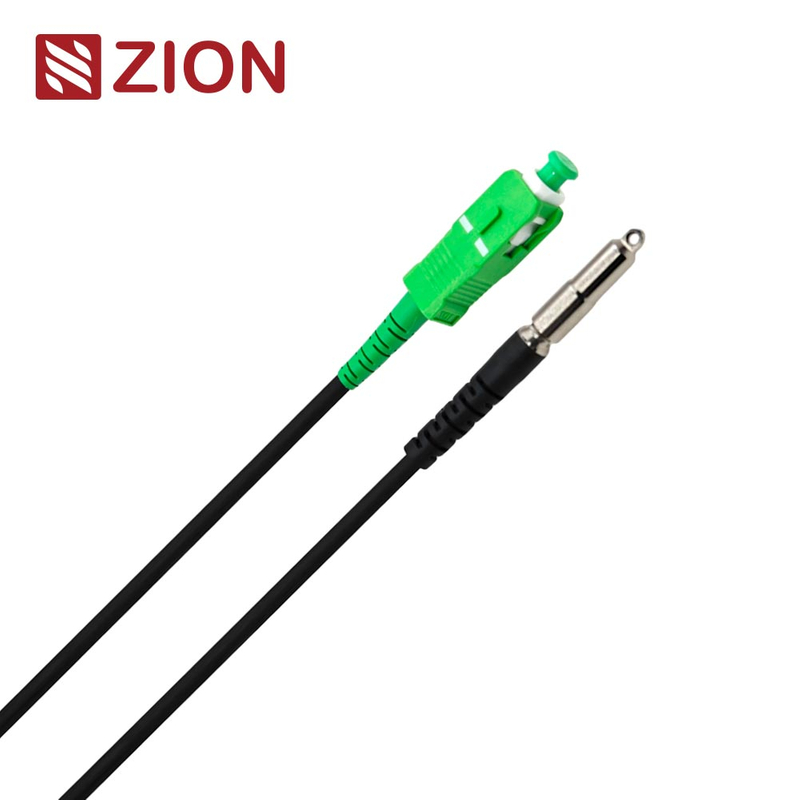

MTC-SC pushable fiber cable is a type of pushable fiber optic jumper, manufactured for quick, reliable and uncomplicated fiber deployment in FTTH and FTTX networks. This pre-terminated FTTH drop cable design is considered for easy routing into indoor walls, conduits, and places where microduct fiber optic solutions are used, without the need of coupling or splicing.
Its standard SC connector on one end and bullet-style pushable connector (MTC) on the other end make this SC bullet fiber jumper a great choice to reach the challenging locations for last drops in the fibre network — through the tight wall spaces or small ducts.
The type of Fiber optic cord called a pushable fiber optic jumper, or drop cable, is used to create distribution links between distribution points and end-users in Fiber to the Home (FTTH). A pre-terminated FTTH drop cable not only reduces the insertion loss, but also saves a lot of time when compared with traditional field-terminated solutions.
MTC-SC pushable fiber cable offers deployment flexibility especially in restrained environments where trenches or large conduits are not feasible. To enhance the capability of the cable for complex fiber paths, the cable's design integrates a tough yet flexible structure allowing for both pushing and pulling.
On the End A, there is a standard SC/APC connector with a 2.5 mm ferrule.
On the End B, the components are provided separately
a 2.5 mm APC ferrule, a green SC housing, a white body, and a bullet-style protector.
1. Bullet-Style Protector
2. Mountable Body
3. Mountable Housing
4. Dust Cap
5. Pulling Mesh with Swivel
Feature | Description |
Tool-Free Fiber Optic Installation | No fusion splicing, polishing, or special tools required |
Pushable SC Bullet Fiber Jumper | Bullet-type tip enables smooth wall/conduit penetration |
Pre-Terminated SC Connector | Factory-installed SC/APC or SC/UPC ensures low loss and fast connection |
MPO MTC Fiber Connector | High-performance multi-fiber MTC interface supports MPO architecture |
Microduct Fiber Optic Solution | Compatible with tight buffer ducts, enabling space-saving deployments |
Indoor/Outdoor Ready | Rugged jacket withstands varied environments |
Custom Lengths Available | Precision-manufactured to meet project-specific installation requirements |
Reduced Installation Time & Cost | Streamlined setup means fewer technician hours and lower overall expense |
FTTH Pushable Cable: This gives an absolutely ideal solution for delivery of fiber from distribution points to the indoor wall outlets.
Business Fiber Drops: The fiber connections for a quick last mile reach for small and medium enterprises.
Cell Tower Backhaul: Cost-friendly but reliable fiber link for mobile base station in fiber delivery.
Microduct Installations: Pushing or pulling through existing fiber ducts or indoor walls is possible.
MPO Network Extensions: All MPO compatible MTC fiber connector inside data centers or PON networks.
Feature | MTC-SC Pushable Cable | Traditional Fiber Patch Cord |
Pre-Terminated Design | ✔ Yes | ✘ No (Splicing required) |
Push/Pull Through Microducts | ✔ Excellent | ✘ Limited |
SC Bullet Connector for Wall Use | ✔ Standard | ✘ Rare |
Compatible with MPO/MTC Systems | ✔ Yes | ✘ Usually No |
Tool-Free Fiber Optic Installation | ✔ Yes | ✘ No |
Ideal for FTTH & FTTX | ✔ Optimized | ✘ Not purpose-built |
Parameter | Condition / Wavelength | |
Attenuation | @1310 nm | ≤ 0.35 dB/km |
@1550 nm | ≤ 0.25 dB/km | |
@1625 nm | ≤ 0.26 dB/km | |
Zero Dispersion Wavelength | 1250 ~ 1350 nm | |
Zero Dispersion Slope | ≤ 0.11 ps/nm²·km | |
Macrobending Loss (1 turn) | Φ20 mm @1550 nm | ≤ 0.03 dB |
Φ20 mm @1625 nm | ≤ 0.10 dB | |
Φ15 mm @1550 nm | ≤ 0.08 dB | |
Φ15 mm @1625 nm | ≤ 0.25 dB | |
Φ10 mm @1550 nm | ≤ 0.15 dB | |
Φ10 mm @1625 nm | ≤ 0.45 dB | |
Mode Field Diameter | @1310 nm | |
Parameter | Value |
Fiber Core Diameter | 7 ~ 10 µm |
Cladding Diameter | 125 ± 0.7 µm |
Cladding Non-Circularity | ≤ 1.0 % |
Core/Cladding Concentricity Error | ≤ 0.5 µm |
Coating Diameter (colored fiber) | 250 ± 15 µm |
Tight Buffer Diameter | 900 ± 50 µm |
Parameter | Value |
Proof Test | ≥ 0.69 GPa |
Jacket Material | Black TPU, UV-resistant |
Buffer Material | LSZH |
Strength Member | Aramid Yarn |
Parameter | Value |
Fiber Count | 1 (G.657B3) |
Tight Buffered Fiber Diameter | 900 ± 50 µm |
Cable Outer Diameter | 3.0 ± 0.2 mm |
Cable Weight | 7.8 ± 0.5 kg/km |
Operating Temperature Range | -40°C +70°C |
Installation Temperature Range | -40°C +70°C |
Transport & Storage Temperature Range | -40°C +70°C |
Parameter | Value |
Maximum Tensile Load | ≥ 600 N |
Crush Resistance | Static: 100 N/10 cmDynamic: 800 N/10 cm |
Minimum Bending Radius (Installation) | 20 × OD |
Minimum Bending Radius (Operation) | 10 × OD |
Minimum Cable Length per Reel | ≥ 90 m |
Sag Ratio | 1.00% |
Max Wind Speed | 70 km/h |
Fiber Color | Blue |
Buffer Color | Blue |
IEC-60793-1-44:2011
IEC-60794-1
CE, RoHS, ISO 9001
ITU-T G.657
TELCORDIA GR-20
ICEA S-87
■ Cable Structure
Specification | Parameter |
Fiber Type | Single-mode |
Category / Attenuation | ITU-T G.657B3 / ≤ 0.25 dB/km |
Application | Indoor, Outdoor, and Duct Installations |
Connector Type | SC |
Polish Type | APC |
Ferrule Angle | 8° |
Ferrule Material & Diameter | Ceramic (Zirconia), 2.5 mm |
Insertion Loss (IL) | ≤ 0.3 dB |
Return Loss (ORL) | ≥ 55 dB |
Mechanical Durability | > 500 mating cycles |
Operating Temperature | -40°C to +70°C |
Storage Temperature | -40°C to +70°C |
Tensile Strength (Cable + Connector) | ≥ 70 N |
Tensile Strength (Cable + Pulling Mesh) | ≥ 300 N |
Mode Field Diameter @1310 nm | (8.6 ~ 9.2) ± 0.4 µm |
Winding Length (per reel) | 100, 150, 200, 250, 300, 350, 400 m |
■ Complementary Accessories
Description | Details |
Bullet Protector with Hook Tip | |
– Protector Material | Stainless Steel |
– Dimensions | Φ5.5 mm (diameter) × 30.5 mm (length) |
– Function | Acts as a swivel/twist-relief bullet head |
– Quantity | 1 piece |
Pulling Mesh | |
– Material | Nylon |
– Dimensions | Φ6 mm × 100 cm |
– Quantity | 1 piece per 100 jumpers |
Dust Cap | |
– Function | Protects the ferrule ends |
– Quantity | 2 pieces (one on each connector end) |
Mountable Body | |
– Quantity | 1 piece (bullet side) |
Mountable Housing | |
– Quantity | 1 piece (bullet side) |
User Manual | |
– Quantity | 1 piece per 100 jumpers |
Accessories (Choose one of the two options)
Accessory Option 1:
Metal Pulling Cap + Torque Releaser
Tensile Strength:
• 2.0 × 3.0 Flat Drop Cable: ≥70 N
• φ3.0 mm Round Optical Cable (Aramid Reinforced Core): ≥100 N
Accessory Option 2:
Plastic Pulling Cap + Pulling Mesh Sleeve
Tensile Strength:
• 2.0 × 3.0 Flat Drop Cable: ≥200 N
• φ3.0 mm Round Optical Cable (Aramid Reinforced Core): ≥200 N
■ Optical Fiber Specification
Item | Test Standard | Method | Acceptance Criteria |
Tensile Test | IEC 60794-1-E1 | - Maximum tensile strength- Sample length: 50 meters- Duration: 10 minutes | - Fiber deformation under max load: max. 0.33%- Attenuation increase: ≤ 0.10 dB |
Torsion Test | IEC 60794-1-E7 | - 1 m cable length with 150 N weight- ±180°, 10 cycles | - No cracks or fractures on the outer jacket- Attenuation increase ≤ 0.10 dB after the test |
Repeated Bending Test | IEC 60794-1-E6 | - Bending radius: 25 × outer cable diameter- 1 m cable length with 150 N weight- 25 cycles | - No splits or cracks in the outer jacket- Attenuation increase ≤ 0.10 dB after the test |
Temperature Cycle Test | IEC 60794-1-F1 | - Temperature cycle: +20°C → -40°C → +60°C → -40°C → +60°C → +20°C- Dwell time per cycle: 12 hours- Number of cycles: 2 | - Attenuation variation from reference value (+20 ± 3°C) ≤ 0.10 dB/km |
Bending Test | IEC 60794-1-E11B | - Mandrel diameter: 25 × cable diameter- Number of cycles: 1 cycle | - Attenuation change ≤ 0.1 dB- No fiber breakage or cable damage |
Water Penetration Test | IEC 60794-1-F5 | - Water height: 1 m- Sample length: 3 m- Test duration: 24 hours | - No water leakage at the end of the sample |
Polish | Curvature Radius (mm) | Apex Offset (mm) | Fiber Height (nm) | Angle (°) | ||||
Min. | Max. | Min. | Max. | Min. | Max. | Min. | Max. | |
APC | 5 | 12 | 0 | 70 | -100 | 100 | 7.5 | 8.5 |
We can provide FTTH pushable cable projects with OEM branding, customized lengths, and technical support.
Talk to our advisors for us to assist you with the most suitable microduct fiber optic solution for your project.
