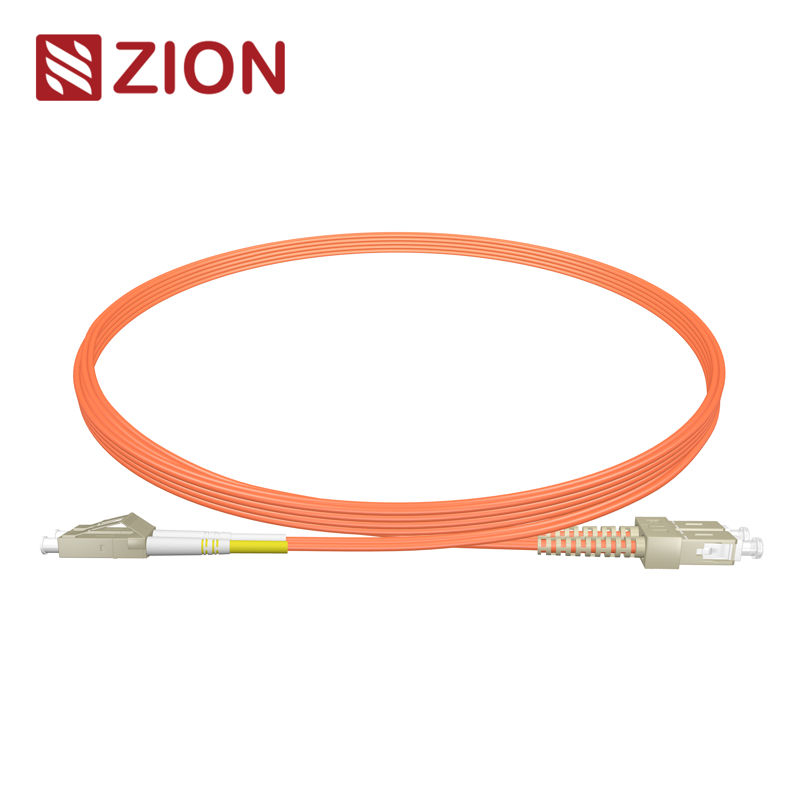

LC UPC to SC UPC Duplex OM1 Multimode PVC 2.0mm -2m(6ft) FOPC

  • Fiber Patch Cord

  • HELLOSIGNAL

  • LC Patch Cord

  • Fiber System Equipment

  • Normally 25 working days

  • NINGBO, SHANGHAI

  • T/T, L/C at sight, D/P at sight

Availability:

Product Description

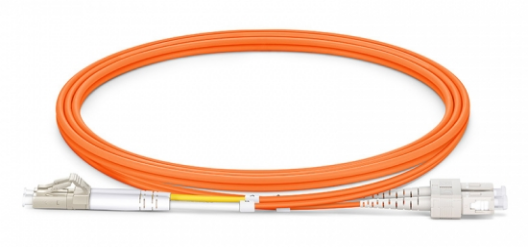

LC UPC to SC UPC Duplex
OM1 Multimode PVC 2.0mm -2m(6ft) FOPC
1121D412-2


Product Specification

Fiber Optic Cable

Fiber Type

Single-mode: OS2 ( G.652.D /  G.657.A1 / G.657.A2)

Multi-mode: OM1(62.5/125), OM2(50(125),
[(OM3, OM4) (50/125,Laser Optimization)]

Fiber Count

Simplex / Duplex

Cable Jacket

Main material: PVC / LSZH / Plenum (OFNP)

OD: Simplex: 0.9/2.0/3.0mm    Duplex: 0.9/2.0/3.0mm

Jacket Color

Yellow:   SM: OS2 ( G.652.D /  G.657.A1 / G.657.A2)

Orange: OM1, OM2

Aqua:     OM3, OM4

Cable Length

1m, 2m, 3m. other lengths on request

Mechanical
Specification

Ferrule

Ceramic; (MTRJ: PS-Polyphenylene Sulphide)

Apex Offset

< 50um

Fiber Height

± 100nm

Radius of Curvature

7mm R < 25mm (Excluding MTRJ)

Repeatability

≤ 0.2dB 1,000 times mating cycles










Product Specification

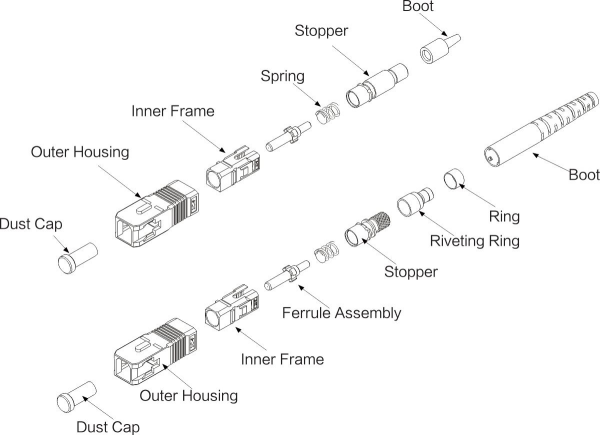

Connector

Connector Type

LC, SC, FC, ST, MU, MTRJ, LSH, E-2000





LC ( Lucent Connector/Little Connector/Local Connector)
Typical Application: High density connections,
SFP and SFP+ transceivers, XFP transceivers












Connector Type

LC, SC, FC, ST, MU, MTRJ, LSH, E-2000





SC ( Subscriber Connector/Square Connector/Standard Connector)
Typical Application:
Telecom,GPON,EPON,GBIC













Product Specification

Parameter

LC UPC

SC UPC

OM1 G.652.D/G.657.A1/G.657.A2

Operating Wavelength(nm)

1310-1550

Insertion Loss (dB)

≤ 0.3

≤ 0.3

Return Loss (dB)

≥ 35

≥ 35

Repeatability (dB)

≤ 0.1

≤ 0.1

Interchangeability (dB)

≤ 0.2

≤ 0.2

Tensil Strength (N)

≥ 1000

≥ 1000

Operating Temperature (℃)

 -20 ~ +85

 -20 ~ +85

Storage Temperature (℃)

 -40 ~ +85

 -40 ~ +85

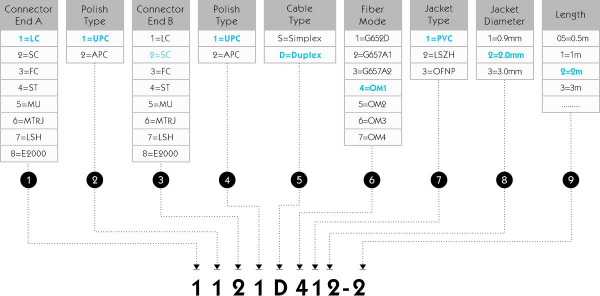

Zion Code

Description

1121D412-2

LC UPC to SC UPC Duplex
OM1 Multimode PVC 2.0mm -2m(6ft) FOPC






OEM/ODM service for you

ZION Communication has rich expiriences in
producing OEM/ODM cases becaused of Profession R & D team.

• Customized Logo

• Printing on Cable

• Label/PE bag/Carton design

• Different Color & Different Lengths Available


图片9 (2)

图片9 (1)
