Author: Site Editor Publish Time: 24-04-2026 Origin: Site
For Cat6A projects, F/UTP and F/FTP are both shielded cable structures, but they are not the same. F/UTP uses one overall foil shield around all four twisted pairs, while F/FTP adds individual foil shielding around each pair plus an overall foil shield. This affects EMI protection, alien crosstalk control, grounding, installation difficulty, cable flexibility, and quotation accuracy.
F/UTP has one overall foil shield and is often suitable for standard shielded Cat6A commercial projects.
F/FTP has pair foil shielding plus overall foil shielding, giving stronger pair isolation and EMI margin.
RFQs should not say only “Cat6A shielded cable”; they should clearly state F/UTP, F/FTP, jacket, conductor, packing, and compatible accessories.

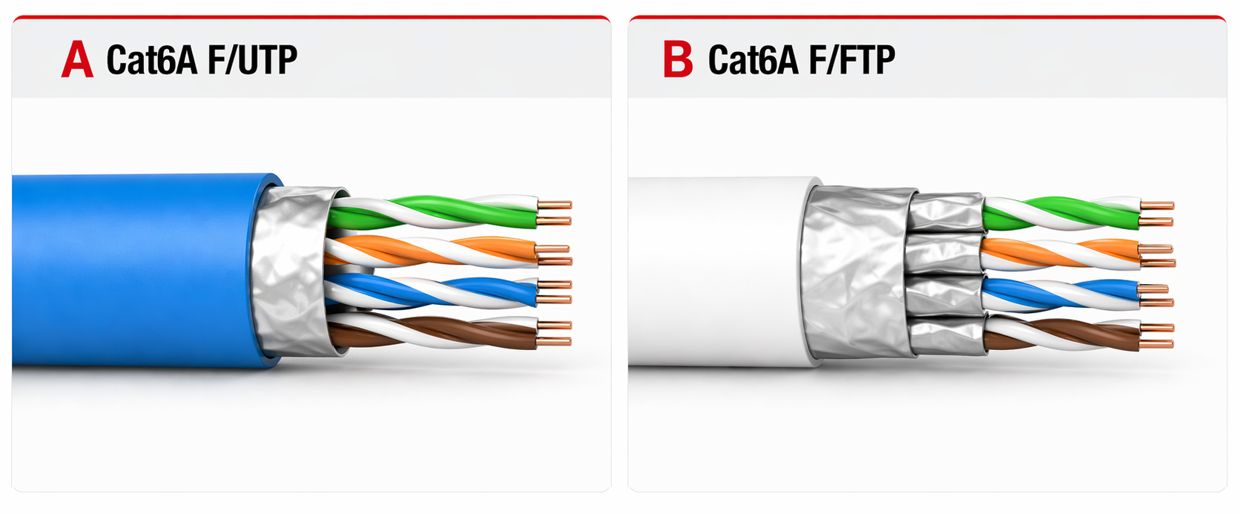

The main difference between F/UTP and F/FTP is the shielding structure. F/UTP uses one overall foil screen around all four twisted pairs. F/FTP uses individual foil shielding around each twisted pair, plus an overall foil shield around the cable core.
In practical Cat6A projects, F/FTP provides stronger pair-to-pair isolation and better shielding margin in dense or electrically noisy environments. However, it also usually means higher material cost, larger cable diameter, lower flexibility, more careful termination, and stricter grounding and bonding requirements.

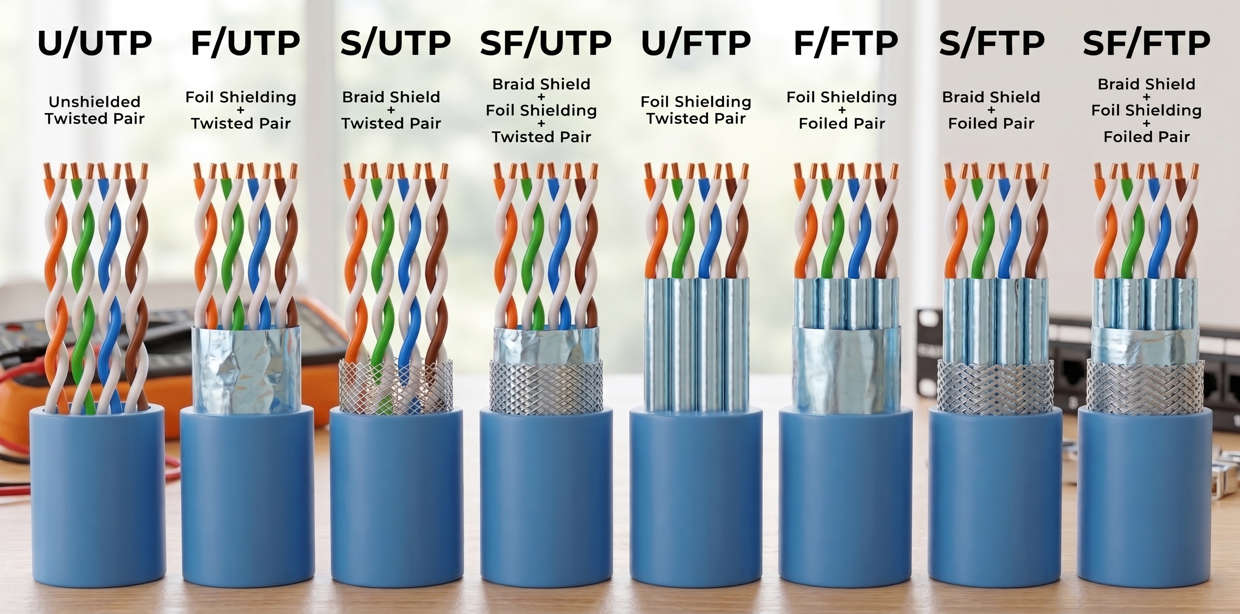

Shielding names can be confusing because the letters before and after the slash describe different shielding positions. The first part describes the overall cable shield. The second part describes whether each twisted pair has its own shielding.
| Cable Type | Meaning | Shielding Structure | Simple Explanation |
|---|---|---|---|
| U/UTP | Unshielded / Unshielded Twisted Pair | No overall shield, no pair shield | Standard unshielded LAN cable |
| F/UTP | Foil / Unshielded Twisted Pair | Overall foil shield only | One shared shield around all four pairs |
| U/FTP | Unshielded / Foil Twisted Pair | Individual pair foil, no overall shield | Each pair is individually shielded |
| F/FTP | Foil / Foil Twisted Pair | Overall foil + individual pair foil | Stronger shielding and pair isolation |
For Cat6A procurement, the common question is usually whether the project needs Cat6A F/UTP or Cat6A F/FTP. These two options may both be called “shielded Cat6A cable,” but they are not equal in construction, cost, or installation requirements.

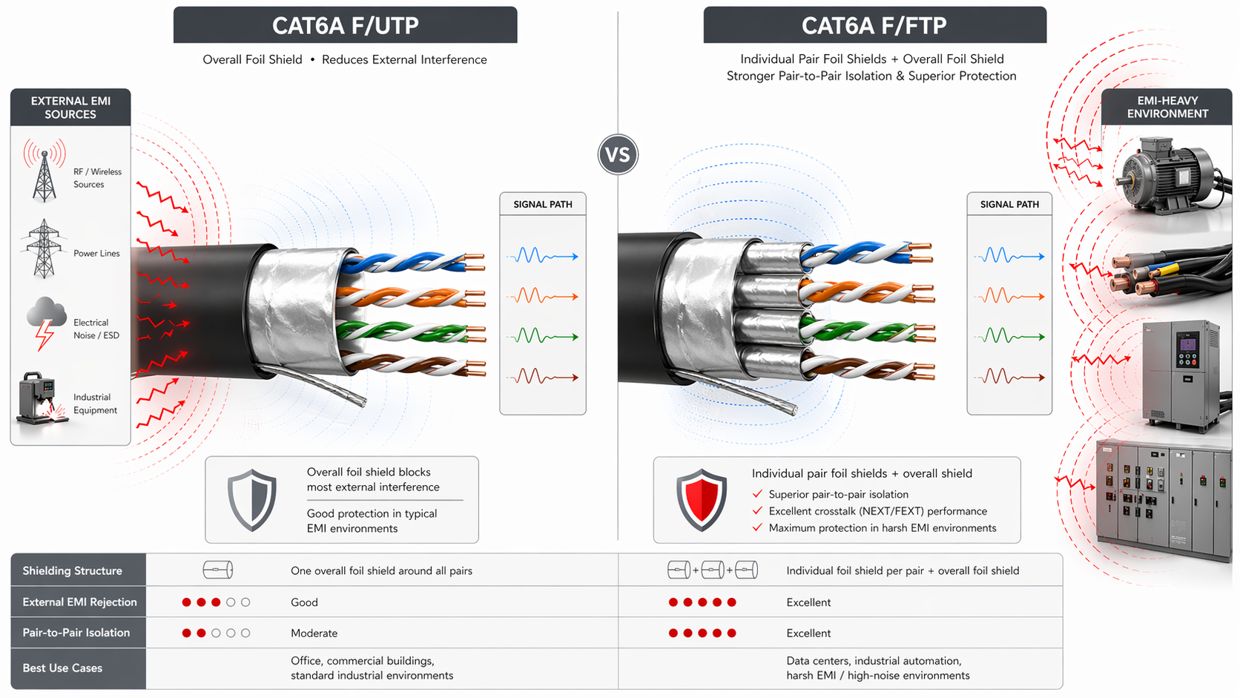

In an F/UTP cable, all four twisted pairs sit inside one shared foil screen. This helps reduce external electromagnetic interference and supports stable Cat6A performance when the channel is designed and installed correctly.
In an F/FTP cable, each twisted pair is wrapped with its own foil screen, and the complete cable core also has an overall foil shield. This improves separation between pairs and gives additional protection against pair-to-pair coupling and external interference.
| Item | Cat6A F/UTP | Cat6A F/FTP | Project Meaning |
|---|---|---|---|
| Overall foil shield | Yes | Yes | Both are shielded cable options |
| Individual pair foil shield | No | Yes | F/FTP gives stronger pair isolation |
| EMI resistance | Good | Better | Important near power, motors, panels, and drives |
| Alien crosstalk control | Good with correct design | Stronger in dense bundles | Important for 10G copper links and high-density pathways |
| Flexibility | Usually better | Usually lower | Affects installation space and bend management |
| Termination difficulty | Easier | More complex | Installer skill and time must be considered |
| Typical cost | Lower | Higher | F/FTP should be justified by environment or specification |
Cat6A is commonly selected for higher-performance structured cabling and 10G Ethernet channels. Compared with lower categories, Cat6A projects are more sensitive to cable diameter, installation practice, bend radius, bundling, grounding, patch panel compatibility, and channel testing.
The wrong shielding choice can create both technical and commercial problems. A buyer may overpay for F/FTP when F/UTP is enough, or under-specify F/UTP when the project actually requires pair shielding. In RFQ communication, “Cat6A shielded cable” is often not precise enough.
Cat6A F/UTP is often suitable for commercial buildings, offices, schools, hotels, security systems, and general structured cabling projects where the cable pathway is controlled and the electromagnetic environment is not extreme.
| Project Condition | Why F/UTP Can Be Suitable |
|---|---|
| Normal office or commercial building | Overall foil shielding provides practical EMI protection |
| Cable routes are separated from power cables | Lower external interference risk |
| Moderate cable bundle density | Alien crosstalk can usually be managed through design and installation |
| Budget sensitivity is important | Lower cable cost and easier installation than F/FTP |
| Shielded system is required, but pair shielding is not specified | Good balance between shielding, cost, and installation efficiency |
Cat6A F/FTP is more suitable when the project has higher interference risk, denser cable routing, stricter channel performance requirements, or a written requirement for individual pair shielding.
| Project Condition | Why F/FTP May Be Better |
|---|---|
| High-density cable trays or bundles | Better control of alien crosstalk and pair coupling |
| Data centers or equipment rooms | More shielding margin in dense routing environments |
| Industrial or electrical areas | Better resistance to EMI from motors, drives, panels, and power systems |
| Routes close to power cables | Additional shielding margin can reduce risk |
| Project specification says “individual pair foil” | F/UTP does not meet this requirement |
| High-value or critical links | Extra performance margin may justify the higher cost |
F/FTP is not automatically necessary for every Cat6A project. It becomes valuable when the cost of link instability, troubleshooting, downtime, or rework is higher than the added cost of the cable and installation.
The decision between F/UTP and F/FTP is not only a product performance decision. It also affects labor, accessories, grounding, pathway design, termination time, and future maintenance.
| Factor | F/UTP Impact | F/FTP Impact |
|---|---|---|
| Cable cost | Lower | Higher |
| Cable diameter | Usually smaller | Usually larger |
| Flexibility | Usually better | Usually lower |
| Termination time | Faster | Slower because pair foils need careful handling |
| Accessories | Shielded accessories required | Shielded accessories required, with more attention to foil continuity |
| Grounding and bonding | Required for shielded system performance | Required and more critical due to full shielding design |
| Installer skill requirement | Medium | Higher |
To avoid quotation errors, the RFQ should define cable structure, category, conductor, jacket, packing, accessories, and application environment. Do not write only “Cat6A shielded cable.”
| RFQ Item | What to Specify | Why It Matters |
|---|---|---|
| Category | Cat6A | Defines performance class |
| Shielding structure | F/UTP or F/FTP | Prevents wrong quotation and wrong construction |
| Conductor | Solid bare copper, commonly 23AWG depending on design | Affects transmission performance and termination compatibility |
| Jacket | PVC, LSZH, CMR, CMP, PE, or project-specific material | Affects fire safety, indoor/outdoor use, and compliance |
| Accessories | Shielded patch panel, shielded keystone jack, shielded patch cord | Ensures channel compatibility |
| Packing | 305 m box, 500 m reel, 1000 m reel, or custom | Affects logistics, installation, and waste control |
| Application | Office, data center, industrial, security, building backbone, etc. | Helps supplier evaluate shielding and jacket choice |
Please quote Cat6A F/UTP cable, 4-pair solid bare copper conductor, overall foil shield with drain wire, LSZH jacket, 500 MHz, 305 m box packing, blue color, for commercial building structured cabling. Please include datasheet, cable diameter, jacket marking, test report availability, MOQ, lead time, and compatible shielded keystone/patch panel options.
Please quote Cat6A F/FTP cable, 4-pair solid bare copper conductor, individual foil shield around each twisted pair plus overall foil shield, LSZH jacket, 500 MHz, 305 m or 500 m packing, for high-density equipment room installation. Please confirm cable diameter, minimum bending radius, grounding recommendation, compatible shielded accessories, MOQ, lead time, and sample availability.
This is not specific enough. It may refer to F/UTP, U/FTP, F/FTP, S/FTP, or another structure.
The channel may lose shielding continuity if the patch panel, keystone, or patch cord is not compatible.
Shielded cabling should follow the project’s grounding and bonding design to achieve the expected shielding benefit.
F/FTP may be stiffer and larger. Check conduit fill, tray capacity, cabinet routing, and termination area.
Two offers may both say “Cat6A shielded,” but one may be F/UTP and another F/FTP.
Cable, connectors, patch panels, patch cords, grounding, and testing should be considered together.
The difference between F/UTP and F/FTP Cat6A cable is not just a naming detail. It affects shielding margin, alien crosstalk control, cable diameter, flexibility, grounding, termination, cost, and channel compatibility.
For most standard shielded Cat6A commercial projects, F/UTP provides a practical balance of performance and cost. For high-density cabling, high-EMI environments, critical links, or projects that explicitly require individual pair shielding, F/FTP is usually the safer technical choice.
Share your cable route, application environment, jacket requirement, packing length, and accessory plan. ZION can help confirm the suitable Cat6A cable structure before sample approval or bulk ordering.
