Fiber Optic Cable Design & Installation Guide
How to select and install fiber optic cables so they stay reliable for decades in data centers, FTTR, ODN, and harsh outdoor environments.
Use 20× diameter (install) and 10× diameter (static) as your minimum fiber bend radius rule of thumb.
G.657.A2 bend-insensitive fiber is the default choice for FTTR, tight routing, and 2026 high-density racks.
Most fiber cables are mechanically stronger than copper—failures usually come from installation errors, not the glass.
In 2026, fiber optics is no longer used only for long-distance backbone links. It now runs into AI data centers, FTTR home networks, 5G/6G small cells, industrial plants, and UAV systems. All of these scenarios put fiber under tighter bends, more frequent handling, and harsher mechanical stress.
Modern fiber cables are designed to be stronger than copper in tension and crush, but they still follow strict bend and handling limits. For project owners and procurement, understanding these limits is essential to:
Prevent hidden attenuation and “mystery” link flaps in high-speed links.
Protect long-term SLA performance in data centers and ODN networks.
Avoid costly rework, site returns, and premature upgrades.

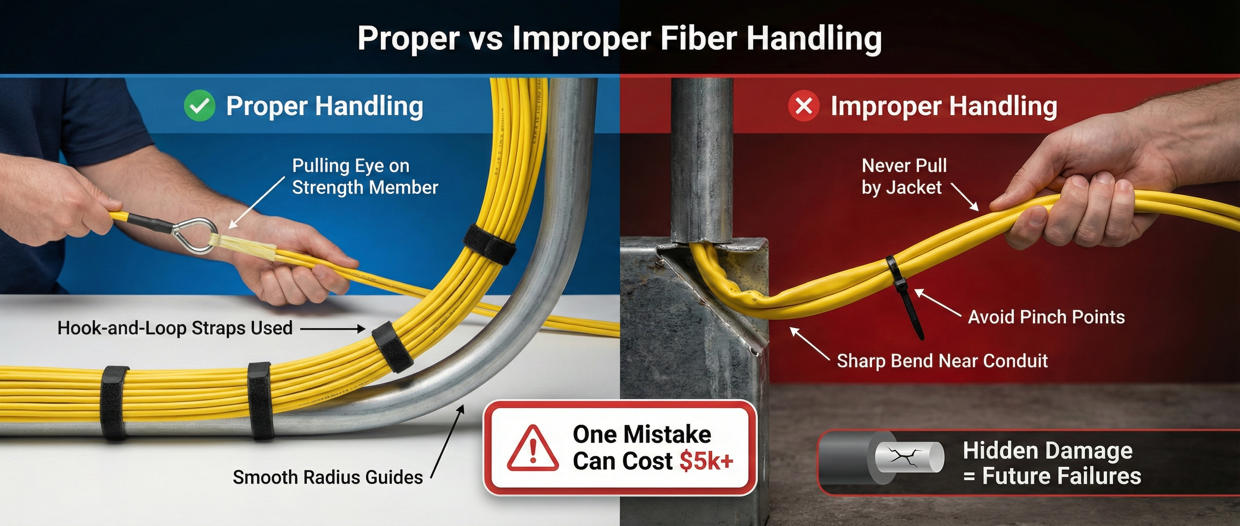

Most “fiber is fragile” stories come from poor installation: tight tie-wraps, severe 90° bends in conduits, and pulling by the jacket instead of the strength members. The glass was not the problem—handling was.
Bend radius is the minimum curvature allowed on a fiber cable without causing excessive signal loss or physical damage. Industry practice distinguishes between:
Dynamic (installation) bend radius: when the cable is under tension during pulling.
Static (long-term) bend radius: once the cable is installed and fixed in place.
As a practical rule of thumb, most generic fiber cables follow 20× diameter (dynamic) and 10× diameter (static). Bend-insensitive G.657 fibers can be tighter, but never below the manufacturer’s published limit.
| Parameter | Rule of Thumb | Example (2.0 mm duplex) | Risk if Ignored |
|---|---|---|---|
| Dynamic bend radius | ≥ 20 × cable diameter | ≥ 40 mm (1.6") | Microbending during pull, permanent attenuation increase |
| Static bend radius | ≥ 10 × cable diameter | ≥ 20 mm (0.8") | Long-term stress, fiber fracture over time |
| Cold-weather allowance | Increase bend radius by 30–50% | Static ≥ 25–30 mm | Jacket stiffening, hidden cracks after temperature cycling |
Never “guess” the bend radius from what looks acceptable in the tray. Always reference the datasheet, and if in doubt, increase the bend radius or choose a bend-insensitive G.657 cable.

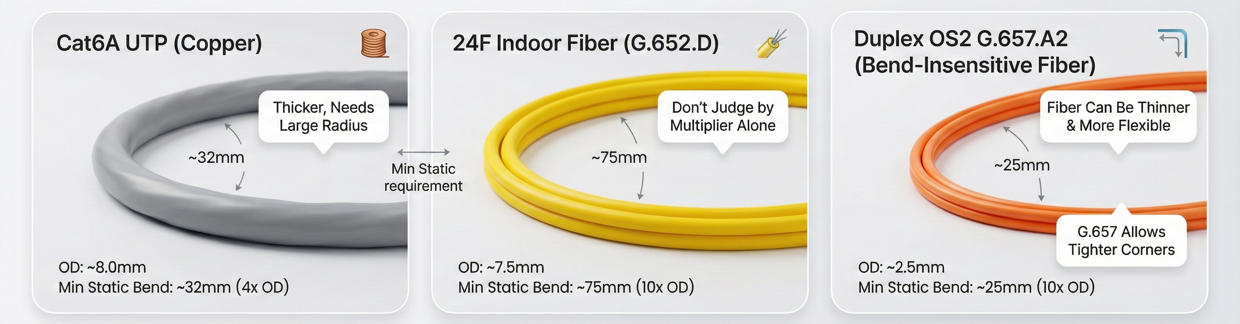

Fiber is often perceived as “more fragile than copper” because it has a larger bend radius. In reality, fiber cables are usually much thinner than high-performance copper cables, so the absolute radius is similar or even smaller.
For route planning, designers should compare real diameters, not just multipliers.
| Cable Type | Typical Diameter | Static Bend Radius | Design Implication |
|---|---|---|---|
| Duplex SM/MM fiber (indoor) | 2.0–3.0 mm | 20–30 mm | Very flexible; easy routing behind racks and in FTTR |
| 12–24F indoor distribution fiber | 6–9 mm | 60–90 mm | Similar to Cat6A; easier to manage at high fiber counts |
| Cat6 UTP | 5.5–6.0 mm | ~22–24 mm | Shorter reach at 10G; PoE heating risk in bundles |
| Cat6A UTP | 7.0–8.0 mm | ~28–32 mm | Similar absolute bend radius to many multi-fiber cables |
Bend-insensitive fiber (BIF), standardized as ITU-T G.657, is engineered to maintain low loss even under much tighter bends than legacy G.652D. It is rapidly becoming the default choice for access and in-building deployments.
G.652D is still excellent for long-distance and backbone, but G.657.A1/A2 is preferred for FTTR, MDUs, high-density patching, and tight-routed ODN cabinets.
| Fiber Type | Typical Static Bend Limit | Typical Use Case | 2026 Recommendation |
|---|---|---|---|
| G.652D | ≥ 30 mm | Long-haul, backbone, OSP feeder cables | Use in trunk routes with gentle paths and larger ducts |
| G.657.A1 | ≈ 10–15 mm | Indoor riser, data center distribution | Balanced choice for building cabling and generic ODN |
| G.657.A2 | ≈ 7.5 mm | FTTR, corridors, tight wall corners, high-density cassettes | Default choice for 2026 FTTR, MDUs and compact data center routing |
For any route that crosses sharp wall corners, small conduits, or crowded trays, specify G.657.A2 bend-insensitive fiber by default. It gives you much more margin against on-site installation mistakes.
Fiber cables are reinforced with aramid yarn (Kevlar) or other strength members so that pulling forces are carried by the strength elements—not by the glass or the jacket. This is why fiber cables can usually withstand far higher tensile loads than copper.
Exact values vary by cable family and fiber count, but the pattern is consistent:
| Cable Class | Install Tension (Short-Term) | Static Tension (Long-Term) | Notes for Design & Pulling |
|---|---|---|---|
| Indoor tight-buffer fiber | 600–1500 N | 200–600 N | Ideal for risers and shorter tray runs |
| Outdoor loose-tube OSP | 1500–3000 N | 600–1200 N | Supports long duct pulls and higher friction |
| Armored burial fiber | ≥ 3000 N | ≥ 1000 N | Designed for crush, impact and backfill conditions |
| Cat6 / Cat6A copper | ~100 N | Much lower | Conductors and twists deform easily under over-pull |
Always connect pull ropes or grips to the strength members or factory pulling eyes, never to the jacket or connectors. If you cannot see where the strength member is terminated, do not use that point for pulling.
The right bend radius and tensile strength only deliver value if the cable’s jacket, armor, and construction match the environment: indoor riser, outdoor duct, direct burial, or harsh industrial.
| Application Scenario | Recommended Construction | Key Durability Factors | Typical Fiber Type |
|---|---|---|---|
| Indoor riser / office building | Tight-buffer, OFNR/OFNP-rated | Fire rating, vertical rise, moderate crush | G.657.A1 or G.652D |
| FTTR / MDUs / apartments | Mini-cable or drop cable with bend-insensitive fiber | Tight bends, abrasion resistance, aesthetics | G.657.A2 |
| Outdoor duct / OSP | Loose-tube, PE jacket, water-blocking | Temperature range, water ingress, tensile strength | G.652D or G.657 mix |
| Direct burial | Steel or corrugated armored, PE jacket | Crush, impact, rodent and shovel protection | G.652D / G.657 |
| Industrial / mining / military | Rugged or tactical fiber, polyurethane or special jackets | Chemicals, abrasion, repeated flex, shock | G.657-based designs |
Use the following quick matrix when selecting fiber-optic cables for 2026 projects. It combines bend radius, tensile strength, and environment into simple rules that you can put directly into your design specification or BOQ.
| If Your Route Is... | And Your Environment Is... | Then Choose... | And Specify at Least... |
|---|---|---|---|
| Full of tight bends & small conduits | Indoor / FTTR / MDU | G.657.A2 bend-insensitive drop or mini cable | Static bend ≤ 7.5–10 mm, clear FTTR application note |
| Medium bends, vertical risers, patch panels | Commercial building, data center | G.657.A1 distribution cable or trunk | Static bend per datasheet, riser rating, pull load rating |
| Long duct pulls with limited bends | Outdoor OSP / feeder | Loose-tube OSP with water-blocking | Install tension ≥ 1500 N, temperature range −20°C to +70°C or better |
| Buried directly under traffic or landscaping | Direct burial | Armored burial cable | High crush resistance, armored construction, warning tape recommended |
| Mobile, frequently moved, or reeled | UAV, broadcast, military, robotics | Rugged or tactical cable | High flex endurance rating, impact resistance, optimized for repeated wind/unwind |
For BOQ and specification documents, always link each cable item to a clear “If route is / environment is / then choose” rule. This reduces misinterpretation between consultant, contractor, and supplier.
The best-designed fiber cable can still fail early if installation practices are poor. Use this checklist as a job-site handover requirement for your contractors.
Respect the manufacturer’s dynamic and static bend radius and increase margin in cold weather.
Pull with a uniform, continuous motion, avoiding jerks, snags, or sudden direction changes.
Attach pulling grips only to strength members or certified pulling eyes.
Secure vertical runs to maintain vertical rise limits and reduce long-term tension.
Protect cables from crush and vehicle traffic before permanent protection (duct, tray, backfill) is in place.
Limit repeated flexing and avoid bending near sharp edges or unprotected metal.
Over-stuffing conduits or trays with no bend radius control.
Using tight plastic ties that “bite” into the sheath; prefer hook-and-loop straps.
Pulling cables by the connector body during rerouting or maintenance.
Ignoring temperature limits for storage, installation, and operation.
Most fiber failures do not happen on Day 1. They appear months later as “intermittent” errors. A bend that looks OK visually can still add hidden loss that only shows up after temperature cycling, moves, or adds. Good installation practice protects performance for the full lifecycle.
Fiber optic cables are not fragile components that you must fear. When you choose the right construction (G.652D vs G.657, indoor vs OSP vs armored) and follow clear rules for bend radius, tensile load, crush, and environment, fiber is actually more durable and future-proof than copper.
In 2026 and beyond, the most cost-effective projects:
Standardize on G.657.A2 for FTTR, MDUs, and tight routing inside buildings.
Use loose-tube OSP and armored burial for outside-plant and direct-burial sections.
Define clear decision rules in the specification so that installer and supplier choices align.
Verify that all routes respect bend radius and tensile limits during design—not only on site.
ZION Communication can help you map each application (data center, ODN, FTTR, industrial, UAV) to the correct cable family, and provide datasheets with explicit bend and mechanical ratings for your consultants and contractors.
Share your route length, environment (indoor/OSP/burial), expected bend constraints, and fiber count. ZION engineers will recommend suitable cable families and provide detailed datasheets for consultant approval.
