■1) Overview: Why Bury Fiber Instead of Using Aerial Cables?

Underground fiber optic deployment has become the preferred option for modern broadband, 5G backhaul, FTTH, smart city networks and critical infrastructure. Compared to aerial routes, buried fibers are better protected against wind, lightning, ice, falling trees, vehicle impact and vandalism. They also remove visual clutter from urban skylines.

For project owners and OSP designers, the key decision is not only whether to bury fiber, but how to choose the right installation method and cable structure for each section of the route: direct burial, duct, trough or micro-duct air-blown systems.

■2) Underground Installation Methods for Fiber Optic Cables

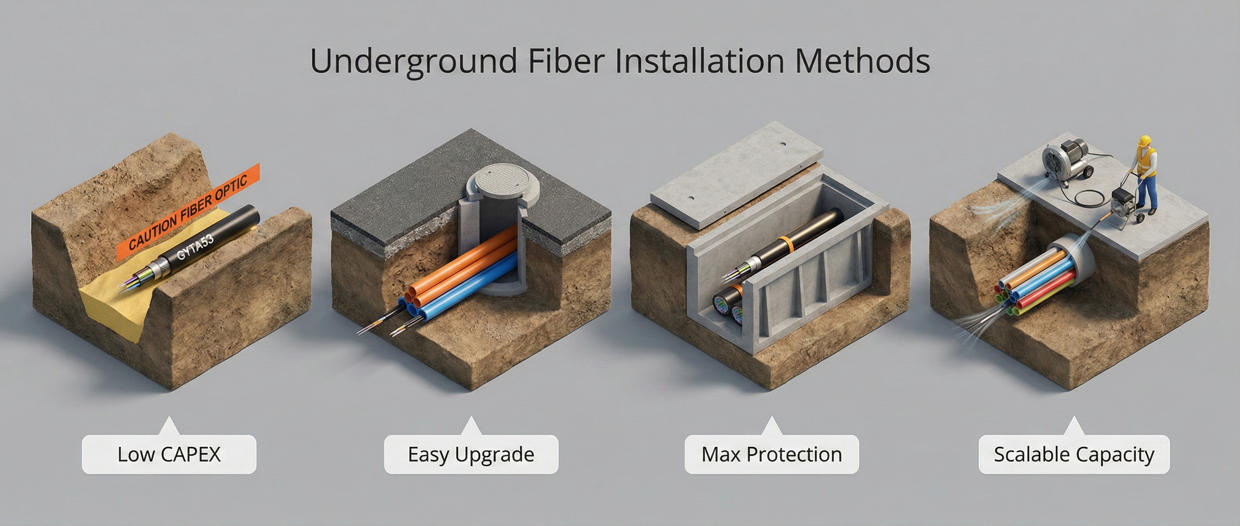

There are four main underground installation approaches used in fiber networks. Each has different cost, risk and upgrade flexibility. In many real projects, multiple methods are combined along one route.

2.1 Direct Burial

The armored fiber cable is laid directly in the soil inside a trench. A sand or soft-soil bedding is used to protect the jacket. A warning tape is typically installed 20–40 cm above the cable.

• Typical use: rural FTTH backbone, power line corridors, long-distance runs with stable soil.

• Recommended cable: double-jacket, armored structures such as GYTA53 / GYTY53 or steel wire armored designs.

2.2 Conduit / Draw-In System

One or more HDPE, PVC or concrete ducts are installed underground, with handholes or manholes at regular intervals. Fiber cables are then pulled or blown through the ducts.

• Typical use: urban roads, business districts, campus and data center interconnect.

• Recommended cable: duct-grade loose-tube cables such as GYTS, high-fiber-count ribbon cables, or mini/micro-duct fibers.

2.3 Trough / Solid System

Cables are laid in a built trough made from concrete, stone or metallic sections, then covered and sealed. This method offers very high security and mechanical protection.

2.4 Micro-Duct & Air-Blown Fiber

Small-diameter micro-duct bundles are installed first. Lightweight micro-fiber or mini-cable is then blown into the ducts using compressed air. Capacity can be added later without new excavation.

■3) Choosing the Right Underground Fiber Cable Structure

Underground environments place continuous mechanical and environmental stress on the cable. The selection of sheath, armoring and fiber type must match soil conditions, traffic load and EMI requirements.

3.1 Sheath Materials

• PE (Polyethylene): standard outer jacket for outdoor and direct burial use; excellent UV and moisture resistance.

• LSZH: used where the cable enters buildings or tunnels with strict fire and smoke limits.

• Dual-sheath designs: PE + LSZH or PE + PE for extra mechanical and chemical protection.

3.2 Armoring Options

• Steel tape armored (STA): good radial compression resistance, widely used under sidewalks and verges.

• Steel wire armored (SWA): very high crush resistance for heavy traffic or rocky ground.

• Non-metallic armoring: glass yarn or FRP used when routing near power cables or in high EMI zones.

3.3 Fiber Types

• G.652D: standard single-mode for long-distance and backbone routes.

• G.657A1/A2: bend-insensitive fibers ideal for ducts, handholes and tight routing.

• Ribbon fiber: used when very high fiber counts are required in limited duct space.

■4) Trench Depth, Backfill & Route Planning

Trench design is where engineering, regulation and cost meet. The goal is to achieve sufficient mechanical and thermal protection without unnecessary excavation.

4.1 Typical Burial Depth Guidelines

Exact requirements vary by country and utility standard, but the ranges below are commonly used in telecom OSP design.

4.2 Backfill and Warning Systems

• Place 10–15 cm of sieved sand or soft soil under and above the cable or duct.

• Remove sharp stones that can damage the jacket over time.

• Install a colored warning tape 20–40 cm above the cable line.

• Use detectable tape or marker wire where future excavation risk is high.

■5) Engineering Limits & Protection Rules

Even the best cable will fail early if installation exceeds its mechanical design limits. Always check the manufacturer datasheet and respect the maximum pulling tension and minimum bend radius.

5.1 Pulling Tension

• Typical maximum pulling tension for underground cables is in the range of 1,000–3,000 N, depending on design.

• Use proper cable grips and sheaves; avoid pulling directly on fibers.

• For duct systems, consider air blowing to reduce mechanical stress on the cable.

5.2 Minimum Bend Radius

• Static (after installation): typically ≥ 10–15 × cable diameter.

• Dynamic (during pulling): typically ≥ 20 × cable diameter.

• Use radius control guides in handholes, manholes and cabinets.

5.3 Splice Closures and Joints

• Use closures with at least IP68 rating for underground applications.

• Provide slack loops to allow safe re-entry without stressing fibers.

• Position joints outside of high-traffic wheel paths whenever possible.

■6) Decision Rules / Engineer’s Shortcut

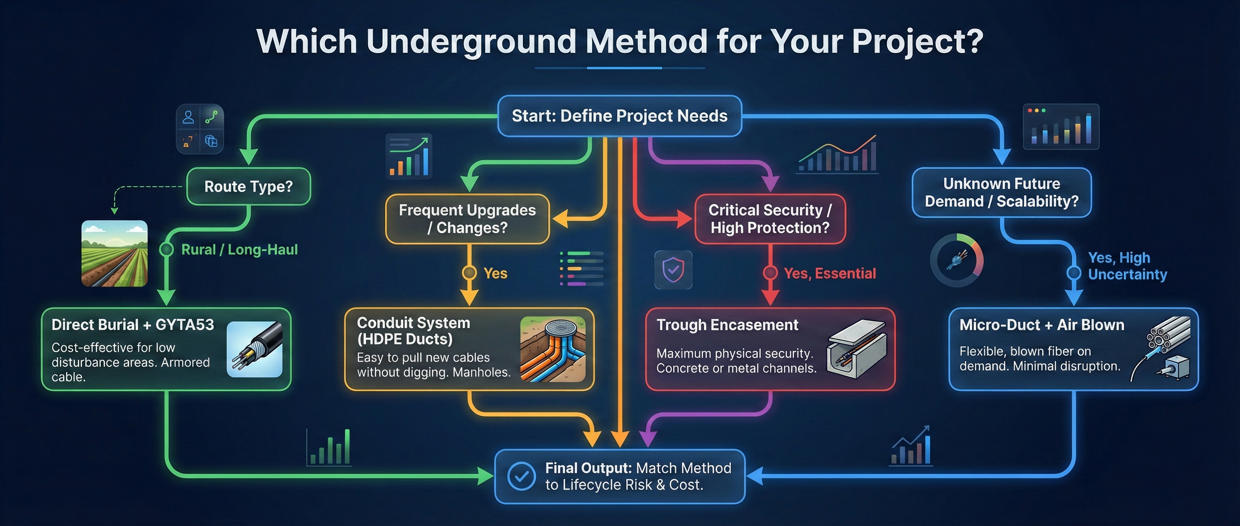

The table below summarizes fast decision rules that help project owners and engineers select the right combination of installation method and cable structure under time pressure.

■7) Testing, Documentation & Acceptance

Before handover, every underground section should be tested and documented to confirm performance and support future troubleshooting.

• OTDR testing: verify splice loss, connector loss and overall attenuation per kilometer.

• End-to-end loss test: confirm that total link budget meets system requirements.

• Route documentation: record joint locations, manhole positions, depth changes and spare ducts.

• As-built drawings: update design drawings to reflect actual installation.

■8) Common Underground Fiber Mistakes to Avoid

Recognizing frequent failure patterns helps you design safer, more robust underground networks.

• Using indoor or non-armored cable for direct burial.

• Ignoring bend radius in handholes, leading to micro-bending and higher attenuation.

• No spare fiber loops at closures and cabinets, making repairs difficult.

• No warning tape or marker, increasing the risk of accidental excavator cuts.

• Poor-quality backfill with stones or construction debris directly in contact with the cable.

• Underestimating future capacity and not reserving spare ducts or fibers.

■9) Conclusion & Next Steps

Underground fiber optic installation is a long-term infrastructure decision. By aligning installation methods (direct burial, duct, trough, micro-duct) with the right cable structures and civil design, project owners can build networks that operate reliably for decades with minimal unplanned outages.

When planning your next project, start with route conditions, future upgrade needs and risk tolerance. From there, select the appropriate trench depth, protection level and fiber cable. ZION COMMUNICATION can support you with a complete portfolio of outdoor and direct burial fiber optic cables tailored to rural, urban, industrial and critical infrastructure environments.
