Low Voltage Wiring Guide 2026
A practical, decision-focused guide to low voltage cabling, PoE, and structured wiring for smart buildings, campuses, and industrial sites.
In 2026, Cat6A is the default choice for new low voltage LANs and PoE++ (up to 90 W).
Fiber backbones are essential for multi-building, 10G–100G, and latency-sensitive applications.
Structured cabling design impacts long-term OPEX more than the initial cable cost.
Contents

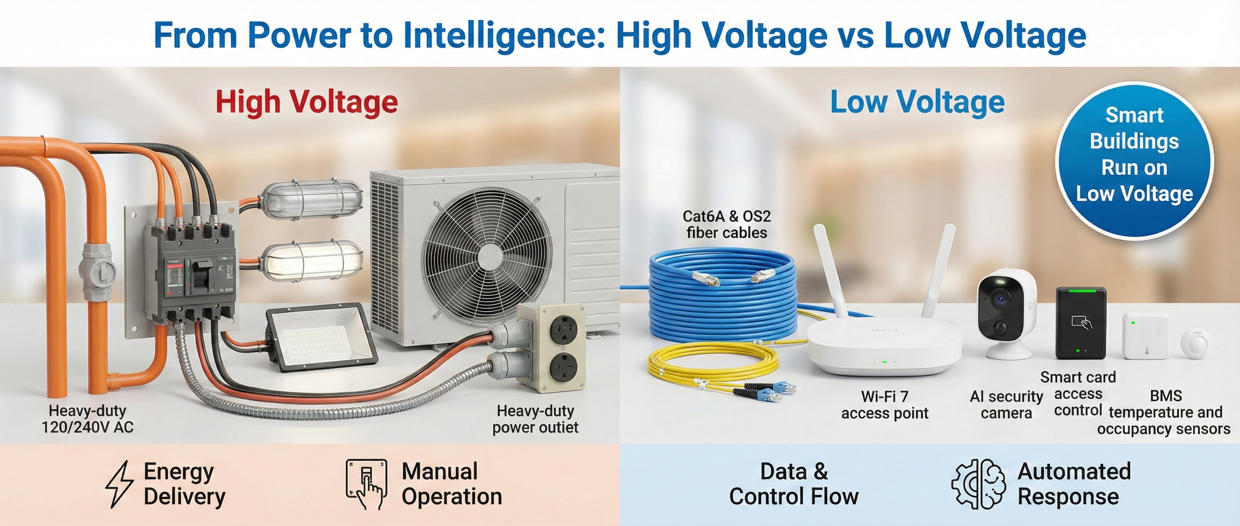

Low voltage wiring refers to electrical and communication systems that operate at 50 volts or less, designed to safely distribute power and data throughout buildings and campuses. Unlike traditional 120–240 V electrical circuits, low voltage infrastructure focuses on connectivity, control, and smart devices rather than high-power loads.

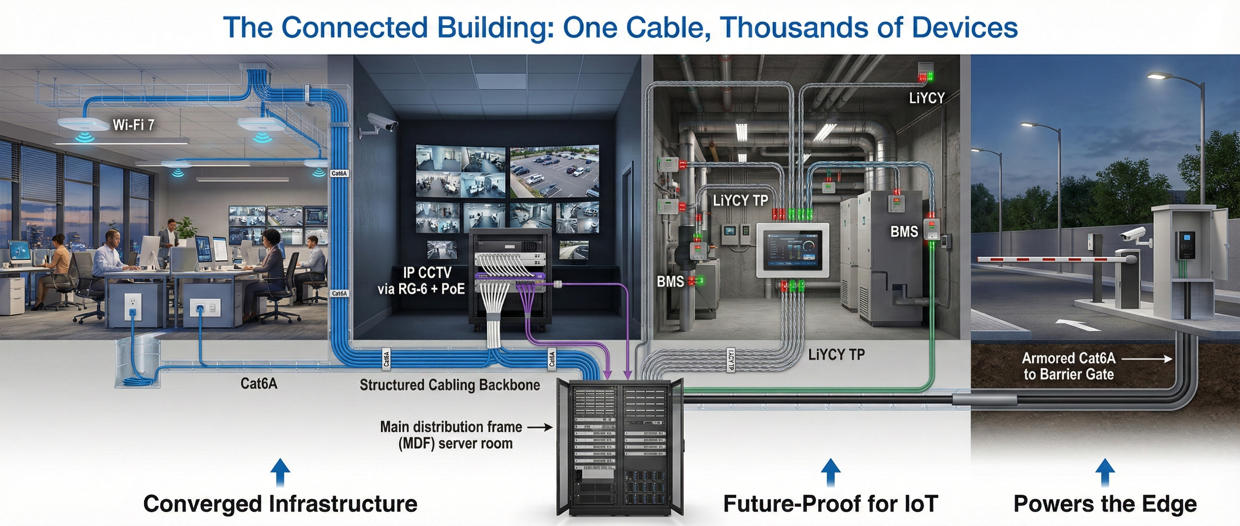

In 2026, low voltage networks are the foundation of smart buildings: they connect Wi-Fi 7 access points, IP cameras, building management systems (BMS), access control, IoT sensors, and automation controllers — often from a single converged structured cabling platform.
If a device talks to the network, senses the environment, or controls something in your building, it almost always runs on low voltage wiring — even if its power source is line voltage.
12 V DC – security sensors, small control modules, LED drivers
24 V DC – industrial controls, BMS, relays, actuators
48 V DC – PoE switches, telecom systems, high-power IP devices
As devices become smarter and more connected, the number of low voltage endpoints per building increases every year. A modern commercial project can easily deploy hundreds or thousands of connections across multiple systems.
Enterprise LAN, Wi-Fi 6/6E/7 and internet access
IP CCTV, perimeter security, and video analytics
Access control, visitor management, turnstiles and parking systems
Smart lighting, occupancy sensing, and room automation
BMS integration: HVAC controls, energy meters, and field devices
Audio/visual, IP intercom, public address, and emergency systems
FTTR (Fiber-to-the-Room) and in-building fiber distribution
Most projects underestimate the number of future devices per floor. In design, assume at least 150–200% growth in low voltage ports over the building lifecycle — especially for IoT and wireless.
| Building Area | Typical Low Voltage Systems | Cabling Focus |
|---|---|---|
| Office floors | LAN, Wi-Fi, VoIP, AV, access control | Cat6A UTP/STP, floor distributors |
| Technical rooms & data rooms | Switches, servers, BMS controllers | Cat6A patching, fiber backbones |
| Outdoor & parking | CCTV, barrier control, Wi-Fi APs | Outdoor / direct burial rated cable |
| Industrial / plant areas | Industrial Ethernet, PLC, safety systems | Shielded Cat6A, fiber for EMI environments |
Selecting the right cable type is one of the most important decisions in a low voltage design. The wrong choice can limit bandwidth, PoE capability, or environmental resilience long before the building reaches its design life.
Category cables based on twisted pairs are still the primary medium for IP networking and PoE. In 2026, Cat6A has become the recommended baseline for new installations, especially where Wi-Fi 7 and PoE++ (up to 90 W) are expected.
| Category | Max Bandwidth | Typical Speed | Recommended Use in 2026 |
|---|---|---|---|
| Cat5e | 100 MHz | 1 Gbps | Legacy networks and minor extensions only |
| Cat6 | 250 MHz | 1 Gbps (10 Gbps on short runs) | Small offices, retrofit projects, non-PoE++ loads |
| Cat6A | 500 MHz | 10 Gbps up to 100 m | Standard for new smart buildings, Wi-Fi 7, PoE++ 90 W |
Fiber optic cabling is the preferred medium for building backbones, campus links, and high-density distribution where copper distance or bandwidth becomes a limitation.
OS2 single-mode – long distances, outdoor routes, and inter-building links
OM3/OM4 – common in enterprise and data center backbones up to 10–40 Gbps
OM5 – optimized for SWDM applications and higher lane densities
While most new video and control systems are IP-based, coaxial cable is still widely used for cable TV distribution, some CCTV retrofits, and special RF applications. RG-6 with proper shielding remains the standard choice in these scenarios.
For general enterprise and commercial cabling in 2026, design around Cat6A for horizontal runs and OS2/OM3+ fiber for backbones. Coax is now a niche medium, used only where IP migration is not feasible.
Low voltage does not mean zero risk. Poor installations can still cause electric shock, fire hazards, or system downtime. A compliant design must respect electrical codes, fire regulations, and vendor recommendations.
NEC Article 725 – rules for Class 2 and Class 3 circuits
TIA-568 / ISO/IEC 11801 – structured cabling performance and topology
EN 50575 / CPR Euroclass – B2ca / Cca fire performance in EU/UK
UL / ETL listings – cable and component safety verification
Higher-power PoE (such as IEEE 802.3bt Type 3 & 4, up to 60–90 W) increases current through copper pairs and can cause additional heating, especially in large bundles.
| PoE Class | Max Power at PSE | Typical Devices | Cabling Recommendation |
|---|---|---|---|
| PoE / PoE+ (802.3af/at) | 15–30 W | VoIP phones, small APs, basic cameras | Cat6 minimum; Cat6A preferred for new builds |
| PoE++ Type 3 | 45–60 W | PTZ cameras, multi-radio APs | Cat6A 23 AWG, bundle size controlled |
| PoE++ Type 4 | 60–90 W | Lighting, door controllers, high-power cameras | Cat6A only, careful thermal design and installation |
Treat high-power PoE like a thermal design problem, not just a bandwidth decision. Use 23 AWG Cat6A, avoid oversized bundles, and follow vendor guidelines for the maximum number of cables per pathway when running PoE++ continuously.
Structured cabling provides an organized, standards-based physical layer that supports multiple services — LAN, voice, Wi-Fi, BMS, security, and AV — on one unified cabling platform. This approach simplifies maintenance, reduces lifecycle cost, and keeps options open for future upgrades.
Work area outlets – RJ45 jacks and faceplates in rooms and workspaces
Horizontal cabling – Cat6A from outlets to floor telecom rooms
Telecommunications room – patch panels, switches, and cross-connects
Backbone cabling – fiber optic links between floors and buildings
Equipment room / data room – core switches, servers, BMS headend
| Component | Function | Typical ZION Solutions |
|---|---|---|
| Horizontal cabling | Connect outlets to floor switches | Cat6A UTP/STP indoor, LSZH or PVC |
| Backbone cabling | Link floors, buildings, and data rooms | OS2 outdoor/indoor fiber, OM3/OM4 fiber |
| Patch panels & connectivity | Termination, management, and testing | ZION patch panels, keystones, patch cords |
| Outdoor & direct burial runs | External cameras, APs, gates, and poles | Outdoor CMX / direct burial Cat6A, armored fiber |
A well-designed low-voltage system is not just about cable choice; layout, routing, and documentation directly influence uptime and maintenance cost over the building lifecycle.
Plan pathways early and keep separation from high-voltage power to reduce EMI.
Use star topology with clearly defined telecom rooms for each zone or floor.
Specify Cat6A for new horizontal cabling and fiber backbones by default.
Include spare capacity in cable trays, risers, and patch panels.
Label both ends and maintain updated as-built documentation.
Respect maximum pull tension and bend radius for copper and fiber.
Avoid tight cable bundles for high-power PoE; spread load across pathways.
Use proper termination tools and follow manufacturer strip/twist guidelines.
Test all links with certified field testers and keep reports for handover.
A few percent saved on cabling today can cost many times more in emergency troubleshooting, unscheduled outages, and re-work later. For critical networks, design and installation quality are far more important than cable cost alone.
The following shortcut helps you choose the right low voltage cable type quickly based on distance, bandwidth, environment, and PoE requirement.
| Scenario | Recommended Cable | Key Reason | Risk if Underspecified |
|---|---|---|---|
| Office LAN, Wi-Fi 7 APs, up to 100 m | Cat6A UTP/STP | 10 Gbps, PoE++ ready, future-proof | Throughput bottleneck, thermal issues with PoE |
| Outdoor CCTV, parking, poles | Outdoor / direct burial Cat6A | UV, moisture, and mechanical protection | Water ingress, corrosion, short circuit |
| Between floors or buildings, >100 m | OS2 single-mode fiber | No distance limit within campus, EMI immune | Signal loss, unstable backbone, frequent dropouts |
| Harsh industrial, high EMI environment | Shielded Cat6A + fiber where critical | Better noise immunity and reliability | Random communication errors, nuisance trips |
If the project is new build or major renovation and you are unsure, default to Cat6A for copper and OS2 fiber for backbones. This combination covers almost all 2026-era enterprise, campus, and industrial requirements with minimal regret risk.
Yes. Power over Ethernet (PoE, PoE+, PoE++) allows one Cat cable to deliver both data and power to devices such as IP cameras, Wi-Fi access points, and access control panels.
No. 120 V is line voltage and requires licensed electricians and different safety measures. Low voltage typically refers to 50 V or less.
Yes, in many cases. Cat6A is excellent for horizontal runs up to 100 m, but fiber is essential for building backbones, inter-building connections, and long-distance or high-speed links beyond 10 Gbps.
For many small offices, Cat6 can work today, but it offers less headroom for PoE++ and Wi-Fi 7. Most 2026 designs choose Cat6A to minimize future retrofit cost.
Upgrading active equipment (switches, APs, cameras) is easy; replacing structured cabling is not. When in doubt, overspecify the passive layer (cable and connectivity) rather than active devices.
Low voltage wiring is no longer a secondary concern in building projects. It is the nervous system of modern infrastructure, carrying data, power, and control signals between every smart device in your facility. The decisions you make today about Cat6A vs Cat6, fiber vs copper, and indoor vs outdoor ratings will determine not only performance, but also safety, maintainability, and upgrade cost for the next 10–15 years.
By adopting structured cabling principles, designing around Cat6A and fiber, and following PoE and thermal best practices, project owners can create a robust low-voltage platform ready for Wi-Fi 7, IoT, AI analytics, and future building technologies.
