Solar power is changing the way we use energy in the world. Clean, renewable, and sustainable. Uniquely, the solar panel's outside appearance hides a careful scientific setup, out of which one of the vital components allowing for its efficient impact and security is the MC4 connector.
From larger ensemble solar plants to RV kits meant for off-grid use, MC4 connectors are the binding part of the grid design. They provide durable and waterproof connections to withstand any weather.

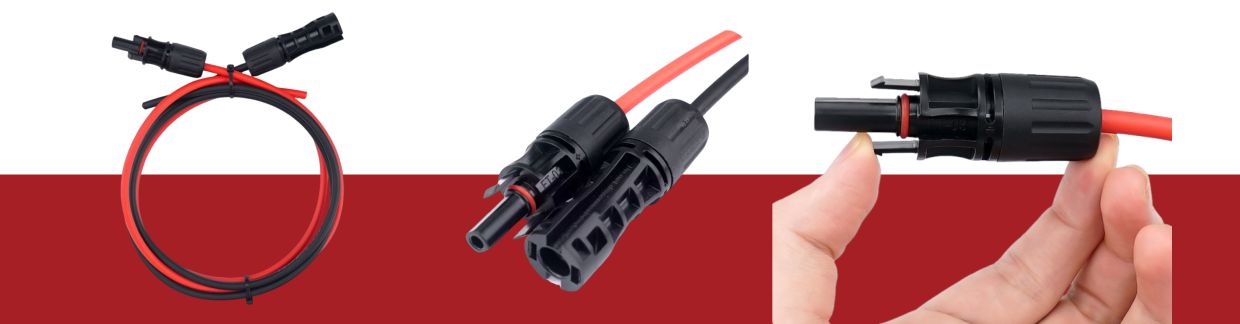

The MC4 connector is a single-contact electrical connector, widely used for connecting solar PV modules, which is alias for Multi-Contact 4mm. The first MC4 was developed by Stäubli, with the brand name Multi-Contact. Today, MC4 is used as a worldwide standard interface for the wiring of solar panels.
These connectors are:
Locking, single-contact connectors.
Rated for 1000V or 1500V DC.
Used for series and parallel connections of solar panels.
Designed for 4mm²–6mm² cables (10–12 AWG).
Certified under IEC 62852 and UL 6703.

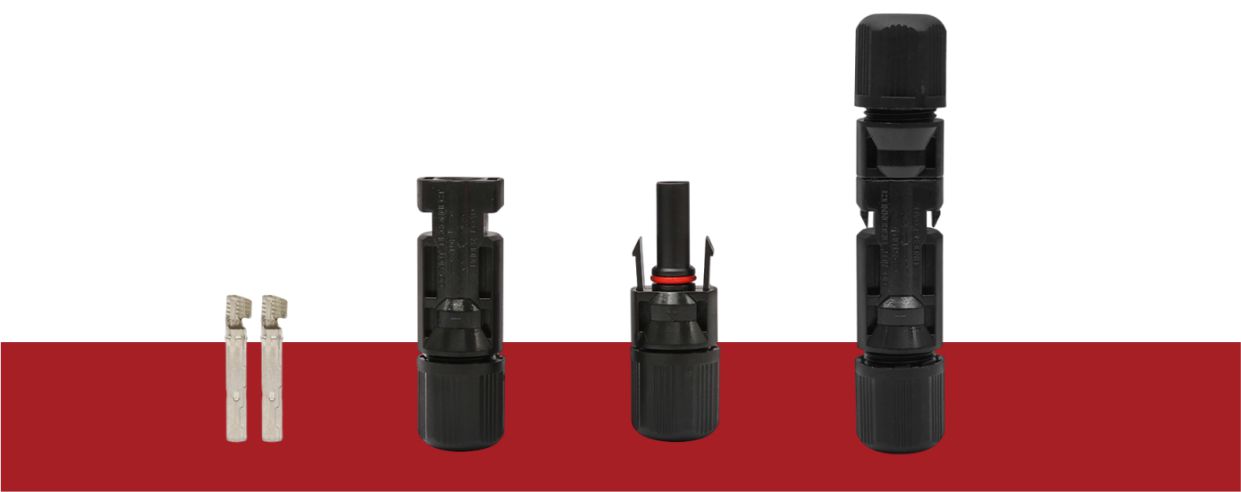

Component | Description |
Male & Female Ends | Two mating halves, each with a crimped metal pin or socket |
Contact Pins | Copper alloy (silver- or tin-plated), designed for high conductivity |
Sealing Gasket | Rubber (usually EPDM), provides water- and dust-proof IP67/IP68 sealing |
Plastic Housing | UV-resistant polycarbonate or PPO material; black for outdoor durability |
Locking Clip | Secure snap-in mechanism to prevent accidental disconnection |
Strain Relief Nut | Maintains cable tension and prevents internal wire breakage |
■ Electrical & Mechanical Specifications
Parameter | Typical Value |
Rated Voltage | 1000V DC (IEC) / 1500V DC (UL) |
Rated Current | 20–30 A (depends on pin & cable) |
Contact Resistance | ≤ 0.5 mΩ |
Ingress Protection | IP67 (mated), IP2X (unmated) |
Flammability Rating | UL94-V0 |
Operating Temperature | −40°C to +85°C |
Mating Cycles | ≥ 100 times |
Insulation Material | PPO / PC |
Certifications | TUV, UL, CE, RoHS |
Installing MC4 connectors requires basic tools but must be done carefully to avoid poor contact or water ingress.
1. Cut and Strip Cable
Remove the outer coat for about 6-7mm of your solar cable (e.g., PV1-F or USE-2).
2. Crimp the Pin
Use an MC4 crimping tool to press the contact pin onto the copper wire. Take a good measurement of the crimp with a micrometric.
3. Insert Pin into Housing
Push the pin into the connector housing until it clicks into place.
4. Assemble Connector
Screw the end nut to compress the rubber seal around the cable.
5. Connect Panels
Insert the female connectors into the males until a locking "click" is heard, by pushing it.
6. Test
Always perform continuity or insulation resistance tests before powering the system.
The only tools allowed for installation are MC4-compatible tools. This is the way to ensure that the work is done correctly and safely.
Benefit | Details |
Standardization | Universally accepted across PV systems and components |
Ease of Use | Quick mating, easy to disconnect using a simple plastic unlocking tool |
High Reliability | Sealed design resists water, dust, UV, and temperature extremes |
Electrical Safety | Prevents reverse polarity, arcing, or accidental shock |
System Efficiency | Low resistance connections reduce voltage drop and increase power output |
Durability | Designed for 25+ year service life alongside solar panels |

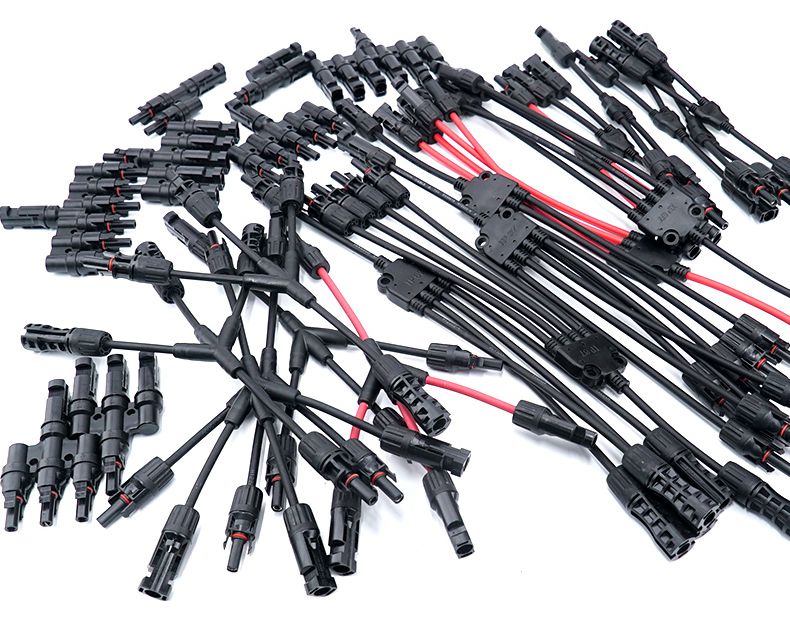

Variant | Description |
Standard MC4 | Most common version for single cable connections |
MC4-Evo2 | Higher voltage rating (1500V), compatible with 6–10 mm² cables |
T-branch MC4 adapters | For parallel wiring (e.g., 2-to-1, 3-to-1 connectors) |
MC4 with fuse | Integrated fuse for protection in string setups |
MC4 Y-connector | For combining solar panel outputs in parallel |
MC4 Crimp Tool Kit | Includes crimper, stripper, unlock tool, spare pins |
Pliers being used instead of the right crimp tool.
Not penetrating the slots up to the end, as it may result in arcing and hot spots.
Over-tightening strain relief nuts, damaging cable insulation.
Associating MC4 with non-compatible connectors.
Failure to seal them well → causes corrosion or short circuits.
The MC4 connectors are used for a variety of purposes in different environments:
Residential rooftop PV systems
Commercial solar power plants
Off-grid solar systems with batteries (RV, cabin, boat)
DIY solar kits and micro storage systems
Renewable energy labs for trials and assays
The customers' collective request for technological advance and unending fight against decarbonization make MC4-compatible systems to prevail in the demand. Key trends include:
The rise of MC4 1500V connectors, which for the utility, translates to the increase of its efficiency.
Higher integration of smart monitoring and solar optimizers.
Massive demand from DIY solar kit market, requiring plug-and-play solutions.
Use of solar cables with double insulation for extra safety in the presence of changing climates.
It might appear unremarkable, but MC4 connectors play an invaluable role in the safety, performance, and long-lasting existence of any solar array. They have proven to be a safe, uniform port that permits a solar system transmission fluidly from solar panels to invereter, without being obstructed.
Whether one be an installer, EPC contractor, or a hobbyist, investing in certified MC4 connectors will have the desired effect of preventing system issues by ensuring right operation with low maintenance.
Power the trip of your solar journey with trusted, effectual, and certified MC4 technology, just because a strong connection can change the whole picture.
