Author: Site Editor Publish Time: 25-03-2026 Origin: Site
A practical engineering comparison of MPO cassettes and MPO breakout cables for structured cabling, direct equipment connectivity, cost control, and long-term maintenance.
MPO cassettes are usually better for structured patching, front-access management, and future MAC activity.
MPO breakout cables are often better for direct equipment connections, fewer components, and lower initial cost.
The right choice depends on cabinet architecture, maintenance model, density target, and how often links will change.

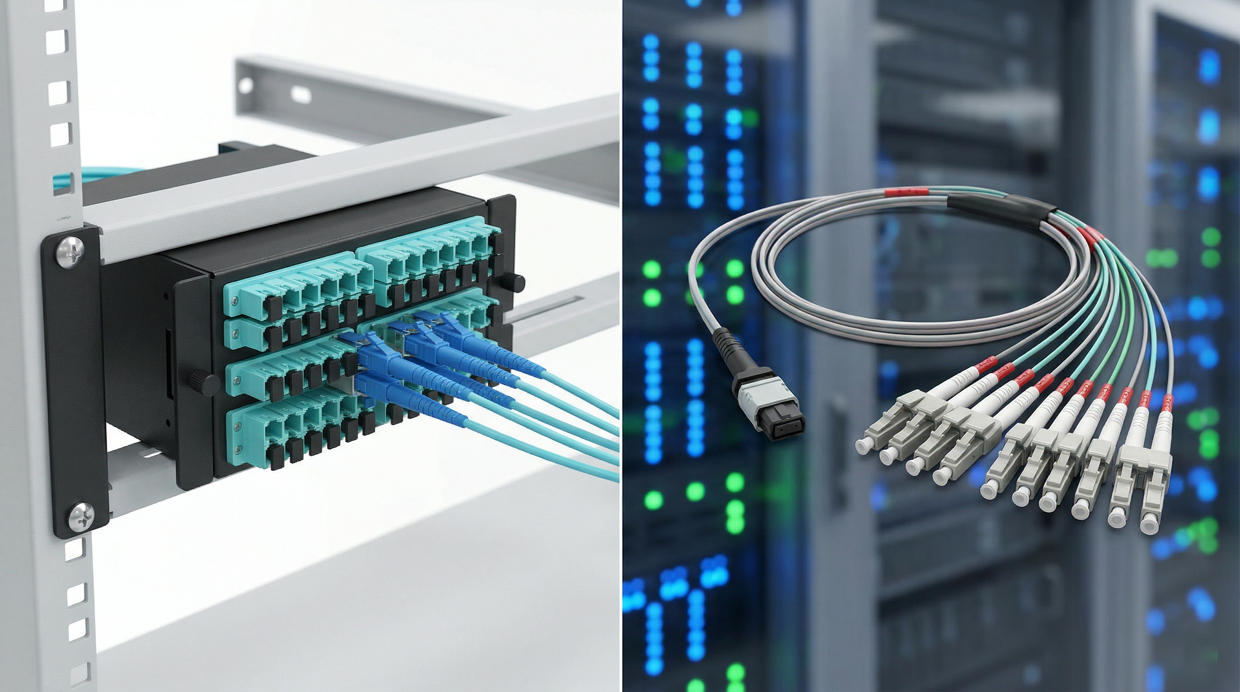

Both MPO cassettes and MPO breakout cables are used to convert high-density MPO connectivity into more usable interfaces such as LC. They solve a similar optical transition problem, but they package and manage that transition differently.
An MPO cassette is a modular box-style unit installed inside a patch panel or enclosure. It accepts MPO connectivity on the rear side and presents LC ports on the front side. An MPO breakout cable, also called MPO to LC breakout cable or MPO harness, is a direct cable assembly with one MPO side and multiple LC legs on the other side.
For buyers and designers, this is not a naming issue. It directly affects cabinet layout, fault isolation, labeling discipline, MAC workflow, and the cost structure of the link.
| Item | MPO Cassette | MPO Breakout Cable |
|---|---|---|
| Basic form | Modular enclosure installed in panel space | Direct cable assembly with branch legs |
| Front interface | Usually LC adapter ports | Individual LC connectors |
| Typical use | Structured cross-connect or interconnect | Direct equipment breakout |
| Design emphasis | Manageability and modularity | Simplicity and direct connectivity |
The cassette places the MPO-to-LC transition inside a protected module. This means the transition is standardized, front-accessible, and easier to document. In a structured cabling environment, that usually translates into cleaner panel presentation and better change control.
The breakout cable removes the module layer and takes the transition directly into branch legs. This reduces parts count and can speed up deployment, but it also shifts more responsibility to routing discipline, strain relief, port labeling, and rack-level organization.
| Architecture Factor | Why It Matters | Cassette Impact | Breakout Cable Impact |
|---|---|---|---|
| Protection | Internal transition is less exposed to handling risk | Higher physical protection | More exposed branch management |
| Panel discipline | Affects labeling and technician workflow | High consistency | Depends on installer practice |
| Component layers | Drives cost and insertion path complexity | More hardware layers | Fewer layers |
| Rack routing | Impacts cable congestion and serviceability | Centralized and predictable | Flexible but can become messy |
A narrow price comparison can be misleading. The relevant cost question is not only the purchase price of one component, but the total effect on hardware count, labor, panel consumption, future changes, and troubleshooting time.
In many direct equipment links, breakout cables reduce upfront cost because they remove the cassette layer. In more formal patching environments, cassettes may have higher initial cost but lower operational friction over time.
| Cost Element | MPO Cassette | MPO Breakout Cable | Engineering Comment |
|---|---|---|---|
| Initial hardware | Usually higher | Usually lower | Breakout often wins in simple direct links |
| Panel space usage | Consumes module space | May reduce panel dependence | Important in high-density cabinets |
| Installation labor | Structured but may involve more steps | Fast when route is simple | Labor advantage depends on layout discipline |
| Moves / adds / changes | Usually easier to manage | Can require more cable handling | Cassette can reduce long-term operational cost |
| Total cost over lifecycle | Often justified in structured environments | Often strong in static, direct links | Choose based on change frequency, not only BOM |
Maintenance performance is where the two options separate more clearly. Cassettes provide a defined transition point, front-access port presentation, and cleaner separation between backbone and equipment-facing connectivity. That usually helps with testing, tracing, and documenting changes.
Breakout cables can still be practical and reliable, especially in smaller or carefully planned racks. The trade-off is that later modifications may involve disturbing the original cable assembly and its branch routing.
| Operational Factor | Cassette Tendency | Breakout Tendency | Decision Signal |
|---|---|---|---|
| Fault isolation | Simpler in documented panel environments | Depends more on cable tracing discipline | Choose cassette if multiple hands service the rack |
| Expansion | More modular | Good for simple extension, weaker for dense rework | Choose cassette for growth-oriented cabinets |
| Port labeling | Panel labeling is straightforward | Individual legs require discipline | Choose cassette for strict documentation standards |
| MAC activity | Generally better | Generally acceptable only if change rate is low | High change rate usually favors cassette |
Selection should follow the physical deployment model, not only the connector type. The same optical network may use cassettes in one zone and breakout cables in another, depending on where structured distribution ends and direct equipment access begins.
| Scenario | Better Fit | Why | Watchpoint |
|---|---|---|---|
| Main distribution area with patch panels | MPO Cassette | Cleaner panel interface and better change control | Confirm cassette polarity and loss target |
| Top-of-rack direct device connection | MPO Breakout Cable | Fewer components and direct port access | Manage branch-leg routing carefully |
| Enterprise cabling with future reconfiguration | MPO Cassette | Simpler moves, adds, and changes | Reserve panel space for growth |
| Short, fixed breakout from trunk to switch ports | MPO Breakout Cable | Fast and economical | Document polarity mapping at installation |
| High-density multi-team service environment | MPO Cassette | Better operational consistency | Standardize adapter type and test method |
This table is intended for rapid selection during quoting, design review, or cabinet planning. It is not a substitute for loss-budget validation, but it helps narrow the right direction quickly.
| If Your Priority Is... | Choose | Reason | Check Before Purchase |
|---|---|---|---|
| Structured front-access patching | MPO Cassette | Best fit for managed panel architecture | Adapter type, polarity, panel compatibility |
| Lowest initial component count | MPO Breakout Cable | Direct link with fewer layers | Leg length, polarity map, port routing |
| Frequent MAC activity | MPO Cassette | Higher serviceability and documentation discipline | Front labeling scheme and spare capacity |
| Short fixed connection to equipment | MPO Breakout Cable | Fast and practical for static links | Bend radius and branch breakout length |
| High-density multi-rack growth plan | MPO Cassette | Modular scaling is easier to manage | Cassette count, panel RU, migration path |
| Budget-sensitive direct deployment | MPO Breakout Cable | Often lower BOM in direct-use cases | Insertion loss target and port-count alignment |
Most deployment problems are not caused by the product category itself, but by selecting the right category for the wrong operating model. The issues below are common in quotations and field installations.
| Mistake | Why It Happens | Consequence | Prevention |
|---|---|---|---|
| Choosing breakout for a high-change panel environment | Only BOM cost was considered | Poor manageability and harder MAC work | Review service model, not only purchase price |
| Choosing cassette where direct breakout is enough | Over-structuring a simple link | Unnecessary hardware and space usage | Map the actual equipment connection path |
| Ignoring polarity and lane mapping | MPO type was treated as generic | Link failure or rework | Confirm polarity method and transceiver mapping |
| Overlooking insertion loss budget | Attention focused only on connector form | Margin reduction in higher-speed links | Specify standard-loss or low-loss requirement early |
| Underestimating branch-leg routing | Breakout looked simple on paper | Congestion and strain in active racks | Define branch length, exit direction, and cable management path |
Usually the initial hardware cost is higher for cassettes, especially when panel space and module hardware are included. However, in structured environments with frequent changes, the operational value can offset the higher upfront cost.
In many direct equipment connections, an MPO breakout cable is the more practical choice because it reduces layers and connects straight to LC-based ports. The main requirement is good routing control and correct polarity mapping.
They can be, but compatibility depends on connector gender, fiber count, polarity method, application lanes, and loss target. The trunk alone does not guarantee correct interoperability. The entire channel design must be checked.
For larger structured environments, cassettes are generally easier to maintain because they create a cleaner panel-based transition point and make labeling, port tracing, and MAC activity more manageable.
Buyers should confirm fiber type, connector type, polarity method, branch count, breakout length, insertion loss class, panel compatibility, labeling needs, and whether the link is intended for structured patching or direct equipment breakout.
Yes. Typical project-level customization can include connector configuration, fiber count, polarity method, breakout leg length, jacket type, labeling, and panel fit. For engineering projects, test method and acceptance criteria should also be defined before production.
MPO cassettes and MPO breakout cables both solve the MPO-to-LC transition problem, but they belong to different deployment logics. Cassettes support structured, front-access, panel-oriented fiber distribution. Breakout cables support simpler, more direct connectivity with fewer component layers.
For engineering teams, the most reliable selection method is to start from the operating model of the rack: who will service it, how often it will change, where the transition should be controlled, and how much routing discipline can realistically be maintained over time.
As a practical rule, choose MPO cassette when modularity, maintainability, and growth planning matter most. Choose MPO breakout cable when the path is direct, stable, and cost-sensitive. Then validate the final design against polarity, loss budget, panel space, and application mapping before procurement.
Need help selecting the right MPO transition model for your rack, panel, or data center link? Send your connector type, fiber count, polarity requirement, target application, and cabinet layout. ZION can help align the product form with your deployment method.
