Author: James Publish Time: 31-03-2026 Origin: Site
A practical engineering reference for verifying MPO and MTP compatibility, cassette matching, adapter and gender issues, bend radius control, and installation checks before deployment.
MPO and MTP can mate physically in many cases, but full channel compatibility still depends on polarity, gender, fiber count, and loss budget.
Most field problems come from system-level mismatches rather than from a damaged connector body.
A complete pre-installation check reduces rework, protects insertion loss margin, and shortens commissioning time.
MPO cabling is widely used where density, deployment speed, and migration flexibility matter. The difficulty is not usually the connector itself. The real challenge is whether all components in the channel follow the same logic.
This page focuses on the field questions that affect purchasing decisions and installation outcomes: MPO versus MTP interface compatibility, cassette matching, male and female connector pairing, adapter orientation, bend radius discipline, and final installation checks.
| Compatibility checkpoint | Why it matters | What to verify |
|---|---|---|
| Connector family | Determines whether interfaces can mate mechanically | MPO, MTP, ferrule style, performance grade |
| Gender | Controls pin alignment at the interface | Male with pins vs female without pins |
| Polarity | Determines signal mapping from Tx to Rx | Channel method, cassette mapping, keying logic |
| Fiber count | Affects optical architecture and utilization | 8F, 12F, 24F and application match |
| Loss budget | Impacts channel performance and margin | Connector IL target, total channel loss, cleaning standard |
MTP is a branded connector family built on the MPO interface standard. In many deployments, MPO and MTP parts can mate physically. That said, field compatibility should never be reduced to physical fit alone.
For reliable deployment, confirm the whole link: ferrule quality, insertion loss target, polarity method, connector gender, fiber count, and whether the optical channel is single mode or multimode.
A cassette is a mapping component, not just a breakout enclosure. It must align with the trunk architecture and the intended application. A 12-fiber trunk and a cassette with the same visible interface do not automatically form a correct channel.
Before mixing brands or modules, verify input port type, internal mapping logic, output connector format, polarity method, fiber allocation, and loss targets.
MPO adapters influence orientation and fiber position. Incorrect keying can reverse channels or produce confusing test results. Adapter selection should follow the polarity design rather than convenience on site.
| Component | Compatible when | Not enough to check | Project risk if ignored |
|---|---|---|---|
| MPO to MTP | Interface, gender, polarity, fiber count, and performance target match | Physical mating only | Unexpected loss or mapping error |
| Cassette to trunk | Fiber count and polarity architecture align | Same external connector style | Wrong breakout behavior or dead channels |
| Adapter to connector pair | Orientation matches the channel design | Any MPO adapter will work | Polarity reversal and troubleshooting time |
| Patch panel to trunk | Panel format, cassette design, and cable management space match | Rack fit only | Congestion, stress, and maintenance difficulty |
Male MPO connectors include guide pins, while female MPO connectors do not. A correct mating pair requires one pinned side and one unpinned side. Adapters cannot repair a wrong gender combination.
Teams often assume that similar labels or similar-looking cassettes follow the same mapping. That assumption creates commissioning delays. Polarity must be confirmed by design method, not by appearance.
Tight routing behind panels can introduce attenuation, stress, and future service problems. Even if the link passes initially, the mechanical condition may not support stable operation over time.

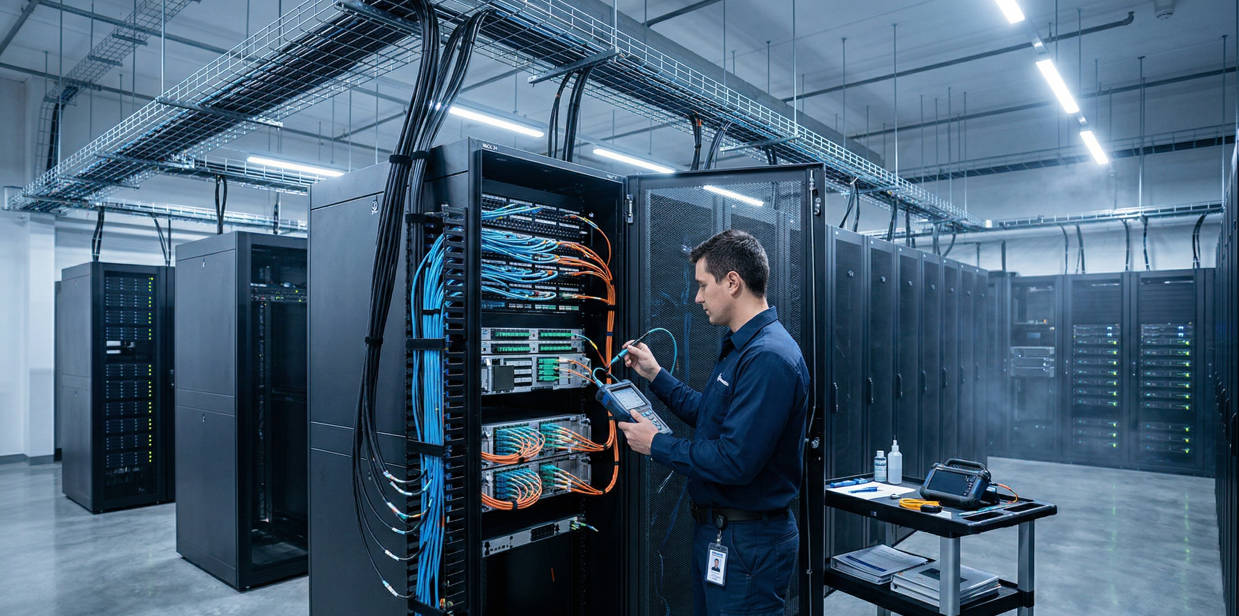

| Common mistake | Typical symptom | Likely root cause | Corrective action |
|---|---|---|---|
| Both ends appear to fit but link fails | No expected channel continuity | Wrong polarity or cassette mapping | Review channel architecture and mapping documentation |
| Connector will not mate correctly | Mechanical interference | Male-to-male pairing or wrong interface expectation | Confirm gender at both ends before reordering |
| Loss higher than expected | Poor margin during testing | Dirty endface, mixed quality grades, bend stress | Inspect, clean, verify routing, review full loss budget |
| Panel becomes difficult to maintain | Congestion and labeling confusion | Routing path not planned before install | Reserve slack space and define cable path first |
Use the table below as a quick engineering filter before approving a bill of materials or starting installation. It is intended to reduce uncertainty in mixed-component environments.
| Question | If YES | If NO | Decision |
|---|---|---|---|
| Do the connectors share a compatible interface standard? | Continue to gender and polarity checks | Stop and verify part family | No install approval |
| Is the male/female pairing correct? | Continue to mapping review | Do not attempt forced mating | Replace wrong side |
| Is the polarity method confirmed across trunk, cassette, and panel? | Proceed to cleaning and testing plan | Expect mapping risk | Request channel drawing |
| Does the fiber count match the application? | Proceed to rack routing check | Utilization or mapping may be wrong | Reconfirm architecture |
| Is bend radius and tray space acceptable? | Install and test | Expect stress and serviceability issues | Adjust routing first |
| Selection priority | Primary concern | Recommended control point | Cost impact if missed |
|---|---|---|---|
| 1. Channel logic | Polarity and mapping correctness | Review design drawing before procurement | High rework cost |
| 2. Interface and gender | Mechanical compatibility | Verify every mating point | Fast reorder risk |
| 3. Performance grade | Insertion loss margin | Control supplier specs and test method | Commissioning delay |
| 4. Routing condition | Long-term maintainability | Reserve radius and slack space | Service interruption risk |
Installation and compatibility priorities change depending on the deployment type. A data center backbone, structured cabling field link, and modular patching environment do not expose the same risks.
| Scenario | What matters most | Recommended focus | Risk if overlooked |
|---|---|---|---|
| Data center backbone | Loss budget and migration planning | Consistent channel performance and polarity control | Reduced optical margin and upgrade friction |
| Patch panel zones | Gender, adapter orientation, and routing space | Mechanical planning and service access | Maintenance difficulty and accidental disturbance |
| Cross-vendor expansion | Mapping documentation and part confirmation | BOM review before delivery | Interoperability disputes and rework |
| Fast deployment projects | Installation checklist discipline | Pre-labeled route and test plan | Compressed commissioning window |
Before bringing trunks and cassettes into the rack, confirm that part numbers, drawings, and labeling all point to the same channel method. This is the stage where errors are cheapest to correct.
Maintain bend radius, avoid crushing cable paths, and keep routing paths clean and serviceable. High-density installation should still leave room for inspection and future changes.
A compatible link can still fail due to contamination. Endface inspection, cleaning, and channel-level testing should be built into the workflow instead of being treated as optional recheck steps.
| Installation stage | Required check | Acceptance question | Action if failed |
|---|---|---|---|
| Before delivery to rack | BOM and drawing review | Does every component follow the same channel logic? | Hold release and confirm supplier data |
| During mounting | Adapter and gender check | Are all mating points mechanically correct? | Stop install and correct the interface pair |
| During routing | Bend radius and slack control | Is the path serviceable without stress points? | Re-route before tie-down |
| Before handover | Cleaning and test validation | Does the channel meet the test expectation? | Inspect, clean, and retest |
Often yes, if the interface, polarity, gender, fiber count, and performance target are aligned. The correct decision should be based on full channel compatibility rather than on connector appearance alone.
No. An adapter does not change guide pin logic. A correct mating pair still requires one male connector and one female connector at the interface.
The most common reasons are wrong polarity, incorrect cassette mapping, contamination, fiber count mismatch, or bend-related stress. Mechanical fit does not confirm signal path correctness.
Ask for connector family, gender, fiber count, polarity method, insertion loss specification, test method, and a channel drawing if the system includes trunks, cassettes, and panels from multiple components.
Yes. Factory termination improves consistency, but field conditions, routing, contamination, and installation handling can still affect the final channel. Inspection and testing remain necessary.
Yes. Clear labeling, polarity confirmation, and pre-matched assemblies can reduce installation ambiguity and help teams avoid rework during rack deployment and commissioning.
MPO installation problems are usually preventable. The highest-risk issues come from incomplete compatibility checks, especially around polarity, gender, cassette mapping, and routing conditions.
For engineering teams, the practical approach is simple: verify the full channel before installation, control bend radius during routing, and close the project with inspection and test validation. This reduces labor waste, protects optical margin, and improves maintainability for future changes.
Planning an MPO link or reviewing compatibility between trunks, cassettes, and patching components? Send your fiber count, connector type, gender requirement, polarity method, panel format, and target application.
A clear parameter list helps shorten selection time and reduces installation risk before the project reaches site.
