A practical engineering reference for understanding MPO polarity logic, Tx/Rx mapping, deployment risks, and component selection across structured cabling and parallel optics projects.
Type A is straight-through and is widely used with MPO cassettes that perform duplex crossover internally.
Type B is fully reversed and is often preferred in direct MPO and parallel optics architectures.
Type C flips adjacent fiber pairs and can work for duplex pair logic, but it is less common in many new projects.
MPO polarity is the mapping rule that keeps transmit and receive paths aligned across an MPO-based fiber link. In any duplex optical system, the transmitter on one side must arrive at the receiver on the other side. If that relationship is broken, the link will fail even when the connector, fiber count, and insertion loss all look correct.
The reason polarity becomes important in MPO systems is density. Instead of managing one duplex pair at a time, multiple fibers are grouped inside a single connector. That increases efficiency, but it also means the optical path must be engineered across trunks, cassettes, patch cords, and equipment interfaces as one coordinated system.
| Term | Meaning in Practice | Why It Matters |
|---|---|---|
| Polarity | How fiber positions are routed through the channel | Determines whether Tx reaches Rx correctly |
| Key orientation | Physical connector alignment, such as key-up/key-down | Affects mating direction, but does not alone define full link logic |
| Channel design | Combined effect of trunk, cassette, jumper, and port mapping | Prevents installation mistakes and future upgrade conflicts |

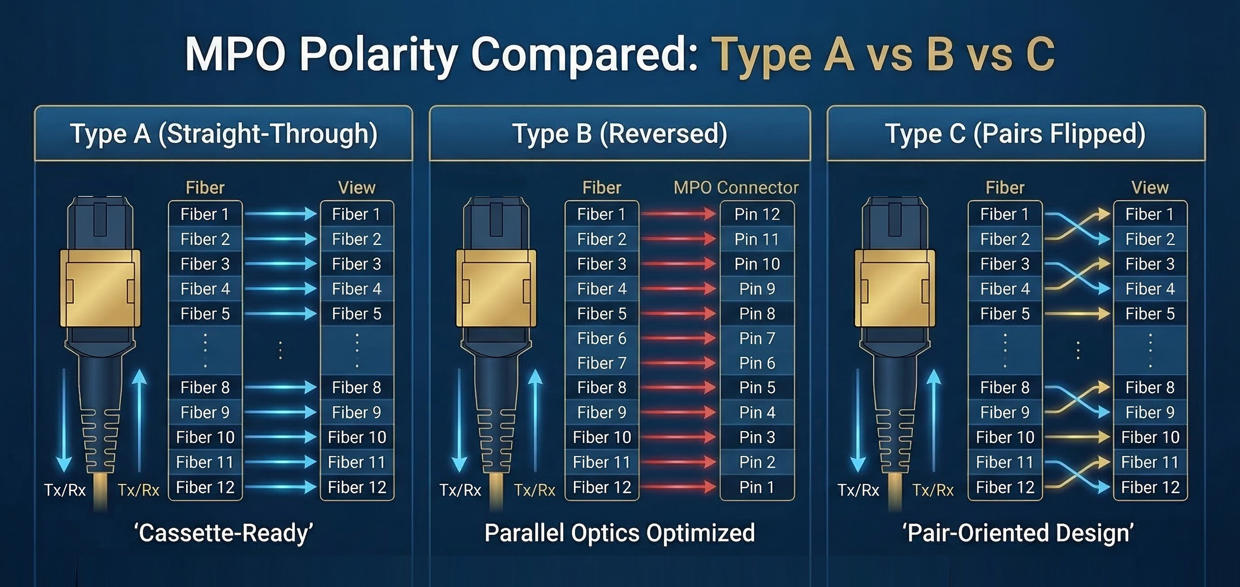

The three most common MPO polarity methods are Type A, Type B, and Type C. Each method uses a different mapping logic to preserve duplex transmission across the link. None is universally better. The correct choice depends on the architecture you are building.
Type A is straight-through mapping. Fiber 1 goes to fiber 1, fiber 2 goes to fiber 2, and so on. In many structured cabling systems, the required duplex flip is handled by the cassette rather than the trunk.
Type B is fully reversed mapping. Fiber 1 connects to the last fiber position on the opposite side, fiber 2 maps to the next reversed position, and the entire array is mirrored end to end. This is common in direct MPO and parallel optics designs.
Type C flips adjacent fiber pairs. Instead of reversing the full array, it swaps fibers 1 and 2, 3 and 4, 5 and 6, and so on. It was created to preserve duplex pair logic, but it is less common in many newer deployments.
| Polarity Type | Fiber Mapping Logic | Typical Use | Operational Strength | Main Caution |
|---|---|---|---|---|
| Type A | Straight-through | Cassette-based structured cabling | Simple backbone documentation | Requires correct cassette logic |
| Type B | Full reversal | Direct MPO / parallel optics | Fits many MPO transceiver links | Easy to misuse with wrong modules |
| Type C | Pairwise flip | Duplex pair routing strategies | Keeps adjacent pairs together | Less common and sometimes poorly documented |

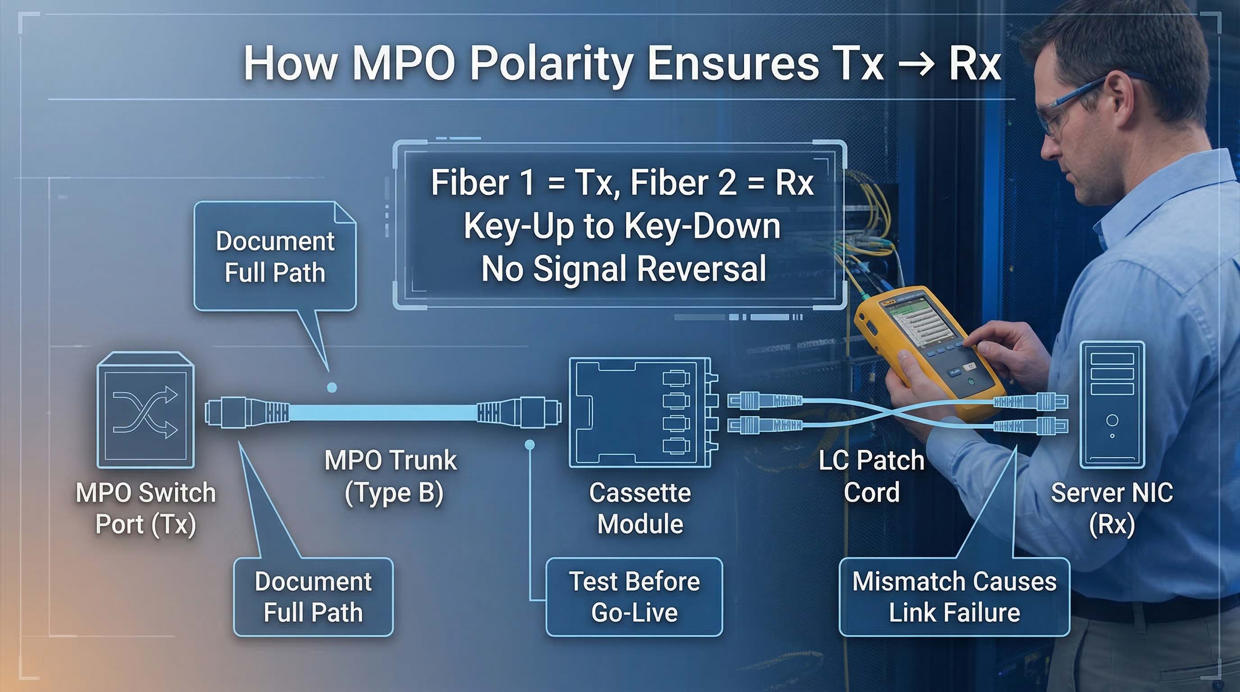

At the system level, MPO polarity exists for one reason: transmit must land on receive. Every design decision should be measured against that rule. In a duplex optical link, side A Tx must connect to side B Rx, and side A Rx must connect to side B Tx.
In MPO systems, this logic is hidden inside fiber positions, cassette wiring, and patching paths. That is why technicians sometimes see a physically clean installation but still face failed ports during testing. The visible hardware is only part of the picture. The actual optical map is what decides link behavior.
| Channel Element | What It Does | Mapping Risk | Engineering Checkpoint |
|---|---|---|---|
| Transceiver / Device Port | Defines Tx and Rx lane positions | Wrong lane expectation | Confirm application standard and lane assignment |
| MPO Trunk Cable | Carries array mapping end to end | Wrong polarity type ordered | Verify Type A, B, or C before procurement |
| Cassette / Module | Breaks out MPO fibers into duplex ports | Wrong internal crossover logic | Match cassette design to trunk logic |
| Patch Cord | Completes the last physical connection | Assuming all jumpers are functionally identical | Confirm connector orientation and expected port behavior |
In practical deployments, polarity problems often appear during acceptance testing or live migration, not during visual inspection. The most common failure pattern is component mismatch. Each part may look correct in isolation, but the combined link logic is wrong.
| Deployment Mistake | Immediate Effect | Project Risk | Prevention Method |
|---|---|---|---|
| Mixing trunk and cassette logic | Tx/Rx mismatch | Commissioning delay | Review channel drawings before ordering |
| Treating key orientation as full polarity logic | Wrong mapping assumptions | Incorrect field installation | Separate physical mating from end-to-end mapping review |
| Using visually similar but different jumpers | Unexpected lane reversal | Troubleshooting cost | Standardize labeling and BOM control |
| Ignoring future speed upgrades | Rework during migration | Higher lifecycle cost | Plan current duplex and future parallel optics together |
| Skipping documented polarity testing | Late discovery of errors | Project handover risk | Test and record channel behavior before final acceptance |

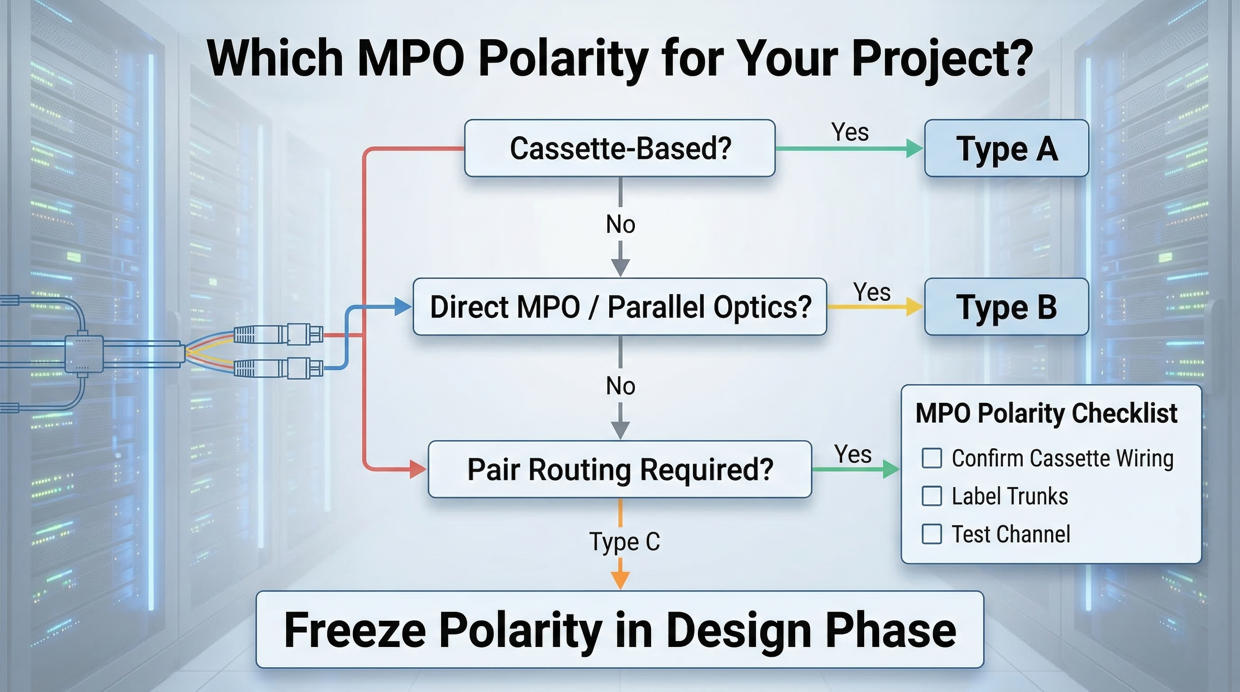

The fastest way to choose MPO polarity is to start from the target architecture, then confirm the cassette and jumper logic, and finally freeze the backbone specification. This keeps purchasing, installation, and future migration aligned.
| Project Situation | Recommended Polarity Logic | Why It Fits | Main Check Before Order |
|---|---|---|---|
| Structured cabling with MPO-LC cassettes | Usually Type A | Simple straight-through trunk with crossover handled in cassette | Confirm cassette internal mapping and duplex port layout |
| Direct MPO switch-to-switch or transceiver-to-transceiver links | Often Type B | Array reversal aligns with many parallel optics lane expectations | Verify lane map against equipment application |
| Pair-oriented duplex backbone strategy | Possible Type C | Maintains adjacent pair relationship | Check supplier support and documentation quality |
| Planned migration from duplex today to higher-speed parallel optics later | Depends on migration path, often backbone planning around Type A or Type B logic | Reduces future rework if current and future topology are reviewed together | Document current use case and next-step upgrade model before BOM freeze |
The correct polarity method depends on how the fiber link is deployed, operated, and expected to grow. Below is a practical view of where each method commonly fits in real projects.
| Application Scenario | Typical Components | Selection Focus | Lifecycle Concern |
|---|---|---|---|
| Enterprise structured cabling room-to-room backbone | MPO trunk + cassette + LC patching | Ease of maintenance and port clarity | Future port count growth |
| Data center leaf-spine or switch fabric | Direct MPO trunks and transceiver links | Lane integrity and migration path | Upgrade to higher-speed parallel optics |
| Modular data hall deployment | Pre-terminated trunk system | Repeatability and installation speed | Expansion without remapping errors |
| Mixed environment with procurement by multiple parties | Assemblies from several vendors | Compatibility control and document discipline | Cross-vendor mapping mismatch |
For procurement teams, the safest practice is to order trunks, modules, and patch cords under one confirmed polarity plan. For system integrators, the safest practice is to include polarity mapping in the submittal package and test record, not only in the product list.
It is the mapping logic that ensures transmit and receive paths remain correctly aligned across an MPO channel. Without the correct polarity plan, the optical link can fail even though the physical installation appears correct.
Type A is straight-through, Type B is fully reversed, and Type C flips adjacent fiber pairs. The right choice depends on whether the channel is cassette-based, direct MPO-based, or designed around pair logic.
In many standard structured cabling systems, Type A is a practical starting point because the trunk remains straight-through and the cassette handles duplex crossover. The cassette wiring still must be confirmed before purchase.
Yes. The cost often appears in troubleshooting labor, retesting, delayed handover, and access-window extension rather than in component replacement alone.
Provide fiber count, connector type, application speed, intended polarity type, key orientation expectation, cassette or direct-MPO architecture, and any future migration requirement. This reduces quoting ambiguity and prevents incorrect assemblies.
Yes. Documentation reduces risk, but field testing is still necessary to confirm the actual Tx/Rx behavior and verify that the delivered assemblies match the intended channel design.
MPO polarity determines whether the optical channel works as designed. Type A, Type B, and Type C each have a valid role, but they are not interchangeable without a documented system plan. In practice, the best results come from selecting polarity based on architecture first, then matching trunks, cassettes, and patch cords under one verified mapping strategy.
For engineers, the most useful action is to define polarity at the design stage and include it in the channel drawing. For buyers, the most useful action is to submit application details and migration intent together with the RFQ. For installers, the most useful action is to validate the actual optical path during commissioning instead of relying on connector appearance alone.
