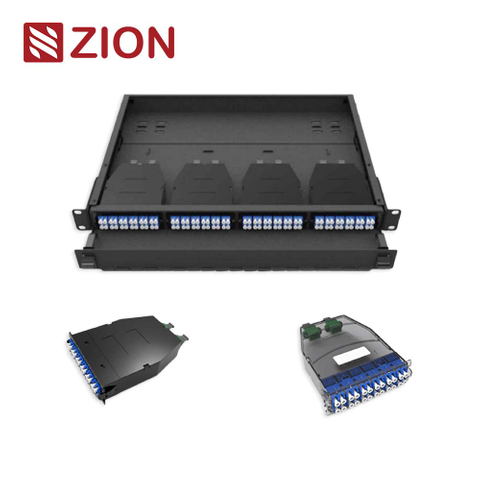

MPO patch panels provide the rack-level platform for high-density fiber distribution, while removable cassettes organize or convert MPO backbone connections into front-facing interfaces such as LC duplex ports. Choose the system by rack height, cassette capacity, access style, fiber type, polarity and future expansion—not by maximum density alone.
This modular family covers FHD and UHD platforms, 1U to 4U rack-mount formats and MPO-LC cassette configurations. Use FHD when balanced density and easier service access are the priority; consider UHD when rack space is the primary constraint and the project can support tighter cable-management discipline.
FHD / UHD · 1U–4U
A modular rack platform for organizing MPO backbone connections and cassette-based front interfaces. Choose it for data center or backbone distribution, then confirm chassis height, cassette quantity, fiber type, polarity, access method and front connector format.
View Product Details →Start with the rack and service workflow, then define the optical configuration. The enclosure determines physical capacity and access; the cassette determines front-interface conversion, fiber mapping and polarity behavior.
Choose FHD when technician access, moves-adds-changes and standardized expansion matter more than the highest possible port concentration. Choose UHD when every rack unit is constrained, while allowing enough front and rear space for routing, labels and service work.
Select 1U, 2U, 3U or 4U from the current link count, cassette requirement and reserved growth. Do not compare chassis height without also confirming the compatible cassette quantity and usable front-port capacity.
Use a fixed chassis for stable, low-touch installations where rear access remains practical. Consider a sliding design when technicians need more frequent access to cassettes, routing or labels; confirm the available rack depth and cable slack before specifying it.
Use an MPO-LC cassette when the backbone arrives on MPO/MTP trunks and the equipment side needs LC duplex presentation. Confirm the rear MPO interface, front connector count, fiber mapping and cassette compatibility with the chosen panel.
Specify OS2, OM3, OM4 or OM5 as required, together with polarity, connector gender, key orientation and the project loss budget. These details must match the trunk, cassette and patching method as one end-to-end system.
The panel is the rack-level housing; the cassette is the removable interface module. Compare the platform by operational priority first, then request the exact capacity and optical mapping for the selected configuration.
See the MPO Patch Panels & Cassettes product family for configuration enquiries.
| Configuration | Main Role | Best Fit | Confirm Before Ordering |
|---|---|---|---|
| FHD panel | Balanced-density chassis and module hosting | Frequent service, moves-adds-changes and standardized expansion | Rack unit, fixed/sliding access, cassette count and routing space |
| UHD panel | Higher port concentration per rack unit | Space-constrained data center distribution | Front congestion, label visibility, bend control and service procedure |
| MPO-LC cassette | Breakout from rear MPO/MTP to front LC duplex interfaces | MPO backbone with LC equipment-side patching | Fiber type, front-port count, polarity, gender, mapping and loss budget |
These systems fit structured fiber links that need rack-level organization, modular breakout or concentrated cross-connect capacity. They do not remove the need to document trunk polarity, connector gender, link loss and end-to-end port mapping.
Use a modular panel to concentrate backbone links and present controlled patching interfaces. Choose density only after checking front-cord congestion, label readability and technician access.
Use an accessible FHD or sliding layout when a smaller operations team needs clear tracing and simpler maintenance. Reserve capacity for growth instead of loading unused cassettes before they are required.
Use MPO-LC cassettes when the backbone and equipment interfaces differ. The cassette, trunk and patch cords must follow one documented polarity and mapping plan; physical fit alone is not enough.
Use a larger modular chassis when many trunks are aggregated in one rack area. Confirm cable-entry direction, slack storage, bend control and the future module plan before fixing the rack layout.
The patch panel is the rack-mounted chassis; the cassette is a removable module installed inside it. The panel controls capacity, protection and access, while the cassette commonly controls interface breakout, mapping and polarity.
Choose FHD when service access and routine changes are the stronger priority; consider UHD when rack space is the limiting factor. The final decision should include cable congestion, labeling and maintenance procedure, not port density alone.
Use an MPO-LC cassette when an MPO/MTP trunk needs to present LC duplex ports to equipment or patch cords. Confirm the port count, fiber type, polarity and internal mapping for the complete link.
No. Mechanical dimensions, mounting method, front adapter layout and system design can differ. Approve the chassis and cassette as a compatible platform rather than sourcing them independently by appearance.
Yes, when the chosen chassis accepts the modules required by the future design. Reserve rack and module capacity, but confirm cassette and adapter compatibility before treating the enclosure as a long-term migration platform.
You can begin with the rack plan and required interfaces. For an accurate configuration, provide the information below and request a confirmed chassis layout, cassette mapping and bill of materials for the selected version.
FHD or UHD platform preference and reason
Rack height: 1U, 2U, 3U or 4U
Fixed or sliding access requirement
Current cassette quantity, future reserve and target front-port count
Rear MPO/MTP and front LC or other interface requirements
Fiber type: OS2, OM3, OM4 or OM5
Polarity method, connector gender, key orientation and mapping
Link-loss or test-report requirements
Cable-entry direction, labeling, accessories, quantity and packaging needs
