OS2 vs OM4/OM5: How to Choose Fiber Cables for 400G, 800G and 1.6T Networks

By 2026, the fiber infrastructure discussion is no longer just “singlemode vs multimode” or “indoor vs outdoor.”    AI fabrics, FTTR, Wi-Fi 8 backhaul and strict ESG targets are redefining how engineers and buyers specify fiber optic cables.    This article translates those high-level trends into practical selection rules, with tables, shortcuts and risk-based guidance you can apply directly to BOQs and RFPs.

■    1) 2026 Network Drivers for Fiber Optic Cable Selection

From bandwidth to latency, density and sustainability

Network design in 2026 is shaped by four dominant forces: AI compute fabrics, Wi-Fi 8 and FTTR,    co-packaged/linear optics, and sustainability frameworks such as ESG and CPR.    These drivers collectively push fiber choices toward bend-insensitive singlemode, higher strand counts and compact, compliant constructions.

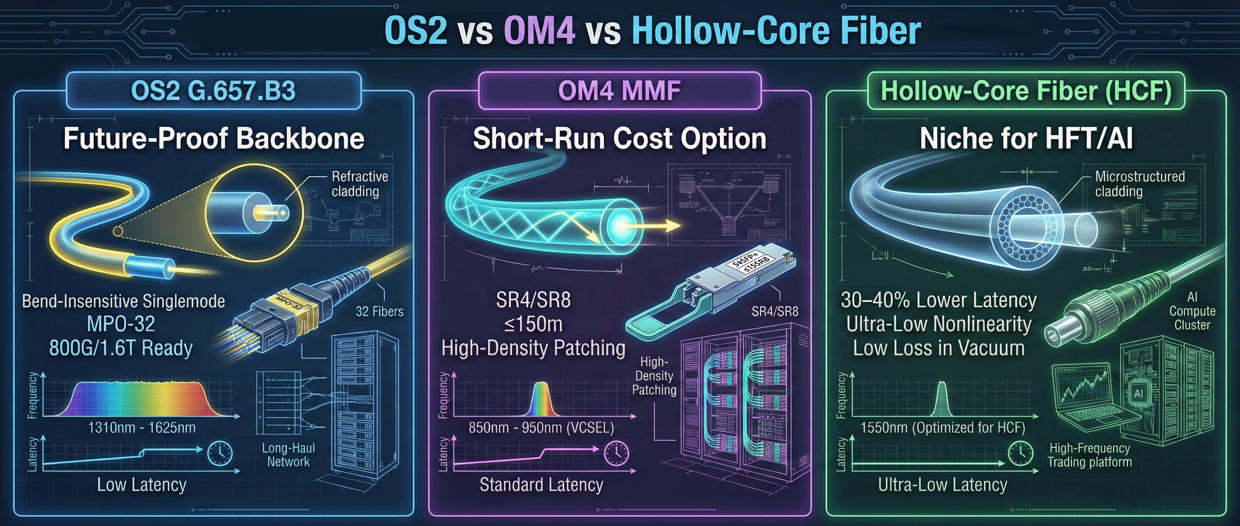

■    2) Fiber Types in the 1.6T Era: Singlemode, Multimode & HCF

Where OS2, OM4/OM5 and hollow-core actually fit

Traditional discussions framed single-mode as “long-distance” and multimode as “short-distance and cheaper.”    In 2026, with 800G and 1.6T optics, that boundary has shifted. Single-mode has moved down into short in-building links,    while multimode is concentrated in very short, high-density runs. At the very high end, hollow-core fiber (HCF) appears in ultra-low-latency and high-frequency trading applications.

In very latency-sensitive environments such as high-frequency trading or top-tier AI training, hollow-core fiber (HCF)    is starting to appear in limited runs, offering 30–40% latency reduction versus conventional glass.    For now, HCF remains a niche, cost-intensive option that complements, rather than replaces, OS2 deployments.

■    3) Strand Counts, Density & Connector Ecosystem

Designing for parallel optics, VSFF and MPO-16/32

AI fabrics and 1.6T roadmaps dramatically increase the number of fibers required per rack and per row.    As a result, strand counts of 144, 288 and even 432 are becoming common in data centers, often using ribbon structures and MPO-based trunk cables.    At the panel level, LC is giving way to very small form factor (VSFF) connectors such as SN, CS and MDC.

For campus and enterprise projects, 12–24 fibers still cover most riser and backbone needs.    For new data centers and AI clusters, ZION recommends sizing trunks at 144 fibers and above, using ribbonized OS2 to simplify MPO terminations and migration from 400G to 800G and 1.6T.

■    4) Cable Construction, Jackets & ESG Considerations

Balancing fire codes, outdoor hazards and environmental goals

Fiber cable construction is driven by installation environment: indoor vs outdoor, tray vs conduit,    plenum vs riser, and exposure to rodents, vehicles, vibration or moisture. In 2026, environmental and regulatory requirements play an equally important role, with data center and campus projects increasingly specifying LSZH-FR,    CPR B2ca/Cca and bio-based or recyclable materials.

■    5) Application-Based Selection Matrix

Matching environments to fiber, construction and connectors

The table below maps typical 2026 scenarios—from FTTR and office upgrades to AI superclusters—to fiber types, cable constructions and preferred connector ecosystems. Use it as a starting point when preparing RFQs or project BOQs.

■    6) Decision Rules / Engineer’s Shortcut

Fast rules you can apply to BOQs and RFQs

When you are under time pressure, you need rules of thumb that are technically safe, vendor-neutral and future-proof.    The table and cards below summarize practical thresholds used by many ZION customers when moving from 10G/40G to 400G/800G/1.6T and from copper to FTTR.

■    7) Conclusion & Project Checklist

From concept to bill of materials with ZION fiber solutions

In 2026, choosing fiber optic cable is about much more than connecting two switches.    You are designing a physical platform that must support 400G/800G/1.6T upgrades, survive multiple hardware generations, meet ESG and fire-safety requirements, and provide enough density for AI fabrics and FTTR deployments.

The safest strategy for the next 5–10 years is to standardize on bend-insensitive OS2, design trunks and backbones around MPO-based architectures, reserve VSFF for high-density racks, and specify LSZH-FR/CPR grades compatible with your local regulations. From there, you can layer on hollow-core fiber for the most demanding low-latency paths as needed.
