Author: James Publish Time: 13-01-2026 Origin: Site
Understand what an ONT really does, how it differs from a router or modem, and how to select the right ONT class for FTTH, enterprise and campus fiber projects – with clear decision rules for engineers and procurement.
ONTs are mandatory for fiber – routers cannot replace them.
Choosing GPON vs XGS-PON vs enterprise ONT is a lifecycle, not just price, decision.
From 2026 onwards, ONTs must align with Wi-Fi 7, FTTR and multi-gigabit service roadmaps.
As fiber rollouts accelerate for FTTH, business internet, campus backbones and smart buildings, the Optical Network Terminal (ONT) has become one of the most important devices in the access layer. It is the point at which high-speed optical services are translated into usable LAN connectivity for end users and critical applications.
For engineers, planners and buyers, understanding what the ONT does – and how its specifications affect performance, risk and lifecycle cost – is essential to designing a resilient, future-ready network.
An Optical Network Terminal (ONT) is the customer-side fiber termination device in a passive optical network (PON). It receives optical signals from the service provider’s Optical Line Terminal (OLT), converts them into electrical Ethernet signals, and provides interfaces for routers, switches and end devices.
Terminate the incoming fiber and maintain a logical link with the OLT.
Convert downstream light pulses into IP packets over Ethernet or other LAN interfaces.
Convert upstream local traffic back into optical signals.
Enforce operator policies such as authentication, QoS and VLAN tagging.
Optionally support voice (FXS), IPTV and integrated Wi-Fi or routing features.

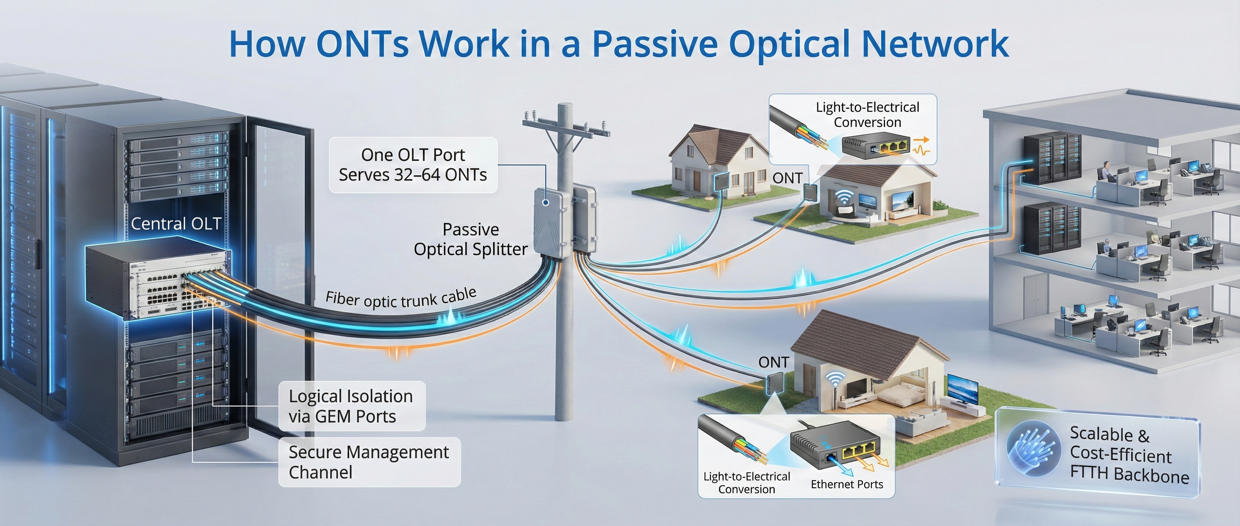

In a typical GPON or XGS-PON deployment, a single OLT port in the central office or data center is connected via optical splitters to dozens of ONTs. Each ONT shares the same fiber link but is logically separated and authenticated by the OLT.
Downstream: OLT sends data as light over fiber → splitter → ONT → ONT decodes to Ethernet → router / switch / device.
Upstream: Device traffic passes to router → ONT → ONT encodes to light → splitter → OLT.
Management: The ONT exchanges control messages with the OLT for bandwidth allocation, remote configuration and monitoring.
ONTs are frequently confused with routers or traditional modems, which can cause design errors and procurement mismatches. The following table summarizes the functional boundaries.
| Device | Network Medium | Core Role | Typical Position |
|---|---|---|---|
| ONT | Fiber (GPON / XGS-PON / others) | Optical ↔ Electrical conversion, PON termination | At the customer premises fiber entry point |
| Router / Gateway | Ethernet / LAN / Wi-Fi | Routing, NAT, firewall, Wi-Fi, DHCP | Behind the ONT, in the local network |
| DSL / Cable Modem | Telephone pair or coaxial cable | Carrier signal ↔ IP conversion on copper | Legacy copper broadband access point |
Even when an ONT includes Wi-Fi and basic routing functions, it is still helpful to separate roles conceptually: fiber termination (ONT) vs. LAN and security control (router/firewall).
ONTs appear anywhere fiber service is delivered directly to a home, business, building or industrial site. For planners and buyers, it is useful to map ONT classes to typical scenarios.
| Scenario | Typical ONT Role | Key Considerations |
|---|---|---|
| FTTH – Residential Home | Terminate GPON/XGS-PON, feed home router/Wi-Fi. | Ease of installation, compact size, optional voice/TV. |
| SMB / Enterprise Branch | Deliver business-grade bandwidth and SLAs. | VLAN support, secure management, multiple GE/10GE ports. |
| Campus / University Network | Provide fiber-to-building or fiber-to-floor termination. | Scalability, centralized management, integration with core. |
| MDU / MTU Building | Serve multiple apartments or tenants with dedicated ONTs. | Compact ONTs, easy access for maintenance, aesthetics. |
| Industrial & Logistics Sites | Terminate fiber for cameras, sensors, automation systems. | Ruggedized design, temperature range, EMI-resilient layout. |
From 2026 onwards, ONTs are evolving beyond basic FTTH devices. They are becoming multi-gigabit access points that must align with Wi-Fi 7, FTTR, IoT and edge computing requirements.
PON migration: GPON remains dominant, but XGS-PON is scaling quickly, and 25G PON is entering high-density and premium markets.
Wi-Fi 7 and mesh integration: ONTs increasingly pair with Wi-Fi 7 gateways or integrate wireless features for seamless indoor coverage.
FTTR (Fiber-to-the-Room): ONTs act as master nodes feeding multiple mini-ONUs across rooms in villas, hotels and MDUs.
Enterprise and industrial ONTs: demand grows for devices with VLAN, QoS, secure management and robust enclosures.
Energy efficiency and form factor: lower power consumption, fanless cooling and compact designs become standard requirements.
To speed up project reviews, the following matrix gives a practical shortcut for deciding which class of ONT should be considered first, based on project conditions rather than catalogue browsing.
| Project Condition | If This Is True… | Engineer’s Shortcut |
|---|---|---|
| Service tier & SLA | Residential or SOHO with best effort service. | Start with GPON ONT, optional Wi-Fi gateway combo. |
| Bandwidth target | Multi-gigabit and symmetrical services planned. | Evaluate XGS-PON ONT with 10GE interfaces. |
| User type | Enterprise, campus or industrial customers. | Use enterprise ONT with VLAN, QoS and secure management. |
| Building layout | Large homes, villas, hotels, MDUs with many rooms. | Consider FTTR master ONT feeding room-level ONUs. |
| Environmental stress | High temperature, dust, vibrations, or outdoor cabinets. | Select ruggedized ONT with industrial temperature range. |
Once the basic decision is made (GPON vs XGS-PON vs enterprise vs FTTR), detailed ONT selection should compare bandwidth, interfaces and feature sets. The following table summarizes typical options.
| ONT Type | Typical Use Case | Downstream / Upstream | Key Features | Recommended For |
|---|---|---|---|---|
| GPON ONT | Mass-market FTTH, small business broadband. | 2.5 Gbit/s / 1.25 Gbit/s | 1–4 GE ports, optional FXS, basic routing or bridge mode. | Residential, SOHO, cost-sensitive deployments. |
| XGS-PON ONT | Premium residential and small-to-medium enterprises. | 10 Gbit/s / 10 Gbit/s | 10GE WAN, multi-GE LAN, Wi-Fi 6/7 gateway options. | High-usage homes, SMEs, future-proof access. |
| Enterprise ONT | Corporate sites, factories, campus distribution. | 1–10 Gbit/s variants | Advanced VLAN, QoS, secure management, often rack or DIN-rail mountable. | Industrial environments, branch offices, aggregation points. |
| FTTR Master ONT | Fiber to every room in homes, villas, hotels, MDUs. | 1–10 Gbit/s | Support for distributed ONUs, ultra-thin indoor fiber, seamless roaming with Wi-Fi mesh. | Premium residential, hospitality, multi-room scenarios. |
No. Routers cannot process optical signals directly. The ONT is always required at the fiber termination point to convert light signals into Ethernet before a router can operate.
It depends on performance and management needs. Integrated ONT+Wi-Fi devices can be enough for small homes, but many enterprises and advanced users prefer a separate router or firewall for better control, scalability and security.
No, ONTs must match the PON technology configured at the OLT. While GPON and XGS-PON can coexist on the same fiber plant using coexistence modules, each ONT still needs the correct optics and protocol support.
In standard practice, one ONT serves one subscriber unit (household, office, tenant). Sharing a single ONT across unrelated users complicates authentication, billing and fault isolation, and is not recommended.
Both can become bottlenecks. If you deploy XGS-PON ONTs but keep legacy routers or Wi-Fi 4/5 APs, the user will never see 10G-class performance. Matching ONT capabilities with Cat6A cabling and Wi-Fi 6/7 routers is essential.
A typical service life of 5–10 years is realistic, depending on heat, power quality, firmware support and mechanical stress. Industrial ONTs are designed for harsher environments and longer lifetimes.
ZION Communication focuses on the physical layer that makes ONT-based services reliable: fiber cables, connectivity hardware and installation-ready components from the central office all the way to the ONT and end device.
Outdoor and indoor fiber cables for feeder, distribution and drop segments.
Patch panels, ODFs, splitters, distribution boxes and wall outlets for structured fiber routing.
Pigtails, patch cords and FTTR-ready micro-fiber for neat ONT terminations in rooms and enclosures.
Complementary copper cabling (Cat6 / Cat6A) from ONT or gateway to local switches and Wi-Fi APs.
The Optical Network Terminal is a small device with a big impact: it determines how efficiently your fiber investment turns into real network performance for homes, businesses and smart buildings. In the 2026–2030 horizon, ONT choices must align with PON evolution, Wi-Fi 7, FTTR and growing enterprise bandwidth demands.
For engineers and buyers, the key is to treat ONT selection as part of a complete physical-layer strategy – not an isolated hardware purchase. Matching ONT capabilities with structured fiber and copper solutions will reduce outages, simplify upgrades and keep total cost of ownership under control.
With ZION Communication as your cabling and connectivity partner, you can design an access network that is ONT-ready today and upgrade-ready for tomorrow.
Share your PON standard (GPON / XGS-PON / others), target bandwidth, number of subscribers, and building layout. Our team can help you map ONT classes to the right fiber and copper cabling, and prepare a standards-based bill of materials for your next rollout.
