NO.7100246 RG11/U QUAD CMP UL Certificated

Key Information & Construction Parameters:

SKU:

7100246

UL Certificate Number:

E541136

Standards:

UL 444 & CSA C22.2 No.214
Communications Cables

Inner Conductor Material

Copper Covered Steel (CCS)

Inner Conductor Size

0.064"/14AWG/1.63±0.016mm

Insulation Material

Skin Foam FEP

Insulation Size

0.280±0.006"/7.11±0.15mm

Shield 1

Bonded Aluminum/Poly Tape

Shield 2

AL_MG  braiding 60% Coverage

Shield 3

Aluminum/Poly/Aluminum Tape

Shield 4

AL_MG  braiding 40% Coverage

Jacket

Material: Plenum PVC

Norminal Thickness: 0.018"(0.46mm)

OD: 0.380±0.012" (9.65±0.3mm)

Application

Audio/Video

CATV/CCTV

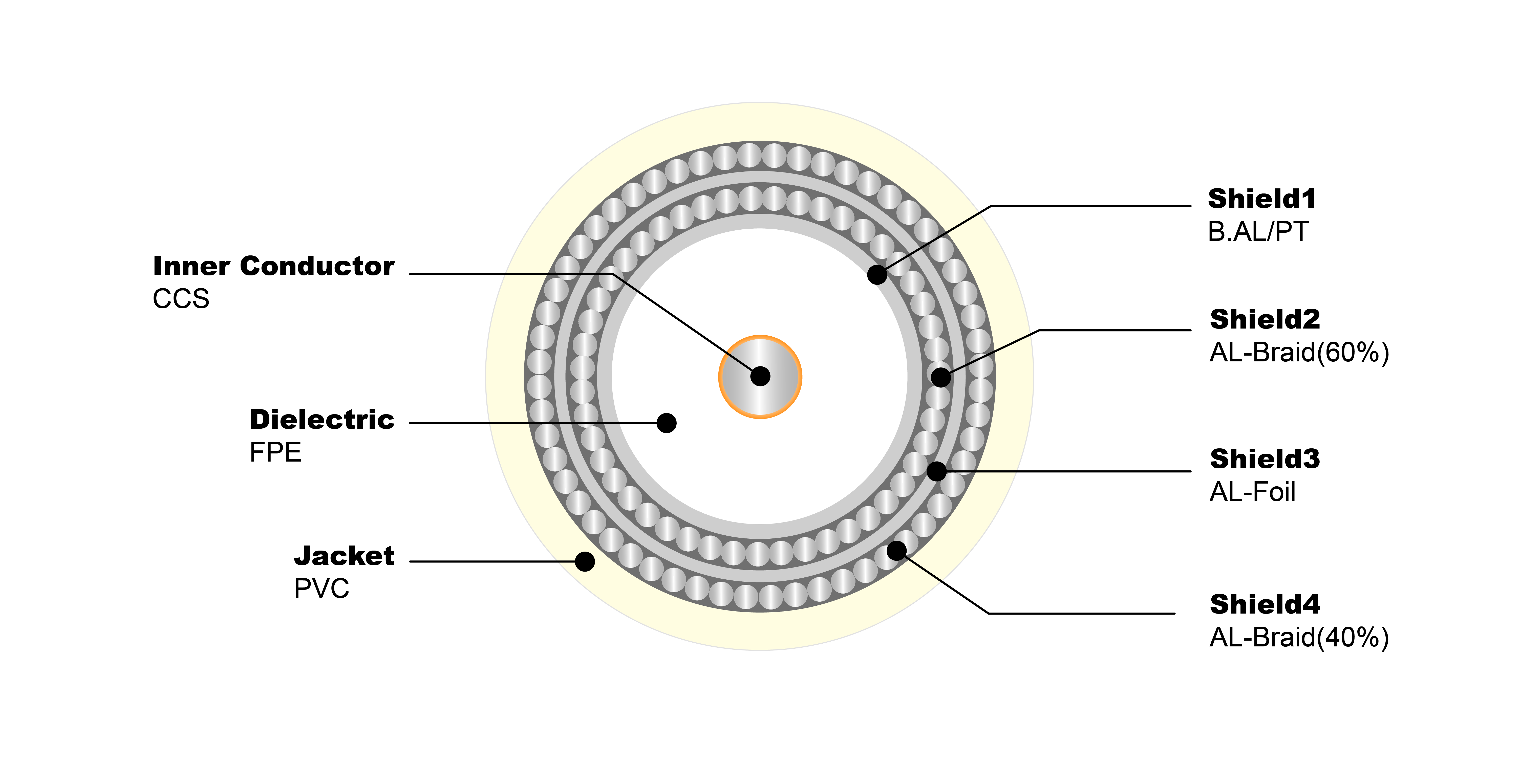

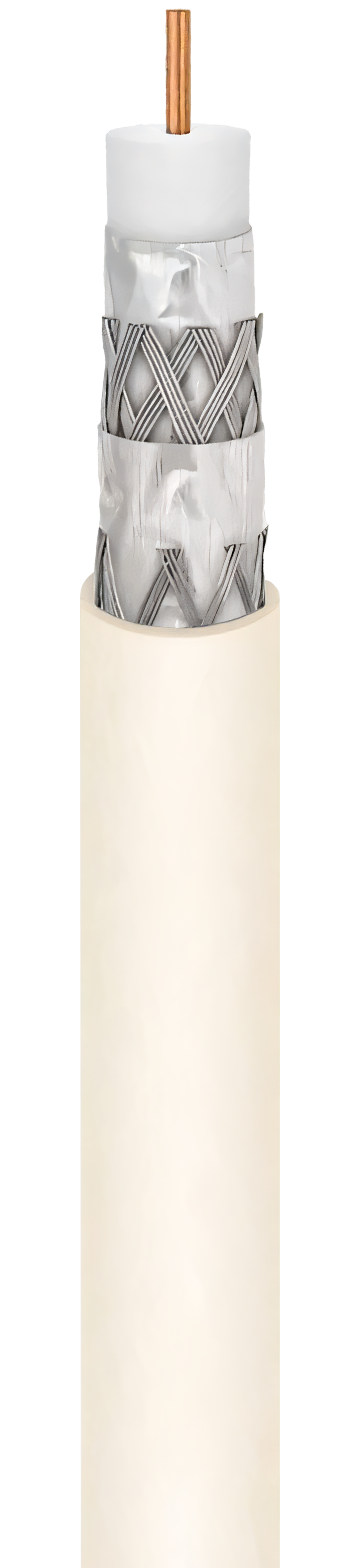

Cross Section:

Electrical Characteristics & Physical Properties:

Inner Conductor Resistance

36.1 Ω/km         | 11.0 Ω/1000 ft.

Capacitance

52.5 pF/m.Nom  | 16 pF/ft.Nom

Impedance

75 ± 3 Ω

Return loss

20dB (1 -300MHz) 100% Swept Tested

Velocity of Propagation

84% Nom.

Sparker Test (VAC)

2500 V

Cable bend radius

7 times the cable diameter

Operating Temp Range

-20 to 75 ℃ （-4 to 167℉）

RoHS

Compliant

Attenuation(20℃):

Frequency (MHZ)

Max Attenuation(dB/100ft)

Max Attenuation (dB/100m)

1

0.25

0.82

10

0.80

2.62

50

1.20

3.93

100

1.70

5.57

200

2.50

8.20

400

3.60

11.80

700

5.10

16.72

900

6.00

19.67

1000

6.50

21.31

1450

8.00

26.23

1800

9.10

29.84

2200

10.10

33.11

3000

12.00

39.34

*The above data is for reference only, the actual order test report shall prevail.

Order Informations:

Marking

HANGZHOU ZION 7100246  RG11Q 14AWG 75 OHM COAX
E541136(UL)C(UL)CMP 75C RoHS COMPLIANT ×××××FT

Package

1000FT/Pull Box or Wooden Spool (or Per customer's request)

Delivery time

Normally 25 days after received the deposit.

Brand

HELLOSIGNAL® OR OEM
