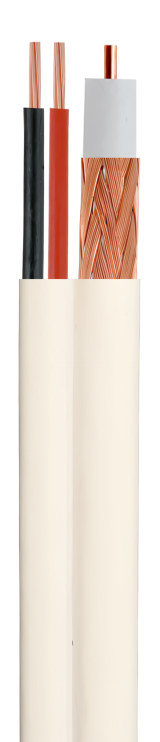

NO.7102028 RG59U 95%CCA+Copper Clad Aluminum braiding+2C18AWG CMP UL E541136

Key Information & Construction Parameters:

SKU:

7102028

UL Certificate Number:

E541136

Standards:

UL 444 & CSA C22.2 No.214
Communications Cables

Component 1

RG59 Coaxial Cable

Inner Conductor Material

Solid Bare Copper (BC)

Inner Conductor Size

0.032"/20AWG/0.813±0.008mm

Insulation Material

Skin Foam FEP

Insulation Size

0.134±0.006"/3.40±0.15mm

Shield 1

Copper Clad Aluminum  braiding wire

95% Coverage

Nom.Dia: 0.154±0.006” / 3.91±0.15mm

Jacket

Material: Plenum PVC

Norminal Thickness: 0.018"(0.46mm)

OD: 0.197±0.008" (5.0±0.2mm)

Component 2

2C18AWG Power Cable

Inner Conductor Material

Solid Bare Copper (BC)

Inner Conductor Size

7×0.0152"/18AWG/7×(0.386±0.004mm)

Dielectric Material

Plenum PVC

Dielectric Size

0.060"/1.52±0.10mm

Jacket

Material: Plenum PVC

Norminal Thickness: 0.015"(0.38mm)

OD: 0.150±0.008" (3.8±0.2mm)

Application

Audio/Video

CCTV

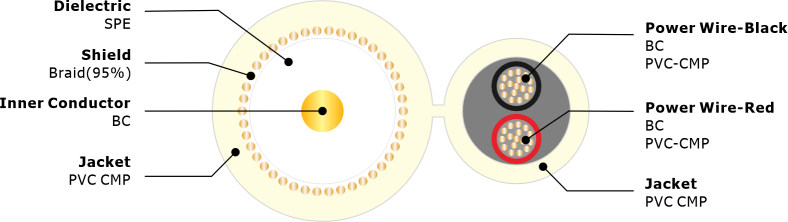

Cross Section:

Electrical Characteristics & Physical Properties:

COAX Conductor Resistance

34.4 Ω/km         | 10.5 Ω/1000 ft.

POWER Conductor Resistance

21.7 Ω/km         | 6.6 Ω/1000 ft.

Capacitance

52.5 pF/m.Nom  | 16 pF/ft.Nom

Impedance

75 ± 3 Ω

Return loss

20dB (1 -300MHz) 100% Swept Tested

Velocity of Propagation

84% Nom.

Sparker Test (VAC)

2500 V

Operating Temp Range

-20 to 75 ℃ （-4 to 167℉）

RoHS

Compliant

Attenuation(20℃):

Frequency (MHZ)

Max Attenuation(dB/100ft)

Max Attenuation (dB/100m)

1

0.30

0.98

10

0.97

3.18

50

2.40

7.87

100

3.40

11.15

200

4.85

15.90

400

7.00

22.95

700

9.50

31.15

900

11.10

36.39

1000

12.00

39.34

*The above data is for reference only, the actual order test report shall prevail.

Order Informations:

Marking

HANGZHOU ZION 7102028 RG59/U 20AWG/1C+18AWG 2/C
E541136(UL)C(UL)CMP 75C RoHS COMPLIANT ×××××FT

Package

1000FT/Pull Box or Wooden Spool (or Per customer's request)

Delivery time

Normally 25 days after received the deposit.

Brand
