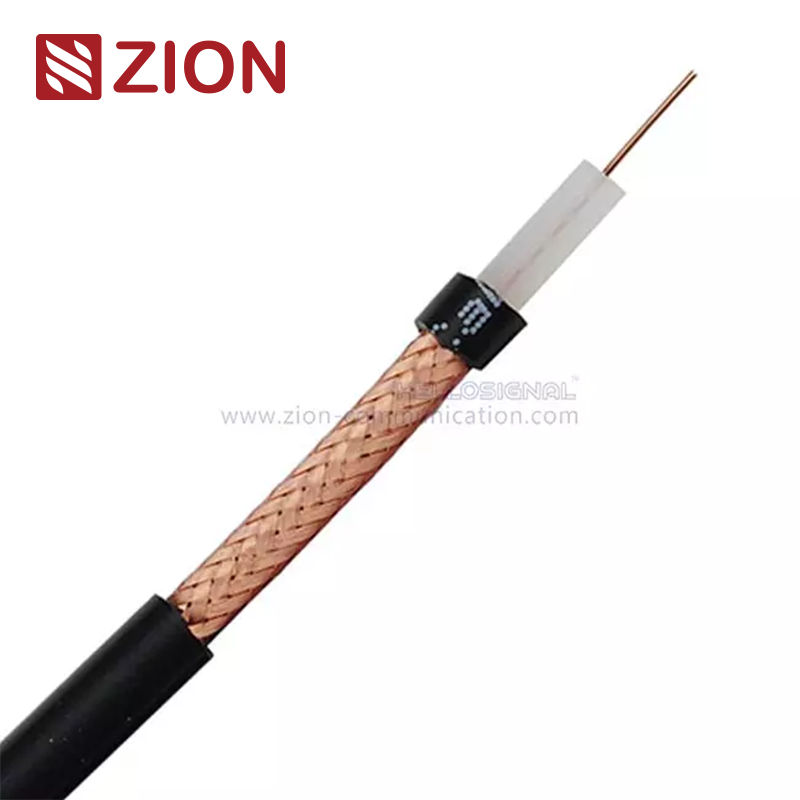

RG59 B/U BC 95% CCA PE Coaxial Cable

  • RG59 B/U
  • hellosignal
  • 7100170
  • Coaxial Cable
  • 75 ohm
  • UL, ETL, CE, RoHS
  • 100m, 305m,500m,1000m,500ft,1000ft
  • roll, wooden spool, carton, pallet
  • 30KM
  • Normally 15 working days
  • NINGBO, SHANGHAI
  • T/T, L/C at sight, D/P at sight

Specification



CCTV2

CCTV coaxial cable description
Surveillance is a primary function in safety and security for many environments such as Schools,Hospitals,Hotels,Malls,Airports, Stations, Casinos, Prisons, Businesses and Personals.
The selection of cameras and other electronics equipment is a primary concern,but the link between the electronics should be taken with extreme caution.ZION COMMUNICATION  provides CCTV coaxial cables from short run applications to the most critical long distance applications. Our CCTV coaxial cables offer optimum performance for main distribution use in video surveillance systems where extended cable runs are required.

Our CCTV coaxial cables are available to support most main video surveillance solution brand,such as SONY,HONEYWELL,ARIX,HIKVISION,DAHUA,HELLOSIGNAL and more.All CCTV Coaxial cables from ZION COMMUNICATION comply with International standards within the industry. And ZION COMMUNICATION CCTV coaxial cable are available as UL and with a CM,CMR or CMP rating, and CPR certificates.

Why chose us as your partner?
  Price: You can get ultimate reasonable factory price of the CCTV coaxial cable itself from us!
  Service: You will enjoy best service from our export team on price for import and export, shipping time, documents and custom policy, which will save cost ultimately  and create biggest value for you.
  Quality Guarantee:You will received 100% quality pass testing before sending to our customers; also we are responsible for all products during it’s normal lifetime.

横版认证高清LOGO


RG59 B/U BC 95% CCA PE
75 Ohm CCTV coaxial Cable

NO.7100170

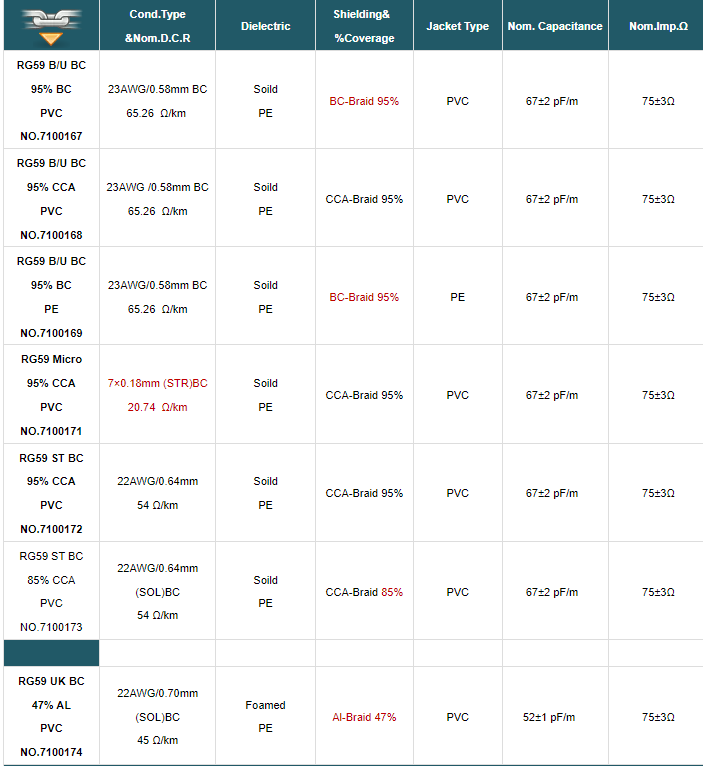

Similar Type:

insert-link

Cond.Type
&Nom.D.C.R

Dielectric

Shielding&
%Coverage

Jacket Type

Nom. Capacitance

Nom.Imp.Ω


RG59 B/U BC
95% BC
PVC
NO.7100167

23AWG/0.58mm BC
65.26  Ω/km

Soild
PE

BC-Braid 95%

PVC

67±2 pF/m

75±3Ω


RG59 B/U BC
95% CCA
PVC
NO.7100168

23AWG /0.58mm BC
65.26  Ω/km

Soild
PE

CCA-Braid 95%

PVC

67±2 pF/m

75±3Ω


RG59 B/U BC
95% BC
PE
NO.7100169

23AWG/0.58mm BC
65.26  Ω/km

Soild
PE

BC-Braid 95%

PE

67±2 pF/m

75±3Ω


RG59 Micro
95% CCA
PVC
NO.7100171

7×0.18mm (STR)BC
20.74  Ω/km

Soild
PE

CCA-Braid 95%

PVC

67±2 pF/m

75±3Ω


RG59 ST BC
95% CCA
PVC
NO.7100172

22AWG/0.64mm
54 Ω/km

Soild
PE

CCA-Braid 95%

PVC

67±2 pF/m

75±3Ω


RG59 ST BC
85% CCA
PVC
NO.7100173

22AWG/0.64mm
(SOL)BC
54 Ω/km

Soild
PE

CCA-Braid 85%

PVC

67±2 pF/m

75±3Ω











RG59 UK BC
47% AL
PVC
NO.7100174

22AWG/0.70mm
(SOL)BC
45 Ω/km

Foamed
PE

Al-Braid 47%

PVC

52±1 pF/m

75±3Ω


Construction Parameters:

Inner Conductor

0.024"/0.58mm/23 AWG BC

Dielectric

0.144"/3.66mm SPE

Shield

0.12mm Copper Clad Aluminum Copper(95%)

Jacket

0.238"±0.006"/6.05±0.15mm PE

Application

For Use in Longer CCTV Run Lengths

Electrical Characteristics:

Inner Conductor Resistance

65.26 Ohms/KM at 20

Capacitance

67±2 pF/m

Impedance

75 ± 3 Ω

Return loss

between 5 and 1000MHz: > 22dB

Velocity of Propagation

0.66

Sparker Test (VAC)

3


Mechanical and Envrionmental Properties

Cable bend radius

10 times the cable diameter

Operating Temp Range

-20  to 60

Cable diamensions

0.238"±0.006"/6.05±0.15mm PE

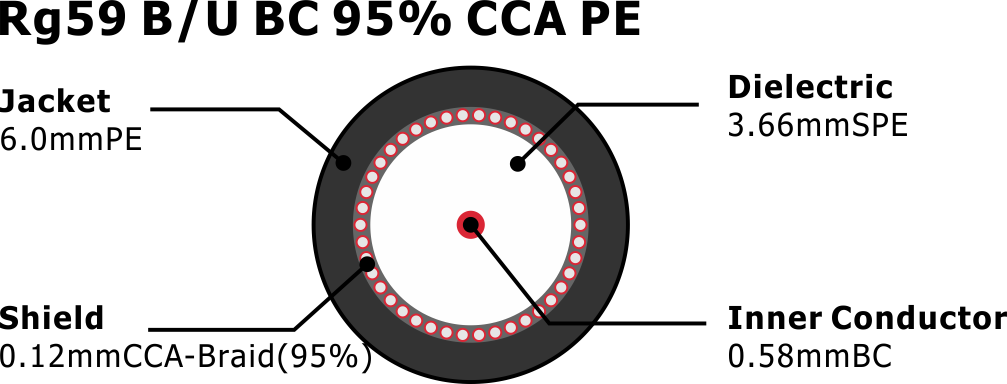

Cross Section

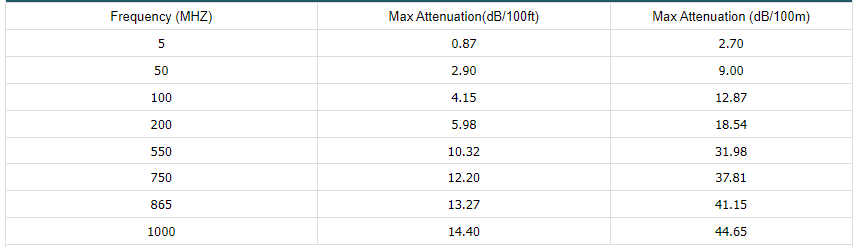

Attenuation(20℃):

Frequency (MHZ)

Max Attenuation(dB/100ft)

Max Attenuation (dB/100m)

5

0.87

2.70

50

2.90

9.00

100

4.15

12.87

200

5.98

18.54

550

10.32

31.98

750

12.20

37.81

865

13.27

41.15

1000

14.40

44.65



Distance Chart CCTV Coaxial Cables

The Factory

The Factory

We have a study and design label,a professional team of engineers and skilled workers, also with the advanced machines and modern factories which can provide our customers with outstanding quality, service, and pricing.
Monthly Production Capacity:
Wire (Copper/copper clad aluminium) drawing: 500 Metric Tons+
Coaxial Cable: 14,000KM+
Telephone Cable: 10,000KM+
Data & Computer Cable: 12,200KM+
Security & Fire Alarm Cable: 10,000KM+
Other Cable Types: 10,000KM+
Cable Accessories: 180,000pcs+
Telecom Accessories: 180,000pcs+

Packing

Packing

We have abundant types of packing for you,such as reel, plastic spool, wooden spool,pull box, colorful carton, pallet and many other more. Also our design team will supply you best solution of the packing for size ,firm and artistic outlooking.

Order Informations:

Marking

HELLOSIGNAL RG59 B/U BC 95% CCA PE
CCTV COAXIAL CABLE 7100170 ×××M/FT

Package

Inquired Length on Reel,Pull Box,Plastic Spool,wooden Spool,pallet …

Delivery time

Normally 25 days after received the deposit.

Brand

HELLOSIGNAL®OR OEM
