NO.7100170 RG59 B/U BC 95% CCA PE

Construction Parameters:

Inner Conductor

0.024"/0.58mm/23 AWG BC

Dielectric

0.144"/3.66mm  SPE

Shield

0.12mm Bare Copper(95%)

Jacket

0.238"±0.006"/6.05±0.15mm PE

Application

For Use in Longer CCTV Run Lengths

Electrical Characteristics:

Inner Conductor Resistance

65.26 Ohms/KM at 20℃

Capacitance

67±2 pF/m

Impedance

75 ± 3 Ω

Return loss

between 5 and 1000MHz: > 22dB

Velocity of Propagation

0.66

Sparker Test (VAC)

3

Mechanical and Envrionmental Properties

Cable bend radius

10 times the cable diameter

Operating Temp Range

-20 ℃ to 60℃

Cable diamensions

0.238"±0.006"/6.05±0.15mm PE

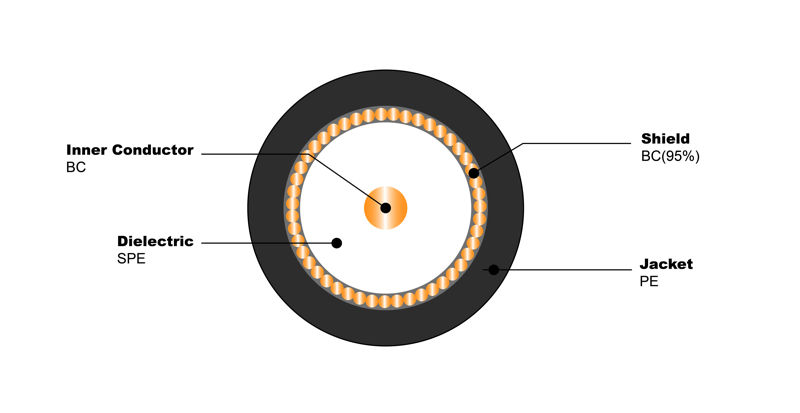

Cross Section

Attenuation(20℃):

Frequency (MHZ)

Max Attenuation(dB/100ft)

Max Attenuation (dB/100m)

5

0.87

2.70

50

2.90

9.00

100

4.15

12.87

200

5.98

18.54

550

10.32

31.98

750

12.20

37.81

865

13.27

41.15

1000

14.40

44.65

Order Informations:

Marking

HELLOSIGNAL RG59 B/U BC 95% BC PE

CCTV COAXIAL CABLE 7100169×××M/FT

Package

Inquired Length on Reel,Pull Box,Plastic Spool,wooden Spool,pallet …

Delivery time

Normally 25 days after received the deposit.

Brand

HELLOSIGNAL® OR OEM
