Author: James Publish Time: 13-01-2026 Origin: Site
25G is the new 10G; 100G (QSFP28) is the workhorse; design for migration plans to 400G/800G (QSFP-DD/OSFP).
Optics choice is driven by power, thermal constrains, port density, connectivity testing — not just speed.
Best outcomes come from aligning switch port capabilities, cable plant, FEC/breakout, and serviceability as one link design.

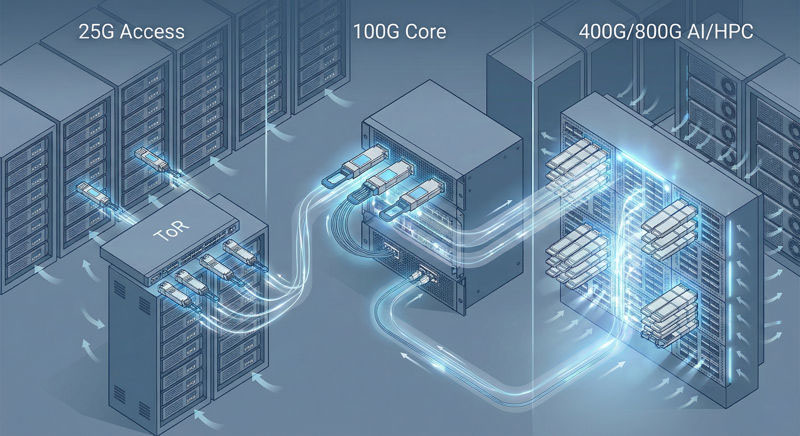

In 2026, transceiver choice is often driven by architecture (leaf/spine, AI pod), power and thermal budgets, upgrade plans — not just speed. New deployments often start with 25G (SFP28), core positions aggregate 100G (QSFP28), while front panel density and thermal budgets prepare the ground for 400G/800G (QSFP-DD/OSFP).

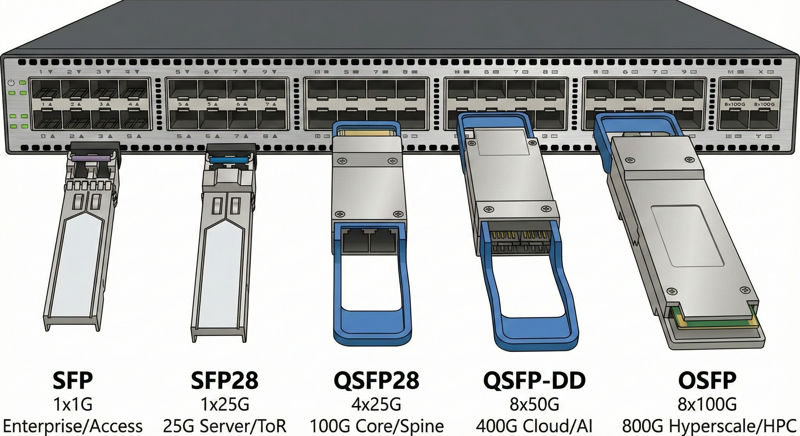

| Transceiver Type | Typical Speed | Lane Model | Best Fit (2026) | Primary Choice Factor |
|---|---|---|---|---|
| SFP | 1G (legacy) | 1 lane | Legacy expansion / industrial use | Installed base + cost |
| SFP+ | 10G | 1 lane | Legacy ToR / hybrid network | Device support + optics reuse |
| SFP28 | 25G | 1 lane | Access/ToR new deployment base | TCO + fan-out metrics |
| QSFP28 | 100G | 4 × 25G lanes | Spine/core network | Port density + maturity |
| QSFP-DD | 400G / 800G | 8 lanes | Cloud + AI fabrics | Density + migration plan |
| OSFP | 800G (+) | 8 lanes | Optimized lanes for AI/HPC | Thermal headroom for 800G (+) |

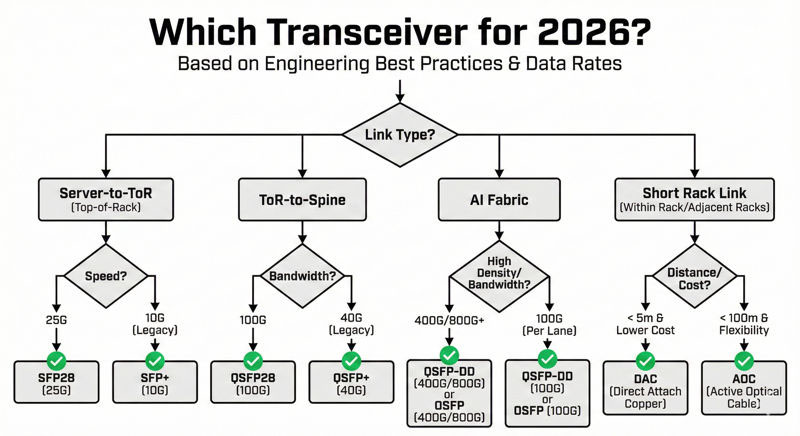

Answer the questions below to avoid information overload (“spec sheet selection”). They are designed to help engineers and procurement make defensible decisions under time pressure and budget.
| Your Case | Choose This | Reason | Confirm |
|---|---|---|---|
| Building new access/ToR for 2026 | SFP28 (25G) | Density & efficiency better than 10G; aligns with 100G/400G uplinks | Confirm SFP28 support on your switch (25G modes, FEC) |
| Changing spine/core links (generic DC) | QSFP28 (100G) | Mature optics, price, compatibility | Plan for 400G/800G cable plant (fiber counts, MPO polarity) |
| AI fabric in 12–24 months | QSFP-DD / OSFP | Avoid stranded assets; aligns with 400G/800G investment | Thermal, airflow direction, port spacing, stability testing |
| Short links within the rack (or adjacent) | DAC / AOC | Avoid optics cost and power for short reach | Distance limits; bend radius; serviceability |
| Layer / Scenario | Best Fit (2026) | Typical Link-Spec | Best Design Focus |
|---|---|---|---|
| Server to ToR (Access) | SFP28 | DAC/AOC or short reach optics | Port density + OPEX |
| ToR to Spine (Aggregation) | QSFP28 | 100G / break-out | Upgrade plan |
| Core/Spine high-bandwidth | QSFP-DD / OSFP | 400G/800G optics | Thermal + stability |
| AI Pod / GPU Cluster fabrics | QSFP-DD / OSFP | Ultra-dense high bandwidth link | Power + maintainability |
Your procurement process is not always driven only by price and availability. Cost can be hidden in risks that affect maintainability and upgrade strain. Use the factors below to align engineers and procurement:
| Cost/Risk Factor | What It Impacts | What to Better Ask Your Supplier | Engineering Attention |
|---|---|---|---|
| Compatibility | Bring-up, initial link, DDM alarms | What switch models/OS versions were tested? | Test in lab; lock firmware / coding policy |
| Thermal headroom | Errors, throttling, lifetime | Power under load; operating temperature range | Airflow balance, port spacing, avoid hot spots |
| Spares & lead-time | MTTR, roll-out schedule | Lead time, MOQ, batch variation | Define spares for critical links |
| Upgrade friction | Re-cabling, re-qualification, downtime | Upgrade roadmap support: 100G → 400G → 800G? | Plan polarity, fibers, and breakouts early |
Confirm transceiver type, speed, and breakout modes.
Verify FEC and link training behavior.
Confirm fiber type and connector type; validate MPO polarity (if used).
Test during burn-in in actual airflow conditions.
Ask for compatible switch references and OS versions.
Lock BOM history; labeling and batch traceability policy.
Define spares for critical links (not only standard ports).
Confirm lead time, MOQ, and warranty terms.
The best transceiver is based on your current bandwidth needs without blocking upgrades. Use SFP28 for new access (25G), QSFP28 for the 100G workhorse, and consider QSFP-DD/OSFP if AI/HPC 400G/800G is in the plan.
Steps to take: validate switch ports, sketch your cable plant and migration policy, and confirm compatibility for smooth introduction.
