How to choose, deploy, and scale fiber optic pigtails in a world of FTTR, 800G/1.6T optics, AI clusters, and ESG-driven infrastructure projects.
OS2 G.657.A2 bend-insensitive pigtails are becoming the new default for FTTR and compact routing.
VSFF connectors (SN/CS/MDC) and MPO/MTP ribbon pigtails unlock the port density AI clusters require.
ESG-focused projects increasingly demand LSZH jackets, recyclable packaging and automated test reporting.
A fiber optic pigtail is a short fiber cable with a factory-terminated connector on one end and bare fiber on the other end for fusion or mechanical splicing. It is the bridge between your permanent optical cable plant and the pluggable ports of ODFs, active equipment, and test interfaces.
In 2026, pigtails have evolved from simple single-fiber jumpers into engineered connection points optimized for:
High-density AI computing clusters and 800G/1.6T optics.
FTTR (Fiber to the Room) and compact indoor routes with tight bend radii.
Edge computing nodes, 5G/6G fronthaul and outdoor cabinets.
Projects driven by ESG goals, requiring LSZH jackets and recyclable materials.

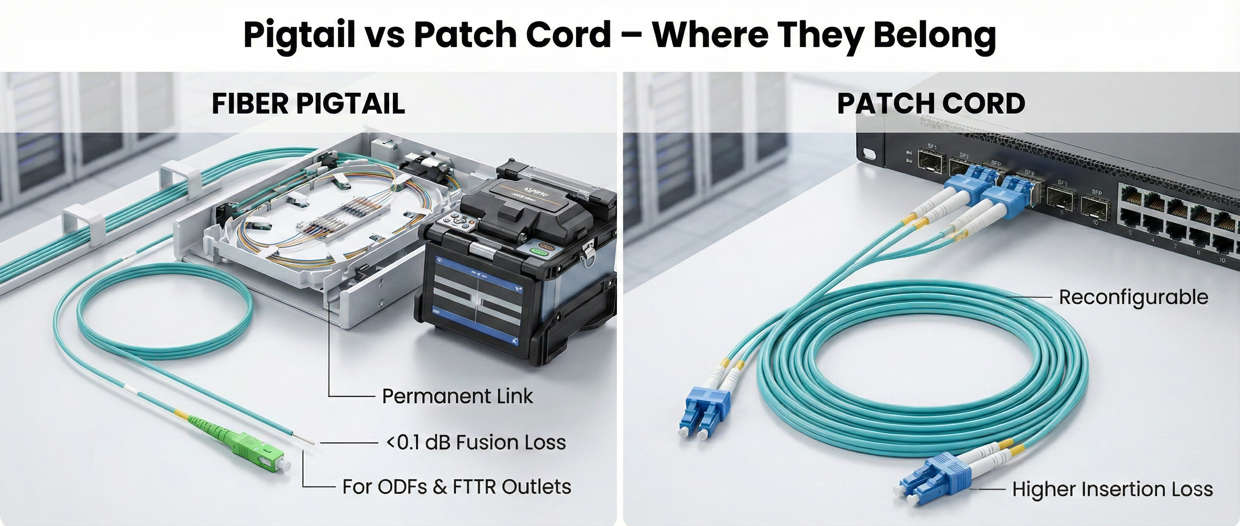

Pigtails and patch cords look similar, but they sit at different points in your cost and risk structure. The table below reflects the reality of 2026 deployments.
| Feature | Pigtail (Spliced) | Patch Cord (Plug-and-Play) |
|---|---|---|
| Connector ends | One end only | Two ends |
| Typical loss budget impact | < 0.1 dB per fusion splice | 0.2–0.5 dB per connector pair |
| Installation | Permanent splice in splice tray / termination box | Frequent moves, adds, changes between devices |
| Typical use | ODF, wall box, AI server backplane, FTTR outlets | Patch panels to switches, cross-connects, test links |
| Bend performance (2026) | Often OS2 G.657.A2 as standard | Depends on cable design and jacket |
| Best for | Low-loss and long-term stable terminations | Highly flexible and reconfigurable links |
Classic OS2 and OM3/OM4 fibers are still widely used, but 2026 deployments are increasingly built around bend-insensitive fibers and wideband multimode.
| Fiber Type | Typical Use in Pigtails | Why Choose It in 2026 |
|---|---|---|
| OS2 G.652.D | Backbone and long-haul singlemode | Legacy compatibility, existing plant extensions |
| OS2 G.657.A2 | FTTR, MDU risers, tight indoor routes, edge nodes | Designed for tight bend radius with minimal added loss; ideal as the default singlemode pigtail fiber in 2026. |
| OM3 / OM4 | Short-reach data center links up to 40G/100G | Good balance of cost and performance where distances are moderate. |
| OM5 WBMMF | High-density 400G–800G intra-rack and inter-rack | Optimized for SWDM, enabling more bandwidth over fewer fibers in AI and cloud fabrics. |

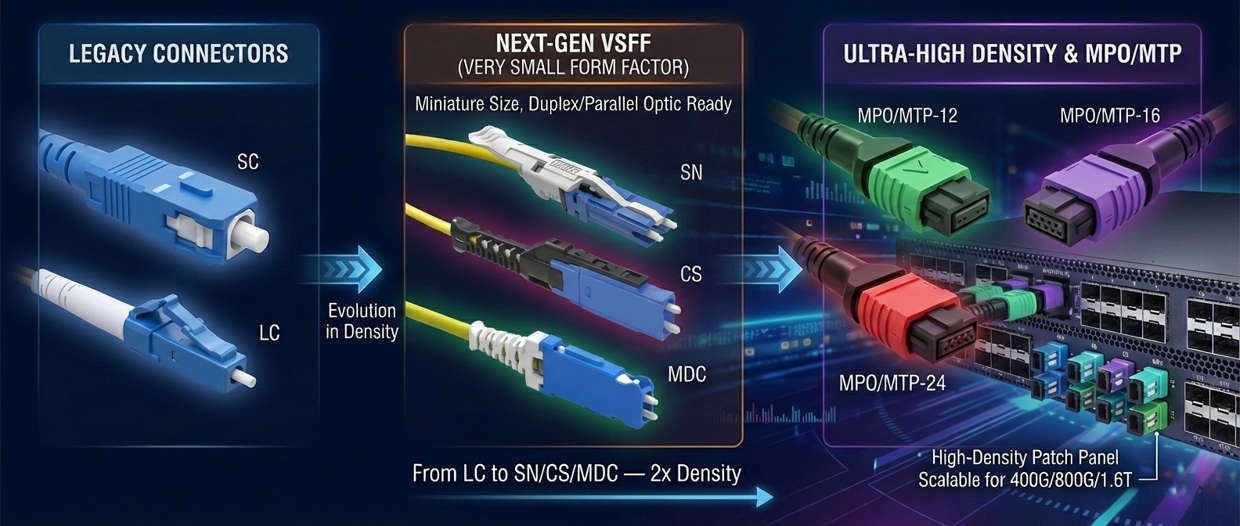

LC and SC remain mainstream for access and FTTH, but high-density racks and AI clusters are now driven by VSFF (Very Small Form Factor) connectors and multi-fiber MPO/MTP pigtails.
| Connector Family | Typical Use | 2026 Positioning |
|---|---|---|
| SC / LC (UPC / APC) | FTTH/FTTR, enterprise, telecom ODFs | Still dominant at access and aggregation layers; APC (green) is mandatory for most 10G/50G PON upgrades. |
| FC / ST | Legacy networks, test systems, high vibration sites | Primarily used in retrofit and special-purpose environments. |
| SN / CS / MDC (VSFF) | 400G/800G/1.6T optics, high-density switch fabrics | Next-gen data center standard: up to 2× LC density in the same RU; ideal for GPU clusters and leaf-spine architectures. |
| MPO/MTP (12/16/24F) | Parallel optics, AI pods, high-count backbones | Ribbon pigtails drastically reduce splice time when terminating hundreds of fibers into distribution frames. |
With 10G/50G PON and DWDM systems, APC polishing (green) is effectively mandatory to keep reflectance under control. UPC remains suitable for many point-to-point and data center applications where back reflection tolerance is higher.
Fiber optic pigtails are used anywhere raw fiber must be converted into a connectorized interface. In 2026, three application clusters dominate demand:
FTTH/FTTR & PON – Terminating ODN fibers into ONUs, wall plates, and MDU distribution boxes.
AI / Cloud Data Centers – High-density panels, GPU clusters, and leaf-spine fabrics with VSFF and MPO pigtails.
Edge & 5G/6G – Pole-mounted, rooftop, and roadside cabinets requiring compact, bend-tolerant terminations.
The quickest way to avoid costly mistakes is to convert high-level requirements into a few deterministic rules. Use the matrix below as a starting point when specifying pigtails.
| Scenario | Fiber Choice | Connector Type | Engineer’s Shortcut |
|---|---|---|---|
| FTTH / FTTR room outlets | OS2 G.657.A2 | SC APC or LC APC | If the cable runs inside walls or conduits, always pick G.657.A2 + APC. |
| 10G/50G PON upgrade | OS2 G.657.A2 | SC APC mandatory | Check that all pigtails are APC and specified for low reflectance (< -60 dB typical). |
| AI cluster or GPU rack | OM4 / OM5 or OS2 G.657.A2 | SN / CS / MDC or MPO/MTP ribbon | Replace LC with VSFF or MPO; bundle fibers into 12-color ribbons to increase splice productivity by ~40%. |
| Outdoor cabinet / edge node | OS2 G.657.A2 | LC/SC APC, optionally ruggedized | Specify armored or rugged pigtails with IP-rated hardware if exposed to shock or rodents. |
| Enterprise campus / standard rack | OS2 G.657.A2 or OM4 | LC UPC / APC | LC remains acceptable, but consider SN/CS when port density becomes a limiting factor. |
Beyond pure optical performance, 2026 tenders increasingly include criteria for installation speed, traceability and environmental impact. This also applies to pigtails.
Easy-strip mini-cables for faster jacket removal.
Pre-labeled fibers with port IDs or color codes matching the design drawings.
Ribbon pigtails for mass fusion splicing and reduced human error.
For 400G/800G/1.6T networks, insertion loss alone is not enough. Buyers should request:
Endface geometry reports from interferometer testing.
100% visual inspection and pass/fail criteria for scratches and chips.
Traceable IL/RL test records for every batch or even every pigtail.
LSZH jackets for indoor and public spaces, improving fire safety and toxicity profiles.
Recyclable packaging and reduced single-use plastics at the reel/box level.
Longer lifecycle and reduced field rework, lowering the overall carbon footprint of the network.

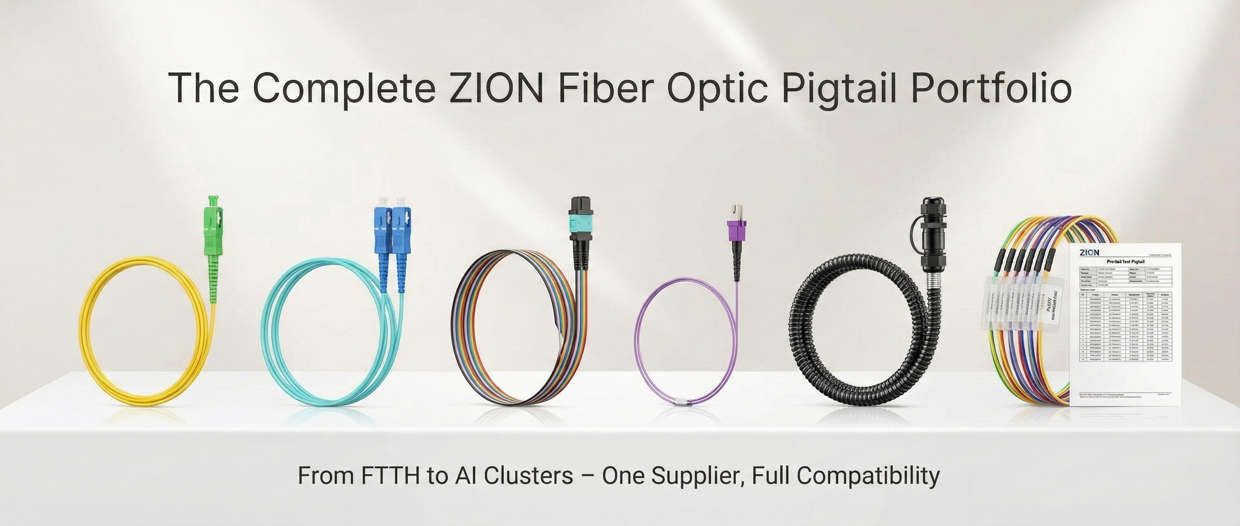

ZION COMMUNICATION provides a comprehensive range of pigtails designed for operators, ISPs, data centers and system integrators who need future-proof and AI-ready infrastructure.
Fiber types: OS2 G.657.A2, G.652.D, OM3/OM4/OM5.
Connectors: LC / SC / FC / ST (UPC/APC), SN / CS / MDC VSFF, MPO/MTP (12/16/24F).
Constructions: simplex, duplex, 12–144 core ribbon, armored and waterproof options.
Safety & ESG: LSZH jackets, RoHS/REACH-compliant materials, optimized packing.
Customization: length, labeling, polarity, connector mix and packaging tailored to project needs.
For standardized models, visit our category page: Fiber Optic Pigtails. For customized BOMs or large rollouts, contact our engineering team directly.
In 2026, fiber optic pigtails are no longer a low-attention commodity. They directly influence loss budget, port density, installation speed and ESG performance. The right combination of G.657.A2 fibers, VSFF connectors (SN/CS/MDC), OM5 multimode and MPO ribbon pigtails can significantly simplify the rollout of FTTR networks, AI clusters and edge infrastructure.
For engineering teams, the most effective strategy is to standardize on a small set of pigtail “profiles” per application scenario and capture them in internal design standards and purchase specs. This reduces variation, lowers risk and makes future upgrades more predictable.
ZION COMMUNICATION can support you with model selection, cross-references, BOQ review and samples, so that your next project is not just connected—but ready for the next generation of bandwidth demands.
Share your fiber type, connector family, core count and environment (FTTR, data center, edge, PON). Our engineering team will propose a shortlisted pigtail set with datasheets and sample options.
