Author: Will Publish Time: 11-08-2025 Origin: Site
In professional network installations, cable boots and strain reliefs serve as essential yet often overlooked components that significantly impact cable longevity and network performance. These protective elements play a vital role in maintaining signal integrity and preventing physical damage in data centers, office networks, and AV installations.
Cable boots are protective covers that fit over RJ45 Ethernet connectors, providing both physical protection and strain relief at the critical junction point where the cable meets the connector.
Material Composition: Typically made from flexible PVC or rubber compounds
Connector Protection: Shields the fragile RJ45 latch from breakage during insertion/removal
Strain Prevention: Reduces bending stress at the cable-connector junction
Professional Appearance: Creates clean, organized cable terminations
Color Coding: Available in various colors for easy cable identification
Type | Description | Typical Applications |
Slip-on boots | Installed before crimping; slides over the connector | Cat5e, Cat6 Ethernet cable terminations |
Molded boots | Integrated into the cable jacket during manufacturing | Factory-made patch cords |
Flexible bend boots | Designed with an extended flexible neck to allow tight bends | Network patch panels in high-density racks |
Strain relief mechanisms distribute mechanical stress away from critical connection points, preventing damage to internal conductors and maintaining signal integrity.
Physical Stress Absorption: Prevents cable pulling from damaging internal wires
Bend Radius Control: Maintains proper curvature to protect twisted pairs
Movement Accommodation: Allows safe cable flexing in dynamic environments
Shielding Protection: Preserves EMI/RFI shielding effectiveness
Method | How It Works | Example Use Case |
Integrated boot strain relief | The boot design absorbs pulling or bending stress | Cat6 patch cords in server rooms |
Mechanical clamp strain relief | Uses a clamp or cable tie to secure the cable to the device | Industrial Ethernet equipment |
Heat-shrink strain relief | Heat-shrink tubing reinforces the cable end | Outdoor or ruggedized cables |

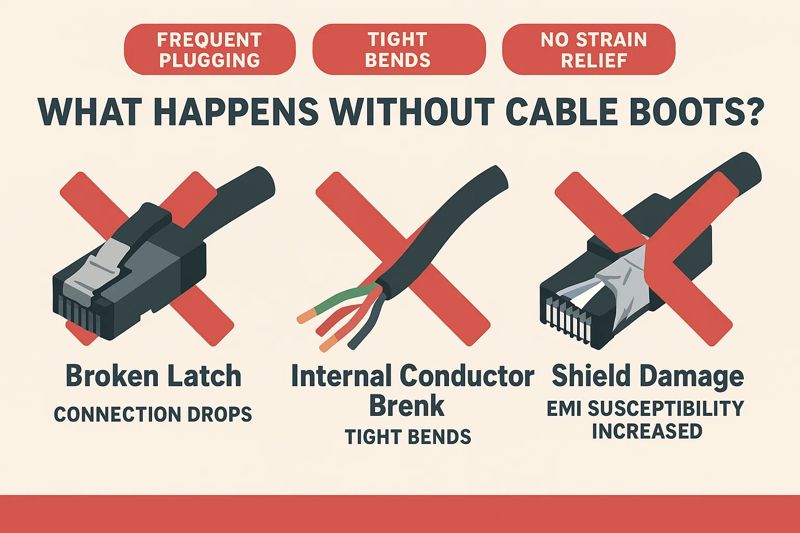

Without adequate protection, network cables face multiple performance risks:
Broken Latches: Compromised connector retention leading to intermittent connections
Conductor Fatigue: Broken strands causing increased resistance and signal loss
Shielding Damage: Compromised protection against electromagnetic interference
Insulation Cracks: Potential short circuits and crosstalk issues
Choosing the right protective components requires careful consideration of several factors:
Cable Category: Cat5e, Cat6, Cat6a, Cat7, Cat8 each have specific requirements
Environment: Office, industrial, or outdoor installations demand different solutions
Bend Radius: Higher category cables require more stringent bend control
Shielding Type: STP/FTP cables need compatible strain relief designs
Color Coding: Important for cable management and troubleshooting
Always install boots before terminating connectors
Maintain manufacturer-specified bend radii (typically 4x cable diameter)
Use heat shrink tubing for industrial-grade strain relief
Implement mechanical clamps in high-vibration environments
Verify boot compatibility with connector types
