BMS = centralized monitoring + control across HVAC, lighting, security/access, metering—built on reliable field networks.
Most failures are physical-layer problems: wrong cable type, EMI exposure, poor shielding/grounding, messy labeling.
Engineer shortcut: segment networks by purpose (Control / Bus / Ethernet / Fiber) and design for maintenance first.
A Building Management System (BMS) is a centralized platform that monitors, controls, and optimizes building subsystems—typically HVAC, lighting, security & access control, and energy metering. It connects field devices (sensors/actuators) to controllers and software so operators can run the building efficiently, safely, and predictably.
A typical smart building BMS integrates multiple subsystems (often from different brands). Below is a practical mapping of subsystem → signals → typical cabling for design and procurement alignment.
| Subsystem | Typical Devices | Signal / Network | Common Cable Types | Risk Hotspots |
|---|---|---|---|---|
| HVAC | AHU, VAV, FCU, VFD, sensors | Control I/O + RS-485 fieldbus + IP uplink | Control cable (multi-core/pair), RS-485 cable, Cat6/Cat6A, fiber backbone (optional) | EMI near drives, long daisy chains, poor shield termination |
| Lighting | Dimmers, sensors, zones, gateways | Bus control / IP | Bus cable (KNX/EIB), control cable, Cat6/Cat6A | Topology confusion, mixed standards without documentation |
| Security & Access | Readers, controllers, locks, door contacts | Low-voltage + RS-485 + IP (LAN) | Reader/lock power cable, RS-485, Cat6/Cat6A | Voltage drop to locks, noise on RS-485, poor labeling |
| CCTV / Video (site-dependent) | Cameras, encoders, headend | IP or RF/baseband | Cat6/Cat6A (IP), RG-6 coax (legacy/RF) | Grounding loops (coax), PoE heat and connector quality |
| Energy Metering | Meters, sub-metering, sensors | RS-485 (Modbus RTU) / IP (Modbus TCP) | RS-485 cable, Cat6/Cat6A, fiber backbone (campus) | Termination/impedance mismatch, long runs without planning |

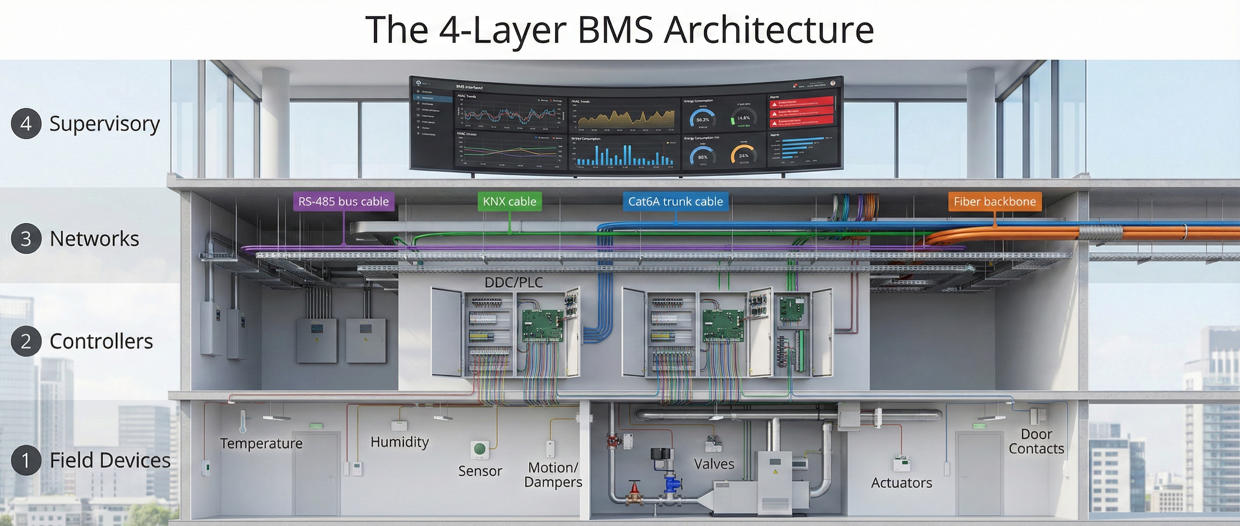

Most BMS deployments follow a layered model. Understanding layers helps you decide where to use control cable, bus cable, Ethernet, and fiber—and how to keep troubleshooting simple.
Smart buildings usually combine multiple networks. Choose based on distance, EMI environment, bandwidth, and maintenance model.
| Network | Best For | Typical Topology | Cabling Notes | Engineer Watch-outs |
|---|---|---|---|---|
| RS-485 | Controllers, meters, access control, industrial devices | Daisy-chain / trunk with drops | Prefer cable built for RS-485; typical characteristic impedance ~120Ω; shielding helps in noisy areas | Termination, grounding, long runs, VFD EMI, mixed cable types |
| KNX / EIB Bus | Distributed building control (lighting, HVAC zones, shading) | Bus topology per standard | Use dedicated KNX/EIB bus cable; maintain consistent installation practices | Non-standard spurs, undocumented modifications, mixed grounding practices |
| Ethernet (IP) | Gateways, servers, IP controllers, cameras, modern IoT | Star (switch-based) | Cat6/Cat6A; consider PoE heat and connector quality | Patch field hygiene, bend radius, poor termination, overcrowded trays |
| Fiber Backbone | Long distance, inter-floor/inter-building, high EMI areas | Star/ring depending on design | Indoor or indoor/outdoor armored fiber; use patch panels & proper protection at transitions | Connector cleanliness, route protection, documentation, splicing/termination planning |

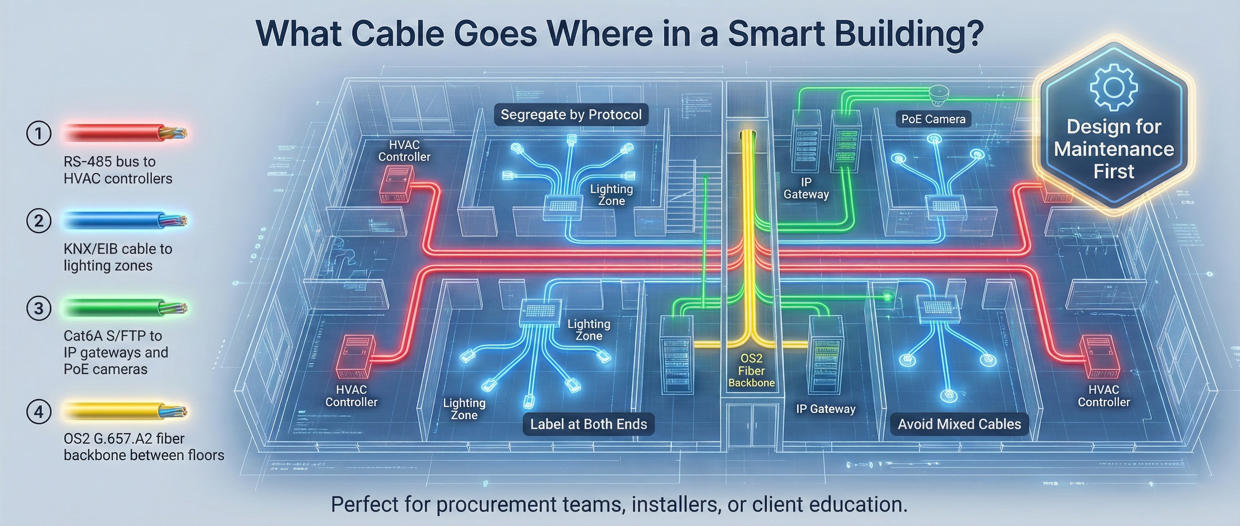

Procurement and engineering often fail at the handoff: “We bought cables” is not the same as “We designed a maintainable BMS physical layer.” Use the following map to align cable categories to jobsite reality.
| Cable Category | Typical Use | Shielding | Sheath / Safety | Why Engineers Choose It |
|---|---|---|---|---|
| Control Cables | HVAC I/O, instruments, panels, low-voltage control | Shielded or unshielded | PVC / LSZH (project dependent) | Stable control signals; clean routing reduces commissioning time |
| RS-485 Cables | Fieldbus links for controllers, metering, access control | Often shielded (foil + braid) | PVC / LSZH; outdoor options when required | Matches RS-485 needs (impedance ~120Ω); better EMI immunity |
| EIB / KNX Bus Cables | Decentralized building control bus | Shielded | LSZH common in commercial buildings | Protocol stability + standardized install practices |
| Cat6 / Cat6A Structured Cabling | LAN uplinks, IP devices, PoE endpoints | UTP or shielded variants | PVC / LSZH | Bandwidth + upgrade path; Cat6A commonly chosen for longevity |
| RG-6 Coax | CCTV/CATV/RF where applicable | Foil + braid | PVC / LSZH | Cost-effective for legacy RF video distribution |
| Indoor / Indoor-Outdoor Fiber | Backbone links, long runs, harsh EMI zones | N/A (optical) | PVC / LSZH; armored for transitions | Distance + EMI immunity; clean backbone improves system resilience |
Use these shortcuts to make fast, defensible decisions under budget and schedule pressure—without creating long-term maintenance debt.
| If your situation is… | Choose… | Because… | Avoid… |
|---|---|---|---|
| Many sensors/actuators to panels (low-voltage I/O) | Control cable sized per I/O, LSZH if required | Cleaner wiring, easier fault isolation | Random mixed cables with no labeling standard |
| Controllers/meters on fieldbus; EMI near VFDs | Shielded RS-485 (foil + braid preferred) | Better noise immunity; stable comms reduces “ghost alarms” | Unshielded runs next to power cables |
| Lighting/HVAC zones use KNX/EIB decentralized control | KNX/EIB bus cable (dedicated) | Protocol compliance + predictable performance | Substituting with “similar-looking” cable to save cost |
| IP controllers, gateways, PoE endpoints | Cat6A as default, Cat6 when spec allows | Longer service life + upgrade margin | Poor terminations, cheap connectors under PoE load |
| Inter-floor / inter-building links, harsh EMI zones | Fiber backbone (indoor or indoor/outdoor armored) | Distance + EMI immunity + scalability | Leaving future backbone to “later” (retrofit costs more) |
ZION COMMUNICATION supports BMS deployments by providing a practical cable stack aligned to real smart-building subsystems. Use this section as a procurement framework: define your subsystems first, then match cable categories.
List subsystems (HVAC, lighting, access, metering, CCTV) and define integration scope (monitor vs control).
Segment by network type: RS-485 / KNX-EIB / Ethernet / Fiber. Document topology and termination rules.
Define fire/smoke/low-toxicity requirements (e.g., LSZH) per building code and project spec.
Define labeling, test reports, and as-built deliverables before procurement starts.
Keep bus networks away from power/VFD routes; use shielding where EMI is unavoidable.
Maintain bend radius, tray fill limits, and consistent grounding practices.
Validate RS-485 termination and device addressing early (before software tuning).
Photograph panels and cable routes for maintenance packs; update drawings.
Keep spares by category (RS-485, KNX, Cat6A, connectors) and standardize across sites.
Trend alarms and identify “noisy segments” (often a physical-layer or grounding issue).
Plan backbone capacity (fiber) for future expansions to avoid expensive retrofits.
Is BMS the same as BAS?
In many projects, yes—BAS and BMS are used interchangeably. Practically, both refer to centralized monitoring/control and automation of building systems.
Does a BMS replace a fire alarm system?
Usually no. Fire alarm systems are typically separate for compliance. A BMS may interface for monitoring or coordinated actions depending on local regulations and project design.
Why do we still use RS-485 if we have Ethernet?
Many meters and controllers use RS-485 for cost and robustness. Ethernet is common at supervisory/backbone layers. Most buildings use both.

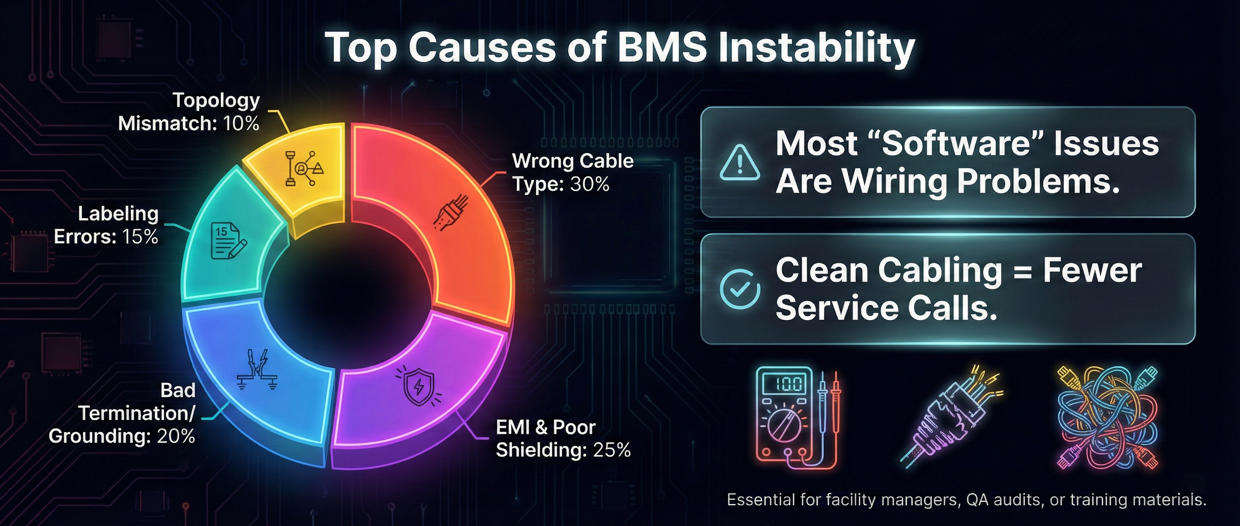

What is the #1 cause of BMS instability?
Physical-layer issues: wrong cable type, EMI exposure, poor shield termination/grounding, incorrect topology/termination, and weak documentation.
A Building Management System (BMS) delivers real value when the building’s physical layer is engineered for reliability: clear network segmentation, correct cable categories, EMI-aware routing, and documentation that makes troubleshooting fast. For most projects, the winning strategy is simple: standardize control + bus + Ethernet + fiber, then design for maintainability so expansion and service stay predictable over the building lifecycle.
If you’re specifying or upgrading a BMS project, prepare a short bill-of-requirements: subsystems, distances, EMI zones, sheath/fire requirements, and connector/component needs. ZION COMMUNICATION can help map those inputs to a practical cable stack for procurement and installation.
```
