A practical engineering reference for understanding MPO trunk cable structure, common fiber counts, deployment logic, selection parameters, and the customization options that affect backbone performance, scalability, and installation risk.
MPO trunk cables are factory-terminated multi-fiber backbone assemblies designed for fast, high-density deployment.
Fiber count, polarity, connector gender, jacket rating, and insertion loss targets are the main decision points.
The wrong trunk specification can create mapping errors, excess slack, airflow issues, or upgrade constraints later.
An MPO trunk cable is a factory-terminated multi-fiber optical cable assembly designed to create backbone connections between two points in a structured cabling system. It usually has MPO connectors on both ends and groups multiple fibers into one compact cable path.
In practical deployment, the trunk acts as the main high-density link between patch panels, cassettes, distribution frames, or active equipment. This reduces field termination work, shortens installation time, and improves link consistency across larger projects.
| Term | Meaning | Engineering Role |
|---|---|---|
| MPO trunk cable | Pre-terminated multi-fiber backbone cable with MPO ends | Main high-density link between distribution points |
| MPO backbone cable | Alternative name used in structured cabling context | Emphasizes building or room-to-room backbone use |
| MPO trunk fiber | General commercial wording for the same assembly type | Often used in procurement or web search |
A standard MPO trunk cable combines several design elements that directly affect compatibility, routing, and long-term maintenance. Understanding the structure helps prevent the most common ordering and deployment mistakes.
Each end is terminated with an MPO connector that aligns multiple fibers inside a single ferrule. Connector gender, pin configuration, and insertion loss grade must match the intended channel design.
The cable body contains multiple fibers in a ribbon-style or loose-structure design. Construction varies by indoor, indoor/outdoor, or higher-protection project requirements.
Type A, Type B, and Type C polarity options are used to preserve correct Tx/Rx mapping. Polarity selection should never be separated from cassette or transceiver planning.
Jacket material, diameter, pulling eyes, labeling, and protection sleeves influence installation efficiency and compliance in real projects.
| Component | What to Check | Why It Matters |
|---|---|---|
| Connector type | MPO male or female, elite or standard loss | Affects mating compatibility and link budget |
| Fiber type | OM3 / OM4 / OM5 / OS2 | Determines distance, optics type, and upgrade path |
| Polarity | Type A / B / C | Prevents channel mapping errors |
| Jacket rating | LSZH / OFNR / OFNP | Affects compliance and indoor routing suitability |
| Cable diameter | Standard or reduced diameter design | Influences airflow, bend handling, and tray density |
Fiber count and length are two of the most visible selection parameters, but they should be tied to port breakout strategy, spare capacity planning, and pathway constraints rather than ordered by habit alone.
| Common Fiber Count | Typical Use | Selection Note |
|---|---|---|
| 8F | Parallel optics links and compact high-speed applications | Useful where 8-fiber mapping aligns with transceiver architecture |
| 12F | General-purpose structured cabling and legacy-friendly deployments | Still one of the most common choices in backbone builds |
| 24F | Higher-density rows, aggregation, and cabinet interconnects | Good balance between density and manageability |
| 48F / 72F / 96F / 144F | Large backbone pathways and future-ready infrastructure | Requires better tray planning and labeling discipline |
| Custom lengths | Project-specific routing between racks, rooms, or zones | More efficient than leaving excess slack in high-density areas |

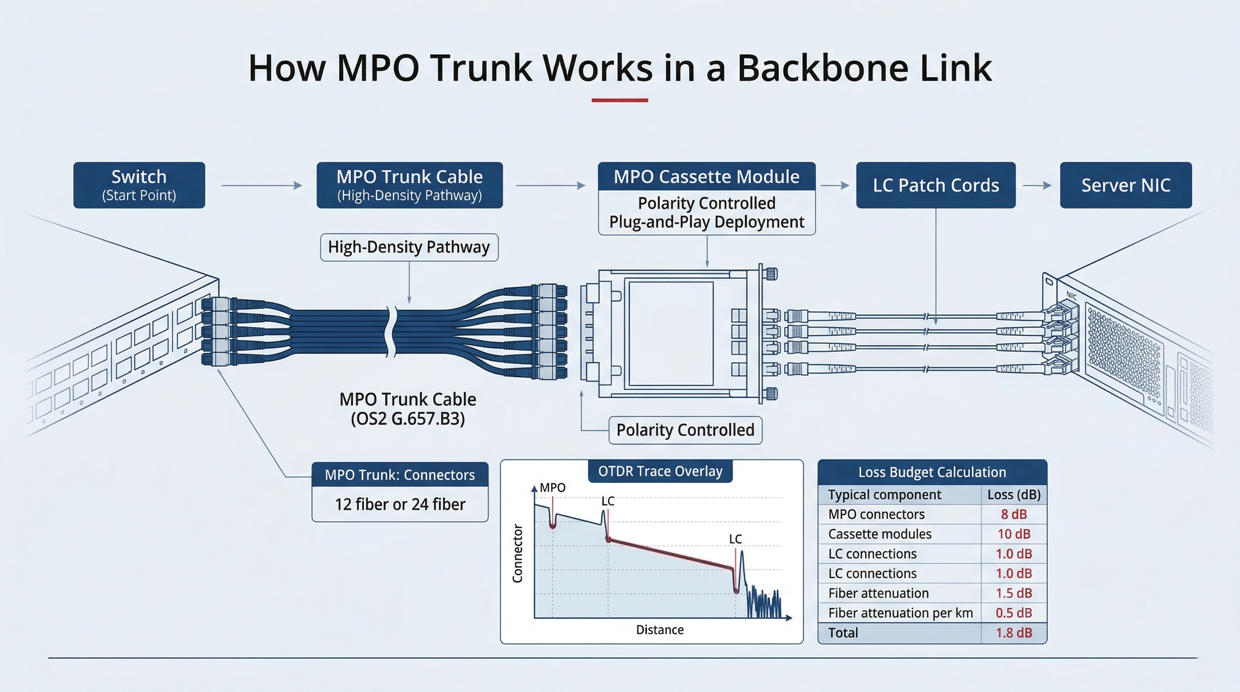

In a typical architecture, the MPO trunk cable links two fiber distribution points. At one or both ends, cassettes or adapter panels convert the MPO interface into LC or other serviceable interfaces for switches, servers, or patching fields.
The trunk simplifies the backbone layer by concentrating many fibers into one manageable assembly. This is especially useful in data center rows, enterprise equipment rooms, and structured cabling pathways where speed and repeatability are important.
| Backbone Element | Role in the Channel | Key Dependency |
|---|---|---|
| MPO trunk cable | Carries multiple fibers between two distribution points | Correct length, fiber type, and polarity |
| Cassette or module | Breaks MPO into LC or other interfaces | Port mapping consistency |
| Patch panel / enclosure | Provides mounting, protection, and access | Density, cable entry, and service clearance |
| Transceiver side | Defines optics architecture and migration needs | Fiber count alignment and loss budget |
Most MPO trunk cable problems come from specification mismatch rather than product failure. The cable may be physically correct but still unsuitable for the system it is being installed into.
| Common Mistake | Immediate Risk | Long-Term Impact |
|---|---|---|
| Wrong polarity selection | Link mapping failure or rework | Troubleshooting delays and inconsistent channel documentation |
| Incorrect connector gender | Mating incompatibility on site | Unexpected replacement cost and project delay |
| Excess cable length | Slack accumulation in racks or trays | Poor airflow, difficult service access, untidy pathways |
| Low clarity on future migration | Cable selected only for current ports | Higher upgrade cost when moving to denser optics later |
| Ignoring insertion loss targets | Narrow channel margin | Reduced flexibility in longer or more complex links |
Use the table below as a fast selection reference when matching MPO trunk cable parameters to real project constraints. It is not a substitute for channel validation, but it helps narrow the correct options quickly.
| Decision Point | Choose This | When It Fits | Watch Out For |
|---|---|---|---|
| Fiber type | OM3 / OM4 / OM5 | Shorter-reach multimode data center applications | Do not use as a default if distance or future architecture points to single mode |
| Fiber type | OS2 | Longer distance, campus, or upgrade-oriented backbone design | Check optics budget and connector cleanliness discipline |
| Fiber count | 8F / 12F | Smaller links or lower initial density | Can become limiting if growth is expected soon |
| Fiber count | 24F and above | Aggregation rows, higher rack density, future spare planning | Needs better labeling and pathway control |
| Length strategy | Standard length | Simple layouts with predictable routes | May create excess slack in dense racks |
| Length strategy | Custom length | Clean cabinet rows, controlled pathways, large projects | Needs accurate site measurement |
| Insertion loss | Low-loss / elite option | Tighter link budgets or multi-connection channels | Specify clearly to avoid receiving standard grade by default |
| Jacket rating | LSZH / OFNR / OFNP | Must follow installation environment and project code requirements | Compliance cannot be fixed after delivery without replacement |
MPO trunk cables are mainly used where many fibers need to be deployed quickly, consistently, and in limited space. The value becomes more visible as density and project size increase.
| Application | Why MPO Trunk Fits | Main Selection Focus |
|---|---|---|
| Data center rows | High density, fast deployment, better cable control | Fiber count, airflow, length accuracy |
| Equipment room backbone | Simplifies room-to-room interconnects | Polarity, jacket rating, pathway planning |
| Campus or building distribution | Supports modular growth and structured migration | Fiber type, future spare capacity |
| High-speed optical networks | Aligns with parallel optics and denser architectures | Mapping logic, loss targets, upgrade path |
Project-based orders often require more than a standard part number. Customization is common because real installation paths, cabinet layouts, compliance standards, and upgrade plans vary.
| Custom Option | Why Buyers Request It | Deployment Benefit |
|---|---|---|
| Custom length | To match exact route distance | Cleaner cable management and less slack |
| Low-loss connectors | To keep channel margin higher | More design flexibility in tighter budgets |
| Pulling eye | To protect connectors during installation | Safer routing through pathways |
| Labeling / serial numbering | To match project documentation | Faster installation and easier maintenance |
| Hybrid or breakout end design | To match special equipment-side requirements | Reduces extra transition hardware in some layouts |
Start with current port architecture, expected growth, and cassette or transceiver mapping. Lower counts may reduce initial cost, but higher counts can lower future expansion complexity if pathway capacity is limited.
Not automatically. Compatibility depends on connector gender, polarity method, fiber count, and the channel design used by the cassette or adapter system. These items should be checked together before ordering.
In simple layouts, standard lengths may be acceptable. In dense racks, cabinet rows, or larger backbone routes, custom length often reduces slack, improves airflow, and makes ongoing maintenance easier.
Low-loss options are useful when the total channel has multiple connection points, longer distances, or tighter link budgets. They provide more margin and reduce risk in less forgiving designs.
Prepare fiber type, fiber count, connector gender, polarity, length, jacket requirement, insertion loss target, and any custom items such as pulling eyes, labels, or breakout configuration. This improves quotation accuracy and avoids revision cycles.
An MPO trunk cable is a pre-terminated multi-fiber backbone assembly used to simplify high-density fiber deployment between cabinets, rooms, or distribution points. Its value comes from faster installation, better consistency, and more scalable cable architecture.
For engineering and procurement teams, the main decision points are not only fiber count and length, but also polarity, connector gender, insertion loss target, jacket compliance, and future upgrade logic. The safest selection approach is to define the trunk as part of the full channel design, not as a standalone accessory.
Send your fiber type, fiber count, connector gender, polarity, required length, jacket rating, and insertion loss target. A complete parameter list helps reduce quotation errors and speeds up technical confirmation.
