Author: Will Publish Time: 16-01-2026 Origin: Site
A practical Ethernet cost and specification guide for engineers, consultants, and procurement teams planning Cat6A, fiber backbone, and Wi-Fi 7-ready networks.
Typical installed cost is $100–$250 per Ethernet drop, with labor as the main driver.
Cat6A + fiber backbone is the most cost-effective 2026 architecture for Wi-Fi 7 and PoE++.
Clear specs for cable category + fire rating + testing are the easiest way to control cost and quality.
In 2026, Ethernet installations are no longer just “some network cables in the ceiling”. They are the physical backbone that powers:
Wi-Fi 7 access points that require multi-gigabit wired backhaul.
PoE/PoE++ endpoints such as cameras, access control, IP speakers, and sensors.
Hybrid work environments where uptime and security are core business risks.
As a result, cost discussions must combine three angles: performance, compliance, and lifecycle cost. A cheaper cable or untested installation may pass day-one ping tests, but fail under real PoE loads, interference, or fire-safety inspection.
The biggest cost is rework, not the first installation. Saving 10–15% on cable or testing can easily create 50–100% extra cost later when you have to reopen ceilings and disrupt operations.
Engineering teams evaluating Cat6A versus fiber for new buildings.
Procurement professionals preparing tender documents and comparing bids.
Owners and facility managers trying to understand cost per drop and risk.
For commercial projects, a professionally installed Ethernet outlet (one “drop”) usually costs between $100 and $250. This includes cable, installation, termination, labeling, and certification testing.
| Project Size | Typical Drop Count | Approx. Budget Range |
|---|---|---|
| Small office / shop | 5–15 drops | $2,500–$7,500 |
| Medium business floor | 15–50 drops | $7,500–$25,000 |
| Large office / campus building | 50–200+ drops | $25,000–$100,000+ |

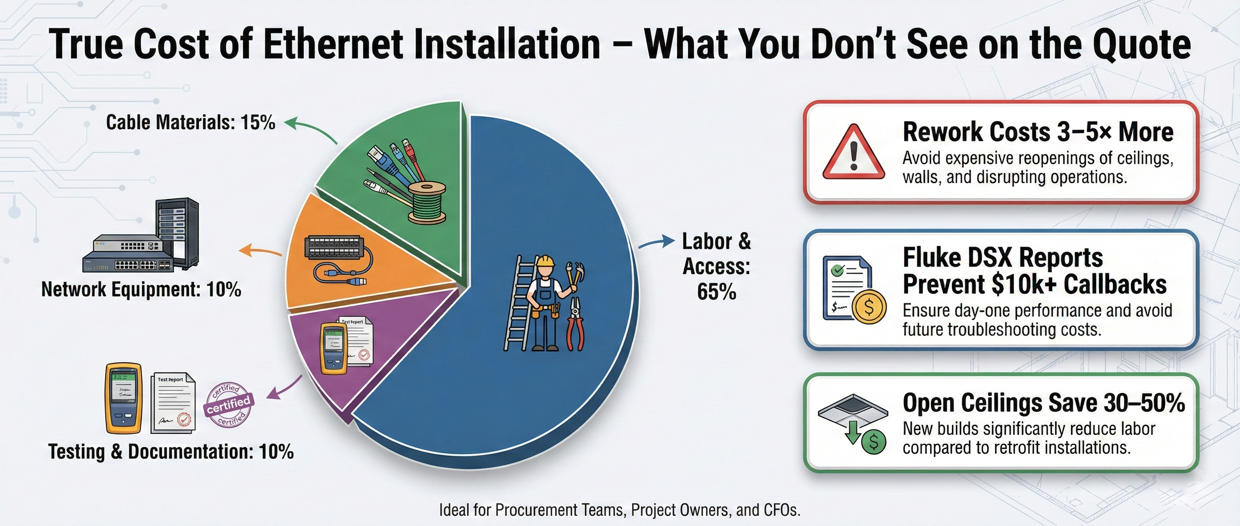

| Component | Typical Range / Share | Key Drivers |
|---|---|---|
| Cable materials | $0.25–$0.60/ft (Cat6A), $1–$4/ft (fiber) | Category, shielding, fire rating, indoor/outdoor |
| Labor | 60–70% of total | Open ceiling vs concrete, ceiling height, routing |
| Network equipment | Switches, patch panels, racks | PoE++ capability, port density, redundancy |
| Design & testing | As-built drawings, Fluke test reports | Documentation level, certification requirements |
Per-foot cable price is visible on quotes. Labor, access difficulty, fire rating, and test requirements are the hidden multipliers that separate “cheap” from “actually cost-effective”.
In 2026, Cat6A has become the default horizontal cabling choice for commercial projects. Cat7/7A is reserved for specific EMI-heavy use cases, while fiber is used for backbone and long-distance links. Wi-Fi 7 sits on top of this wired foundation rather than replacing it.
| Technology | Max Speed | Distance | PoE++ (90 W) | Typical Material Cost | Recommended Role (2026) |
|---|---|---|---|---|---|
| Cat6A UTP/STP | 10 Gbps | Up to 100 m | Yes | $0.25–$0.60/ft | Mainstream LAN / Wi-Fi 7 AP backhaul |
| Cat7 / 7A (Shielded) | 10–40 Gbps* | Up to 100 m | Yes, but bulkier | $0.60–$1.50/ft | Niche EMI/industrial environments |
| Optical Fiber (OS2/OM3/OM4) | 10G–100G+ | Up to 300 m–20 km | No (local power needed) | $1.00–$4.00/ft | Backbone, riser, cross-building links |
| Wi-Fi 7 (802.11be) | Up to ~40 Gbps (shared) | Room/area coverage | N/A | AP hardware only (requires wired uplink) | Client access, mobile devices |
*Cat7/7A is not part of mainstream TIA standards and often uses non-RJ45 connectors, which can create compatibility and cost issues.
ZION Cat6A UTP/FTP for horizontal runs and PoE++ endpoints.
ZION outdoor Cat6A for rooftop APs and external cameras.
ZION OS2/OM3/OM4 fiber for campus backbone and risers.
For detailed part numbers and constructions, see the ZION LAN & Ethernet Cable portfolio.

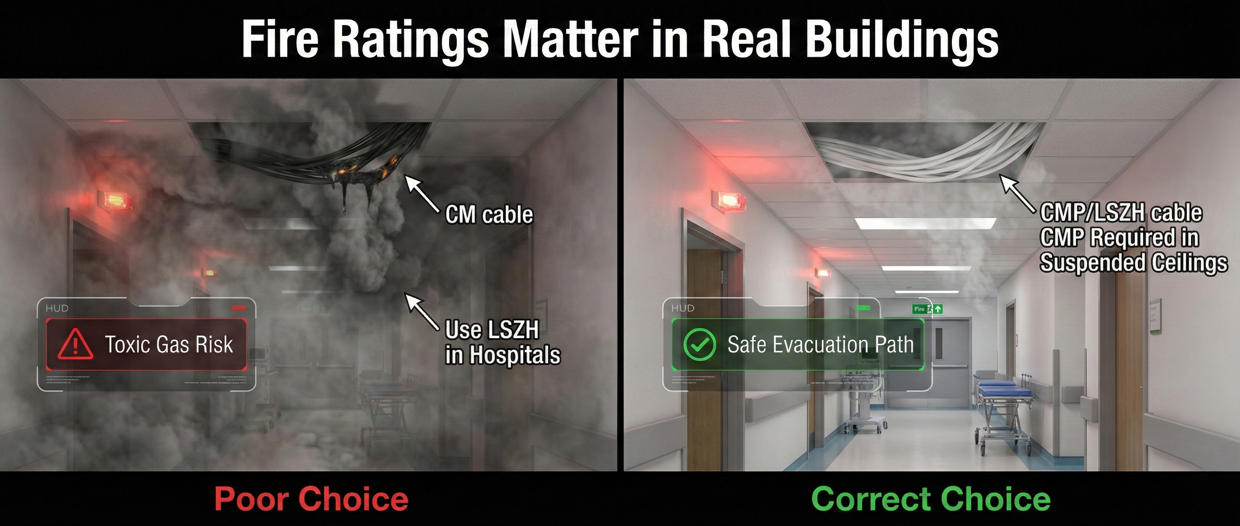

Fire rating is a core cost and compliance driver, especially in multi-storey buildings, public spaces, and international projects. The same Cat6A cable with different jackets (CM / CMR / CMP / LSZH) can have very different price levels and approval requirements.
| Rating | Typical Location | Fire/Smoke Behaviour | Typical Use in 2026 |
|---|---|---|---|
| CM | General rooms, offices | Basic flame test | Standard office floor cabling |
| CMR | Risers / vertical shafts | Limits vertical flame spread | Between floors, shaft cabling |
| CMP | Plenum / HVAC air spaces | Very low smoke, strictest test | Suspended ceilings used as air return |
| LSZH / FR | Hospitals, schools, tunnels, public areas | Low smoke, halogen-free | International projects with low-toxicity requirements |
If you do not specify fire ratings in the RFQ, bidders will mix in the cheapest allowed cables. Write CM/CMR/CMP/LSZH into the scope per area to avoid surprises and change orders later.

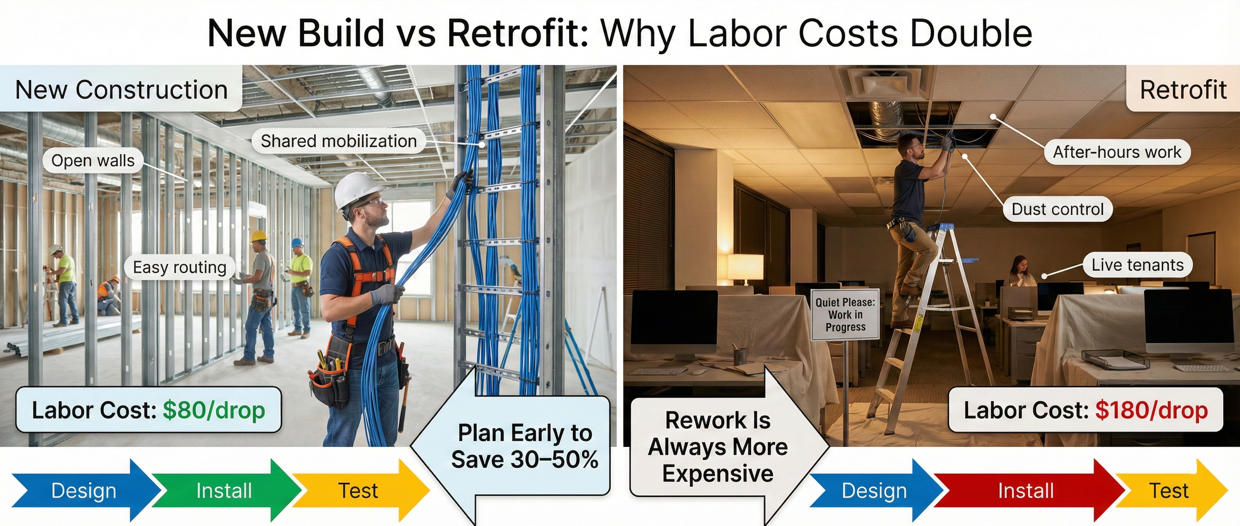

Two nearly identical material lists can still result in very different quotes because of labor conditions and access complexity.
New construction: walls and ceilings open, easy ladder work, shared mobilization with other trades.
Retrofit: working after hours, ceiling tiles, dust control, coordination around live tenants.
New build projects usually save 30–50% in labor cost compared to the same design done after the building is finished.
For PoE++ (up to 90 W) loads, conductor size, bundle size, and installation method (conduit vs open tray) matter. Using cheap CCA cable or tight bundles in hot spaces can cause excessive temperature rise and voltage drop.
When comparing bids, ask how many labor hours are included and how many technicians will be onsite. Unrealistically low labor assumptions are a red flag for shortcuts and unfinished documentation.
This section condenses the main design decisions into a quick selection matrix for cabling category, media type, and fire rating.
| Scenario | Recommended Medium | Fire Rating | Notes |
|---|---|---|---|
| Office workstations & VoIP | Cat6A UTP | CM / CMR | Best cost/performance and PoE++ capable |
| Wi-Fi 7 access points | Cat6A UTP or STP | CM / CMP (ceiling plenum) | Design for multi-gig uplink + PoE++ |
| Floor-to-floor backbone | OS2 Single-mode fiber | CMR / LSZH | Scalable to 40/100G; immune to EMI |
| Outdoor cameras / APs | Outdoor Cat6A, gel-filled | UV / moisture rated | Use direct burial or conduit as required |
| Hospitals, schools, transport hubs | Cat6A LSZH / FR + fiber | LSZH / FR | Low smoke, low toxicity for public safety |
For project owners and procurement teams, the easiest way to control Ethernet installation cost and quality is to standardize the RFQ/tender template. The checklist below can be copied directly into your specification.
Specify cable category (Cat6A) and conductor type (solid copper, no CCA).
Define fire rating per area: CM / CMR / CMP / LSZH.
State required PoE level: 802.3af / 802.3at / 802.3bt (PoE++).
All permanent links to be Fluke-tested to Cat6A performance with test reports handed over in PDF.
Patch panels and outlets labeled with a consistent room-rack-port scheme.
Fiber links tested with OTDR and insertion loss measurements.
| Checklist Item | Minimum Requirement | Why It Matters |
|---|---|---|
| Cable specification | Cat6A solid copper, CM/CMR/CMP/LSZH as defined | Prevents cheap substitutions and overheating under PoE |
| Testing & documentation | Fluke DSX reports + OTDR (for fiber) + as-built drawings | Enables fast troubleshooting and warranty support |
| Shielding & grounding | Continuous shield path + rack / panel grounding, or use UTP | Avoids EMI and stray current issues |
| Warranty | Clearly stated labor + system warranty period | Aligns expectations between owner and installer |
If a bidder cannot provide sample Fluke test reports, product datasheets, or a clear material list with brands and models, treat the proposal as high risk—no matter how attractive the price looks.
Ethernet installation cost in 2026 is shaped by much more than cable price per meter. The real impact comes from:
Selecting the right medium (Cat6A, fiber) for each network layer.
Matching fire ratings and jackets to building and safety codes.
Specifying testing, documentation, and PoE performance in the tender.
Choosing installers who are willing to certify and stand behind their work.
With the right design and components, a structured cabling system should deliver 7–10+ years of reliable service, even as Wi-Fi standards and active equipment evolve. Investing slightly more upfront in Cat6A, LSZH options where needed, and proper testing is far cheaper than ripping out and replacing underperforming cabling later.
The optimal 2026 design for most commercial buildings is: Cat6A UTP horizontal, fiber backbone, and carefully specified fire ratings—implemented by a certified installer and backed by full test documentation.
Share your building type, drop count, PoE requirements, and preferred fire ratings. ZION COMMUNICATION can recommend suitable Cat6A / fiber constructions, provide datasheets, and support your tender documents.
