FPV G657A Fiber: The Definitive Guide to Unjammable Drone Communication

■ Introduction: The Limits of Wireless FPV

In the world of professional drone operations – Long-Range FPV, industrial inspections, and tactical UAS – wireless RF communication has its limits. Signal jamming, multipath signal fading, and constrained bandwidth make wireless communication in EMI-heavy or hostile environments highly unreliable.

The solution lies in physics. G.657A bend-insensitive fiber is becoming the global standard for FPV fiber tether networks. As a premier optical fiber manufacturer, ZION Communication specializes in ultra-thin (250–300 μm) G.657A2 fiber and custom OEM micro-spool solutions designed for scenarios where wireless communication fails.

■ Technical Deep Dive: Why G.657A is the Future of FPV

To the uninitiated, "optical fiber" sounds fragile. To FPV engineers, however, G.657A2 is synonymous with "Rugged Reliability" and "Aerodynamic Superiority."

Bend-Insensitive Design (The “Anti-kink” Feature)

Telecom fiber (G.652.D) has minimal loss but is very easily damaged when coiled up tightly—a dealbreaker for aviation-grade FPV rapid-deployment networks.

Fortunately, G.657A (targeting G. 657A2) has a unique design that makes it possible:

• Low Macro-Bending Loss: It maintains the same signal quality regardless of its folding or bending radius (even at 7.5mm radius).

• High-Speed Payout: The fiber withstands the mechanical stress of rapid unspooling (up to 150 km/h) without "micro-bending" signal loss.

• Benefit: Perfectly reproduced HD video and command-and-control data anytime, anywhere.

Micro-Diameter Design for Aerodynamic Performance

Weight and drag are your enemies. Optimize for low drag, lightweight, and temperature durability:

• Diameter: 0.25mm (250μm) – thinner than a fishing line.

• Weight: Ultra-lightweight (<150g per km for bare fiber packs).

• Drag-Coefficient: Much lower than wire or steel rope bundles.

• Coating: ZION UV dual-layer acrylate coating for scratch resistance (adds negligible weight).

Complete EMI Resistance (The Tactical Edge)

This is the main selling point for military and industrial use cases.

Wireless FPV: Typically entirely vulnerable to signal jamming, spoofing, and, worst of all, high-powered 5G.

Fiber Tether (G.657A): Tether the aircraft with fiber and make it immune to electronic emissions.

• ✔ Unjammable: No RF transmissions to intercept then jam.

• ✔ NLOS: Dock/Inspect and fly into its structural hidden zones and beyond visual line of sight (BVLOS).

• ✔ Secure: Impossible to eavesdrop on the data transfer without physically following the fiber tether.

■ Procurement Guide: Must-Check Specs for Engineers

Not all “thin fibers” are built the same way. Check these three specs when procuring FPV Fiber Tether Systems for guaranteed mission success.

Fiber Tensile and Reinforcement Strength

While the core fiber carries data packets, the outer fiber coating bears the entire motion load.

• Standard: 250μm bare G.657A Fiber is fine for lightweight FPV reconnaissance commercial use.

• Reinforced (suggested): High-speed (>100km/h) aerial mission-critical or UAV maritime applications, choose a fiber bundled/reinforced with Aramid yarn reinforcement (like Kevlar) or a soft-coat that is – as Extremely durable against daily physical abuse for repair or under heavy tension.

Fiber Spool Payout Design

The value of the fiber depends on the spool. High-end FPV spools should have:

• <0.5 N Payout Tension or Deployment Resistance: The drone shouldn’t “feel” the power-consuming wire pushing it back.

• Tangle-Free Winding: Proprietary winding geometry to prevent "bird-nesting" or jams during high-speed acceleration.

Fiber Coating Tensile/Durability

Make sure your vendor uses a UV-curable dual-layer acrylate coating for G.657A Fiber. Prevents moisture from penetrating and micro-bits of dust over time, leading to micro-cracks on the core fiber.

■ Q&A: Answering Must-Ask Questions for Engineers

Short no-nonsense answers to urgent procurement or design-and-install FAQs.

Q1: Is the 0.25mm G.657A Fiber too delicate for combat or rugged field conditions?

A: appearance, optical fiber has a higher tensile strength-to-weight ratio than steel. When housed in a zero-tension spool, the fiber is not under load during flight. It simply lays out behind the drone. Unless physically snagged by a sharp obstacle, it is incredibly resilient during operation.

Q2: Can I recollect the Fiber Spool and reuse it?

A: In the field, no. The rapid deployment spool is designed for single-use due to the complexity of rewinding without specialized machinery. This requires heavy machinery, not viable in combat. Field spools, and there’s a good reason why they’re Expendable.

Q3: Does the fiber system consume more power?

A: No, it often saves power. By removing the heavy, power-hungry analog or digital VTX (Video Transmitter) and antennas, and replacing them with a passive fiber spool, you often gain an efficiency advantage despite the weight of the cable itself.

Q4: Well, what happens when my Fiber gets cut mid-air during the mission?

A: You will lose the video link immediately. However, modern Flight Controllers (running ArduPilot or Betaflight) are programmed to handle this. The drone will trigger a "Failsafe" mode, executing an automatic GPS Return-to-Home (RTH) or an emergency landing, ensuring the hardware is recovered.

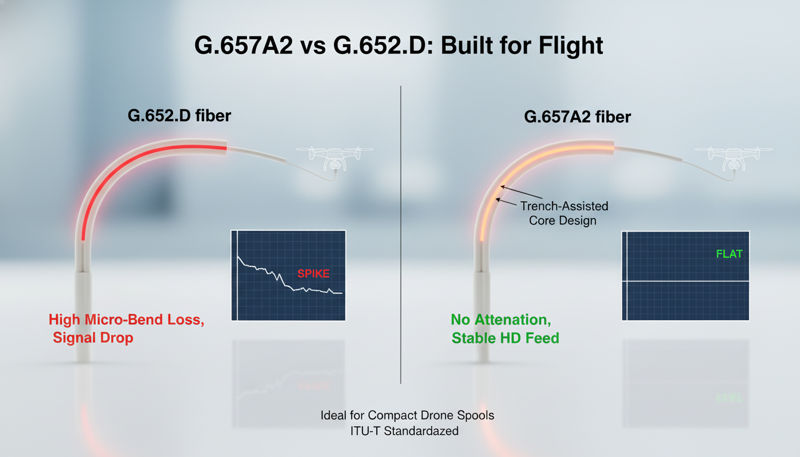

■ Comparison: G.657A2 vs. Standard G.652D Fiber Design

Why does standard telecom fiber fail in FPV use cases?

■ Conclusion: Fiber is the Future of Airborne Missions

FPV G657A Fiber is not just a random cable. It opens up a world of aerial missions previously impossible to achieve. The fiber supports powerful features such as bend-insensitive design, micro-diameter for aerodynamics, and a secure connection immune to strategic eavesdropping.

■ Why Partner with ZION Communication?

On top of 20-years experience and success stories, ZION brings an industry-leading product offering:

• Tailored solutions: Choose from lightweight low-cost spools from 3km to 30km.

• OEM/ODM Capable: Unique spools fit a variety of drone chassis in short notice.

• Global Logistics: Providing the defense and industrial markets in 80 countries.

Contact us for more information
