A practical decision guide for engineers, buyers, and project teams choosing between standard bend-insensitive single-mode fiber options for patching, drop cables, and high-density routing.
Choose G.657.A1 for normal controlled routing where a 10 mm design radius is realistic.
Choose G.657.A2 for tighter cabinets, denser patching, smaller loops, and more bend-sensitive routing.
Do not upgrade blindly—A2 is valuable when bend margin reduces real deployment and maintenance risk.
If your cable route is reasonably controlled, enclosure space is normal, and the installation does not involve aggressive bend management, G.657.A1 is usually the better default. If the route includes smaller boxes, tighter patching, denser trays, or more bend-sensitive handling, G.657.A2 is usually the safer choice. Both are Category A bend-insensitive single-mode fibers and both keep G.652.D compatibility. The real difference is bend margin: A1 is built around a 10 mm design radius, while A2 is intended for 7.5 mm managed bends.
This page is not written as a product pitch. It is meant to help engineering, procurement, and project teams decide whether the tighter bend performance of A2 is necessary, or whether A1 already delivers the best cost-performance balance for the route.
| Item | G.657.A1 | G.657.A2 | Engineering meaning |
|---|---|---|---|
| Minimum design radius | 10 mm | 7.5 mm | A2 gives more margin in tighter routing |
| G.652.D compatibility | Yes | Yes | Both fit standard single-mode network planning |
| Typical role | Controlled access / general routing | Tighter managed bends / denser routing | A2 is more forgiving in compact layouts |
| Patch cord suitability | Good | Better | A2 is usually preferred in dense patching |
| High-density routing | Acceptable | Better fit | Choose A2 when smaller loops and tighter routing are expected |

G.657 is the bend-insensitive single-mode fiber family used when ordinary routing conditions may introduce macrobending risk. Inside Category A, G.657.A1 and G.657.A2 preserve the transmission and interconnection behavior expected from G.652.D networks, while improving bend performance for access, drop, cabinet, and high-density installation scenarios.
For engineers and buyers, this means the choice is usually not “which one is single-mode” or “which one works at standard wavelengths.” Both do. The practical decision is how much bend margin the project needs and how much installation risk you want to absorb upfront instead of dealing with later as loss, rework, or tighter maintenance constraints.

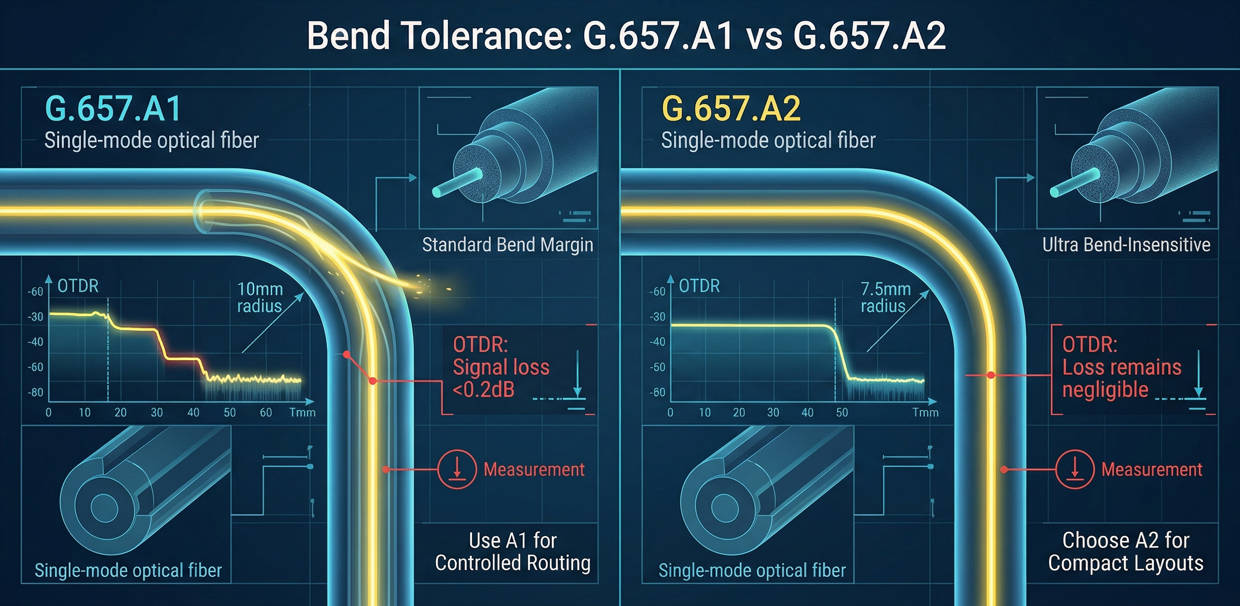

The shortest correct summary is simple: G.657.A1 is designed around a 10 mm minimum bend radius, while G.657.A2 is designed around 7.5 mm. That is the fastest way to explain the difference to a project team. If your routing discipline can keep bends above 10 mm, A1 is often sufficient. If the design routinely pushes tighter loops, A2 deserves serious consideration.
But engineering decisions should not stop at the headline radius. A2 is not just “2.5 mm tighter.” It is the option chosen when tighter managed bends are part of real deployment conditions, especially in patch cords, cabinet routing, compact boxes, and higher-density layouts where bend-induced loss becomes more likely during handling and future maintenance.
| Design factor | A1 view | A2 view | Selection impact |
|---|---|---|---|
| Managed bend radius | 10 mm class | 7.5 mm class | A2 is safer in tighter hardware and denser pathways |
| Patching margin | Adequate for controlled patching | Better for compact cross-connect layouts | Prefer A2 where repeated handling is expected |
| Maintenance tolerance | Moderate | Higher | A2 buys extra margin against accidental tighter loops |
If the route is straightforward, tray fill is moderate, and bend control is good, A1 normally gives enough flexibility. It fits standard access and drop planning without forcing a higher bend-performance specification where it may not add real project value.
If the project includes compact cabinets, dense patching, tighter service loops, or crowded enclosure routing, A2 gives more deployment freedom. That extra margin can reduce installation sensitivity and help protect the link budget from avoidable bend-induced loss during both initial deployment and later moves, adds, and changes.
For patch cords in racks, cabinets, and cross-connect zones, A2 is usually the better engineering choice. These environments combine smaller loops, higher touch frequency, and less routing forgiveness.
For ordinary drop cables, A1 is often enough. If the drop route becomes tighter, termination hardware gets smaller, or the layout needs more compact management, A2 becomes the safer upgrade.
For high-density routing, A2 is the better fit. In dense fiber management, extra bend margin is not just a premium feature; it directly improves installation robustness and long-term maintainability.

The most common mistake is choosing only by category label and assuming A2 is always the “better fiber.” In practice, A2 is better only when the route actually uses its tighter bend margin. In a simple controlled pathway, A1 may already be the correct answer.
Another mistake is under-specifying bend performance in compact routing. When a project uses dense cabinet space, tight patching, or constrained service loops, choosing A1 only to save cost can become false economy if the result is higher rework risk or tighter operational constraints later.
A third mistake is ignoring the full system context. Fiber class matters, but so do cable design, connector quality, routing hardware, pathway discipline, and field installation practice. Procurement should never evaluate fiber grade in isolation from the actual deployment environment.

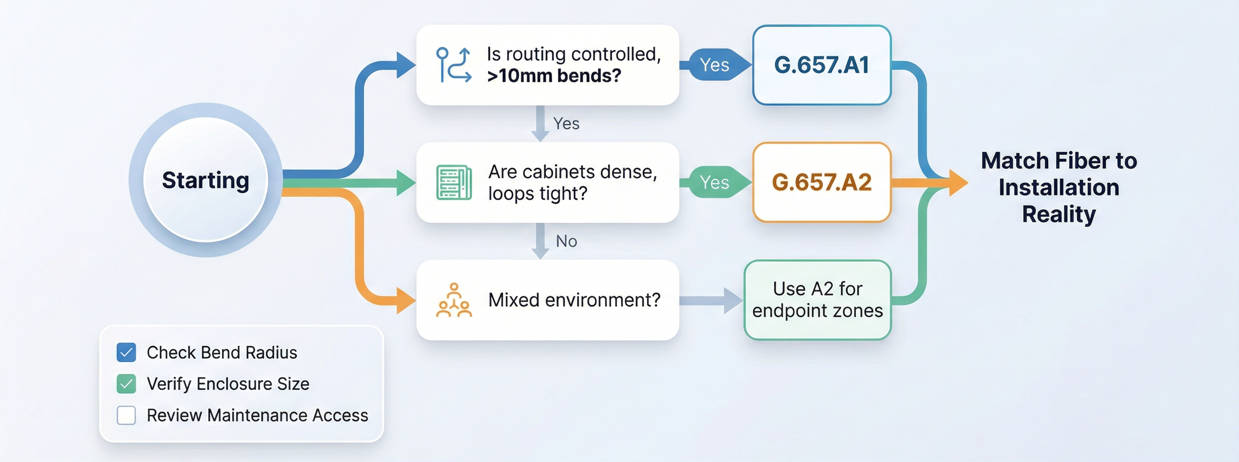

Use the table below when the team needs a fast decision instead of a long technical argument. It turns bend-performance categories into practical selection logic based on pathway discipline, enclosure density, and maintenance risk.
| Project condition | Choose A1 | Choose A2 | Why |
|---|---|---|---|
| Standard access route with controlled bends | Yes | Not necessary | A1 already matches the pathway discipline |
| Tight patch cords inside racks or cabinets | Possible, but not preferred | Yes | A2 adds tighter bend margin |
| High-density tray, panel, or cassette environment | Only if routing is conservative | Yes | Denser routing increases bend-risk exposure |
| Ordinary OSP drop cable | Yes | Maybe | A1 is often enough unless the path is tighter |
| Compact wall box / splitter / crowded enclosure | Maybe | Yes | A2 reduces routing sensitivity in smaller hardware |
Choose A1 when the route is controlled and a 10 mm design radius is realistic.
Choose A2 when the layout may regularly approach tighter managed bends or the enclosure density leaves less routing margin.
Do not treat A2 as a default upgrade if the project never uses the extra bend performance.
Choose A1 when the project is a normal access, FTTH, or drop build with controlled routing, ordinary enclosure sizes, and no expectation of repeated tight bends. It is the right answer when the team wants a sensible cost-performance balance without over-specifying the pathway.
Do not choose A1 by habit if the actual environment includes compact patching, crowded cabinets, or tighter service loops than the drawings first suggest.
Choose A2 when the project includes high-density routing, compact cabinets, smaller patching loops, or more concern about bend-induced loss during installation and later maintenance. This is the category to specify when you need more field forgiveness rather than a paper upgrade.
Do not choose A2 automatically for every project. If the route never meaningfully approaches its tighter bend scenario, A2 may add specification cost without solving a real deployment problem.

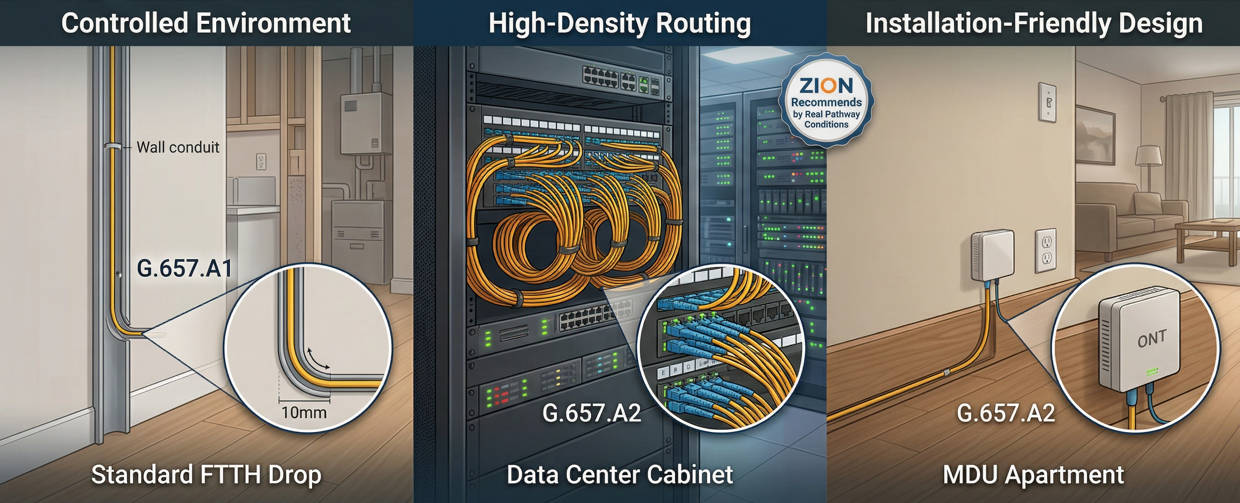

This table translates the standard difference into application-driven selection language. It is useful for aligning engineering, purchasing, and project management around likely fit.
| Application | Better choice | Why | Watch-out |
|---|---|---|---|
| Standard access backbone / feeder | A1 | Adequate bend margin for controlled routing | Do not assume future densification will stay mild |
| Ordinary FTTH / OSP drop | A1 | Often sufficient for standard drop layouts | Recheck if route includes tighter entry points |
| Compact drop / smaller termination hardware | A2 | Better margin in tighter managed bends | Confirm cable structure and hardware space |
| Patch cords in racks / cabinets / frames | A2 | Better fit for smaller loops and repeated handling | Connector quality still matters |
| High-density panel, cassette, or tray routing | A2 | Better for compact fiber management | Do not evaluate fiber grade without routing hardware context |
The correct engineering statement is not “A2 always costs more, so avoid it” or “A2 is always better, so upgrade.” The better rule is this: buy A2 when tighter bend margin reduces real project risk enough to justify the higher specification. If the routing never uses that extra margin, A1 often remains the better-value decision.
Commercial pricing depends on supplier, cable structure, connectorization, order volume, test requirements, and customization. That is why procurement should evaluate fiber category together with lead time, structure, and deployment risk instead of focusing on nominal fiber grade alone.
| Factor | A1 | A2 | Selection implication |
|---|---|---|---|
| Spec level | Lower | Higher | A2 should be justified by routing need |
| Bend-risk tolerance | Moderate | Higher | A2 buys more margin where routes are tighter |
| Rework risk in compact spaces | Higher than A2 | Lower than A1 | A2 lowers risk where space is tight |
| Best value case | Normal controlled installations | Dense or bend-sensitive installations | Match cost to routing reality |

No. A2 is better only when the installation benefits from tighter managed bends and higher bend-loss margin. For ordinary controlled routing, A1 is often the more balanced choice.
Yes. Both are intended to preserve the standard single-mode transmission and interconnection behavior expected in G.652.D-based network planning.
A2 is usually the better choice for patch cords, cabinets, and higher-density connectivity zones because those environments create tighter loops and more handling pressure.
For ordinary drop routes, A1 is often sufficient. If the route becomes tighter or termination space is more compact, A2 provides additional bend margin.
No. Lead time, MOQ, connector choices, cable construction, and test-report availability depend on the supplier and project configuration. Those items should be confirmed during RFQ.
At minimum, provide the target fiber class, cable structure, route type, expected bend environment, connector type, fiber count, length, and any testing or packaging requirements. That helps the supplier recommend the right construction quickly.
Choose G.657.A1 when your route is controlled, the installation is not especially tight, and you want the most practical default for access, FTTH, and standard drop scenarios. Choose G.657.A2 when the project involves tighter managed bends, denser routing, patch-cord-heavy layouts, or compact cabinets where extra bend margin lowers deployment risk.
In one line: A1 for normal controlled routing, A2 for tighter and denser routing. The best decision is the one that matches real pathway conditions rather than the highest category label.
Send your routing condition, fiber count, cable structure, connector type, length, and test requirements. A project-specific recommendation is more useful than choosing A1 or A2 from category names alone.
