Choose G.657.A2 when the indoor route includes tight bends, repeated corners, or crowded terminations.
Its value is lower bend-loss risk, not extra bandwidth.
For most indoor projects, A2 is the balanced choice before considering the more specialized B3 route.
Indoor fiber routes often look simple on drawings but become mechanically constrained during actual installation. The problem is rarely link distance. It is usually localized bend stress caused by wall corners, transitions behind baseboards, entry into cabinets, slack storage inside boxes, and later patching changes. This is why indoor fiber selection should focus not only on optical compatibility, but also on routing tolerance and maintenance behavior.
In straight and open pathways, standard single-mode fiber may still work. But once the route must follow architectural lines or fit into crowded hardware, bend margin becomes a practical design factor. For engineers and procurement teams, this changes the selection logic: the lowest-spec single-mode option is not always the lowest-risk option.

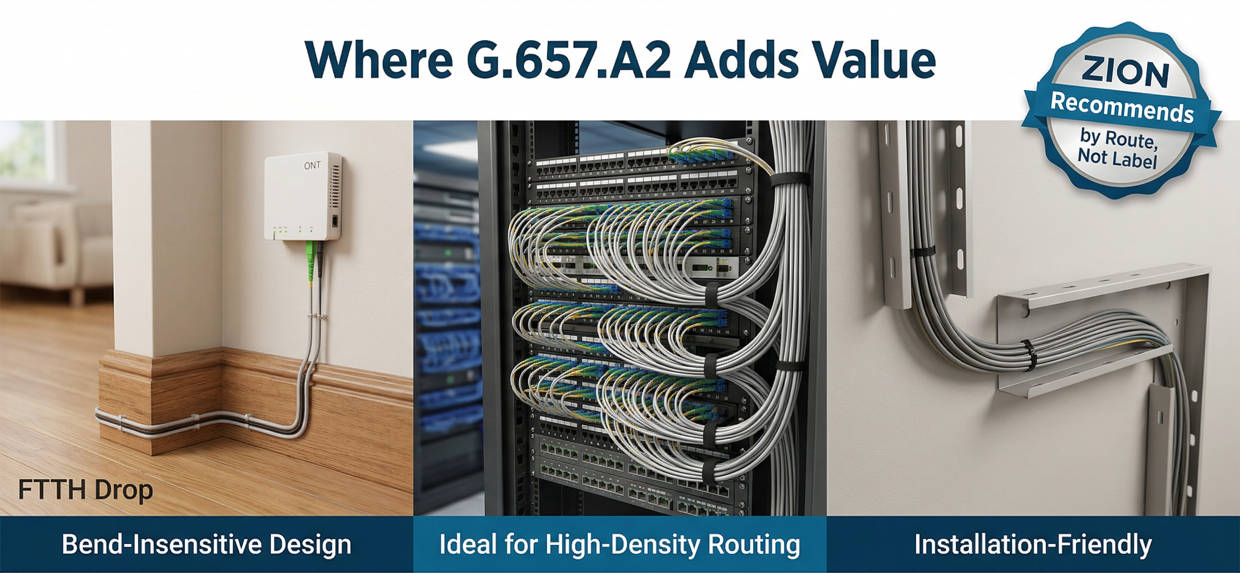

The reason G.657.A2 is relevant indoors is simple: many in-building routes create repeated or tight bends that standard single-mode fiber handles with less margin. The following scenarios are the most common.
Corners are one of the most obvious indoor loss points. Fiber that needs to follow wall geometry for appearance or installation convenience can experience sharp routing changes, especially in retrofit work or visible indoor drops.
Baseboard routing may look neat, but it often creates many small directional changes around door frames, transitions, and edge details. These repeated bend events can add hidden loss risk even when no single turn looks extreme.
Cabinets compress multiple systems into a small space. Fiber must compete with power, copper, access clearance, and airflow. Slack loops, panel entries, and service access often force tighter handling than the original route plan suggested.
Patch zones create repeated handling during moves, adds, changes, inspection, and maintenance. That makes them less about static installation and more about long-term mechanical resilience.
| Indoor scenario | Typical risk | Why A2 helps | What to still check |
|---|---|---|---|
| Corners | Sharp routing change | More bend margin at visible turns | Cable-level bend rule and route protection |
| Baseboards | Repeated small bends | Better tolerance in bend-dense pathways | Jacket durability and pathway transitions |
| Cabinets | Tight entry, slack pressure, rework | Lower loss sensitivity during handling | OD fit, connector space, cable management |
| Patch zones | Frequent service movement | More stable after repeated manipulation | Cleaning, connector quality, patch discipline |
The main advantage of G.657.A2 in indoor cabling is improved bend performance. This is important in real buildings because installation geometry is not always generous, and later maintenance often tightens the path further. A2 gives the project more tolerance against bend-related loss without changing the optical role of the link.
From a procurement and engineering point of view, this matters because A2 is usually not a separate network platform. It is a more robust single-mode choice for indoor routing conditions that are hard to control perfectly. For many projects, that means lower failure risk during installation, lower rework exposure, and better long-term stability in service areas.

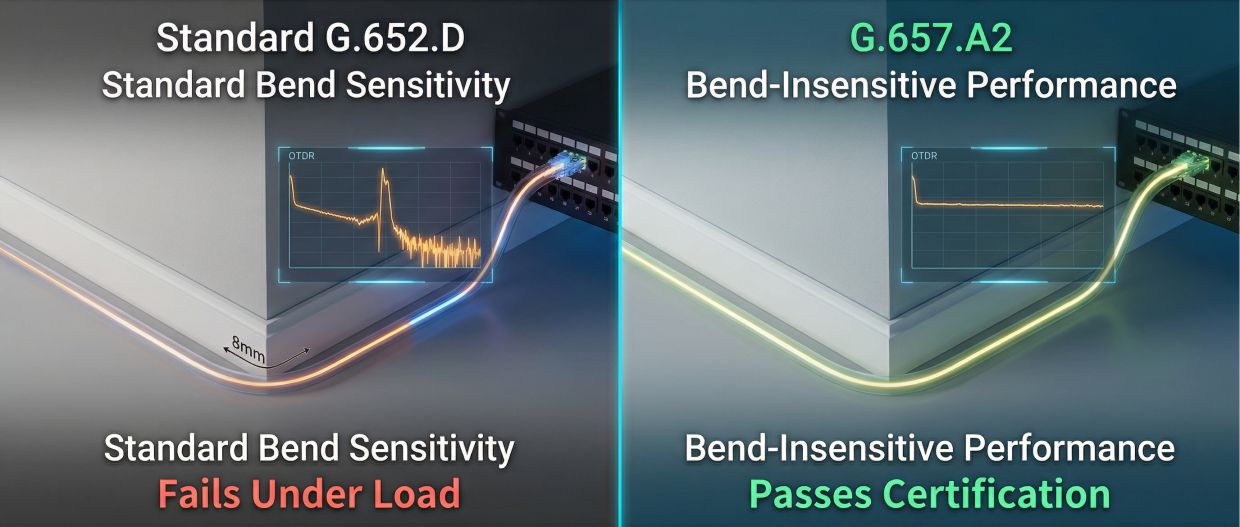

| Parameter | Standard single-mode fiber | G.657.A2 fiber | Indoor impact |
|---|---|---|---|
| Bend-loss tolerance | Standard baseline | Higher | Better for constrained routing |
| Use in tight indoor pathways | Less forgiving | More forgiving | Lower install and maintenance risk |
| Compatibility expectation | Mainstream single-mode baseline | Mainstream-friendly choice | Usually easier to deploy in mixed projects |
| Selection logic | Use where routing is easy and controlled | Use where bend margin matters | A2 becomes the safer indoor default |
G.657.A2 is a fiber specification, not a complete cable structure by itself. In indoor projects, it is commonly used inside cable designs that need flexibility, compact routing, and practical termination behavior.
| Cable type | Common indoor use | Why A2 is common | Selection note |
|---|---|---|---|
| Indoor drop cable | Room entry, apartment routing, wall runs | Tight turns are common | Check jacket and termination style |
| Tight-buffer indoor cable | Building backbone and floor distribution | Better handling in indoor spaces | Confirm fire rating and buffer design |
| Indoor/outdoor drop cable | Building entry with short indoor continuation | Helps in transition spaces | Check code compliance across both environments |
| Patch cords / pre-terminated leads | Cabinets, boxes, patching areas | Small routing spaces and frequent handling | Connector quality still matters |
A common mistake is to read only the fiber designation and ignore the finished cable construction. In indoor projects, the cable design often determines whether the installation is manageable, code-compliant, and stable over time.
Confirm the fiber is actually specified as G.657.A2, not only described as “bend insensitive.”
Check whether the product is intended for indoor, indoor/outdoor, or access-side use.
Review jacket and fire rating requirements for the building environment.
Separate fiber-level bend capability from cable-level bend limits.
Check connector style, patching environment, and expected maintenance access.
This table is designed for fast coordination between engineering, procurement, and project management teams.
| Project condition | Recommended choice | Reason | Main risk if ignored |
|---|---|---|---|
| Straight and open indoor route | Standard single-mode or A2 | Routing margin is less critical | Future rework may tighten the path later |
| Corners, wall edges, baseboards | Choose G.657.A2 | Better bend tolerance in visible indoor routing | Hidden bend-loss point after installation |
| Cabinets, terminal boxes, dense service areas | Choose G.657.A2 | More resilient during service handling | Loss instability after moves/adds/changes |
| Extreme bend constraints dominate the design | Consider G.657.B3 | Tighter bend-focused use case | Over-specializing where A2 would already solve the problem |
| Project needs lower risk with mainstream indoor compatibility | Choose G.657.A2 | Balanced routing, procurement, and deployment choice | Procurement saves small upfront cost but adds field risk |
Indoor routes include corners or repeated tight turns
Cabinets and patch zones are space-limited
Visible routing must follow walls or trim lines
Maintenance and repatching are expected
Project wants lower bend-risk without overcomplication
Not chosen because of “higher bandwidth”
Not a substitute for poor enclosure design
Not a substitute for bad patch management
Not enough if cable fire rating is wrong
Still verify cable construction
Still verify installed bend radius
Still verify connector quality and cleaning
Still verify hardware space and route protection
Design around the real pathway, not only the layout drawing.
Pay special attention to transitions at wall corners, door edges, and cabinet entries.
Do not compress excess slack into small boxes.
Respect finished cable bend limits during both installation and maintenance.
Match cable type to the service environment, not just the fiber standard.
Plan for the maintenance condition, not only day-one appearance.
G.657.B3 may be considered when indoor routing becomes extremely tight and short-reach, such as very small service spaces, highly constrained in-building access points, or ultra-compact visible pathways. In those cases, the design is driven mainly by minimum bend tolerance.
Even so, B3 should not be treated as the automatic upgrade from A2. For most indoor building projects, A2 remains the better balance between bend performance, mainstream project compatibility, and procurement simplicity. B3 usually makes more sense when the route geometry is unusually restrictive and the project team understands that the design is becoming more specialized.
For indoor cabling, G.657.A2 is usually the most practical single-mode choice when routing is tight or uncertain. It directly addresses the most common indoor optical risk, bend-related loss, while keeping the project aligned with normal single-mode deployment logic. That makes it well suited for corners, baseboards, cabinets, terminal areas, and patch zones.
If the indoor route is simple and generously spaced, standard single-mode fiber may still be acceptable. But where installation conditions are difficult to control, A2 is often the lower-risk and more maintainable decision. Move to B3 only when the routing geometry is exceptionally tight and clearly justifies a more specialized approach.
