GDTS PSP Armored Hybrid Optical Fiber and Electrical Cable

GDTS

Hybrid Optical Fiber and Electrical Cable PSP Armored for

Distributed Base Station

■ Introduction:

Single-mode or multimode fibers are housed in loose tubes that are made of high modulus plastic and filled with tube filiing compund,In the center of cable is a metallic strength member,The tubes and copper wires are stranded around the central strength member to form a cable core.The core is filled with cable filling compound and armored with Corrugated steel tapes.Finally, PE Outer sheath is extruded.

■ Features:

• Accurate process control ensuring good mechanical and temperature performances.

• Optical and electrical hybrid design,solving the problem of power supply and signal transmission.

• Providing manageability of power and reducing coordination and maintenance of power supply.

• Reduing procurement costs and saving construction costs.


• Mainly  used to connect BBU,RRU in DC remote power supply system for distributed base station.


• Applicable to Duct aerial installation.

■ Product Series:

• Hybrid Optical and Electrical Cables for Access Networks:

· GDTC8S:

o Type: Self-supporting aerial cable with PSP (Plastic-Supported Steel Tape)

o Application: Suitable for aerial installation in access networks, providing both optical and electrical capabilities with enhanced mechanical strength.

· GDTA53:

o Type: Buried installation cable

o Application: Designed for buried installation, ensuring robust protection for both optical and electrical components, ideal for underground or direct burial use.

· GDTA, GDTS:

o Type: Duct or aerial installation

o Application: These cables are optimized for both ducted and aerial installations, offering flexibility for deployment in different environments.

• Hybrid Optical Cables for Wireless RRU (Remote Radio Unit):

GDFJAH:

o Type: Hybrid optical fiber and electrical cable with APL (Aerial Plastic-Lined) LSZH (Low Smoke Zero Halogen) sheath

o Application: Designed for wireless RRU systems, this cable combines optical fibers for high-speed data transmission with electrical conductors for power delivery, with an LSZH sheath for safety.

GDFJAHP:

o Type: Hybrid optical fiber and electrical cable with APL LSZH sheath

o Application: Similar to GDFJAH, but this version may have additional or slightly different mechanical properties tailored for specific RRU installations.

GJYFJH:

o Type: Sub-unit cable with Aramid yarn and LSZH sheath

o Application: This cable provides high tensile strength and durability, making it suitable for installations where safety and reliability are key, with a focus on protecting the fibers and electrical components.

GJYWFJH:

o Type: TBF (Toughened Fiber) cable with Aramid yarn and LSZH sheath

o Application: Similar to GJYFJH, but offering additional toughness, providing further protection for fiber optic cables in harsh environments.

GJYXFH:

o Type: Multi-core cable with Aramid yarn and double sheath

o Application: Designed for high-density fiber optic networks, this cable uses double sheaths for enhanced protection against environmental factors.

• Steel Hose Hybrid Optical and Electrical Cable:

· GDFJH:

o Type: Hybrid optical and electrical cable with steel hose

o Application: This cable features a steel hose for added mechanical protection, making it highly durable and suitable for environments with high mechanical stress.

■ Cross Section:

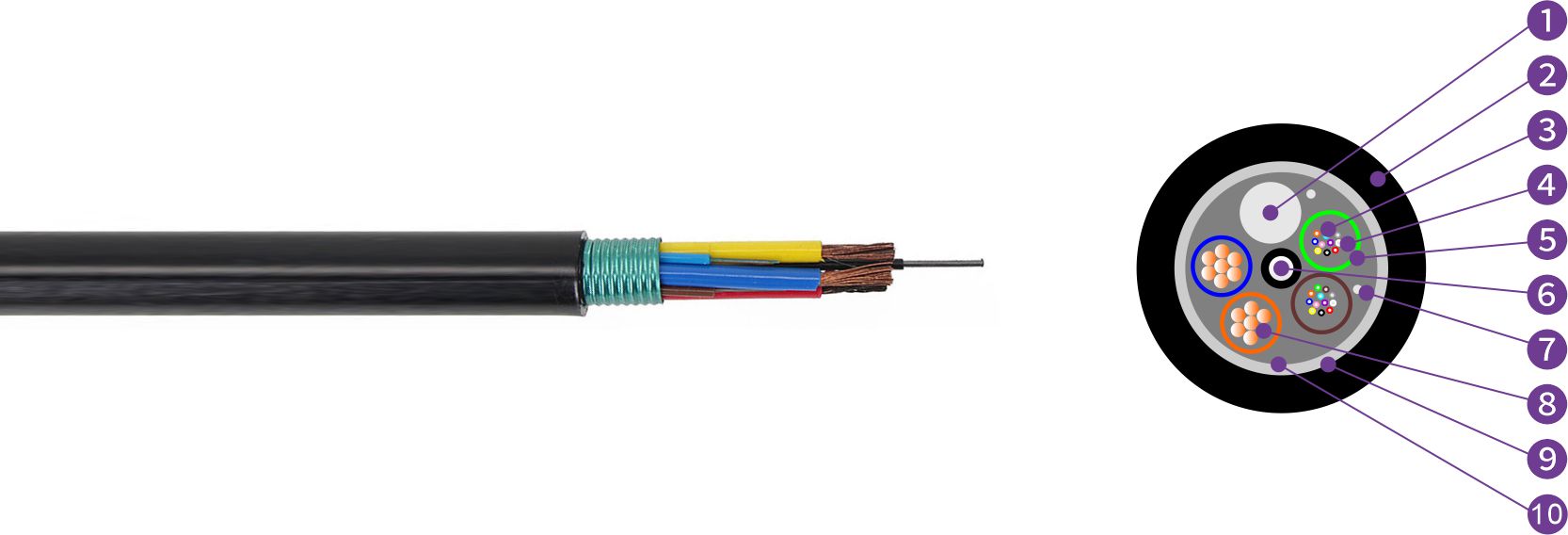

1.Filler  2.Strength Member  3.Fibre  4.Tube Filling Compound  5.Loose Tube  6.Cable Filling Compound  7.PSP  8.Ripcord  9.Copper Wire  10.PE Sheath

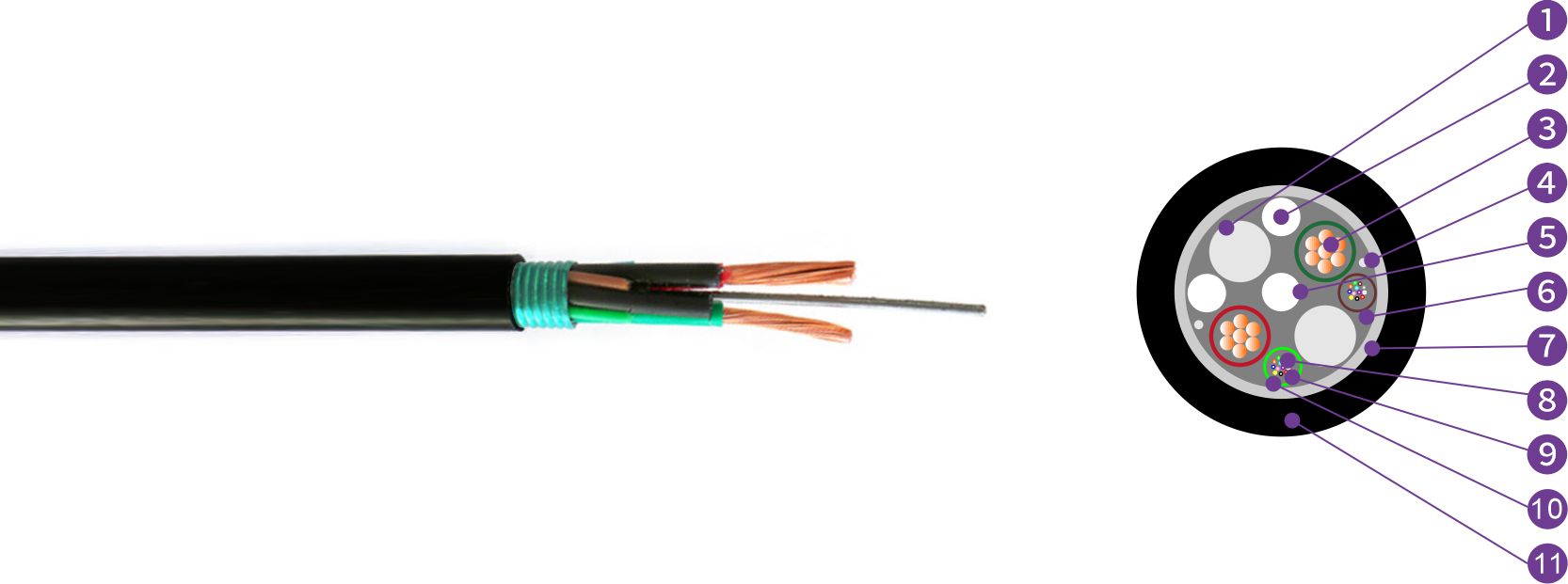

1.Filler  2.Filler  3.Copper Wire  4.Ripcord  5.Cable Filling Compound  6.Strength Member  7.PSP  8.Fibre  9.Tube Filling Compound  10.Loose Tube 11.PE Sheath

■ Technical Characteristics:

Cable Types and Specifications



           GDTS-02-24Xn+2×1.5

· Diameter: 11.6 mm

· Weight: 157 kg/km

· Tension: 600 N (long term) / 1500 N (short term)

· Crush Resistance: 300 N/100mm (long term) / 1000 N/100mm (short term)

· Structure: Structure I

GDTS-02-24Xn+2×2.5

· Diameter: 12.5 mm

· Weight: 190 kg/km

· Tension: 600 N (long term) / 1500 N (short term)

· Crush Resistance: 300 N/100mm (long term) / 1000 N/100mm (short term)

· Structure: Structure I

GDTS-02-24Xn+2×4.0

· Diameter: 14.6 mm

· Weight: 241 kg/km

· Tension: 600 N (long term) / 1500 N (short term)

· Crush Resistance: 300 N/100mm (long term) / 1000 N/100mm (short term)

· Structure: Structure II

GDTS-02-24Xn+2×5.0

· Diameter: 15.0 mm

· Weight: 282 kg/km

· Tension: 600 N (long term) / 1500 N (short term)

· Crush Resistance: 300 N/100mm (long term) / 1000 N/100mm (short term)

· Structure: Structure II

GDTS-02-24Xn+2×6.0

· Diameter: 15.7 mm

· Weight: 300 kg/km

· Tension: 600 N (long term) / 1500 N (short term)

· Crush Resistance: 300 N/100mm (long term) / 1000 N/100mm (short term)

· Structure: Structure II

GDTS-02-24Xn+2×8.0

· Diameter: 16.9 mm

· Weight: 383 kg/km

· Tension: 600 N (long term) / 1500 N (short term)

· Crush Resistance: 300 N/100mm (long term) / 1000 N/100mm (short term)

· Structure: Structure II

Notes：

Adjustable Outer Diameter: The outer diameter can be adjusted to suit your budget. Please contact us for customization options.

Contact Information: For more details or to place an order, please contact us as soon as possible.

■ Environmental Characteristics:

Transport/storage temperature: -40℃~70℃

■ Delivery Length:

Standard length:2000m;Other length availabe
