Stranded Loose Tube fiber +2C RVV Hybird Fiber Copper Cable

  • Hybird Fiber Copper Cable

  • Specials

  • ISO9001

  • 1km/Spool

  • Wooden Spool ，Φ280*280mm

  • 100km

  • Normally 15 working days

  • NINGBO CHINA

  • 30%TT as deposit,70%Balance before shipping.

Availability:
Inquire

Stranded Loose Tube fiber +2C RVV Hybrid Fiber Copper Cable


PDF download




Fiber: 2-12F G657A(Loose Tube fiber cable) XTW PSP TAPE

Copper: 2C RVV(1.0-1.5mm²) 300V/500V

The cable is suitable for the data transmission and power supply

between 5G communication devices for indoor applications.

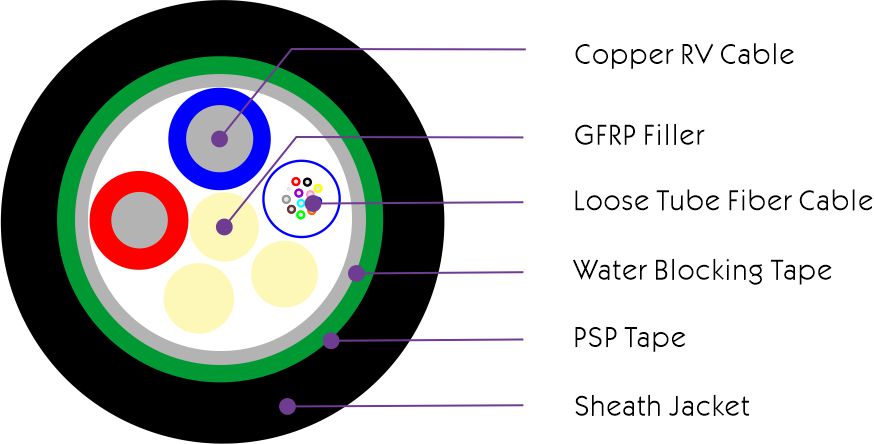

Stranded Loose Tube fiber

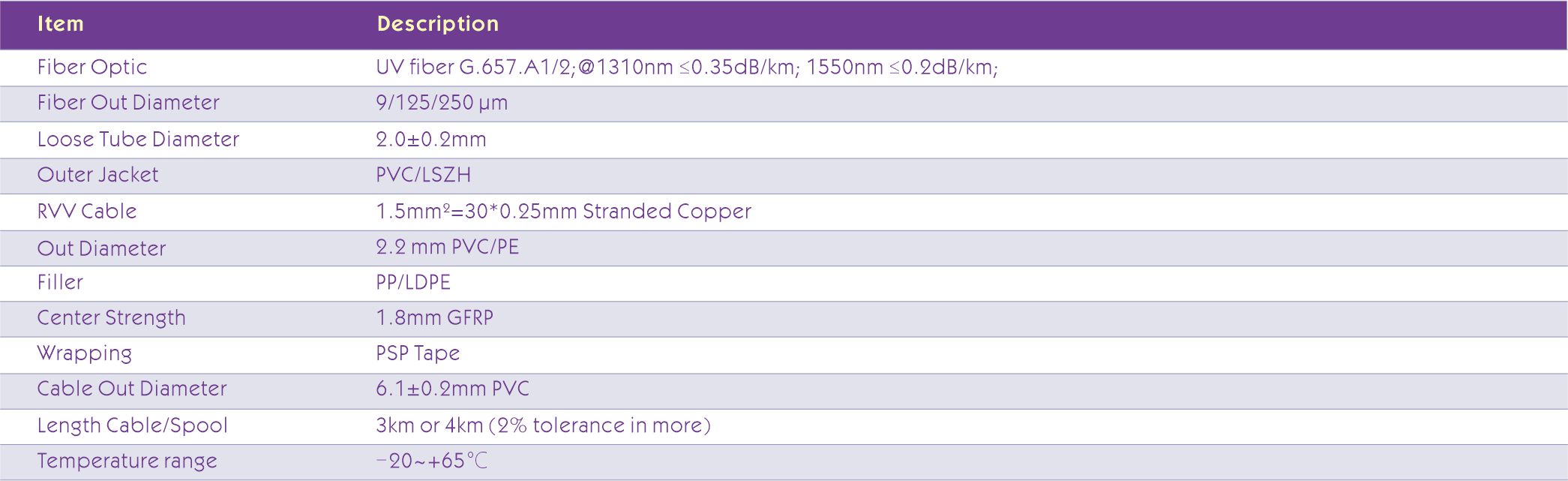

■ Optical Characteristics:

Stranded Loose Tube fiber Characteristics

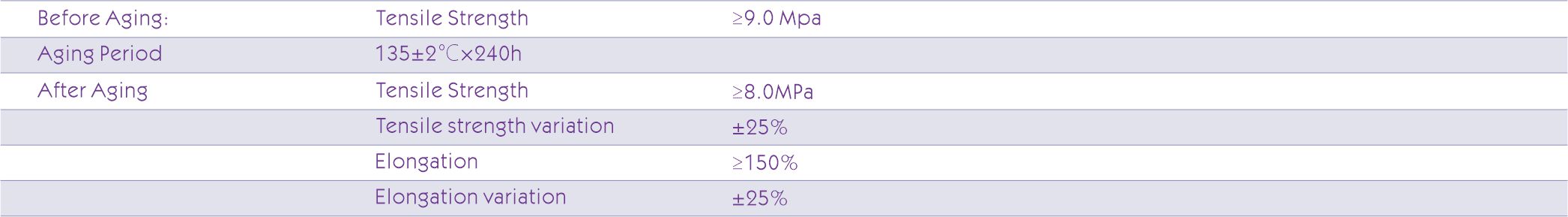

■ RV Insulation Physical Properties:

Stranded Loose Tube fiber RV Insulation Physical Properties

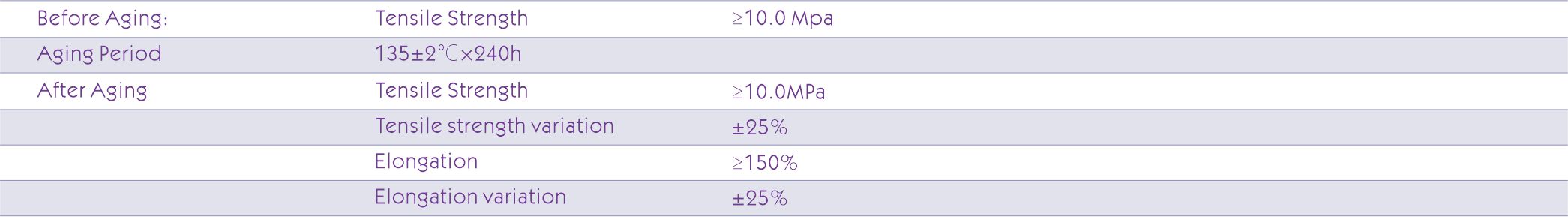

■ Sheath Physical Properties:

Stranded Loose Tube fiber Sheath Physical Properties


■ Standard:

ITU-T Rec. G.657A

IEC 60794

GR-409

ISO9001

ICEA-596

YD/T 1997-2009
