MGTS 4 Cores G.652D

Technical Parameters

Cable Code

MGTS

Fiber Count

4

Cable Diameter

9.6 (mm)

Cable Weight

270(kg/km)

Tensile Strength Long/Short term

3000/8000(N)

Crush Resistance Long/Short term

1000/3000(N/100mm)

Bending Radius Dynamic/Static

10D/20D(mm)

Storage/Operating Temperature:-40℃to+70℃

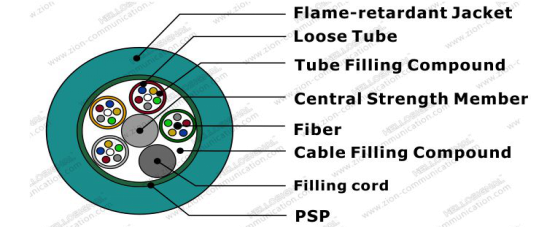

Cross Section

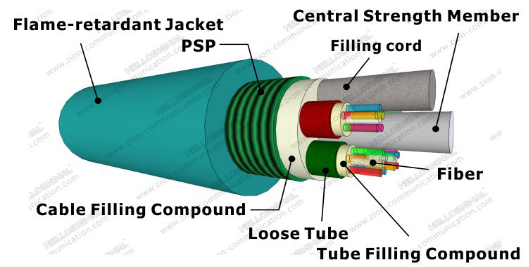

Description

The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with
a water-resistant filling compound. A steel wire, sometimes sheathed with polyethylene (PE) for cable with
high fiber count, locates in the center of core as a metallic strength member. Tubes (and fillers) are
stranded around the strength member into a compact and circular cable core. The PSP is longitudinally
applied over the cable core, which is filled with the filling compound to protect it from water ingress. The
cable is completed with a PE sheath.

Characteristics

Good mechanical and temperature performance;
High strength loose tube that is hydrolysis resistant;
Special tube filling compound ensure a critical protection fiber;
Specially designed compact structure is good at preventing loose tubes from shrinking;
Crush resistance and flexibility;
PE sheath protects cable from ultraviolet radiation;
The following measures are taken to ensure the cable watertight:
(1)Steel wire used as the central strength member;
(2)Loose tube filling compound;
(3)100% cable core filling;
(4)PSP enhancing moisture-proof.

Standards

MGTS cable complies with Standard YD/T 901-2001as well as IEC 60794-1.

Order Informations

Marking

HELLOSIGNAL MGTS 4 Cores G.652D xxxxM
(or Per customer's request)

Inner Package

2000m/Spool (or Per customer's request)

Outer Package

Pallet (or Per customer's request)

Delivery time

Normally 25 days after received the deposit.

Brand

HELLOSIGNAL® OR OEM
