2C RVV+1Tube Hybird Fiber Copper Cable

  • Hybird Fiber Copper Cable

  • Specials

  • ISO9001

  • 1km/Spool

  • Wooden Spool ，Φ280*280mm

  • 100km

  • Normally 15 working days

  • NINGBO CHINA

  • 30%TT as deposit,70%Balance before shipping.

Availability:
Inquire Add to Basket

Product Description

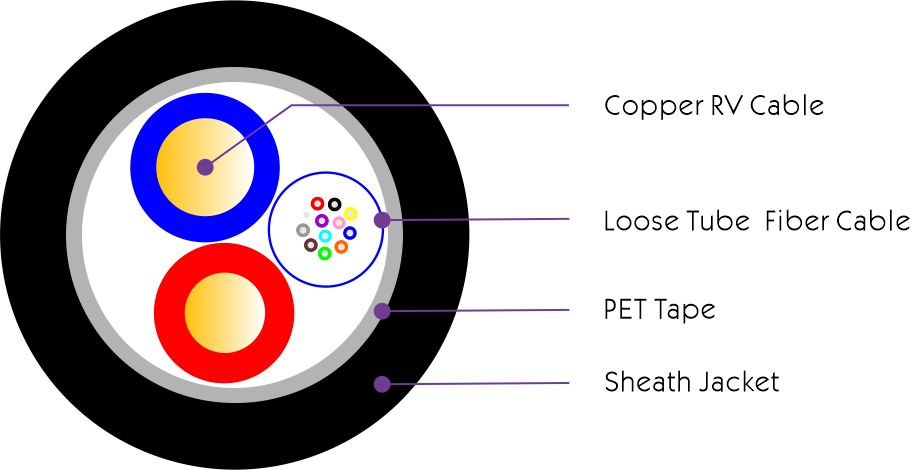

2C RVV+1Tube Hybird Fiber Copper Cable

Fiber: 2-12F G657A(Loose Tube fiber cable)

Copper: 2C RVV(1.0-1.5mm²) 300V/500V

The cable is suitable for the data transmission and power supply

between 5G communication devices for indoor applications.



2C RVV+1Tube HYBIRD FIBER COPPER CABLE




PDF download

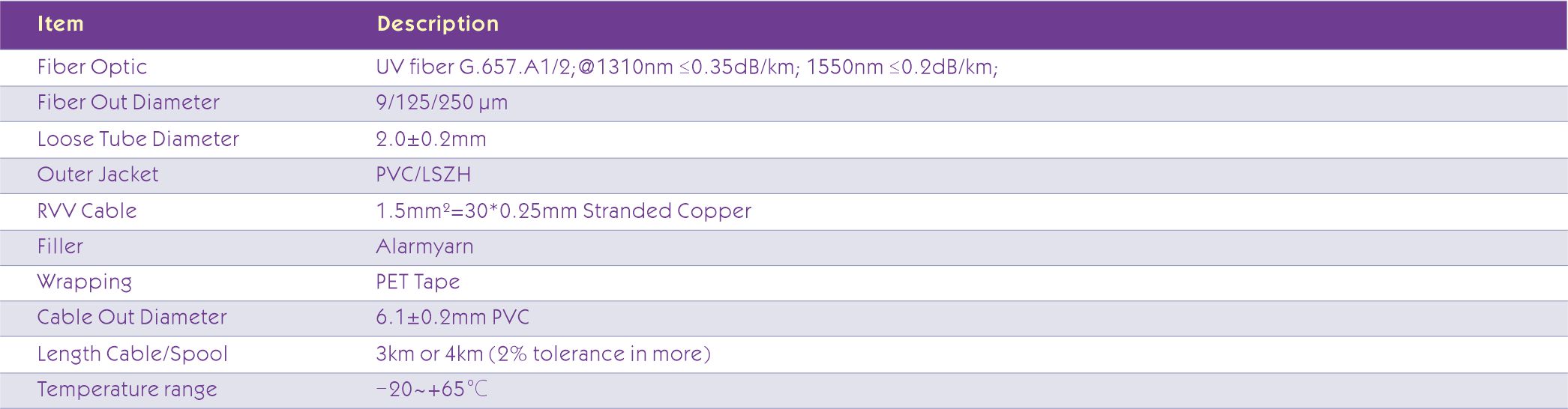

Optical Characteristics

2C RVV+1Tube HYBIRD FIBER COPPER CABLE Characteristics

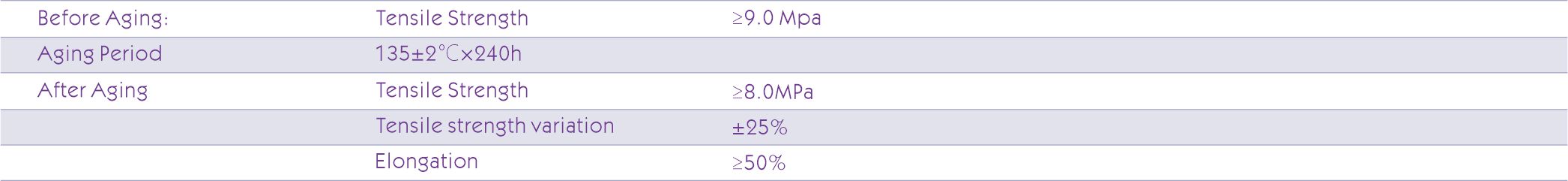

RV Insulation Physical Properties

2C RVV+1Tube HYBIRD FIBER COPPER CABLE RV Insulation Physical Properties

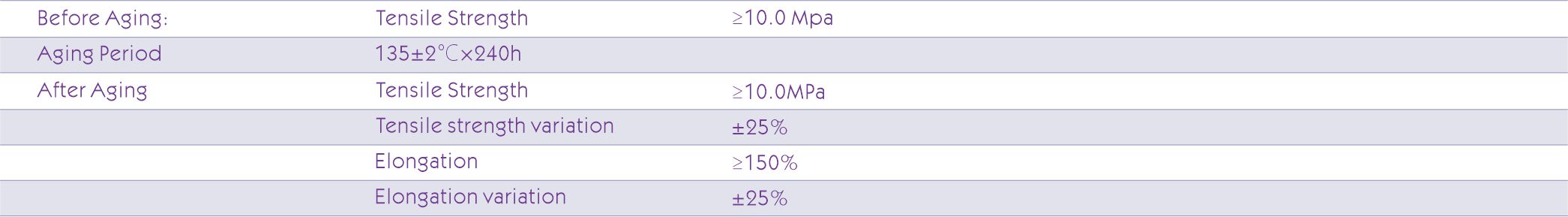

Sheath Physical Properties

2C RVV+1Tube HYBIRD FIBER COPPER CABLE Sheath Physical Properties


Standard

ITU-T Rec. G.657A           IEC 60794          GR-409

     ISO9001                     ICEA-596           YD/T 1997-2009
