HELLOSIGNAL LiYY JZ Flexible screened numbered cores data Transmission cable with protective conductor

  • LiYY JZ Flexible screened numbered cores data Transmission cable with protective conductor
  • hellosignal
  • 7132400
Quantity:

LiYY JZ Flexible screened

numbered cores data Transmission

cable with protective conductor

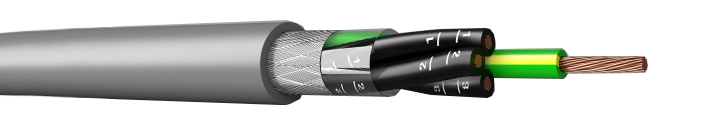

LiYY JZ Flexible screened numbered cores data Transmission cable with protective conductor

Cable data


Stranded bare copper core according to DIN VDE 0295 and IEC 60228 cl.5
 Core insulation of special PVC
 Black cores with repeated white numbering according to DIN VDE0293
 Green yellow eath core in the outer layer,from 3 cores and more
 Cores stranded in layers with optimal lay lenght
 Foil separator
 Tinned copper braided screening,approx.85% coverage
 Special PVC outer sherth according to DIN VDE 0281 part 1 andHD
21.1,color grey,extensively oil resistant
 PVC self extingusishing and retardant,according to DIN
VDE0428 part 268 2 1/EN 50265 2 1/IEC 60332 1

Technical data

 Special PVC flexible cables,accroding to DIN VDE 0245,0281 part 13
 Temperature range flexing from  5 to+70 fixed from  30 to +80
 Nominal voltage Uo/U 300/500 V
 Spark test 6000V
 Test voltage a.c core/core 3000V core/screen 1500V
 Instlation resistance min.250MΩ_km
 Minimum bending radius approx.10_cable diameter
 Radiation resistance up to 80_106cJ/kg(up to 80 Mrad)

Application

Ideal for use as a control cable in tool making ang macjine industry as well ad signal cable
in computers and electronics,The usual PVC inner sheath in this cable has been replaced
by a stabilising foil separator,therefore considerably reducing the total diameter of
the cable,its bending radius,weight etc,The high density of the braeding assures
disturbance free transmission of all signals and impulses.

Note

CE=The product is conformed with the EC Low-Voltage Dierctive 73/23/EEC
OZ=version without green-yellow earth core
Conforms to RoHS
Other sizes and types available on request.

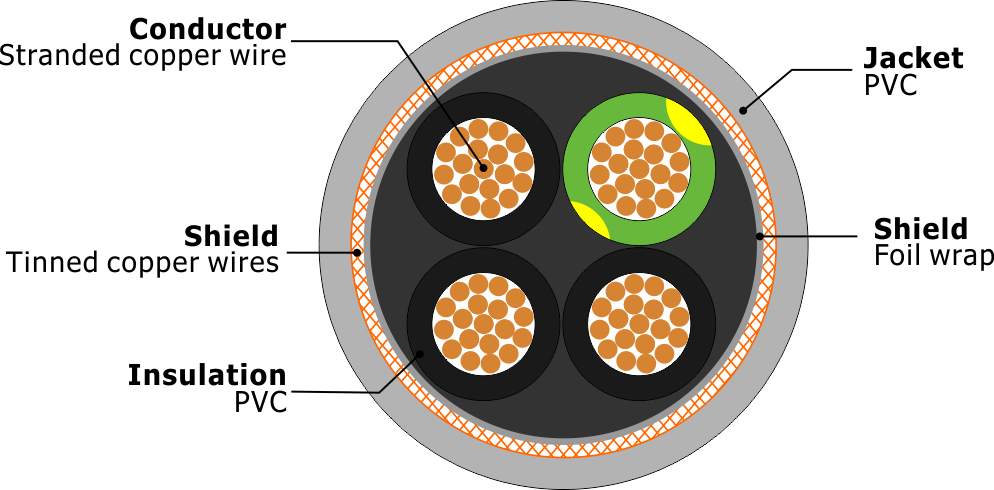

Cross Section

LiYY JZ Flexible screened numbered cores data Transmission cable with protective conductor..

Product List

Item No.

Description&No.Conductors xcross sec mm²

Number of cores

Outer
Diameter

Approx.Weight
kg/km



7132400

0.5mm²

2

5.3

45.0



7132401

0.5mm²

3

5.6

55.0



7132402

0.5mm²

4

6.2

61.0



7132403

0.5mm²

5

6.7

74.0



7132404

0.5mm²

6

7.4

89.0



7132405

0.5mm²

7

7.9

98.0



7132406

0.5mm²

8

8.5

117.0



7132407

0.5mm²

10

9.5

135.0



7132408

0.5mm²

12

9.6

157.0



7132409

0.5mm²

14

10.0

190.0



7132410

0.5mm²

16

10.7

210.0



7132411

0.5mm²

18

11.2

217.0



7132412

0.5mm²

20

11.9

240.0



7132413

0.5mm²

21

12.5

250.0



7132414

0.5mm²

24

12.9

300.0



7132415

0.5mm²

25

13.5

314.0



7132416

0.5mm²

30

14.0

360.0



7132417

0.5mm²

32

14.6

425.0



7132418

0.5mm²

34

15.3

433.0



7132419

0.5mm²

36

15.9

446.0



7132420

0.5mm²

40

16.4

475.0



7132421

0.5mm²

50

18.1

573.0










Product List

Item No.

Description&No.Conductors xcross sec mm²

Number of cores

Outer
Diameter

Approx.Weight
kg/km



7132430

0.75mm²

2

5.7

59.0



7132431

0.75mm²

3

6.2

66.0



7132432

0.75mm²

4

6.7

77.0



7132433

0.75mm²

5

7.2

93.0



7132434

0.75mm²

6

8.0

113.0



7132435

0.75mm²

7

8.6

130.0



7132436

0.75mm²

8

9.4

145.0



7132437

0.75mm²

10

10.2

180.0



7132438

0.75mm²

12

10.4

202.0



7132439

0.75mm²

14

11.1

225.0



7132440

0.75mm²

16

11.6

275.0



7132441

0.75mm²

18

12.4

292.0



7132442

0.75mm²

20

12.9

320.0



7132443

0.75mm²

21

13.8

378.0



7132444

0.75mm²

24

14.5

410.0



7132445

0.75mm²

25

14.9

425.0



7132446

0.75mm²

30

15.6

450.0



7132447

0.75mm²

32

16.1

484.0



7132448

0.75mm²

34

16.9

502.0



7132449

0.75mm²

36

17.1

535.0



7132450

0.75mm²

40

18.3

610.0



7132451

0.75mm²

50

20.0

777.0






7132460

1.00mm²

2

6.5

80.0



7132461

1.00mm²

3

7.1

98.0



7132462

1.00mm²

4

7.6

127.0



7132463

1.00mm²

5

8.5

144.0



7132464

1.00mm²

6

9.1

158.0



7132465

1.00mm²

7

9.9

197.0



7132466

1.00mm²

8

10.8

232.0



7132467

1.00mm²

10

11.2

260.0



7132468

1.00mm²

12

11.8

302.0



7132469

1.00mm²

14

12.3

346.0



7132470

1.00mm²

16

13.2

380.0



7132471

1.00mm²

18

13.5

412.0



7132473

1.00mm²

20

13.8

440.0
