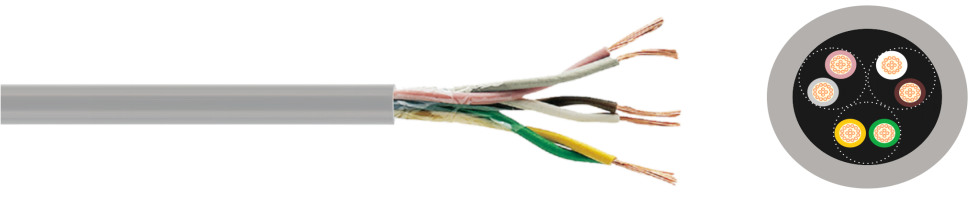

LiYY TP Control Cable / Data Cable

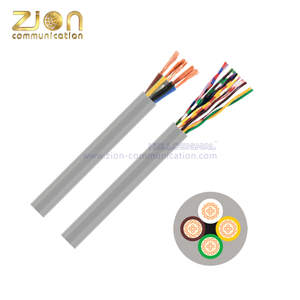

LiYY TP Control Cable / Data Cable

Application:

Cable Standards:

To be installed in dry and humid rooms and used as a termination and connection cable in the control, measuring and signal technology.

DIN VDE 0812

Flame Retardant according to: IEC/EN 60332-1-2

Product Description:

Conductor

Bare copper strands with reference to VDE 0812

Insulation

PVC, TI2 acc. to EN 50363-3, VDE 0207-363-3

Colour code

With reference to DIN 47100

Stranding

Cores twisted to pairs, pairs twisted in layers

Wrapping

PETP foil

Sheath material

PVC, TM2 acc. to EN 50363-4-1, VDE 0207-363-4-1

Sheath colour

Grey (RAL 7032)

Characteristics:

Peak operating voltage

< 0.25 mm² = max. 350 V
≥ 0.25 mm² = max. 500 V

Testing voltage

core/core 1500 V

Min. bending radius

fixed laying:

 5 x d

flexible application:

10 x d

Temperature range

fixed laying:

-30/+70 °C

flexible application:

-5/+70 °C

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 , VDE 0482-332-1-2

Core Identification:

Pair 1:

White

Brown

Pair 2:

Green

Yellow

Pair 3:

Grey

Pink

Pair 4:

Blue

Red

Pair 5:

Black

Violet

Pair 6:

Grey/Pink

Red/Blue

Pair 7:

White/Green

Brown/Green

Pair 8:

White/Yellow

Yellow/Brown

Pair 9:

White/Grey

Grey/Brown

Pair 10:

White/Pink

Pink/Brown

Dimensions:

Zion Code

No. Of
Cores

Cross
Section

Outer-ø
± 5% mm

Copper Figure kg/km

Cable Weight
≈ kg/km

LiYYTP0314

3 x 2

0.14

4.9

8.1

27.0

LiYYTP0414

4 x 2

0.14

5.5

10.8

34.0

LiYYTP0514

5 x 2

0.14

6.2

13.4

43.0

LiYYTP0614

6 x 2

0.14

6.4

16.1

50.0

LiYYTP0814

8 x 2

0.14

7.0

21.5

59.0

LiYYTP1014

10 x 2

0.14

7.7

26.9

71.0

LiYYTP1214

12 x 2

0.14

8.9

32.3

87.0

LiYYTP1414

14 x 2

0.14

9.4

37.6

98.0

LiYYTP1614

16 x 2

0.14

9.7

43.0

110.0

LiYYTP0225

2 x 2

0.25

4.9

9.6

27.0

LiYYTP0325

3 x 2

0.25

5.4

14.4

36.0

LiYYTP0425

4 x 2

0.25

6.4

19.2

50.0

LiYYTP0525

5 x 2

0.25

6.9

24.0

57.0

LiYYTP0625

6 x 2

0.25

7.1

28.8

65.0

LiYYTP0725

7 x 2

0.25

7.3

33.6

71.0

LiYYTP0825

8 x 2

0.25

7.8

38.4

80.0

LiYYTP1025

10 x 2

0.25

9.0

48.0

108.0

LiYYTP1225

12 x 2

0.25

9.9

57.6

121.0

LiYYTP1425

14 x 2

0.25

10.5

67.2

134.0

LiYYTP1625

16 x 2

0.25

10.9

76.8

152.0

LiYYTP0234

2 x 2

0.34

5.8

13.1

37.0

LiYYTP0334

3 x 2

0.34

6.6

19.6

53.0

LiYYTP0434

4 x 2

0.34

7.6

26.1

70.0

LiYYTP0534

5 x 2

0.34

8.7

32.6

92.0

LiYYTP0634

6 x 2

0.34

8.9

39.2

104.0

LiYYTP0734

7 x 2

0.34

9.2

45.7

105.0

LiYYTP0834

8 x 2

0.34

9.8

52.2

118.0

LiYYTP1034

10 x 2

0.34

10.8

65.3

142.0

LiYYTP1234

12 x 2

0.34

12.4

78.3

178.0

LiYYTP1434

14 x 2

0.34

13.1

91.4

201.0

LiYYTP0250

2 x 2

0.50

6.4

19.2

47.0

LiYYTP0350

3 x 2

0.50

7.1

28.8

64.0

LiYYTP0450

4 x 2

0.50

8.6

38.4

87.0

LiYYTP0550

5 x 2

0.50

9.4

48.0

105.0

LiYYTP0650

6 x 2

0.50

9.6

57.6

120.0

LiYYTP0750

7 x 2

0.50

9.9

67.2

128.0

LiYYTP0850

8 x 2

0.50

10.6

76.8

146.0

LiYYTP1050

10 x 2

0.50

11.8

96.0

174.0

LiYYTP1250

12 x 2

0.50

13.4

115.2

216.0

 LiYYTP1450

14 x 2

0.50

14.6

134,4

259.0

LiYYTP0275

2 x 2

0.75

7.3

28.8

63.0

LiYYTP0375

3 x 2

0.75

8.6

43.2

87.0

LiYYTP0475

4 x 2

0.75

9.9

57.6

118.0

LiYYTP0575

5 x 2

0.75

10.7

72.0

140.0

LiYYTP0675

6 x 2

0.75

11.1

86.4

164.0

LiYYTP0775

7 x 2

0.75

11.4

100.8

173.0

LiYYTP0875

8 x 2

0.75

12.7

115.2

207.0

LiYYTP1075

10 x 2

0.75

14.0

144.0

251.0

LiYYTP1275

12 x 2

0.75

15.9

172.8

309.0

LiYYTP1475

14 x 2

0.75

16.8

201.6

351.0

            Note: LiYYTP: Means Type; 0214 Means 2 Core, 0.14mm2; V= PVC; O=LSZH
