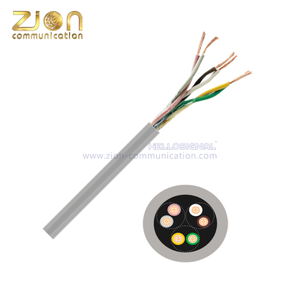

LiYY Control Cable/ Data Cable

LiYY

LiYY2

Application:


Cable Standards:

This cable can be used for signal transmission
betweenelectronic devices, in computer systems
or process control units.


DIN VDE 0812


Flame Retardant according to: IEC 60332-1




Product Description:

Conductor

Bare copper strands with reference to VDE 0812

Insulation

PVC, TI2 acc. to EN 50363-3, VDE 0207-363-3

Colour code

With reference to DIN 47100

Sheath material

PVC, TM2 acc. to EN 50363-4-1, VDE 0207-363-4-1

Sheath colour

Grey (RAL 7032)


Characteristics:

Peak operating voltage

< 0.25 mm² = max. 350 V
≥ 0.25 mm² = max. 500 V

Testing voltage

core/core 1500 V

Min. bending radius


fixed laying:

 5 x d















flexible application:

10 x d















Temperature range


fixed laying:

-30/+70 °C















flexible application:

-5/+70 °C















Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 , VDE 0482-332-1-2

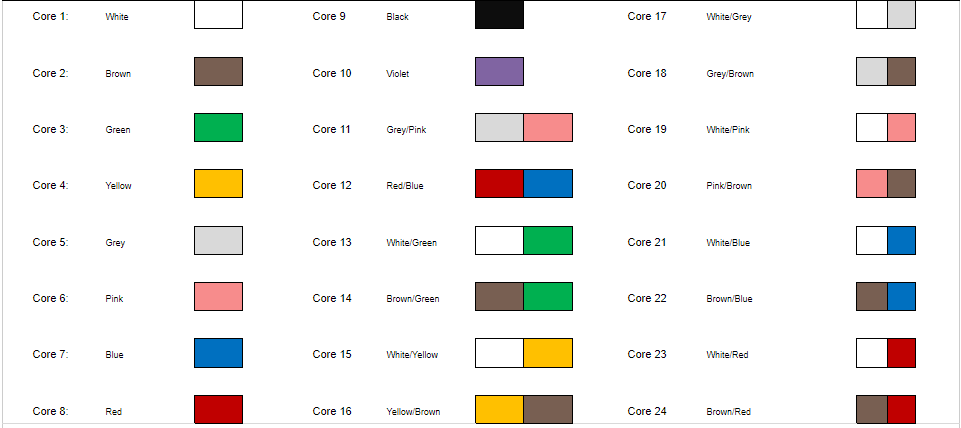

Core Identification:

Core 1:

White



Core 9

Black




Core 17

White/Grey
























Core 2:

Brown



Core 10

Violet




Core 18

Grey/Brown
























Core 3:

Green



Core 11

Grey/Pink




Core 19

White/Pink
























Core 4:

Yellow



Core 12

Red/Blue




Core 20

Pink/Brown
























Core 5:

Grey



Core 13

White/Green




Core 21

White/Blue
























Core 6:

Pink



Core 14

Brown/Green




Core 22

Brown/Blue
























Core 7:

Blue



Core 15

White/Yellow




Core 23

White/Red
























Core 8:

Red



Core 16

Yellow/Brown




Core 24

Brown/Red

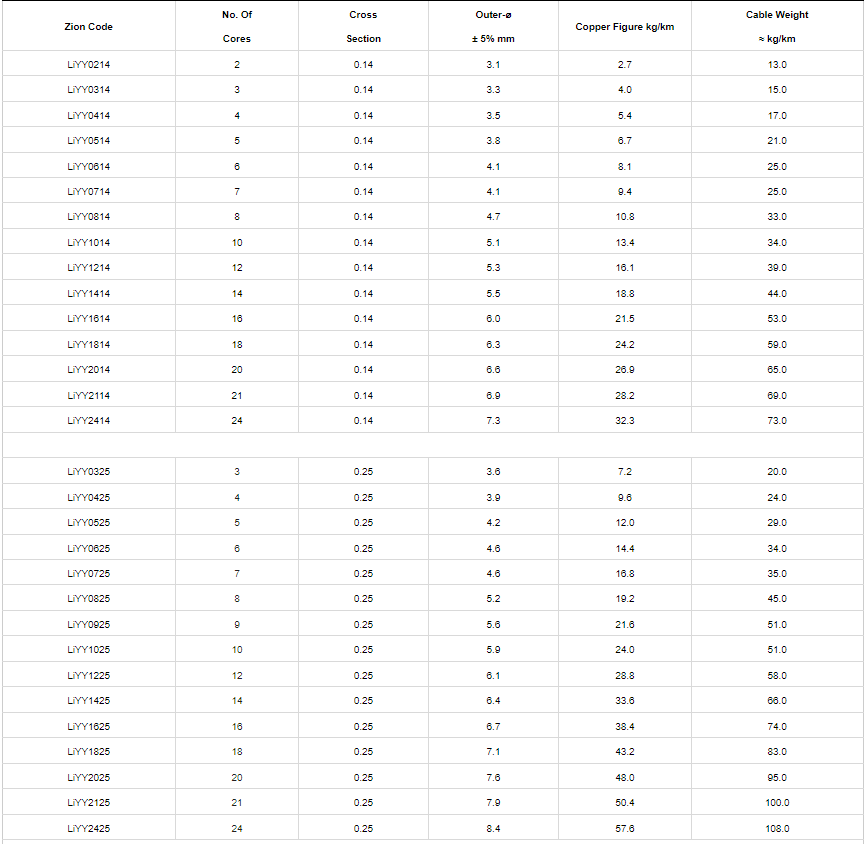

Dimensions:

Zion Code

No. Of
Cores

Cross
Section

Outer-ø
± 5% mm

Copper Figure kg/km

Cable Weight
≈ kg/km

LiYY0214

2

0.14

3.1

2.7

13.0

LiYY0314

3

0.14

3.3

4.0

15.0

LiYY0414

4

0.14

3.5

5.4

17.0

LiYY0514

5

0.14

3.8

6.7

21.0

LiYY0614

6

0.14

4.1

8.1

25.0

LiYY0714

7

0.14

4.1

9.4

25.0

LiYY0814

8

0.14

4.7

10.8

33.0

LiYY1014

10

0.14

5.1

13.4

34.0

LiYY1214

12

0.14

5.3

16.1

39.0

LiYY1414

14

0.14

5.5

18.8

44.0

LiYY1614

16

0.14

6.0

21.5

53.0

LiYY1814

18

0.14

6.3

24.2

59.0

LiYY2014

20

0.14

6.6

26.9

65.0

LiYY2114

21

0.14

6.9

28.2

69.0

LiYY2414

24

0.14

7.3

32.3

73.0


LiYY0325

3

0.25

3.6

7.2

20.0

LiYY0425

4

0.25

3.9

9.6

24.0

LiYY0525

5

0.25

4.2

12.0

29.0

LiYY0625

6

0.25

4.6

14.4

34.0

LiYY0725

7

0.25

4.6

16.8

35.0

LiYY0825

8

0.25

5.2

19.2

45.0

LiYY0925

9

0.25

5.6

21.6

51.0

LiYY1025

10

0.25

5.9

24.0

51.0

LiYY1225

12

0.25

6.1

28.8

58.0

LiYY1425

14

0.25

6.4

33.6

66.0

LiYY1625

16

0.25

6.7

38.4

74.0

LiYY1825

18

0.25

7.1

43.2

83.0

LiYY2025

20

0.25

7.6

48.0

95.0

LiYY2125

21

0.25

7.9

50.4

100.0

LiYY2425

24

0.25

8.4

57.6

108.0


LiYY0234

2

0.34

4.0

6.5

23.0

LiYY0334

3

0.34

4.2

9.8

27.0

LiYY0434

4

0.34

4.6

13.1

33.0

LiYY0534

5

0.34

5.0

16.3

41.0

LiYY0634

6

0.34

5.5

19.6

49.0

LiYY0734

7

0.34

5.5

22.8

51.0

LiYY0834

8

0.34

6.5

26.1

67.0

LiYY1034

10

0.34

7.1

32.6

72.0

LiYY1234

12

0.34

7.3

39.2

83.0

LiYY1434

14

0.34

7.9

45.7

98.0

LiYY1634

16

0.34

8.3

52.2

111.0

LiYY1834

18

0.34

8.8

58.8

124.0

LiYY2034

20

0.34

9.2

65.3

137.0

LiYY2134

21

0.34

10.0

68.5

153.0

LiYY2434

24

0.34

10.6

78.3

165.0

            Note: LiYY: Means Type; 0214 Means 2 Core, 0.14mm2; V= PVC; O=LSZH

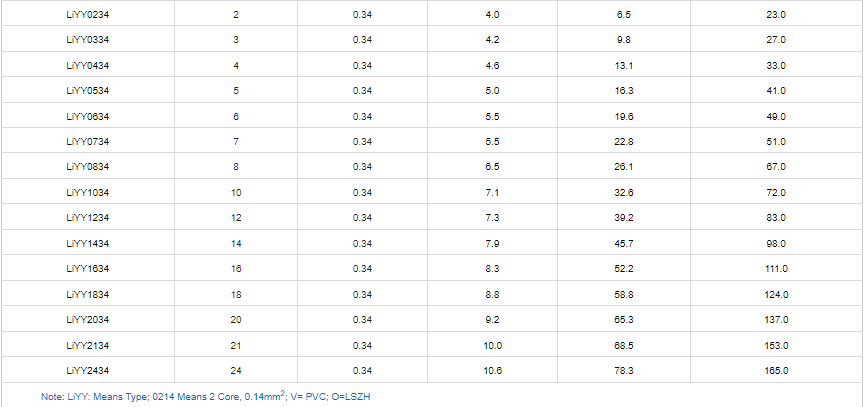

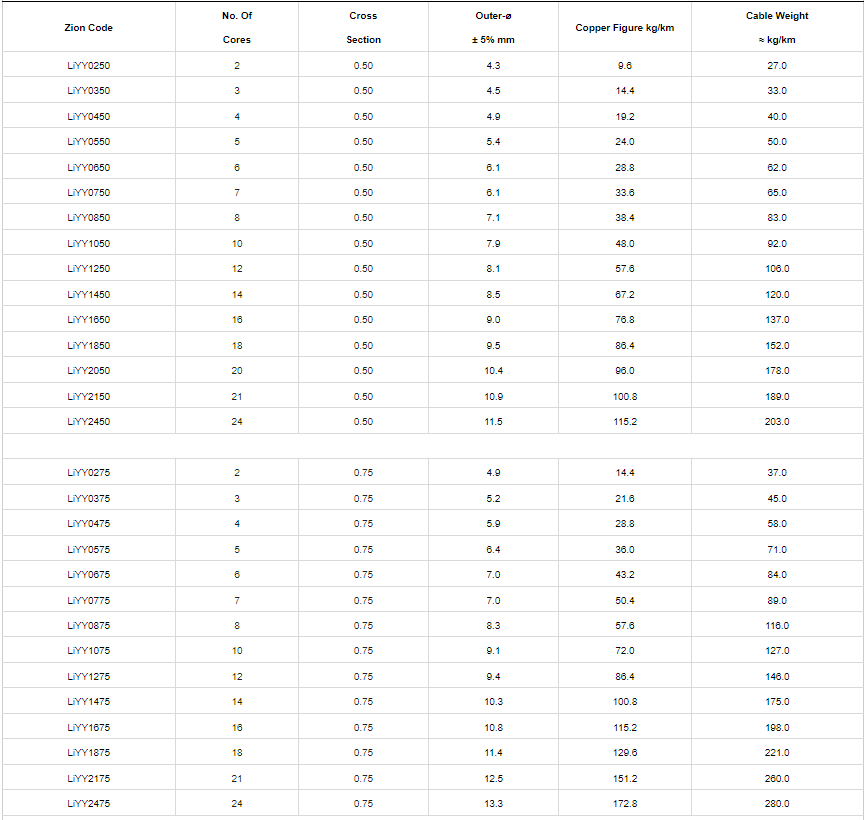

Dimensions:

Zion Code

No. Of
Cores

Cross
Section

Outer-ø
± 5% mm

Copper Figure kg/km

Cable Weight
≈ kg/km

LiYY0250

2

0.50

4.3

9.6

27.0

LiYY0350

3

0.50

4.5

14.4

33.0

LiYY0450

4

0.50

4.9

19.2

40.0

LiYY0550

5

0.50

5.4

24.0

50.0

LiYY0650

6

0.50

6.1

28.8

62.0

LiYY0750

7

0.50

6.1

33.6

65.0

LiYY0850

8

0.50

7.1

38.4

83.0

LiYY1050

10

0.50

7.9

48.0

92.0

LiYY1250

12

0.50

8.1

57.6

106.0

LiYY1450

14

0.50

8.5

67.2

120.0

LiYY1650

16

0.50

9.0

76.8

137.0

LiYY1850

18

0.50

9.5

86.4

152.0

LiYY2050

20

0.50

10.4

96.0

178.0

LiYY2150

21

0.50

10.9

100.8

189.0

LiYY2450

24

0.50

11.5

115.2

203.0


LiYY0275

2

0.75

4.9

14.4

37.0

LiYY0375

3

0.75

5.2

21.6

45.0

LiYY0475

4

0.75

5.9

28.8

58.0

LiYY0575

5

0.75

6.4

36.0

71.0

LiYY0675

6

0.75

7.0

43.2

84.0

LiYY0775

7

0.75

7.0

50.4

89.0

LiYY0875

8

0.75

8.3

57.6

116.0

LiYY1075

10

0.75

9.1

72.0

127.0

LiYY1275

12

0.75

9.4

86.4

146.0

LiYY1475

14

0.75

10.3

100.8

175.0

LiYY1675

16

0.75

10.8

115.2

198.0

LiYY1875

18

0.75

11.4

129.6

221.0

LiYY2175

21

0.75

12.5

151.2

260.0

LiYY2475

24

0.75

13.3

172.8

280.0


LiYY02100

2

1.00

5.1

19.2

43.0

LiYY03100

3

1.00

5.4

28.8

54.0

LiYY04100

4

1.00

6.1

38.4

70.0

LiYY05100

5

1.00

6.7

48.0

87.0

LiYY06100

6

1.00

7.3

57.6

103.0

LiYY07100

7

1.00

7.3

67.2

110.0


LiYY02150

2

1.50

5.6

28.8

54.0

LiYY03150

3

1.50

6.1

43.2

70.0

LiYY04150

4

1.50

6.7

57.6

87.0

LiYY05150

5

1.50

7.7

72.0

115.0

LiYY06150

6

1.50

8.4

86.4

136.0

LiYY07150

7

1.50

8.4

100.8

146.0

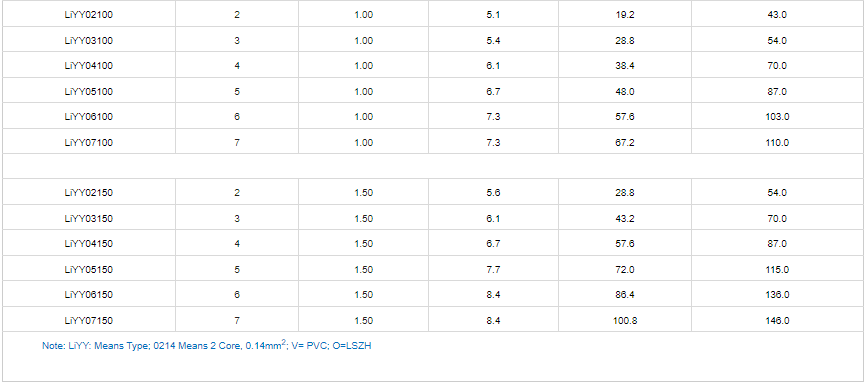

            Note: LiYY: Means Type; 0214 Means 2 Core, 0.14mm2; V= PVC; O=LSZH
